SC HF OFF-GRID INVERTER

Wirkleistungsfilter

Wie es funktioniert 1. Externer Strom Transformer Modell CT erkennt Laststrom in Echtzeit 2. Interner DSP berechnet und analysiert den Blindleistungsgehalt des Systems 3.Steuern Sie die PWM, um ein Signal an den IGBT zu senden, um einen Blindleistungskompensationsstrom für die Leistungsfaktorkompensation zu erzeugen Elektrische Eigenschaften und Spezifikationen Projekte BESCHREIBUNG Hauptmerkmale Oberschwingungsfilter Einstellung 2-51 Filterung nur unter der Funktion Oberschwingungsfilterung Oberschwingungsfilterung bei der Auswahl der Priorität ist 2 ~ 13 Automatische/Prioritätsfunktion Der Benutzer kann auch Prioritätsfunktionen einstellen, einschließlich H + Q/Q + H/Q + H + B/H + Q + B Q Leistungsfaktor H Oberschwingungsfilterung B Unwucht siehe Tabelle 4-1 ANWENDUNG Hotel Parkplatz Auto Ladestation Auto 4S Shop IDC Krankenhaus Eisenbahn Wasseraufbereitung und andere nichtlineare Lasten Elektrisch Nennspannung 380/400 Vac oder 690 Vac Verkabelung 3P3W oder 3P4W Häufigkeit 50 2 Hz Kapazität 20 ~ 100A nach SVG-Typ Verbrauch von Modulen < 2 kW Effizienz Bis 97,51 t/t Schaltfrequenz 20 kHz Reaktionszeit Schnelle Reaktionszeit < 50 s Gesamtansprechzeit < 5ms CT-Verhältnis 150:5 ~ 6000:5 Parallel Bis zu 5 anpassbar Terminal Kommunikation RS485 Umwelt Das Betriebsumfeld Keine Feuchtigkeit, Staub, korrosive oder brennbare Gase, Ölnebel, Dampf, Wasserlecks oder Salzwasser in Innenräumen Höhe über dem Meeresspiegel < 1000m anpassbar Betriebstemperatur -20 ° C ~ + 50 ° C von 40 ° C bis 50 ° C erfordert eine Reduzierung von mehr als 40 ° C alle 1 ° C um 21 TP1T Maximale zulässige Temperatur von 50 ° C Luftfeuchtigkeit Weniger als 95%RH ohne Kondensation Lagertemperatur -20°C ~ +70°C Die Vibration Weniger als 5,9 m/s2 (0,6 g The Enclosed Schutzgrad IP20 Farbe 7035 grau anpassbar Abmessungen Siehe APF-Abmessungen nach APF-Typ Kühlung Lüfterkühlung

Home Energiespeichersysteme

Produktparameter DC Eingang Batteriekasten PV-Eingangsleistung max. 6500W Anzahl der Batteriemodule 2 PV-Eingangsspannung max. 370V Speicherkapazität 15 kWh Startspannung 150V Nennspannung 51.2 V Maximaler Leistungsspannungsbereich 120-450V Batteriespannungsbereich 42-57V MPPT-Nummer 1 Maximaler Entladestrom 150a -Max. Anzahl der PV-Strings pro MPPT 1 Typ der Batterie LFP AC Ein- und Ausgänge Die Marke der Batterie / Normale AC-Eingangsleistung 5000W Kühlung / Normale AC-Ausgangsleistung 5000W Schutz BMS intern Scheinbare Leistung des maximalen Wechselstromausgangs 6000VA Batteriekomponenten Maximaler AC-Ausgangsstrom / Normale Ausgangsspannung 220VAC Kapazität der Module 7,5 kWh Wechselspannungsbereich MAX240VAC Abmessungen des Moduls (B × H × T) T214 * W550 * H621mm Normale Ausgangsfrequenz 50/60 Hz Gewicht der Module / Ausgangsleistungsfaktor 0,8 führend-0,8 rückständig ALLGEMEINE BESTIMMUNGEN Ausgabe THDi (@Norminal Output) < 3% Umweltschutzquote IP21 Batterieein- und -ausgang Umgebungstemperaturrate -25 ~ 45 °C Nennspannung 51.2 V Kommunikation 4G/WiFi Bailey Spannungsbereich 42-57V Fernzugriff Application/Website Maximaler Ladestrom 80a Options-Wechselrichter 2 Jahre Maximaler Entladestrom 150a Barreri Volat Barreri 5 Jahre Abmessungen (B × H × T) Blockschaltbild des Systems

Hybrid PV Energy Storage Solar Charger Inverter

Main parameters Model HT4830S80-145 HT4840S80-145 HT4850S80-145 HT4825U80-145 HT4830U80-145 HT4835U80-145 Mains mode Rated input voltage 220/230Vac 110/120Vac Input voltage range (170Vac~280Vac) ±2% (90Vac-280Vac)±2% (90Vac~140Vac) ±2% Frequency 50Hz/ 60Hz (automatic detection) Frequency range 47±0.3Hz ~ 55±0.3Hz (50Hz); 57±0.3Hz ~ 65±0.3Hz (60Hz); Overload/short circuit protection Circuit breaker Efficiency >95% Conversion time 10ms (typical) (bypass and inverter) AC backflow protection Yes Maximum bypass overload current 40A Inverter mode Output voltage waveform Pure sine wave Rated output power (VA) 3000(2600/2700 /3000) 4000(3480/360 3800/4000) 5000(4350/4500 /4800/5000) 2500(2000/2180 /2290) 3000(2500/2600 /2750) 3500(2900/3000 /3200) Rated output power (W) 3000(2600/2700 /3000) 4000(3480/360 3800/4000) 5000(4350/4500 /4800/5000) 2500(2000/2180 /2290) 3000(2500/2600 /2750) 3500(2900/3000 /3200) Power factor 1 Rated output voltage (Vac) 230Vac(200/208/220/240Vac Settable) 120Vac(100/105/110Vac Settable) Output voltage error ±5% Output frequency range (Hz) 50Hz ± 0.3Hz 60Hz ± 0.3Hz Efficiency >92% >91% Overload protection (102%<load<125%) ±10%: Report error and turn off output after 5 minutes; (125%<load150% ±10%: Report error and turn off output after 5 seconds; (102%<load<110%) ±10%: Report error and turn off output after 5 minutes; (110%<load125% ±10%: Report error and turn off output after 5 seconds; Peak power 6000VA 8000VA 10000VA 4000VA 4500VA 5000VA Loaded motor capacity 2HP 3HP 4HP 1HP 2HP 2HP Output short circuit protection Circuit breaker Bypass circuit breaker specification 63A Rated battery input voltage 48V (minimum starting voltage 44V) Battery voltage range 40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm / shutdown voltage / overvoltage alarm / overvoltage recovery…LCD screen can be set) Eco mode Load ≤ 50W AC charging Battery type Lead acid or lithium battery Maximum charge current 0-60A 0-40A Charge current error ± 5Adc Charge voltage range 40 – 58Vdc 40 – 60Vdc Short circuit protection Circuit breaker Circuit breaker specification (AC IN) 63A/(BAT) 125A Overcharge protection Alarm and turn off charging in 1 minute. PC charge Maximum PV open circuit voltage 145Vdc PV operating voltage range 60-145Vdc MPPT voltage range 60-115Vdc Battery voltage range 40-60Vdc Maximum output power 4200W PV charge current range (settable) 0-80A Charge short circuit protection BAT circuit breaker and fuse Wiring protection Reverse polarity protection Hybrid charging Max charger current specifications (AC charger+PV charger) Max charger current(can be set) 0-140A 0-120A Certified specification Specification certification CE(EN62109) EMC certification level EN61000, C2 Operating temperature range -15°C to 55°C Storage temperature range -25°C ~ 60°C RH range 5% to 95% (conformal coating protection) Noise ≤60dB Heat dissipation Forced air cooling, adjustable air speed Communicat ion interface USB/RS485 (WiFi/GPRS)/Dry Node Control Dimensions (L*W*D) 482*425*133mm Weight (kg) 13.3 Features It adopts full digital voltage and current double closed loop control, combined with advanced SPWM technology to output pure sine wave. Two output modes: mains bypass and inverter output enable uninterrupted power supply. 4 charging modes are available for choice: only PV, mains priority, PV priority, and hybrid charging. AdvancedMPPT technology with efficiency up to 99.9%. LCD screen design, with 3 LED indicators, for dynamic display of system data and run status. ON/OFF rocker switch controls AC output. Power saving mode reduces no-load loss. Intelligent variable speed fan ensures efficient heat dissipation, and thereby extends system life. It comes with double lithium battery activation modes: mains and PV, and supports lead-acid battery and lithium battery access. Multiple protections provide 360 ° all-round protection for the system. Complete protections include multi-electrical appliance air switch short circuit protection, overvoltage and undervoltage protection, overload protection, back-flow protection, etc. Horizontal installation facilitates cabinet combination installation. Lithium battery can be activated by both mains and PV panel.

1-3kVA Rack UPS

1-3KVA Rack-Mounted Online UPS Datasheet Feature： Zero Transfer time True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues DSP Digital Control Based Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life Best Loading Capability Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application Genset Compatible Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment. High Input power factor Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer Reliable design Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion Open to customization Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system Specification： Model CNH110-1KR CNH110-1KRS CNH110-2KR CNH110-2KRS CNH110-3KR CNH110-3KRS Capacity VA/W 1kVA/800W 2kVA/1.6kW 3kVA/2.4kW Topology Double Conversion Online UPS Phase Single Phase Input Single Phase Output Mains Input Wiring L/N+PE Rated Voltage 208/220/230/240VAC Voltage Range 90~300VAC Frequency Range 40Hz-70Hz Input Power Factor ≥0.99 AC Output Wiring L/N+PE Output Voltage 208/220/230/240VAC Voltage Regulation ±1% Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) Waveform Pure Sine Wave Distortion <2%(Linear Load) (THDV%) 150%Rated Load Efficiency AC/AC Mode 0.88 0.89 0.9 DC/AC Mode 0.86 0.87 0.88 Battery&Charge Rated Battery Voltage 24VDC Internal 36VDC External 48VDC Internal 72VDC External 48VDC Internal 96VDC External Battery Capacity 12V/7AH X2pcs External Battery Depends 12V/7AHx4pcs External Battery Depends 12V/9AH x4pcs External Battery Depends Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load Charging Current Standard Model with Internal Battery:1A Long Backup Time Model :4A Physical Chassis Style Rack-Mounted Rack Dimension 1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D) 3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery Weight (kg) 13 8.5 18.5 11.5 21.9 12 HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status Standards Communication Interface 1. RS232 PORT Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card, 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping Operating Environment Endurance Temperature range -10~50oC Relative Humidity 0-98%（Non-condensing） Acoustics Noise <55dB @ 1 meters UPS Outlook③ Front View CNH110-1KR(S)/CNH110-2KR(S)/CNH110-3KR(S) 2U Rack-Mounted UPS Rear View CNH110-1KR(S)/CNH110-2KR(S) 2U Rack-Mounted UPS Rear Panel CNH110-3KR(S) 2U Rack-Mounted UPS Rear Panel Note: ① Battery Capacity and voltage is open to customization ② Dimension might vary for different bezel ③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order ④ More parameter customization，please contact sales representative

6-10KVA Rack Mount UPS

6~10kVA ONLINE UPS – Rack Mount Style Datasheet Feature： Zero Transfer time True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues. DSP Digital Control Based Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply Three Level Inverter Low harmony noise, high efficiency , excellent loading capability Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life Best Loading Capability Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application Genset Compatible Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment. High Input power factor Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer Reliable design Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion. Open to customization Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system Specification： Model CNH110-6KRS CNH110-10KRS Capacity VA/W 6kVA/5.4kW 10kVA/9kW Topology Double Conversion Online UPS Phase Single Phase Input Single Phase Output Mains Input Wiring L/N+PE Rated Voltage 208/220/230/240Vac Voltage Range 90~300VAC Frequency Range 40Hz-70Hz Input Power Factor ≥0.99 AC Output Wiring L/N+PE Output Voltage 208/220/230/240VAC Voltage Regulation ±1% Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) Waveform Pure Sine Wave Distortion <2%(Linear Load) (THDV%) 150%Rated Load Efficiency AC/AC Mode >93% DC/AC Mode >91% Battery&Charge Rated Battery Voltage 192/240VDC External Battery Battery Capacity External Battery Depends Backup Time External Battery Depends Charging Current Long Backup Time Model :4A Physical Chassis Style Rack-Mounted Rack Dimension UPS: 438mm(W) x 88mm(2U)(H) x 500mm(D) without Internal Battery Battery Pack: 438mm(W) x 88mm(2U)(H) x500mm(D) Weight (kg) C6KRS : 14.6kg C10KRS: 15.0kg Battery Pack: 7AHx16pcs: 39kg HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status Standards Communication Interface 1. RS232 PORT Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card, 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping Operating Environment Endurance Temperature range -10~50oC Relative Humidity 0-98%（Non-condensing） Acoustics Noise <55dB @ 1 meters UPS Outlook③ Front View CNH110-6KRS~CNH110-10KRS 2U Rack UPS CCNH110-6KRS~CNH110-10KRS Rack UPS Rear Panel Note: ① Battery Capacity and voltage is open to customization ② Dimension might vary for different bezel ③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order ④ More parameter customization，please contact sales representative

6-10KVA Tower UPS

6~10kVA ONLINE UPS – Tower Style Datasheet Feature： Zero Transfer time True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues. DSP Digital Control Based Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply Three Level Inverter Low harmony noise, high efficiency , excellent loading capability Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life Best Loading Capability Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application Genset Compatible Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment. High Input power factor Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer Reliable design Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion. Open to customization Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system Specification： Model CNH110-6K CNH110-6KS CNH110-10K CNH110-10KS Capacity VA/W 6kVA/5.4kW 10kVA/9kW Topology Double Conversion Online UPS Phase Single Phase Input Single Phase Output Mains Input Wiring L/N+PE Rated Voltage 208/220/230/240Vac Voltage Range 90~300VAC Frequency Range 40Hz-70Hz Input Power Factor ≥0.99 AC Output Wiring L/N+PE Output Voltage 208/220/230/240VAC Voltage Regulation ±1% Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) Waveform Pure Sine Wave Distortion <2%(Linear Load) (THDV%) 150%Rated Load Efficiency AC/AC Mode >93% DC/AC Mode >91% Battery&Charge Rated Battery Voltage 144/192VDC Internal/ 192/240VDC External 192VDC Internal 192/240VDC External Battery Capacity 12V/7AHx12Pcs/ 12V/7AHx16Pcs External Battery Depends 12V/7AHx16Pcs/ 12V/9AHx16Pcs External Battery Depends Backup Time >6mins @ Half Load >6mins @ Half Load Charging Current Standard Model with Internal Battery:1A Long Backup Time Model :4A Physical Chassis Style Tower Tower Dimension C6KS, C10kS: 190(W)X340(H)x534(D)mm C6K-12BAT:190(W)X360(H)x534(D)mm C6K-16BAT, C10K: 190(W)X456(H)x534(D) Weight (kg) C6K-12BAT: 37kg C6K-16BAT: 46.5kg 14.8kg C10K-7AHx16: 47.8kg C10K-9AHx16: 54.2kg 16kg HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status Standards Communication Interface 1. RS232 PORT Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card, 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping Operating Environment Endurance Temperature range -10~50oC Relative Humidity 0-98%（Non-condensing） Acoustics Noise <55dB @ 1 meters UPS Outlook③ Front View CNH110-6KS/10KS/ CNH110-6K-12BAT Bezel CNH110-6K/10K-16BAT Bezel Rear Panel CNH110-6K(S)~CNH110-10K(S) Rear Panel Note: ① Battery Capacity and voltage is open to customization ② Dimension might vary for different bezel ③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order ④ More parameter customization，please contact sales representative

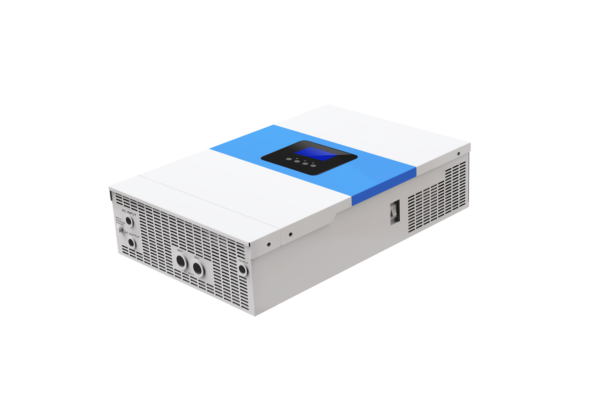

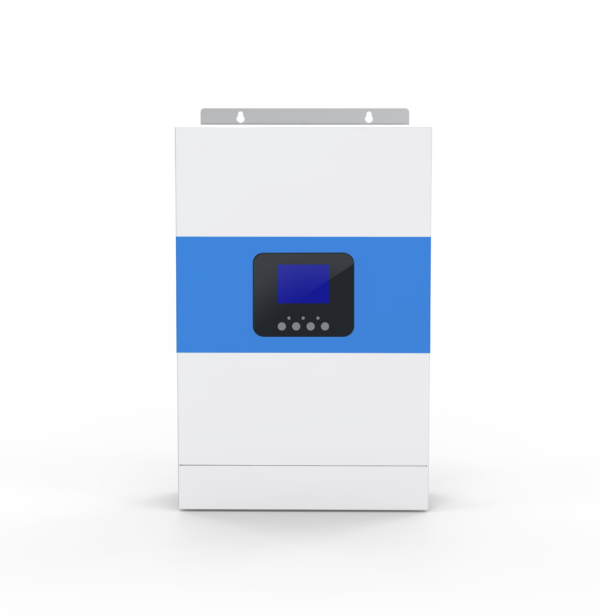

Das Modell	SC HF 3500-24	SC HF 5500-48
Nennleistung	3500VA/3000W	5500VA/5500W
Eingabe
Spannung	230VAC
Spannungsbereich	170-280VAC (für PC) 90-280VAC (für Haushaltsgeräte)
Frequenzbereich	50Hz/60Hz (automatische Anpassung)
Output
Netzspannungsregelung (Batteriebetrieb)	230 VAC ± 51 TP 1 T
Überspannungsleistung	7000VA	11000VA
Effizienz	> 93.61 tp1t
Umschaltzeit	10ms
Die Wellenform	Reine Sinuswelle
Batterien
Batteriespannung	24VDC	48VDC
Schwimmende Ladespannung	27VDC	54VDC
Überladeschutz	33VDC	63VDC
Photovoltaik-Laden und Wechselstrom-Laden
Maximale Leerlaufspannung	500VDC	500VDC
Maximale Leistung der Photovoltaik	5500W	5500W
Maximales Gitter	80a	80a
MPPT Betriebsspannungsbereich	120VDC-450VDC	120VDC-450VDC
PV max.	100a	100a
Ladestrom
Physikalische Eigenschaften
Abmessungen	300110462
Nettogewicht (kg)	10.5	11.5
Kommunikationsschnittstelle	RS232
Umwelt
Humidity	Relative Luftfeuchtigkeit (nicht kondensierend)
Betriebstemperatur	-10°C-50°C
Lagertemperatur	-15°C-60°C

Wir sind spezialisiert auf Backup-Stromversorgungslösungen für eine Vielzahl von Anwendungen
