Filtro de potencia activo

Principio de funcionamiento 1.La corriente externa Transformer model CT puede detectar la corriente de carga en tiempo real 2.El DSP interno calcula y analiza el contenido de potencia reactiva del sistema 3.Controle PWM para enviar señales a IGBT para generar corriente de compensación de potencia reactiva para la compensación del factor de potencia Características y especificaciones eléctricas Proyecto Descripción La función principal Filtro armónico Establecer 2-51 veces el filtrado solo en la función de filtrado armónico Filtrado armónico de 2 a 13 cuando se selecciona la prioridad Función automática/de prioridad Los usuarios también pueden establecer funciones de prioridad incluyendo H + Q/Q + H/Q + H + B/H + Q + B Factor de potencia H Filtro armónico B Desequilibrio B Ver Tabla 4-1 Aplicación Estacionamiento del hotel Estación de carga de automóviles Tienda de automóviles 4S Hospital IDC Tratamiento de agua ferroviaria y otras cargas no lineales Eléctrico Tensión nominal 380/400Vac o 690Vac Cableado 3P3W o 3P4W Frecuencia 50 2 Hz Capacidad 20 ~ 100A según el tipo SVG Consumo del módulo < 2kW Eficiencia Hasta 97.51 toneladas/tonelada Frecuencia de conmutación 20 kHz Tiempo de respuesta Tiempo de respuesta rápida < 50 μs Tiempo total de respuesta < 5 ms Relación CT 150: 5 ~ 6000: 5 Paralelo Hasta 5 personalizables Terminal Comunicación RS485 Medio ambiente Entorno empresarial Polvo interior sin humedad Corrosión o gas inflamable Fugas de vapor o salmuera Altura del mar < 1000m personalizable Temperatura de funcionamiento -20 ℃ ~ + 50 ℃ de 40 ℃ a 50 ℃ necesitan reducir la cantidad de 40 ℃ o más por cada 1 ℃ para aumentar la caída de temperatura máxima permitida de 2% 50 ℃ Humedad Menos de 95%RH sin condensación Temperatura de almacenamiento -20 ℃ ~ + 70 ℃ Vibración Menos de 5,9 m/s2 (0,6 g Cierre Protección IP20 Color 7035 gris personalizable Tamaño Ver el tamaño de APF según el tipo de APF Enfriamiento Enfriamiento del ventilador

SC HF OFF-GRID INVERTER

SC HF OFF-GRID INVERTER PERFORMANCE AND FUNCTIONALITY Pure sine wave off-grid type optical storage integrated machine Output power factor1 Up to 6 units can be Paralleled Wide PV input voltage range (120-450VDC) It can work normally without a battery Built-in 100A MPPT solar charger The battery balancing feature optimizes battery performance and extends the life Built-in dust screen for use in harsh environments SCENARIOS Mainly used in household solar power generation, used to drive household small power load of electrical appliances. Model SC HF 3500-24 SC HF 5500-48 Rated power 3500VA/3000W 5500VA/5500W Input Voltage 230VAC Voltage range 170-280VAC（suitable for personal computers） 90-280VAC（Suitable for household appliances） Frequency range 50Hz/60Hz（Automatic adaptation） Output Grid voltage regulation(battery mode) 230VAC±5% Surge power 7000VA 11000VA Efficiency >93.6% Switch time 10ms Waveform Pure sine wave Battery Battery voltage 24VDC 48VDC Float charge voltage 27VDC 54VDC Overcharge protection 33VDC 63VDC PV Charge &AC Charge PV maximum open-circuit voltage 500VDC 500VDC PV maximum power 5500W 5500W Maximum grid 80A 80A MPPT operating voltage range 120VDC-450VDC 120VDC-450VDC PV maximum 100A 100A charge current Physical properties Size 300*110*462 Net weight (kg) 10.5 11.5 Communication interface RS232 Environment Humidity Relative humidity (non-condensing) Operating temperature -10℃-50℃ Storage temperature -15℃-60℃

Hybrid PV Energy Storage Solar Charger Inverter

Main parameters Model HT4830S80-145 HT4840S80-145 HT4850S80-145 HT4825U80-145 HT4830U80-145 HT4835U80-145 Mains mode Rated input voltage 220/230Vac 110/120Vac Input voltage range (170Vac~280Vac) ±2% (90Vac-280Vac)±2% (90Vac~140Vac) ±2% Frequency 50Hz/ 60Hz (automatic detection) Frequency range 47±0.3Hz ~ 55±0.3Hz (50Hz); 57±0.3Hz ~ 65±0.3Hz (60Hz); Overload/short circuit protection Circuit breaker Efficiency >95% Conversion time 10ms (typical) (bypass and inverter) AC backflow protection Yes Maximum bypass overload current 40A Inverter mode Output voltage waveform Pure sine wave Rated output power (VA) 3000(2600/2700 /3000) 4000(3480/360 3800/4000) 5000(4350/4500 /4800/5000) 2500(2000/2180 /2290) 3000(2500/2600 /2750) 3500(2900/3000 /3200) Rated output power (W) 3000(2600/2700 /3000) 4000(3480/360 3800/4000) 5000(4350/4500 /4800/5000) 2500(2000/2180 /2290) 3000(2500/2600 /2750) 3500(2900/3000 /3200) Power factor 1 Rated output voltage (Vac) 230Vac(200/208/220/240Vac Settable) 120Vac(100/105/110Vac Settable) Output voltage error ±5% Output frequency range (Hz) 50Hz ± 0.3Hz 60Hz ± 0.3Hz Efficiency >92% >91% Overload protection (102%<load<125%) ±10%: Report error and turn off output after 5 minutes; (125%<load150% ±10%: Report error and turn off output after 5 seconds; (102%<load<110%) ±10%: Report error and turn off output after 5 minutes; (110%<load125% ±10%: Report error and turn off output after 5 seconds; Peak power 6000VA 8000VA 10000VA 4000VA 4500VA 5000VA Loaded motor capacity 2HP 3HP 4HP 1HP 2HP 2HP Output short circuit protection Circuit breaker Bypass circuit breaker specification 63A Rated battery input voltage 48V (minimum starting voltage 44V) Battery voltage range 40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm / shutdown voltage / overvoltage alarm / overvoltage recovery…LCD screen can be set) Eco mode Load ≤ 50W AC charging Battery type Lead acid or lithium battery Maximum charge current 0-60A 0-40A Charge current error ± 5Adc Charge voltage range 40 – 58Vdc 40 – 60Vdc Short circuit protection Circuit breaker Circuit breaker specification (AC IN) 63A/(BAT) 125A Overcharge protection Alarm and turn off charging in 1 minute. PC charge Maximum PV open circuit voltage 145Vdc PV operating voltage range 60-145Vdc MPPT voltage range 60-115Vdc Battery voltage range 40-60Vdc Maximum output power 4200W PV charge current range (settable) 0-80A Charge short circuit protection BAT circuit breaker and fuse Wiring protection Reverse polarity protection Hybrid charging Max charger current specifications (AC charger+PV charger) Max charger current(can be set) 0-140A 0-120A Certified specification Specification certification CE(EN62109) EMC certification level EN61000, C2 Operating temperature range -15°C to 55°C Storage temperature range -25°C ~ 60°C RH range 5% to 95% (conformal coating protection) Noise ≤60dB Heat dissipation Forced air cooling, adjustable air speed Communicat ion interface USB/RS485 (WiFi/GPRS)/Dry Node Control Dimensions (L*W*D) 482*425*133mm Weight (kg) 13.3 Features It adopts full digital voltage and current double closed loop control, combined with advanced SPWM technology to output pure sine wave. Two output modes: mains bypass and inverter output enable uninterrupted power supply. 4 charging modes are available for choice: only PV, mains priority, PV priority, and hybrid charging. AdvancedMPPT technology with efficiency up to 99.9%. LCD screen design, with 3 LED indicators, for dynamic display of system data and run status. ON/OFF rocker switch controls AC output. Power saving mode reduces no-load loss. Intelligent variable speed fan ensures efficient heat dissipation, and thereby extends system life. It comes with double lithium battery activation modes: mains and PV, and supports lead-acid battery and lithium battery access. Multiple protections provide 360 ° all-round protection for the system. Complete protections include multi-electrical appliance air switch short circuit protection, overvoltage and undervoltage protection, overload protection, back-flow protection, etc. Horizontal installation facilitates cabinet combination installation. Lithium battery can be activated by both mains and PV panel.

UPS en rack 1-3kVA

1-3KVA Rack-Mounted Online UPS Datasheet Feature： Zero Transfer time True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues DSP Digital Control Based Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life Best Loading Capability Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application Genset Compatible Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment. High Input power factor Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer Reliable design Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion Open to customization Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system Specification： Model CNH110-1KR CNH110-1KRS CNH110-2KR CNH110-2KRS CNH110-3KR CNH110-3KRS Capacity VA/W 1kVA/800W 2kVA/1.6kW 3kVA/2.4kW Topology Double Conversion Online UPS Phase Single Phase Input Single Phase Output Mains Input Wiring L/N+PE Rated Voltage 208/220/230/240VAC Voltage Range 90~300VAC Frequency Range 40Hz-70Hz Input Power Factor ≥0.99 AC Output Wiring L/N+PE Output Voltage 208/220/230/240VAC Voltage Regulation ±1% Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) Waveform Pure Sine Wave Distortion <2%(Linear Load) (THDV%) 150%Rated Load Efficiency AC/AC Mode 0.88 0.89 0.9 DC/AC Mode 0.86 0.87 0.88 Battery&Charge Rated Battery Voltage 24VDC Internal 36VDC External 48VDC Internal 72VDC External 48VDC Internal 96VDC External Battery Capacity 12V/7AH X2pcs External Battery Depends 12V/7AHx4pcs External Battery Depends 12V/9AH x4pcs External Battery Depends Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load Charging Current Standard Model with Internal Battery:1A Long Backup Time Model :4A Physical Chassis Style Rack-Mounted Rack Dimension 1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D) 3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery Weight (kg) 13 8.5 18.5 11.5 21.9 12 HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status Standards Communication Interface 1. RS232 PORT Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card, 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping Operating Environment Endurance Temperature range -10~50oC Relative Humidity 0-98%（Non-condensing） Acoustics Noise <55dB @ 1 meters UPS Outlook③ Front View CNH110-1KR(S)/CNH110-2KR(S)/CNH110-3KR(S) 2U Rack-Mounted UPS Rear View CNH110-1KR(S)/CNH110-2KR(S) 2U Rack-Mounted UPS Rear Panel CNH110-3KR(S) 2U Rack-Mounted UPS Rear Panel Note: ① Battery Capacity and voltage is open to customization ② Dimension might vary for different bezel ③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order ④ More parameter customization，please contact sales representative

6-10KVA Rack Mount UPS

6~10kVA ONLINE UPS – Rack Mount Style Datasheet Feature： Zero Transfer time True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues. DSP Digital Control Based Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply Three Level Inverter Low harmony noise, high efficiency , excellent loading capability Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life Best Loading Capability Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application Genset Compatible Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment. High Input power factor Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer Reliable design Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion. Open to customization Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system Specification： Model CNH110-6KRS CNH110-10KRS Capacity VA/W 6kVA/5.4kW 10kVA/9kW Topology Double Conversion Online UPS Phase Single Phase Input Single Phase Output Mains Input Wiring L/N+PE Rated Voltage 208/220/230/240Vac Voltage Range 90~300VAC Frequency Range 40Hz-70Hz Input Power Factor ≥0.99 AC Output Wiring L/N+PE Output Voltage 208/220/230/240VAC Voltage Regulation ±1% Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) Waveform Pure Sine Wave Distortion <2%(Linear Load) (THDV%) 150%Rated Load Efficiency AC/AC Mode >93% DC/AC Mode >91% Battery&Charge Rated Battery Voltage 192/240VDC External Battery Battery Capacity External Battery Depends Backup Time External Battery Depends Charging Current Long Backup Time Model :4A Physical Chassis Style Rack-Mounted Rack Dimension UPS: 438mm(W) x 88mm(2U)(H) x 500mm(D) without Internal Battery Battery Pack: 438mm(W) x 88mm(2U)(H) x500mm(D) Weight (kg) C6KRS : 14.6kg C10KRS: 15.0kg Battery Pack: 7AHx16pcs: 39kg HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status Standards Communication Interface 1. RS232 PORT Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card, 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping Operating Environment Endurance Temperature range -10~50oC Relative Humidity 0-98%（Non-condensing） Acoustics Noise <55dB @ 1 meters UPS Outlook③ Front View CNH110-6KRS~CNH110-10KRS 2U Rack UPS CCNH110-6KRS~CNH110-10KRS Rack UPS Rear Panel Note: ① Battery Capacity and voltage is open to customization ② Dimension might vary for different bezel ③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order ④ More parameter customization，please contact sales representative

6-10KVA Tower UPS

6~10kVA ONLINE UPS – Tower Style Datasheet Feature： Zero Transfer time True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues. DSP Digital Control Based Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply Three Level Inverter Low harmony noise, high efficiency , excellent loading capability Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life Best Loading Capability Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application Genset Compatible Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment. High Input power factor Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer Reliable design Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion. Open to customization Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system Specification： Model CNH110-6K CNH110-6KS CNH110-10K CNH110-10KS Capacity VA/W 6kVA/5.4kW 10kVA/9kW Topology Double Conversion Online UPS Phase Single Phase Input Single Phase Output Mains Input Wiring L/N+PE Rated Voltage 208/220/230/240Vac Voltage Range 90~300VAC Frequency Range 40Hz-70Hz Input Power Factor ≥0.99 AC Output Wiring L/N+PE Output Voltage 208/220/230/240VAC Voltage Regulation ±1% Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) Waveform Pure Sine Wave Distortion <2%(Linear Load) (THDV%) 150%Rated Load Efficiency AC/AC Mode >93% DC/AC Mode >91% Battery&Charge Rated Battery Voltage 144/192VDC Internal/ 192/240VDC External 192VDC Internal 192/240VDC External Battery Capacity 12V/7AHx12Pcs/ 12V/7AHx16Pcs External Battery Depends 12V/7AHx16Pcs/ 12V/9AHx16Pcs External Battery Depends Backup Time >6mins @ Half Load >6mins @ Half Load Charging Current Standard Model with Internal Battery:1A Long Backup Time Model :4A Physical Chassis Style Tower Tower Dimension C6KS, C10kS: 190(W)X340(H)x534(D)mm C6K-12BAT:190(W)X360(H)x534(D)mm C6K-16BAT, C10K: 190(W)X456(H)x534(D) Weight (kg) C6K-12BAT: 37kg C6K-16BAT: 46.5kg 14.8kg C10K-7AHx16: 47.8kg C10K-9AHx16: 54.2kg 16kg HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status Standards Communication Interface 1. RS232 PORT Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card, 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping Operating Environment Endurance Temperature range -10~50oC Relative Humidity 0-98%（Non-condensing） Acoustics Noise <55dB @ 1 meters UPS Outlook③ Front View CNH110-6KS/10KS/ CNH110-6K-12BAT Bezel CNH110-6K/10K-16BAT Bezel Rear Panel CNH110-6K(S)~CNH110-10K(S) Rear Panel Note: ① Battery Capacity and voltage is open to customization ② Dimension might vary for different bezel ③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order ④ More parameter customization，please contact sales representative

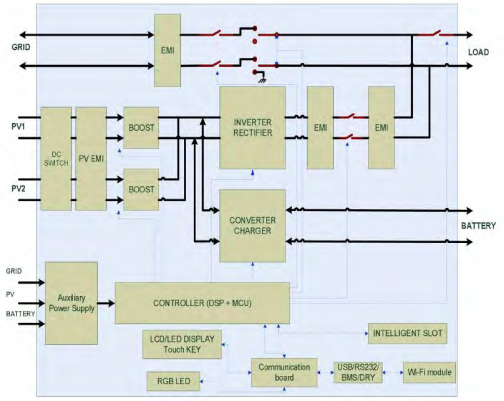

DC *Entrada*		*Batería* *Caja*
Potencia máxima de entrada PV	6500W	Número de módulos de batería	2
Voltaje máximo de entrada PV	370V	Capacidad de almacenamiento	15 kilovatios-hora
Arranque el voltaje	150V	Voltaje nominal	51.2V
Rango máximo de voltaje de potencia	120-450 V	Rango de voltaje de la batería	42-57V
Número MPPT	1	La corriente de descarga máxima	150a
Max. Número de cadenas PV por MPPT	1	Tipo de batería	LFP
*Intercambio* *Entrada* Y *Salida*		Marca de batería	/
Potencia de entrada de CA normal	5000W	Enfriamiento	/
Potencia de salida de CA normal	5000W	Protección	Dentro de BMS
Máxima potencia aparente de salida de CA	6000VA	*Batería* *Módulo*
La corriente máxima de salida de CA	/
Voltaje de salida normal	220VAC	Capacidad del módulo	7.5 kWh
Rango de voltaje de CA	MAX240VAC	Tamaño del módulo (W × H × D)	T214 * W550 * H621mm
Frecuencia de salida normal	50/60 Hz	Peso del módulo	/
Factor de potencia de salida	Líder 0.8-detrás de 0.8	*General* *SpeechRecibidoCatión*
Salida THDI (@Norminal Output)	< 3%	Tasa de protección ambiental	IP21
*Batería* *Entrada* Y *Salida*		Tasa de temperatura ambiente	-25 ~ 45 ° C
Voltaje de referencia nominal	51.2V	Comunicación	4G/WiFi
Rango de voltaje Berry	42-57V	Acceso remoto	Aplicación/sitio web
Corriente de carga máxima	80a	Inversor de warrants	2 años
La corriente de descarga máxima	150a	Barri Vorat Barray	5 años
Tamaño (W × H × D)

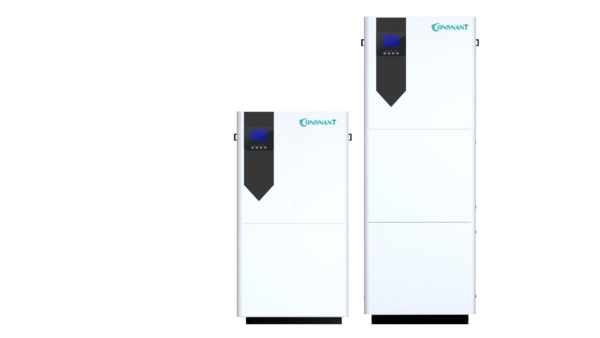

Sistema de almacenamiento de energía de la página de inicio
