True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
Three Level Inverter
Low harmony noise, high efficiency , excellent loading capability
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life
Best Loading Capability
Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.
Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system
Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication Interface
1. RS232 PORT
Optional Extension Card
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
3. MODBUS Card,
4. USB Card
5. Relay Card (Needs assembly according to order request before shipping
Operating Environment Endurance
Temperature range
-10~50oC
Relative Humidity
0-98%（Non-condensing）
Acoustics Noise
<55dB @ 1 meters

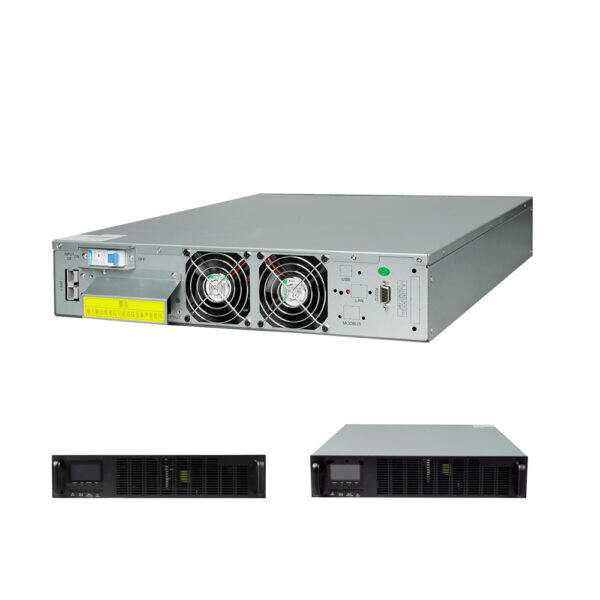

UPS Outlook③

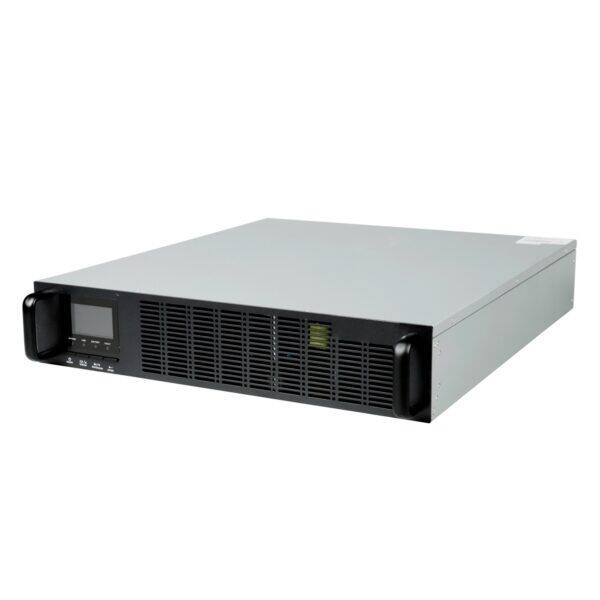

Front View
CNH110-6KRS~CNH110-10KRS 2U Rack UPS

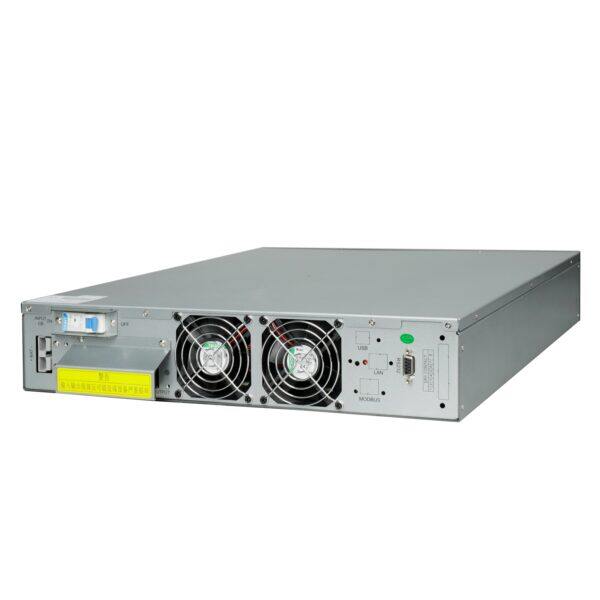

CCNH110-6KRS~CNH110-10KRS Rack UPS Rear Panel
Note:
① Battery Capacity and voltage is open to customization
② Dimension might vary for different bezel
③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order
④ More parameter customization，please contact sales representative
Releated
Active Power Filter (APF)
working principles
1. External current transformer(CT)could detect real-time load current .
2. Internal DSP calculates and analyzes the reactive power content of the system.
3. Control PWM to send signal to IGBT to generate reactive power compensation current for power factor compensation.
Electrical Features& Specifications
Item
Description
Main Function
Harmonic Filter
Setting filtering from 2-51 times(under only harmonic filtering function)
While choose priority, the harmonic filtering is 2-13th
Auto/Priority function
The user can also set the priority function, including H+Q/ Q+H/Q+H+B/H+Q+B (Q power factor, H harmonic filtering, B, unblance )ref:Tab.4-1
Application
Hotel,Car park, Car charger station,Car 4S store,IDC, hospital,Railway,water treatment and other non-liner load
Electrical
Rated voltage
380/400Vac or 690Vac
Wiring
3P3W or 3P4W
Frequency
50±2Hz
Capacity
20~100A(According to SVG type)
Module Consumption
＜2kW
Efficiency
Up to 97.5%
switching frequency
20kHz
Response time
Fast response time＜50μs
Total response time＜5ms
CT ratio
150:5~6000:5
Parallel
Max.5 (customization acceptable)
Terminals
Communication
RS485
Environment
Operating environment
In-door, free from moisture, dust, corrodent or flammable gases, oil mist, vapor, water leakage or salt water.
Altitude
<1000m （customized acceptable）
Work temperature
-20℃~+50℃( derating is required from 40℃ to 50℃, increase every 1℃ above 40℃, derating 2%, highest temperature allowed: 50℃ )
Humidity
Less than 95%RH, no condensing
Storage temperature
-20℃~+70℃
Vibration
Less than 5.9m/s2 (0.6g)
Enclosure
Protection degree
IP20
Colour
7035 grey (customization acceptable)
Size
According to APF type(refer: APF Dimensions)
Cooling
Fan cooling
PRODUCT PARAMETERS
DC input
Battery Box
Max.PV input power
6500W
Number of battery modules
2
Max.PV input Voltage
370V
Storage capacity
15KWH
Startup voltage
150V
Nominal voltage
51.2V
MPPT voltage range
120-450V
Battery voltage range
42-57V
No.of MPPT
1
Max discharge current
150A
Max. number of PV strings per MPPT
1
Battery type
LFP
AC input and output
Battery brand
/
Norminal AC input power
5000W
Cooling
/
Norminal AC output power
5000W
Protect
BMS inside
Max.AC output Apparent power
6000VA
Battery Module
Max.AC output current
/
Norminal output voltage
220VAC
Module capacity
7.5KWh
AC voltage range
max240VAC
Module dimensions (W×H×D)
T214*W550*H621mm
Norminal output frequency
50/60Hz
Module weight
/
Ouput power factor
0.8leading -0.8lagging
General Specification
Output THDi(@Norminal output)
<3%
Enviornmental protecon rate
IP21
Battery input and output
Ambient temperature rate
-25~45ºC
Nominal baery voltage
51.2V
Communicaon
4G/WIFI
Baery voltage range
42-57V
Remote access
APP/Website
Max.charging current
80A
Warrant inverter
2years
Max.discharging current
150A
Warrant baery
5years
Dimension(W×H×D)
System block diagram
SC HF OFF-GRID INVERTER
PERFORMANCE AND FUNCTIONALITY
Pure sine wave off-grid type optical storage integrated machine
Output power factor1
Up to 6 units can be Paralleled
Wide PV input voltage range (120-450VDC)
It can work normally without a battery
Built-in 100A MPPT solar charger
The battery balancing feature optimizes battery performance and extends the life
Built-in dust screen for use in harsh environments
SCENARIOS
Mainly used in household solar power generation, used to drive household small power load of electrical appliances.
Model
SC HF 3500-24
SC HF 5500-48
Rated power
3500VA/3000W
5500VA/5500W
Input
Voltage
230VAC
Voltage range
170-280VAC（suitable for personal computers）
90-280VAC（Suitable for household appliances）
Frequency range
50Hz/60Hz（Automatic adaptation）
Output
Grid voltage regulation(battery mode)
230VAC±5%
Surge power
7000VA
11000VA
Efficiency
>93.6%
Switch time
10ms
Waveform
Pure sine wave
Battery
Battery voltage
24VDC
48VDC
Float charge voltage
27VDC
54VDC
Overcharge protection
33VDC
63VDC
PV Charge &AC Charge
PV maximum open-circuit voltage
500VDC
500VDC
PV maximum power
5500W
5500W
Maximum grid
80A
80A
MPPT operating voltage range
120VDC-450VDC
120VDC-450VDC
PV maximum
100A
100A
charge current
Physical properties
Size
300*110*462
Net weight (kg)
10.5
11.5
Communication interface
RS232
Environment
Humidity
Relative humidity (non-condensing)
Operating temperature
-10℃-50℃
Storage temperature
-15℃-60℃
Main parameters
Model
HT4830S80-145
HT4840S80-145
HT4850S80-145
HT4825U80-145
HT4830U80-145
HT4835U80-145
Mains mode
Rated input voltage
220/230Vac
110/120Vac
Input voltage range
(170Vac~280Vac) ±2%
(90Vac-280Vac)±2%
(90Vac~140Vac) ±2%
Frequency
50Hz/ 60Hz (automatic detection)
Frequency range
47±0.3Hz ~ 55±0.3Hz (50Hz);
57±0.3Hz ~ 65±0.3Hz (60Hz);
Overload/short circuit protection
Circuit breaker
Efficiency
>95%
Conversion time
10ms (typical)
(bypass and inverter)
AC backflow protection
Yes
Maximum bypass overload current
40A
Inverter mode
Output voltage waveform
Pure sine wave
Rated output power (VA)
3000(2600/2700
/3000)
4000(3480/360
3800/4000)
5000(4350/4500
/4800/5000)
2500(2000/2180
/2290)
3000(2500/2600
/2750)
3500(2900/3000
/3200)
Rated output power (W)
3000(2600/2700
/3000)
4000(3480/360
3800/4000)
5000(4350/4500
/4800/5000)
2500(2000/2180
/2290)
3000(2500/2600
/2750)
3500(2900/3000
/3200)
Power factor
1
Rated output voltage (Vac)
230Vac(200/208/220/240Vac Settable)
120Vac(100/105/110Vac Settable)
Output voltage error
±5%
Output frequency range (Hz)
50Hz ± 0.3Hz
60Hz ± 0.3Hz
Efficiency
>92%
>91%
Overload protection
(102%<load<125%) ±10%: Report error and turn off output after 5 minutes;
(125%<load<150%) ±10%: Report error and turn off output after 10 seconds;
Load>150% ±10%: Report error and turn off output after 5 seconds;
(102%<load<110%) ±10%: Report error and turn off output after 5 minutes;
(110%<load<125%) ±10%: Report error and turn off output after 10 seconds;
Load>125% ±10%: Report error and turn off output after 5 seconds;
Peak power
6000VA
8000VA
10000VA
4000VA
4500VA
5000VA
Loaded motor capacity
2HP
3HP
4HP
1HP
2HP
2HP
Output short circuit protection
Circuit breaker
Bypass circuit breaker specification
63A
Rated battery input voltage
48V (minimum starting voltage 44V)
Battery voltage range
40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm / shutdown voltage / overvoltage alarm / overvoltage recovery…LCD screen can be set)
Eco mode
Load ≤ 50W
AC charging
Battery type
Lead acid or lithium battery
Maximum charge current
0-60A
0-40A
Charge
current error
± 5Adc
Charge voltage range
40 – 58Vdc
40 – 60Vdc
Short circuit protection
Circuit breaker
Circuit breaker specification
(AC IN) 63A/(BAT) 125A
Overcharge protection
Alarm and turn off charging in 1 minute.
PC charge
Maximum PV open circuit voltage
145Vdc
PV operating voltage range
60-145Vdc
MPPT voltage range
60-115Vdc
Battery voltage range
40-60Vdc
Maximum output power
4200W
PV charge current range (settable)
0-80A
Charge short circuit protection
BAT circuit breaker and fuse
Wiring protection
Reverse polarity protection
Hybrid charging Max charger current specifications (AC charger+PV charger)
Max charger current(can be set)
0-140A
0-120A
Certified specification
Specification certification
CE(EN62109)
EMC certification level
EN61000, C2
Operating temperature range
-15°C to 55°C
Storage temperature range
-25°C ~ 60°C
RH range
5% to 95% (conformal coating protection)
Noise
≤60dB
Heat dissipation
Forced air cooling, adjustable air speed
Communicat ion interface
USB/RS485 (WiFi/GPRS)/Dry Node Control
Dimensions (L*W*D)
482*425*133mm
Weight (kg)
13.3
Features
It adopts full digital voltage and current double closed loop control, combined with advanced SPWM technology to output pure sine wave.
Two output modes: mains bypass and inverter output enable uninterrupted power supply.
4 charging modes are available for choice: only PV, mains priority, PV priority, and hybrid charging.
AdvancedMPPT technology with efficiency up to 99.9%.
LCD screen design, with 3 LED indicators, for dynamic display of system data and run status.
ON/OFF rocker switch controls AC output.
Power saving mode reduces no-load loss.
Intelligent variable speed fan ensures efficient heat dissipation, and thereby extends system life.
It comes with double lithium battery activation modes: mains and PV, and supports lead-acid battery and lithium battery access.
Multiple protections provide 360 ° all-round protection for the system.
Complete protections include multi-electrical appliance air switch short circuit protection, overvoltage and undervoltage protection, overload protection, back-flow protection, etc.
Horizontal installation facilitates cabinet combination installation.
Lithium battery can be activated by both mains and PV panel.
1-3KVA Rack-Mounted Online UPS Datasheet
Feature：
Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life
Best Loading Capability
Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion
Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system
Specification：
Model
CNH110-1KR
CNH110-1KRS
CNH110-2KR
CNH110-2KRS
CNH110-3KR
CNH110-3KRS
Capacity
VA/W
1kVA/800W（Optional 900W）
2kVA/1.6kW（Optional 1.8KW)
3kVA/2.4kW（Optional 2.7KW)
Topology
Double Conversion Online UPS
Phase
Single Phase Input Single Phase Output
Mains Input
Wiring
L/N+PE
Rated Voltage
208/220/230/240VAC
Voltage Range
90~300VAC
Frequency Range
40Hz-70Hz
Input Power Factor
≥0.99
AC Output
Wiring
L/N+PE
Output Voltage
208/220/230/240VAC
Voltage Regulation
±1%
Output Frequency
50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform
Pure Sine Wave
Distortion
<2%(Linear Load)
(THDV%)
<7%(None-Linear Load)
Over load capability
1Min@105%~125%Rated Load
30Sec.@125%~150%Rated Load
0.5Sec.@>150%Rated Load
Efficiency
AC/AC Mode
0.88
0.89
0.9
DC/AC Mode
0.86
0.87
0.88
Battery&Charge
Rated Battery Voltage
24VDC Internal
36VDC External
48VDC Internal
72VDC External
48VDC Internal
96VDC External
Battery Capacity
12V/7AH X2pcs
External Battery Depends
12V/7AHx4pcs
External Battery Depends
12V/9AH x4pcs
External Battery Depends
Backup Time
>6mins @ Half Load
>6mins @ Half Load
>6mins @ Half Load
Charging Current
Standard Model with Internal Battery:1A
Long Backup Time Model :4A
Physical
Chassis Style
Rack-Mounted
Rack Dimension
1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D)
3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery
Weight (kg)
13
8.5
18.5
11.5
21.9
12
HMI
LCD DISPLAY
Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication Interface
1. RS232 PORT
Optional Extension Card
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
3. MODBUS Card,
4. USB Card
5. Relay Card (Needs assembly according to order request before shipping
Operating Environment Endurance
Temperature range
-10~50oC
Relative Humidity
0-98%（Non-condensing）
Acoustics Noise
<55dB @ 1 meters
UPS Outlook③
Front View
CNH110-1KR(S)/CNH110-2KR(S)/CNH110-3KR(S) 2U Rack-Mounted UPS
Rear View
CNH110-1KR(S)/CNH110-2KR(S) 2U Rack-Mounted UPS Rear Panel
CNH110-3KR(S) 2U Rack-Mounted UPS Rear Panel
Note:
① Battery Capacity and voltage is open to customization
② Dimension might vary for different bezel
③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order
④ More parameter customization，please contact sales representative
6~10kVA ONLINE UPS – Tower Style Datasheet
Feature：
Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
Three Level Inverter
Low harmony noise, high efficiency , excellent loading capability
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life
Best Loading Capability
Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.
Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system
Specification：
Model
CNH110-6K
CNH110-6KS
CNH110-10K
CNH110-10KS
Capacity
VA/W
6kVA/5.4kW
10kVA/9kW
Topology
Double Conversion Online UPS
Phase
Single Phase Input Single Phase Output
Mains Input
Wiring
L/N+PE
Rated Voltage
208/220/230/240Vac
Voltage Range
90~300VAC
Frequency Range
40Hz-70Hz
Input Power Factor
≥0.99
AC Output
Wiring
L/N+PE
Output Voltage
208/220/230/240VAC
Voltage Regulation
±1%
Output Frequency
50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform
Pure Sine Wave
Distortion
<2%(Linear Load)
(THDV%)
<7%(None-Linear Load)
Over load capability
10Min@105%~125%Rated Load
60Sec.@125%~150%Rated Load
0.5Sec.@>150%Rated Load
Efficiency
AC/AC Mode
>93%
DC/AC Mode
>91%
Battery&Charge
Rated Battery Voltage
144/192VDC
Internal/
192/240VDC
External
192VDC
Internal
192/240VDC
External
Battery Capacity
12V/7AHx12Pcs/
12V/7AHx16Pcs
External Battery Depends
12V/7AHx16Pcs/
12V/9AHx16Pcs
External Battery Depends
Backup Time
>6mins @ Half Load
>6mins @ Half Load
Charging Current
Standard Model with Internal Battery:1A
Long Backup Time Model :4A
Physical
Chassis Style
Tower
Tower Dimension
C6KS, C10kS: 190(W)X340(H)x534(D)mm
C6K-12BAT:190(W)X360(H)x534(D)mm C6K-16BAT, C10K: 190(W)X456(H)x534(D)
Weight (kg)
C6K-12BAT: 37kg
C6K-16BAT: 46.5kg
14.8kg
C10K-7AHx16: 47.8kg
C10K-9AHx16: 54.2kg
16kg
HMI
LCD DISPLAY
Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication Interface
1. RS232 PORT
Optional Extension Card
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
3. MODBUS Card,
4. USB Card
5. Relay Card (Needs assembly according to order request before shipping
Operating Environment Endurance
Temperature range
-10~50oC
Relative Humidity
0-98%（Non-condensing）
Acoustics Noise
<55dB @ 1 meters
UPS Outlook③
Front View
CNH110-6KS/10KS/ CNH110-6K-12BAT Bezel
CNH110-6K/10K-16BAT Bezel
Rear Panel
CNH110-6K(S)~CNH110-10K(S) Rear Panel
Note:
① Battery Capacity and voltage is open to customization
② Dimension might vary for different bezel
③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order
④ More parameter customization，please contact sales representative
English
German
Spanish
French
Arabic
Russian
Turkish
Persian
