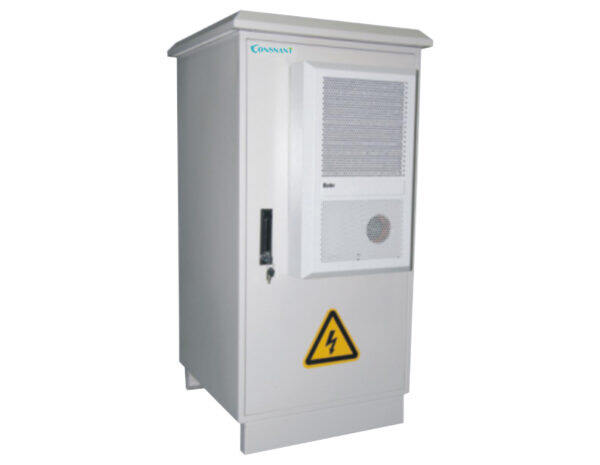

Outdoor Online UPS | CNW110

Model Number: CNW110 1-10KVA

Nominal Capacity: 1 – 10KVA

Nominal Voltage: 220VAC

Maximum Input Voltage Range: +-20%

Nominal Frequency: 50/60HZ

Application field

  • CCTV
  • Traffic Lights
  • Telecom

Additional information

Description

The CNW110 series communication side network outdoor UPS is a high-performance integrated outdoor online uninterruptible power supply system specially designed for outdoor microcellular base stations of wireless communication systems.



Application field

This UPS system is often used in urban corners, remote roads, mountainous areas, harsh environments such as high temperature (+50℃) or low temperature (-40℃), severe dust, humidity, rain, haze, and very poor power quality applications (The voltage is higher than 260V or lower than 160V for a long time, and the frequency changes abnormally)



Features

  1. Using advanced DSP digital control technology, double conversion online design
  2. The enclosure protection grade is IP55
  3. With wide input voltage range and frequency
  4. Compatible with SNMP card for real-time remote monitoring
  5. Standard 19-inch rack-mounted UPS power modules are easy to install and maintain
  6. Compatible with VRLA batteries and Li-ion battery packs
  7. Different application scenarios can be pole mounted, wall mounted or floor mounted
  8. Integrated design of various protection functions
  9. You can reserve usage space for user equipment
  10. The cabinet can choose different materials

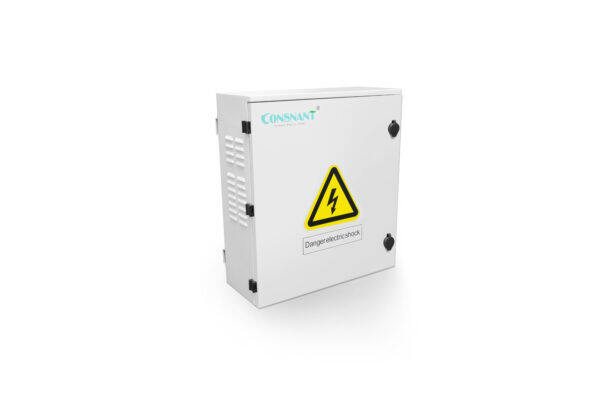

Model CNW110-1KVA CNW110-2KVA CNW110-3KVA CNW110-6KVA CNW110-10KVA
Capacity 1KVA/0.8KW 2KVA/1.6KW 3KVA/2.4KW 6KVA/4.8KW 10KVA/8KW
Nominal voltage 220/230/240VAC
Frequency 50Hz/60Hz
Input
Voltage Range 115-295VAC(±3VAC) 176-297VAC(±3VAC)
Frequency Range 50Hz(46~54Hz); 60Hz(56~64Hz)
Soft Start 0~100%5sec
Power factor 0.98
Output
Voltage Precision 220/230/240VAC x (1±2%)VAC
Frequency Precision 50Hz/60Hz±0.05Hz
Power Factor 0.7/0.8(optional) standard 0.7
Wave Distortion Linear load<3% Non-linear load<6%
Overload capacity Overload(110~150%)for 30 seconds,   then automatically transfer to bypass. When load is normal, it can   automatically transfer to normal mode.
Crest Factor 3:1
Transfer time 0ms(AC to DC)
DC Supply Voltage 36VDC 96VDC 96VDC 240VDC 240VDC
Charging current 4A/8A(optional) 4A/8A(optional) 4A/8A(optional) 4.2A 4.2A
Internal Battery Capacity (38/65/80/100AH)optional
Panel display
LED Load level/Battery level, Battery   indicator, Utility power, Inverter, Bypass, Overload, Fault
Communications
Communicate interface RS232, SNMP card (optional)
Work Environment
Temperature -40±℃-55℃
Humidity 0~95%(Non-condensing
Storage Temperature -25℃~55℃
Elevation <1500m
Physical Characteristics
Net Weight(KG) 85 125 125 150 150
Dimension:(W x D x H)mm 613*640*954 650*753*1227 650*753*1227 940*940*1770 940*940*1770
