UPS Lithium Battery 384VDC 100AH
Nominal Capacity: 100AH
Watt Hours: 38400Wh
Nominal Voltage: 384VDC

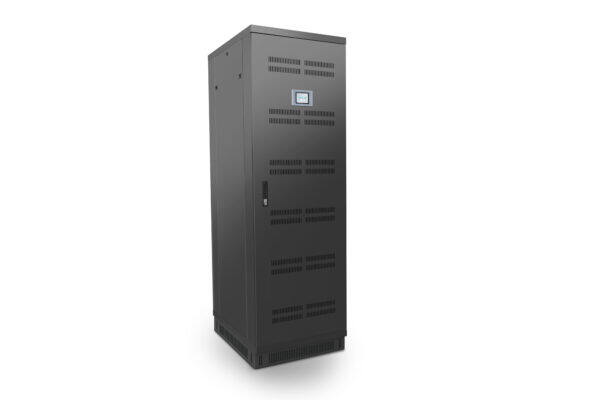

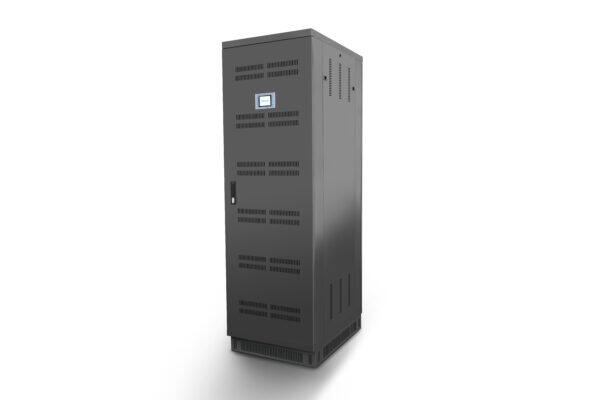

CNLP384V-100AH lithium iron phosphate battery pack for UPS

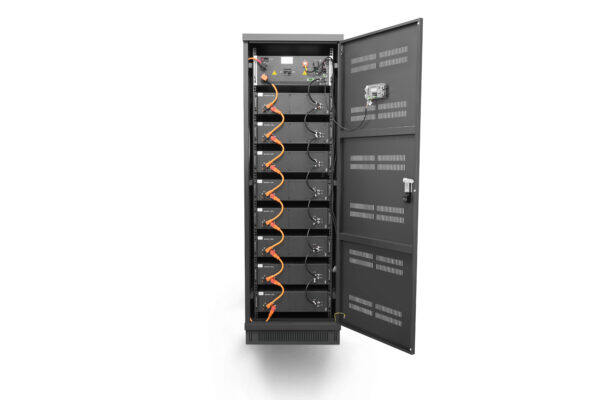

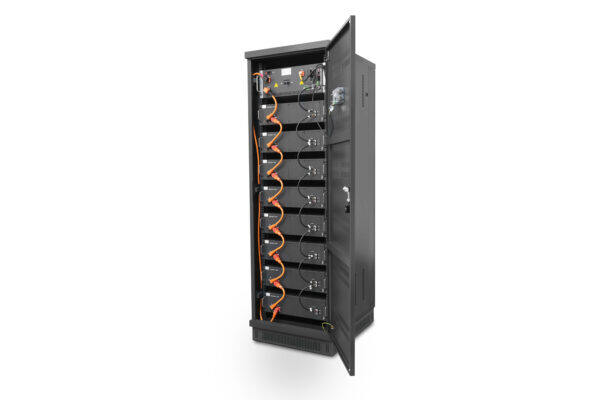

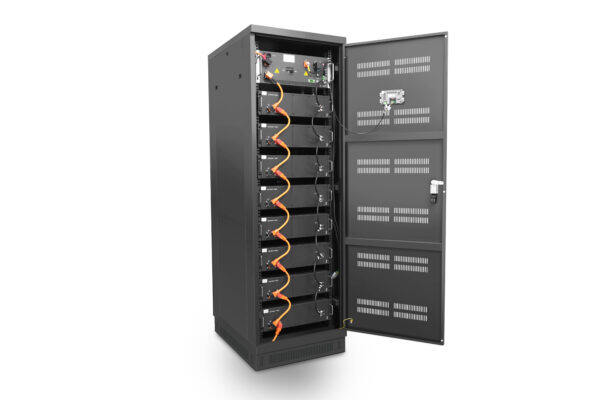

This product consists of eight 48V100Ah battery modules connected in series and a high-voltage control box, which is installed in a 19-inch cabinet.
＊New lithium iron phosphate battery, safe and reliable, long cycle life and replacement cycle.
＊ Raw materials, production and use process are green and environmentally.
The single battery is equipped with a secondary protection safety valve, which is safe and reliable.
＊ High energy density and stable discharge platform.
＊ Cabinet embedded installation dimensions, in line with EIA, ETSI specifications.
＊Small size and light weight.
＊ Plug-in connectors for easier installation and maintenance.
＊ Supporting high rate discharge for high work efficiency.
＊Strong environmental adaptability, wide operating temperature range.
＊ All-round alarm protection function(overcharge, over discharge, short circuit, overload, over current, high temperature, low temperature, balance)
＊ Remote monitoring possible.
＊ Has good electromagnetic compatibility.
＊The panel is designed with a maintenance window to easily open and remove the fuse and BMS for replacement and repair.
Basic parameters of battery pack：
|Battery type||lithium iron phosphate battery|
|Total battery voltage||384VDC|
|Battery module specifications||48V100Ah|
|Number of battery modules||8units in series|
|Single cabinet size||W600*D800*1900mm|
|Weight of a single cabinet||100Kg|
Basic parameters of battery module：
|Standard charge current||0.2C|
|Maximum recharge current||1.0C|
|Maximum discharge current||1.0C|
Basic parameters of high voltagebox：
