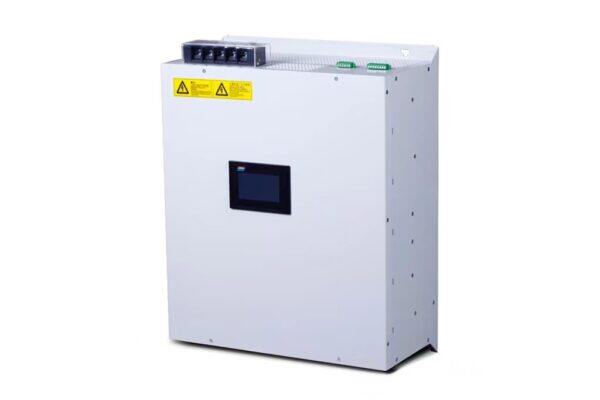

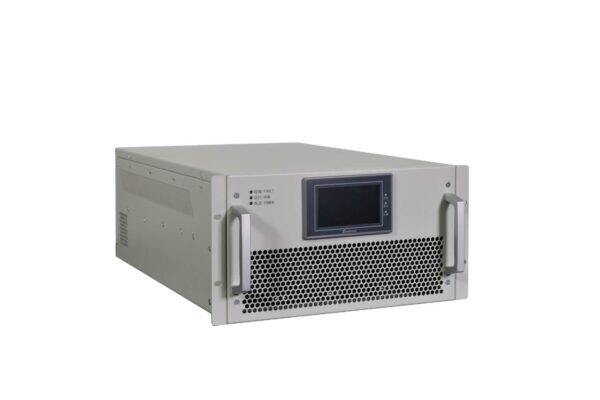

Active Power Filter (APF) - SHENZHEN CONSNANT TECHNOLOGY CO.,LTD.

система накопления энергии на главной странице

Параметры продукции вход постоянного тока аккумуляторная коробка Макс. входная мощность PV 6500W Количество модулей батареи 2 Максимальное входное напряжение PV 370V емкость памяти 15 кВт/ч пусковое напряжение 150V номинальное напряжение 51.2V диапазон максимальных мощностных напряжений 120-450V Диапазон напряжения батареи 42-57V № MPPT 1 максимальный ток разряда 150a Макс. Количество строк PV на MPPT 1 Тип батареи LFP Вход-выход переменного тока Марка батареи / нормальная входная мощность переменного тока 5000W охлаждение / нормальная выходная мощность переменного тока 5000W защита Внутри BMS максимальная видимая мощность на выходе переменного тока 6000VA аккумуляторный блок максимальный выходной ток переменного тока / нормальное выходное напряжение 220VAC ёмкость модуля 7,5 кВтч диапазон напряжения переменного тока MAX240VAC Размеры модуля (WхHхD) T214 * W550 * H621mm нормальная выходная частота 50/60 Гц Вес модуля / коэффициент выходной мощности Лидер 0,8-отставание 0,8 Общие положения Вывести THDi (@Norminal Output) < 3% коэффициент охраны окружающей среды IP21 Вход и выход батареи Температура окружающей среды -25…45°C Номинальное напряжение баэри 51.2V Связь 4G/WiFi диапазон напряжений Берри 42-57V удаленный доступ Приложения/вебсайт Максимальный зарядный ток 80a ордерный инвертор 2 года максимальный ток разряда 150a БаррериВолат Баррери 5 лет Размеры (ВхХхД) системная блок-схема

SC HF OFF-GRID INVERTER

SC HF OFF-GRID INVERTER PERFORMANCE AND FUNCTIONALITY Pure sine wave off-grid type optical storage integrated machine Output power factor1 Up to 6 units can be Paralleled Wide PV input voltage range (120-450VDC) It can work normally without a battery Built-in 100A MPPT solar charger The battery balancing feature optimizes battery performance and extends the life Built-in dust screen for use in harsh environments SCENARIOS Mainly used in household solar power generation, used to drive household small power load of electrical appliances. Model SC HF 3500-24 SC HF 5500-48 Rated power 3500VA/3000W 5500VA/5500W Input Voltage 230VAC Voltage range 170-280VAC（suitable for personal computers） 90-280VAC（Suitable for household appliances） Frequency range 50Hz/60Hz（Automatic adaptation） Output Grid voltage regulation(battery mode) 230VAC±5% Surge power 7000VA 11000VA Efficiency >93.6% Switch time 10ms Waveform Pure sine wave Battery Battery voltage 24VDC 48VDC Float charge voltage 27VDC 54VDC Overcharge protection 33VDC 63VDC PV Charge &AC Charge PV maximum open-circuit voltage 500VDC 500VDC PV maximum power 5500W 5500W Maximum grid 80A 80A MPPT operating voltage range 120VDC-450VDC 120VDC-450VDC PV maximum 100A 100A charge current Physical properties Size 300*110*462 Net weight (kg) 10.5 11.5 Communication interface RS232 Environment Humidity Relative humidity (non-condensing) Operating temperature -10℃-50℃ Storage temperature -15℃-60℃

Hybrid PV Energy Storage Solar Charger Inverter

Main parameters Model HT4830S80-145 HT4840S80-145 HT4850S80-145 HT4825U80-145 HT4830U80-145 HT4835U80-145 Mains mode Rated input voltage 220/230Vac 110/120Vac Input voltage range (170Vac~280Vac) ±2% (90Vac-280Vac)±2% (90Vac~140Vac) ±2% Frequency 50Hz/ 60Hz (automatic detection) Frequency range 47±0.3Hz ~ 55±0.3Hz (50Hz); 57±0.3Hz ~ 65±0.3Hz (60Hz); Overload/short circuit protection Circuit breaker Efficiency >95% Conversion time 10ms (typical) (bypass and inverter) AC backflow protection Yes Maximum bypass overload current 40A Inverter mode Output voltage waveform Pure sine wave Rated output power (VA) 3000(2600/2700 /3000) 4000(3480/360 3800/4000) 5000(4350/4500 /4800/5000) 2500(2000/2180 /2290) 3000(2500/2600 /2750) 3500(2900/3000 /3200) Rated output power (W) 3000(2600/2700 /3000) 4000(3480/360 3800/4000) 5000(4350/4500 /4800/5000) 2500(2000/2180 /2290) 3000(2500/2600 /2750) 3500(2900/3000 /3200) Power factor 1 Rated output voltage (Vac) 230Vac(200/208/220/240Vac Settable) 120Vac(100/105/110Vac Settable) Output voltage error ±5% Output frequency range (Hz) 50Hz ± 0.3Hz 60Hz ± 0.3Hz Efficiency >92% >91% Overload protection (102%<load<125%) ±10%: Report error and turn off output after 5 minutes; (125%<load150% ±10%: Report error and turn off output after 5 seconds; (102%<load<110%) ±10%: Report error and turn off output after 5 minutes; (110%<load125% ±10%: Report error and turn off output after 5 seconds; Peak power 6000VA 8000VA 10000VA 4000VA 4500VA 5000VA Loaded motor capacity 2HP 3HP 4HP 1HP 2HP 2HP Output short circuit protection Circuit breaker Bypass circuit breaker specification 63A Rated battery input voltage 48V (minimum starting voltage 44V) Battery voltage range 40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm / shutdown voltage / overvoltage alarm / overvoltage recovery…LCD screen can be set) Eco mode Load ≤ 50W AC charging Battery type Lead acid or lithium battery Maximum charge current 0-60A 0-40A Charge current error ± 5Adc Charge voltage range 40 – 58Vdc 40 – 60Vdc Short circuit protection Circuit breaker Circuit breaker specification (AC IN) 63A/(BAT) 125A Overcharge protection Alarm and turn off charging in 1 minute. PC charge Maximum PV open circuit voltage 145Vdc PV operating voltage range 60-145Vdc MPPT voltage range 60-115Vdc Battery voltage range 40-60Vdc Maximum output power 4200W PV charge current range (settable) 0-80A Charge short circuit protection BAT circuit breaker and fuse Wiring protection Reverse polarity protection Hybrid charging Max charger current specifications (AC charger+PV charger) Max charger current(can be set) 0-140A 0-120A Certified specification Specification certification CE(EN62109) EMC certification level EN61000, C2 Operating temperature range -15°C to 55°C Storage temperature range -25°C ~ 60°C RH range 5% to 95% (conformal coating protection) Noise ≤60dB Heat dissipation Forced air cooling, adjustable air speed Communicat ion interface USB/RS485 (WiFi/GPRS)/Dry Node Control Dimensions (L*W*D) 482*425*133mm Weight (kg) 13.3 Features It adopts full digital voltage and current double closed loop control, combined with advanced SPWM technology to output pure sine wave. Two output modes: mains bypass and inverter output enable uninterrupted power supply. 4 charging modes are available for choice: only PV, mains priority, PV priority, and hybrid charging. AdvancedMPPT technology with efficiency up to 99.9%. LCD screen design, with 3 LED indicators, for dynamic display of system data and run status. ON/OFF rocker switch controls AC output. Power saving mode reduces no-load loss. Intelligent variable speed fan ensures efficient heat dissipation, and thereby extends system life. It comes with double lithium battery activation modes: mains and PV, and supports lead-acid battery and lithium battery access. Multiple protections provide 360 ° all-round protection for the system. Complete protections include multi-electrical appliance air switch short circuit protection, overvoltage and undervoltage protection, overload protection, back-flow protection, etc. Horizontal installation facilitates cabinet combination installation. Lithium battery can be activated by both mains and PV panel.

1-3кВА клеточный UPS

1-3KVA Rack-Mounted Online UPS Datasheet Feature： Zero Transfer time True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues DSP Digital Control Based Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life Best Loading Capability Up to 0.9 Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application Genset Compatible Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment. High Input power factor Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer Reliable design Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion Open to customization Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system Specification： Model CNH110-1KR CNH110-1KRS CNH110-2KR CNH110-2KRS CNH110-3KR CNH110-3KRS Capacity VA/W 1kVA/800W 2kVA/1.6kW 3kVA/2.4kW Topology Double Conversion Online UPS Phase Single Phase Input Single Phase Output Mains Input Wiring L/N+PE Rated Voltage 208/220/230/240VAC Voltage Range 90~300VAC Frequency Range 40Hz-70Hz Input Power Factor ≥0.99 AC Output Wiring L/N+PE Output Voltage 208/220/230/240VAC Voltage Regulation ±1% Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) Waveform Pure Sine Wave Distortion <2%(Linear Load) (THDV%) 150%Rated Load Efficiency AC/AC Mode 0.88 0.89 0.9 DC/AC Mode 0.86 0.87 0.88 Battery&Charge Rated Battery Voltage 24VDC Internal 36VDC External 48VDC Internal 72VDC External 48VDC Internal 96VDC External Battery Capacity 12V/7AH X2pcs External Battery Depends 12V/7AHx4pcs External Battery Depends 12V/9AH x4pcs External Battery Depends Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load Charging Current Standard Model with Internal Battery:1A Long Backup Time Model :4A Physical Chassis Style Rack-Mounted Rack Dimension 1KR/1KSR/2KR/2KSR/3KSR: 438mm(W) x 88mm(2U)(H) x 360mm(D) 3KR: 438mm(W) x 88mm(2U)(H) x 500mm(D) Include Internal Battery Weight (kg) 13 8.5 18.5 11.5 21.9 12 HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status Standards Communication Interface 1. RS232 PORT Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card, 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping Operating Environment Endurance Temperature range -10~50oC Relative Humidity 0-98%（Non-condensing） Acoustics Noise <55dB @ 1 meters UPS Outlook③ Front View CNH110-1KR(S)/CNH110-2KR(S)/CNH110-3KR(S) 2U Rack-Mounted UPS Rear View CNH110-1KR(S)/CNH110-2KR(S) 2U Rack-Mounted UPS Rear Panel CNH110-3KR(S) 2U Rack-Mounted UPS Rear Panel Note: ① Battery Capacity and voltage is open to customization ② Dimension might vary for different bezel ③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order ④ More parameter customization，please contact sales representative

6-10KVA Rack Mount UPS

6~10kVA ONLINE UPS – Rack Mount Style Datasheet Feature： Zero Transfer time True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues. DSP Digital Control Based Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply Three Level Inverter Low harmony noise, high efficiency , excellent loading capability Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life Best Loading Capability Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application Genset Compatible Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment. High Input power factor Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer Reliable design Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion. Open to customization Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system Specification： Model CNH110-6KRS CNH110-10KRS Capacity VA/W 6kVA/5.4kW 10kVA/9kW Topology Double Conversion Online UPS Phase Single Phase Input Single Phase Output Mains Input Wiring L/N+PE Rated Voltage 208/220/230/240Vac Voltage Range 90~300VAC Frequency Range 40Hz-70Hz Input Power Factor ≥0.99 AC Output Wiring L/N+PE Output Voltage 208/220/230/240VAC Voltage Regulation ±1% Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) Waveform Pure Sine Wave Distortion <2%(Linear Load) (THDV%) 150%Rated Load Efficiency AC/AC Mode >93% DC/AC Mode >91% Battery&Charge Rated Battery Voltage 192/240VDC External Battery Battery Capacity External Battery Depends Backup Time External Battery Depends Charging Current Long Backup Time Model :4A Physical Chassis Style Rack-Mounted Rack Dimension UPS: 438mm(W) x 88mm(2U)(H) x 500mm(D) without Internal Battery Battery Pack: 438mm(W) x 88mm(2U)(H) x500mm(D) Weight (kg) C6KRS : 14.6kg C10KRS: 15.0kg Battery Pack: 7AHx16pcs: 39kg HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status Standards Communication Interface 1. RS232 PORT Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card, 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping Operating Environment Endurance Temperature range -10~50oC Relative Humidity 0-98%（Non-condensing） Acoustics Noise <55dB @ 1 meters UPS Outlook③ Front View CNH110-6KRS~CNH110-10KRS 2U Rack UPS CCNH110-6KRS~CNH110-10KRS Rack UPS Rear Panel Note: ① Battery Capacity and voltage is open to customization ② Dimension might vary for different bezel ③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order ④ More parameter customization，please contact sales representative

6-10KVA Tower UPS

6~10kVA ONLINE UPS – Tower Style Datasheet Feature： Zero Transfer time True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues. DSP Digital Control Based Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply Three Level Inverter Low harmony noise, high efficiency , excellent loading capability Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life Best Loading Capability Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application Genset Compatible Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment. High Input power factor Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer Reliable design Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion. Open to customization Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system Specification： Model CNH110-6K CNH110-6KS CNH110-10K CNH110-10KS Capacity VA/W 6kVA/5.4kW 10kVA/9kW Topology Double Conversion Online UPS Phase Single Phase Input Single Phase Output Mains Input Wiring L/N+PE Rated Voltage 208/220/230/240Vac Voltage Range 90~300VAC Frequency Range 40Hz-70Hz Input Power Factor ≥0.99 AC Output Wiring L/N+PE Output Voltage 208/220/230/240VAC Voltage Regulation ±1% Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) Waveform Pure Sine Wave Distortion <2%(Linear Load) (THDV%) 150%Rated Load Efficiency AC/AC Mode >93% DC/AC Mode >91% Battery&Charge Rated Battery Voltage 144/192VDC Internal/ 192/240VDC External 192VDC Internal 192/240VDC External Battery Capacity 12V/7AHx12Pcs/ 12V/7AHx16Pcs External Battery Depends 12V/7AHx16Pcs/ 12V/9AHx16Pcs External Battery Depends Backup Time >6mins @ Half Load >6mins @ Half Load Charging Current Standard Model with Internal Battery:1A Long Backup Time Model :4A Physical Chassis Style Tower Tower Dimension C6KS, C10kS: 190(W)X340(H)x534(D)mm C6K-12BAT:190(W)X360(H)x534(D)mm C6K-16BAT, C10K: 190(W)X456(H)x534(D) Weight (kg) C6K-12BAT: 37kg C6K-16BAT: 46.5kg 14.8kg C10K-7AHx16: 47.8kg C10K-9AHx16: 54.2kg 16kg HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status Standards Communication Interface 1. RS232 PORT Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown 3. MODBUS Card, 4. USB Card 5. Relay Card (Needs assembly according to order request before shipping Operating Environment Endurance Temperature range -10~50oC Relative Humidity 0-98%（Non-condensing） Acoustics Noise <55dB @ 1 meters UPS Outlook③ Front View CNH110-6KS/10KS/ CNH110-6K-12BAT Bezel CNH110-6K/10K-16BAT Bezel Rear Panel CNH110-6K(S)~CNH110-10K(S) Rear Panel Note: ① Battery Capacity and voltage is open to customization ② Dimension might vary for different bezel ③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order ④ More parameter customization，please contact sales representative

Проект		описание
Основная функция	гармонический фильтр	Настройка 2-51 фильтрации (только под функцией гармонической фильтрации)
	гармонический фильтр	При выборе приоритета гармоническая фильтрация 2 ~ 13
	Автоматическая/приоритетная функция	Пользователь также может установить приоритетные функции, включая H+Q/Q+H/Q+H+B/H+Q+B (коэффициент мощности Q, гармоническая фильтрация H, B, дисбаланс) см. табл. 4-1
	применение	Нелинейная нагрузка для отелей, парковок, автомобильных зарядных станций, автомобильных магазинов 4S, МЦД, больниц, железных дорог, очистки воды и т. Д.
электрический	номинальное напряжение	380/400Vac или 690Vac
	проводка	3P3W или 3P4W
	частота	50? 2 Гц
	вместимость	20 ~ 100А (по типу SVG)
	модульный расход	< 2 кВт
	коэффициент полезного действия	До 97,51 т/т
	частота переключения	20 кГц
	время отклика	Время быстрого реагирования < 50 мкс
	время отклика	Общее время отклика < 5 мс
	Отношение CT	150:5~6000:5
	параллельный	До 5 (можно настроить)
терминал	Связь	RS485
Environment	операционная среда	В помещении нет влаги, пыли, коррозионных или легковоспламеняющихся газов, масляного тумана, пара, протечек или соленой воды.
	высота над уровнем моря	< 1000 м (можно настроить)
	рабочая температура	-20℃~+50℃ (необходимо понизить температуру от 40℃ до 50℃, увеличивать ее один раз на каждые 1℃ выше 40℃, понизить на 21ТР1Т, максимально допустимая температура: 50℃)
	Humidity	менее 95%RH без конденсации
	Storage temperature	-20℃-+70℃
	вибрация	менее 5,9 м/с2 (0,6 г)
уплотнение	степень защиты	IP20
	цвет	7035 серый (можно настроить)
	Size	По типу APF (см. размер APF)
	охлаждение	охлаждение вентилятором
