1-3 KVA RACK yüklüOnline Birleşik Parsel Teslimat Hizmeti Veri tablosu
Özellikler:
Sıfır transfer süresi
Kritik görev ekipmanı için çok çeşitli güç kalitesi sorunlarına karşı en kapsamlı korumayı sağlayan gerçek çift dönüşümlü çevrimiçi UPS
DSP tabanlı dijital kontrol
Gelişmiş DSP tabanlı dijital kontrol, yüksek giriş güç faktörü, düşük bozulma ve yüksek performans getirir ve yük için mükemmel sinüs dalgası AC gücü sağlar
Ultra geniş giriş güç aralığı
Ultra elektrik ortamıyla güçlü uyumluluk, 90V ~ 300V, 40 ~ 70Hz ultra geniş güç kaynakları için uygundur, pil deşarjını önemli ölçüde azaltır ve pil ömrünü uzatır
Optimal yükleme kapasitesi
0.9'a kadar çıkış güç faktörü, 50/60Hz otomatik adaptasyon, isteğe bağlı voltaj, çeşitli uygulamalar için mükemmel uyum
Jeneratör uyumlu
Jeneratör seti ile kapsamlı bir şekilde çalışabilir, jeneratör setinin dalgalanmalarını ve gürültüsünü izole edebilir ve kullanıcı ekipmanı için istikrarlı ve temiz bir güç kaynağı sağlayabilir.
Yüksek giriş güç faktörü
Dijital kontrol güç faktörü kontrol teknolojisini benimseyen giriş güç faktörü 0,99'dan büyüktür, elektrik enerjisi kirliliğini etkili bir şekilde önler ve kullanıcılar için enerji maliyetlerinden tasarruf sağlar
Güvenilir tasarım
Sağlam cam elyaf esaslı (FR4) çift taraflı PCB, zorlu ortamlarda güvenilirliği büyük ölçüde artıran geniş açıklıklı bileşenler, toz birikimini önlemek ve korozyon direncini artırmak için iyi tasarlanmış havalandırma ve şekil koruyucu kaplamalar
Özelleştirmeye açık
Güçlü kontrolörlere ve açık mimariye dayanan ürünler, otomasyon sistemlerinin veya akıllı izleme sistemlerinin entegrasyon ihtiyaçlarını karşılayacak şekilde özelleştirilebilir
Giriş güç kaynağı voltajı, frekans, yük seviyesi, çalışma modu, sağlık durumu
Standart iletişim arayüzü
1. rs232 Port
İsteğe bağlı dahili kart
2.NMC kart: akıllı telefon APP, web sayfası, PC izleme yazılımı aracılığıyla UPS'in uzaktan izlenmesini destekler, sunucu/NAS kapatmasını destekler
3. MODBUS kartı,
4. USB Kart
5.Röle kartı (sevkıyattan önce sipariş gereksinimlerine göre monte edilmelidir)
Çalışma ortamı dayanıklılığı
Sıcaklık aralığı
-10-50 oC
Bağıl nem
0- 98% (yoğuşmasız)
Akustik gürültü
< 55db@ 1m
UPS Outlook③

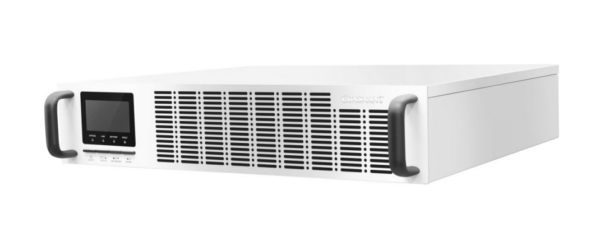

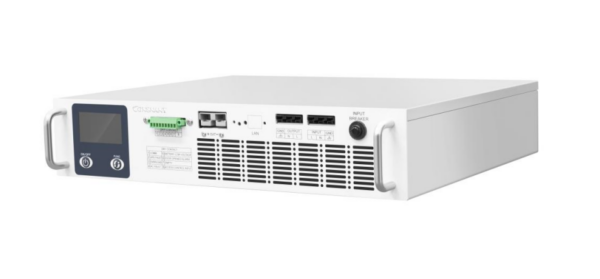

Önden Görünüm
CNH110-1KR (S)/CNH110-2KR (S)/CNH110-3KR (S) 2U Raf UPS

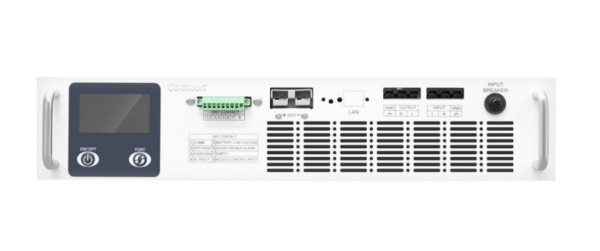

Arka Görünüm

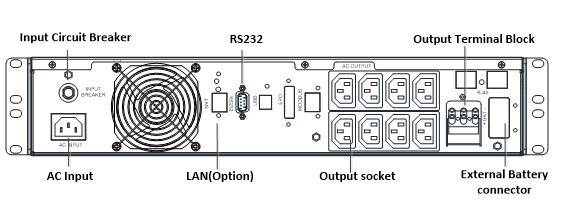

CNH110-1KR (S)/CNH110-2KR (S) 2U Raf tipi UPS arka panel
CNH110- 3KR (S) 2U raf tipi UPS arka panel
Not:
Akü kapasitesi ve voltajı özelleştirmeye açıktır
② Farklı kenarlık boyutları farklı olabilir
Arka paneldeki soket ve terminal yapılandırmaları ülkeye veya bölgeye göre değişebilir
"Daha fazla parametre özelleştirme için lütfen satış temsilcisine başvurun"
Serbest bırakma
Aktif güç filtresi
Nasıl çalışıyor?
1.Harici akım Transformer model CT yük akımını gerçek zamanlı olarak algılayabilir
2.Dahili DSP, sistemin reaktif güç içeriğini hesaplar ve analiz eder
3.Güç faktörü telafisi için reaktif güç dengeleme akımı üretmek üzere IGBT'ye sinyal göndermek için PWM'yi kontrol edin
Elektriksel özellikler ve özellikler
Proje
Açıklama
Ana Fonksiyonlar
Harmonik filtre
Yalnızca harmonik filtreleme işlevi altında 2-51 derece filtrelemeyi ayarlayın
Öncelik seçilirken harmonik filtreleme 2 ~ 13'tür
Otomatik/öncelikli özellikler
Kullanıcılar ayrıca H + Q/Q + H/Q + H + B/H + Q + B/H + Q + B Q güç faktörü H harmonik filtreleme B dengesizliği dahil öncelik işlevlerini de ayarlayabilirler.
Uygulama
Otel otoparkı araba şarj istasyonu araba 4S mağaza IDC hastane demiryolu su arıtma ve diğer doğrusal olmayan yükler
Elektriksel
Nominal gerilim
380/400Vac veya 690Vac
Kablolama
3P3W veya 3P4W
Frekans
50 2 Hz
Kapasite
SVG tipine göre 20 ~ 100A
Modül tüketimi
< 2kW
Verimlilik
97,51 ton/tona kadar
Anahtarlama frekansı
20kHz
Tepki süresi
Hızlı tepki süresi < 50s
Toplam tepki süresi < 5ms
CT Oranı
150: 5 ~ 6000: 5
Paralel
5 adede kadar özelleştirilebilir
Terminal
Iletişim
RS485
Çevre
çalışma ortamı
Odada nem, toz, aşındırıcı veya yanıcı gaz, yağ buharı, buhar sızıntısı veya tuzlu su yok
Yükseklik
< 1000m özelleştirilebilir
çalışma sıcaklığı
-20 ° C ~ + 50 ° C 40 ° C'den 50 ° C'ye düşmek gerekir 40 ° C'den fazla düşme her 1 ° C'de 2% Maksimum izin verilen sıcaklık 50 ° C'dir
Nem
Yoğuşmasız 95%RH'den az
Depolama sıcaklığı
-20 ° C ~ + 70 ° C
Titreşim
5,9m/s2'den az (0,6g)
Muhafaza
Koruma derecesi
IP20
Renk
7035 Gri Özelleştirilebilir
Boyut
APF türüne göre APF boyutuna bakın
Soğutma
Fan soğutma
Ürün Parametreleri
DC girişi
Pil kutusu
Maksimum PV giriş gücü
6500W
Pil modülü sayısı
2
Maksimum PV giriş voltajı
370V
Depolama kapasitesi
15 kWh
Başlangıç gerilimi
150V
Nominal gerilim
51.2V
Maksimum güç voltaj aralığı
120-450V
Akü voltaj aralığı
42- 57V
MPPT Numarası
1
Maksimum deşarj akımı
150a
Ben Max. MPPT başına PV dize sayısı
1
Pil Tipi
LFP
AC giriş ve çıkış
Pil Markası
/
Normal AC giriş gücü
5000W
Soğutma
/
Normal AC çıkış gücü
5000W
Koruma
BMS Dahili
Görünür AC çıkış gücü
6000VA
Pil grubu
AC çıkış akımı
/
Normal çıkış voltajı
220VAC
Modül kapasitesi
7. 5 kWh
AC voltaj aralığı
MAX240VAC
Modül boyutu (W × H × D)
T214* W550* H621mm
Normal çıkış frekansı
50/ 60 Hz
Modül Ağırlığı
/
Çıkış güç faktörü
0.8-0.8 geride
Genel kurallar
Çıktı THDi (@Norminal Output)
< 3%
Çevre koruma oranı
IP21
Pil giriş ve çıkışı
Ortam sıcaklık oranı
-25 ~ 45 °C
Nominal baery gerilimi
51.2V
Iletişim
4G/ WiFi
Bailey voltaj aralığı
42- 57V
Uzaktan erişim
Uygulama/ Web Sitesi
Maksimum şarj akımı
80a
Varant invertörü
2 yıl
Maksimum deşarj akımı
150a
Barreri Volat Barreri
5 yıl
Boyut (W×H×D)
Sistem blok şeması
SC HF OFF-GRID INVERTER
PERFORMANCE AND FUNCTIONALITY
Pure sine wave off-grid type optical storage integrated machine
Output power factor1
Up to 6 units can be Paralleled
Wide PV input voltage range (120-450VDC)
It can work normally without a battery
Built-in 100A MPPT solar charger
The battery balancing feature optimizes battery performance and extends the life
Built-in dust screen for use in harsh environments
SCENARIOS
Mainly used in household solar power generation, used to drive household small power load of electrical appliances.
Model
SC HF 3500-24
SC HF 5500-48
Rated power
3500VA/3000W
5500VA/5500W
Input
Voltage
230VAC
Voltage range
170-280VAC（suitable for personal computers）
90-280VAC（Suitable for household appliances）
Frequency range
50Hz/60Hz（Automatic adaptation）
Output
Grid voltage regulation(battery mode)
230VAC±5%
Surge power
7000VA
11000VA
Efficiency
>93.6%
Switch time
10ms
Waveform
Pure sine wave
Battery
Battery voltage
24VDC
48VDC
Float charge voltage
27VDC
54VDC
Overcharge protection
33VDC
63VDC
PV Charge &AC Charge
PV maximum open-circuit voltage
500VDC
500VDC
PV maximum power
5500W
5500W
Maximum grid
80A
80A
MPPT operating voltage range
120VDC-450VDC
120VDC-450VDC
PV maximum
100A
100A
charge current
Physical properties
Size
300*110*462
Net weight (kg)
10.5
11.5
Communication interface
RS232
Environment
Humidity
Relative humidity (non-condensing)
Operating temperature
-10℃-50℃
Storage temperature
-15℃-60℃
Main parameters
Model
HT4830S80-145
HT4840S80-145
HT4850S80-145
HT4825U80-145
HT4830U80-145
HT4835U80-145
Mains mode
Rated input voltage
220/230Vac
110/120Vac
Input voltage range
(170Vac~280Vac) ±2%
(90Vac-280Vac)±2%
(90Vac~140Vac) ±2%
Frequency
50Hz/ 60Hz (automatic detection)
Frequency range
47±0.3Hz ~ 55±0.3Hz (50Hz);
57±0.3Hz ~ 65±0.3Hz (60Hz);
Overload/short circuit protection
Circuit breaker
Efficiency
>95%
Conversion time
10ms (typical)
(bypass and inverter)
AC backflow protection
Yes
Maximum bypass overload current
40A
Inverter mode
Output voltage waveform
Pure sine wave
Rated output power (VA)
3000(2600/2700
/3000)
4000(3480/360
3800/4000)
5000(4350/4500
/4800/5000)
2500(2000/2180
/2290)
3000(2500/2600
/2750)
3500(2900/3000
/3200)
Rated output power (W)
3000(2600/2700
/3000)
4000(3480/360
3800/4000)
5000(4350/4500
/4800/5000)
2500(2000/2180
/2290)
3000(2500/2600
/2750)
3500(2900/3000
/3200)
Power factor
1
Rated output voltage (Vac)
230Vac(200/208/220/240Vac Settable)
120Vac(100/105/110Vac Settable)
Output voltage error
±5%
Output frequency range (Hz)
50Hz ± 0.3Hz
60Hz ± 0.3Hz
Efficiency
>92%
>91%
Overload protection
(102%<load<125%) ±10%: Report error and turn off output after 5 minutes;
(125%<load150% ±10%: Report error and turn off output after 5 seconds;
(102%<load<110%) ±10%: Report error and turn off output after 5 minutes;
(110%<load125% ±10%: Report error and turn off output after 5 seconds;
Peak power
6000VA
8000VA
10000VA
4000VA
4500VA
5000VA
Loaded motor capacity
2HP
3HP
4HP
1HP
2HP
2HP
Output short circuit protection
Circuit breaker
Bypass circuit breaker specification
63A
Rated battery input voltage
48V (minimum starting voltage 44V)
Battery voltage range
40.0Vdc~60Vdc ± 0.6Vdc (undervoltage alarm / shutdown voltage / overvoltage alarm / overvoltage recovery…LCD screen can be set)
Eco mode
Load ≤ 50W
AC charging
Battery type
Lead acid or lithium battery
Maximum charge current
0-60A
0-40A
Charge
current error
± 5Adc
Charge voltage range
40 – 58Vdc
40 – 60Vdc
Short circuit protection
Circuit breaker
Circuit breaker specification
(AC IN) 63A/(BAT) 125A
Overcharge protection
Alarm and turn off charging in 1 minute.
PC charge
Maximum PV open circuit voltage
145Vdc
PV operating voltage range
60-145Vdc
MPPT voltage range
60-115Vdc
Battery voltage range
40-60Vdc
Maximum output power
4200W
PV charge current range (settable)
0-80A
Charge short circuit protection
BAT circuit breaker and fuse
Wiring protection
Reverse polarity protection
Hybrid charging Max charger current specifications (AC charger+PV charger)
Max charger current(can be set)
0-140A
0-120A
Certified specification
Specification certification
CE(EN62109)
EMC certification level
EN61000, C2
Operating temperature range
-15°C to 55°C
Storage temperature range
-25°C ~ 60°C
RH range
5% to 95% (conformal coating protection)
Noise
≤60dB
Heat dissipation
Forced air cooling, adjustable air speed
Communicat ion interface
USB/RS485 (WiFi/GPRS)/Dry Node Control
Dimensions (L*W*D)
482*425*133mm
Weight (kg)
13.3
Features
It adopts full digital voltage and current double closed loop control, combined with advanced SPWM technology to output pure sine wave.
Two output modes: mains bypass and inverter output enable uninterrupted power supply.
4 charging modes are available for choice: only PV, mains priority, PV priority, and hybrid charging.
AdvancedMPPT technology with efficiency up to 99.9%.
LCD screen design, with 3 LED indicators, for dynamic display of system data and run status.
ON/OFF rocker switch controls AC output.
Power saving mode reduces no-load loss.
Intelligent variable speed fan ensures efficient heat dissipation, and thereby extends system life.
It comes with double lithium battery activation modes: mains and PV, and supports lead-acid battery and lithium battery access.
Multiple protections provide 360 ° all-round protection for the system.
Complete protections include multi-electrical appliance air switch short circuit protection, overvoltage and undervoltage protection, overload protection, back-flow protection, etc.
Horizontal installation facilitates cabinet combination installation.
Lithium battery can be activated by both mains and PV panel.
6~10kVA ONLINE UPS – Rack Mount Style Datasheet
Feature：
Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
Three Level Inverter
Low harmony noise, high efficiency , excellent loading capability
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life
Best Loading Capability
Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.
Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system
Specification：
Model
CNH110-6KRS
CNH110-10KRS
Capacity
VA/W
6kVA/5.4kW
10kVA/9kW
Topology
Double Conversion Online UPS
Phase
Single Phase Input Single Phase Output
Mains Input
Wiring
L/N+PE
Rated Voltage
208/220/230/240Vac
Voltage Range
90~300VAC
Frequency Range
40Hz-70Hz
Input Power Factor
≥0.99
AC Output
Wiring
L/N+PE
Output Voltage
208/220/230/240VAC
Voltage Regulation
±1%
Output Frequency
50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform
Pure Sine Wave
Distortion
<2%(Linear Load)
(THDV%)
150%Rated Load
Efficiency
AC/AC Mode
>93%
DC/AC Mode
>91%
Battery&Charge
Rated Battery Voltage
192/240VDC
External Battery
Battery Capacity
External Battery Depends
Backup Time
External Battery Depends
Charging Current
Long Backup Time Model :4A
Physical
Chassis Style
Rack-Mounted
Rack Dimension
UPS: 438mm(W) x 88mm(2U)(H) x 500mm(D) without Internal Battery
Battery Pack: 438mm(W) x 88mm(2U)(H) x500mm(D)
Weight (kg)
C6KRS : 14.6kg
C10KRS: 15.0kg
Battery Pack: 7AHx16pcs: 39kg
HMI
LCD DISPLAY
Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication Interface
1. RS232 PORT
Optional Extension Card
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
3. MODBUS Card,
4. USB Card
5. Relay Card (Needs assembly according to order request before shipping
Operating Environment Endurance
Temperature range
-10~50oC
Relative Humidity
0-98%（Non-condensing）
Acoustics Noise
<55dB @ 1 meters
UPS Outlook③
Front View
CNH110-6KRS~CNH110-10KRS 2U Rack UPS
CCNH110-6KRS~CNH110-10KRS Rack UPS Rear Panel
Note:
① Battery Capacity and voltage is open to customization
② Dimension might vary for different bezel
③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order
④ More parameter customization，please contact sales representative
6~10kVA ONLINE UPS – Tower Style Datasheet
Feature：
Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply
Three Level Inverter
Low harmony noise, high efficiency , excellent loading capability
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life
Best Loading Capability
Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.
Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system
Specification：
Model
CNH110-6K
CNH110-6KS
CNH110-10K
CNH110-10KS
Capacity
VA/W
6kVA/5.4kW
10kVA/9kW
Topology
Double Conversion Online UPS
Phase
Single Phase Input Single Phase Output
Mains Input
Wiring
L/N+PE
Rated Voltage
208/220/230/240Vac
Voltage Range
90~300VAC
Frequency Range
40Hz-70Hz
Input Power Factor
≥0.99
AC Output
Wiring
L/N+PE
Output Voltage
208/220/230/240VAC
Voltage Regulation
±1%
Output Frequency
50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform
Pure Sine Wave
Distortion
<2%(Linear Load)
(THDV%)
150%Rated Load
Efficiency
AC/AC Mode
>93%
DC/AC Mode
>91%
Battery&Charge
Rated Battery Voltage
144/192VDC
Internal/
192/240VDC
External
192VDC
Internal
192/240VDC
External
Battery Capacity
12V/7AHx12Pcs/
12V/7AHx16Pcs
External Battery Depends
12V/7AHx16Pcs/
12V/9AHx16Pcs
External Battery Depends
Backup Time
>6mins @ Half Load
>6mins @ Half Load
Charging Current
Standard Model with Internal Battery:1A
Long Backup Time Model :4A
Physical
Chassis Style
Tower
Tower Dimension
C6KS, C10kS: 190(W)X340(H)x534(D)mm
C6K-12BAT:190(W)X360(H)x534(D)mm C6K-16BAT, C10K: 190(W)X456(H)x534(D)
Weight (kg)
C6K-12BAT: 37kg
C6K-16BAT: 46.5kg
14.8kg
C10K-7AHx16: 47.8kg
C10K-9AHx16: 54.2kg
16kg
HMI
LCD DISPLAY
Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication Interface
1. RS232 PORT
Optional Extension Card
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
3. MODBUS Card,
4. USB Card
5. Relay Card (Needs assembly according to order request before shipping
Operating Environment Endurance
Temperature range
-10~50oC
Relative Humidity
0-98%（Non-condensing）
Acoustics Noise
<55dB @ 1 meters
UPS Outlook③
Front View
CNH110-6KS/10KS/ CNH110-6K-12BAT Bezel
CNH110-6K/10K-16BAT Bezel
Rear Panel
CNH110-6K(S)~CNH110-10K(S) Rear Panel
Note:
① Battery Capacity and voltage is open to customization
② Dimension might vary for different bezel
③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order
④ More parameter customization，please contact sales representative
Turkish
English
German
Spanish
French
Arabic
Russian
Persian
