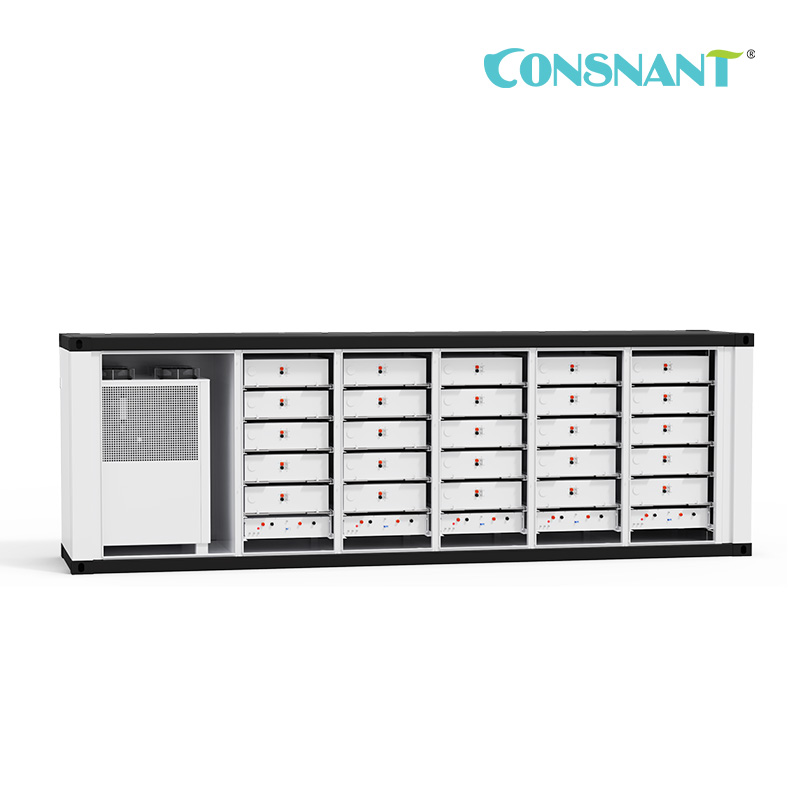

1500V 4MWh Industrial and Commercial Energy Storage System

1500V 4MWh Industrial and Commercial Energy Storage System



Model: ESS1-935/1860-0.7-L(DC plus AC)

Nominal energy: 1860kWh

Working voltage: 1040V~1518V

AC rated power: 935kw

Operating temperature: -30℃~55℃



Commercial and industrial user side, grid side, power generation side applications.

  • Item No :

    ESS1-935/1860-0.7-L(DC plus AC)
  • Order(MOQ) :

    1 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    White ,Grey
  • Shipping Port :

    Shenzhen
  • Lead Time :

    45 days
  • Weight :

    16500 Kg

1500V 4MWh Industrial and Commercial Energy Storage System

Description

From standardized battery boxes to configurable modular energy storage systems, achieving adual-platforms and multi-series product system, to meet the whole scenario energy storage application on the user side, grid side, and power generation side for commerce and industry.



Product Features:

High Security: Three-dimensional security system, aviation-level extreme security

Ultra-high Yield: 3-5 years payback

Long Life: 15 years super long life

Intelligent and Friendly: Independent control of the cloud platform, simplified operation and maintenance

Super High Efficiency: Charge and discharge efficiency 92.5%, discharge depth 100%

Strong and Durable: 10,000 cycles

Super Low Cost: LCOS is reduced by 40%, and operation and maintenance costs are extremely low



Other Service



Service hours: 9:00am-19:00pm (China time)



Product service:

1. Pre-sales consultation; After-sales worry-free.

2. Support  OEM.

3. Online guidance and Technical support.



Product Warranty:



Five year warranty period against the B/L date 45 days later.



Technical Parameters:

Product  Name CNESS CUBE Mega 1000V platform
(Energy configurable 0.4~2MWh)
CNESS CUBE Mega 1500V platform
(Energy configurable 0.7~4MWh)
Model ESS1-500/1075-0.4-L
(DC plus AC)
ESS1-935/1860-0.7-L
(DC plus AC)
DC side parameters
Cell type LFP cell special for energy storage
Group  mode 5*IP240S IP416S*5
Nominal energy 1075kWh 1860kWh
Working voltage 600V~876V 1040V~1518V
Rated charge/discharge ratio 0.5P
AC side parameters
AC rated power 500kW 935kW
Rated grid voltage 380V 690V
Rated grid frequency 50HZ
System parameters
System efficiency ≥92.0% ≥92.5%
Discharge depth 100%
Number of cycles ≥10000
Operating temperature -30℃~55℃
Cooling  mode Liquid cooling
Fire protection system Perfluoro+ Active early warning
Size DC side:6058*1300*2000(mm)
AC side: 1300*1300*2200(mm)
DC   side:6058*1300*2896(mm)
AC   side:1300*1300*2400(mm)
Weight 11500kg 16500kg
