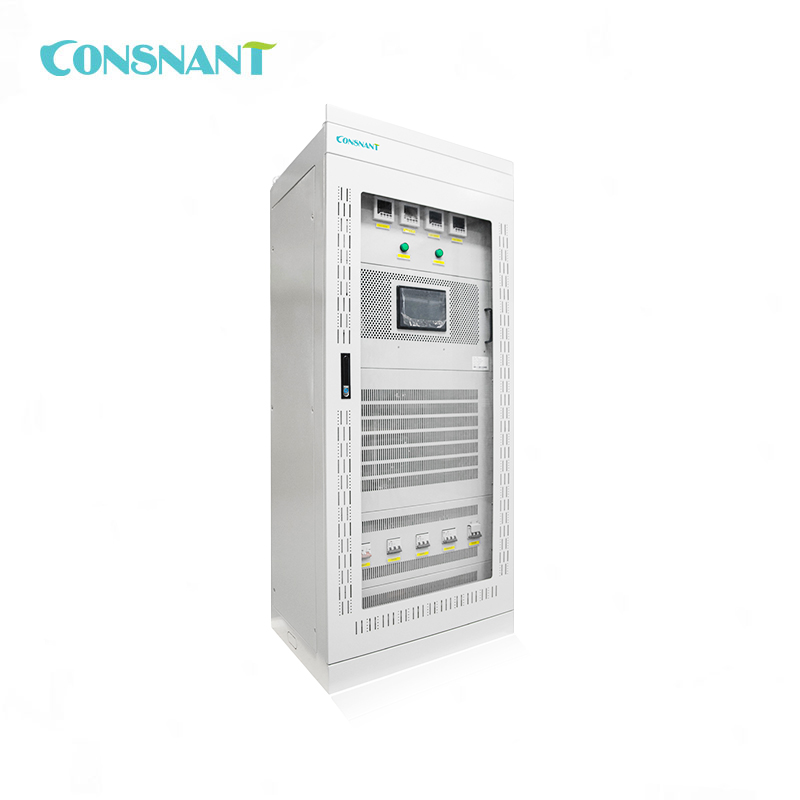

Electricity Online UPS 50-100KVA

Electricity Online UPS

Model Number: CND310 50-100KVA
Nominal Capacity: 50 – 100KVA
Nominal Voltage: 380/400/415VAC
Maximum Input Voltage Range: +-25%
Nominal Frequency: 50/60HZ
DC Voltage: 220VDC

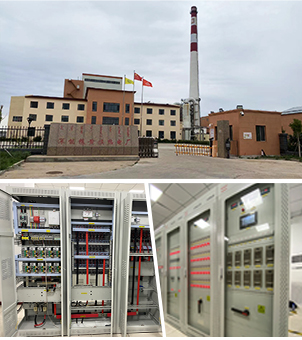

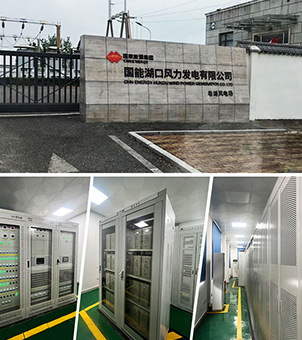

Application field:

  • Petrochemical industry
  • natural gas industry
  • power plant
  • power station
  • Item No :

    CND310 50-100KVA
  • Order(MOQ) :

    1 set
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    RAL7035
  • Shipping Port :

    Shenzhen
  • Lead Time :

    4 weeks
  • Weight :

    580-988 Kg

Electricity Online UPS

Description

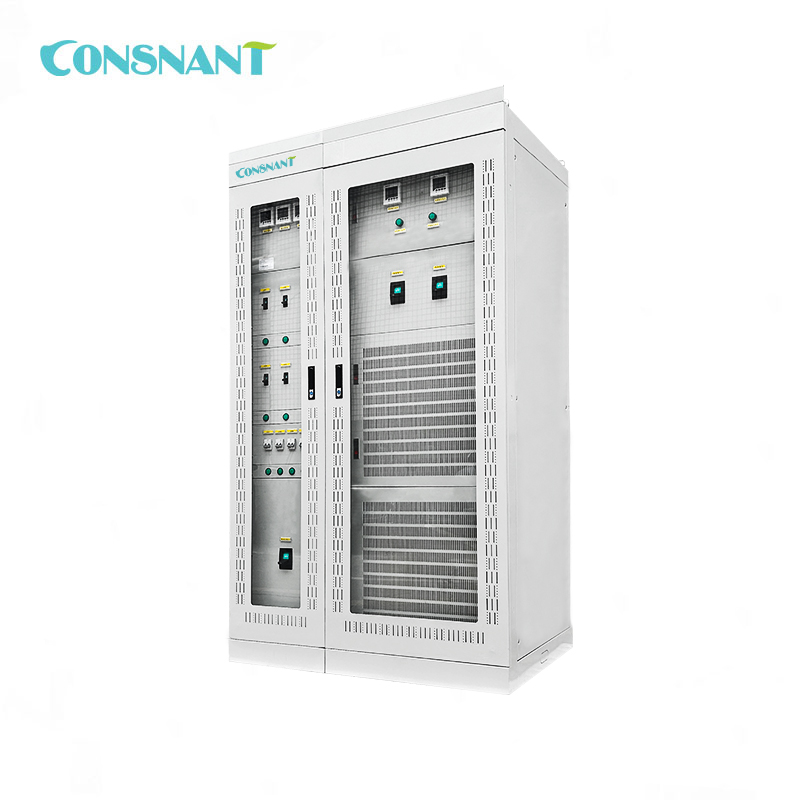

The CND310 series Electricity Special UPS system consisting of system cabinet, DBW bypass stabilized cabinet, and PDU feeder cabinet; CONSNANT designs exclusively for power plant, transformer substation, and distribution substation according to the development requirement of China Power. It possesses on-line double conversion and zero transfer function. It can be mainly applied for power system telemechanics, PTU, power line carrier, power system monitoring and so on. After being isolated and filtered by regulator, Single-phase 220V or three-phase 380V can provide stable power for load through inverter when the AC is normal. If the failure of AC power grid supply or a power cut occurs, the backup of DC power system can invert to supply electricity through the reverse diode. If the DC Power System is under voltage or cut off, the static switch will turn to bypass automatically. When the AC power is recover, the static switch will turn to AC power automatically. If the inverter is overloaded or fault, the system will turn to bypass and indicates a warning signal at the same time.

Features:

• Adopt full digital control technology.

• Intelligent detection and monitoring function.

• Digitally control the static switching with zero switch.

• Full isolation between input and output.

• Super low output zero earth voltage.

• DC UPS isolated with utility power Compatible with the DC power system and isolated with utility power completely.

• Cubicle design with the power standard both indication and cabinet (Can be customized according to customer demands).

• Multifunctional protection for over voltage, under voltage,over current, short circuit and over temperature and so on.

• Large-screen LCD monitor with Chinese and English operation interface.

• Ultralong 256 event record, user-friendly analysis and management to the situation of the power supply (touch screen optional).

• Static bypass has a strong anti-overload capability.



Technical Parameters:

Model Number 50KVA 60KVA 80KVA 100KVA
Rating capacity 40 KW 48 KW 64 KW 80 KW
Rating voltage 220VAC Single Phase (6-20KVA) / 380VAC Three Phases
AC input
Voltage range ±25%
Frequency range 50/60Hz±10%
Soft start 0 – 100% 5 seconds
Power Factor 0.95(with input filter)
Bypass input
Permitted voltage
range
±15%
Frequency range 50/60Hz±5%
Output
Voltage accuracy 220V±1%(steady load) 220V±3%( fluctuating load)
Permitted Frequency
range
50/60Hz±0.05Hz(powered by battery)
Power factor 0.8
Waveform Distorition Linearload<2%, non linear load<4%
Dynamic load
voltage transients
<5%
Crest factor(lpeak/
lrms)
3:01
Overload capacity Normal in 110% load, 125% for 10min
Efficiency Double conversion mode: 94%; ECO mode: 98%
DC
Battery voltage 220V; (10-40KVA 110V is optional)
Cutoff voltage 185V
Maximum discharge
current
181A 218A 291A 364A
Panel display
LCD Chinese/English UPS status, operation instruction input voltage, output voltage, current, frequency, battery voltage, value of charge and discharge
current, fault display , warning
Environment
Temperature 0ºC-40 ºC
Humidity 0-95%(no condensing)
Storage temperature -25 ºC—55 ºC
Altitude <1500m
Physical features
Weight(KG) Net 580 650 900 950
Gross 600 675 925 988
Dimesion
W X D X H mm
800×800×2260 800×1200×2260
Optional RS485/SNMP/ Harmonic compensation cabinet/Input and output isolation cabinet/Lightning protection device/Bypass stablelized cabinet/Customized appearance and size
