GEL Series Valve Regulated Lead-Acid Battery
Product feature:
• Capacity range: 26Ah-260Ah
• Voltage class:12V
• Long design life(25℃): 15 years for 12V
• Low self-discharge rate: <3 % per month
• High sealed reaction efficiency:≥ 98%
• High specific energy density
• Excellent charge acceptance
• Wide operation temperature:-40°C~60℃
• Grid: patent primary and secondary grid structure design;
• Positive plate: Pasted flat type,high temperature and humidity formation technics;
• Separator: high porosity PE separator with glass fibre good cyclic characteristics and lower resistance;
• Battery container: High strength ABS(UL94-HB) and UL94-V0 is optional;
• Post sealing: patent double layer post sealing
• Safety Valve: narrow operate pressure range and equipped with explosion-proof arrester and acid filter.
Main application fields:
Cable communication bureau (station), exchange station;
Wireless communication bureau (station), decentralized base station;
Various types of private network communication base stations for electric power and military use;
Data transmission and television signal transmission;
Wind, solar and wind-solar hybrid power generation;
Various cycle applications.
Technical parameters:
| Model | Nominal Voltage |
Capacity | Dimension | Weight | Terminal Type |
Terminal Positon |
|||
| Length | Width | Height | Total Height | Kg | |||||
| (V) | (Ah) | mm | mm | mm | mm | ||||
| GEL 26-12 | 12 | 26 | 166 | 176 | 125 | 125 | 8.10 | F3(M5)F13-BP(M5)T24(M5) | D |
| GEL 33-12 | 12 | 33 | 195 | 130 | 155 | 168 | 9.6 | F7(M8)/F11(M6) | C |
| GEL 40-12 | 12 | 40 | 198 | 166 | 169 | 169 | 12.4 | F4(M5)/F11(M6) | D |
| GEL 55-12 | 12 | 55 | 229 | 138 | 211 | 216 | 16.5 | F15(M6)/F11(M6) | C |
| GEL 65-12 | 12 | 65 | 350 | 167 | 182 | 182 | 19.5 | F5(M8)/F11(M6) | C |
| GEL 75-12 | 12 | 75 | 260 | 169 | 211 | 216 | 22.5 | F15(M6)/F11(M6) | C |
| GEL 90-12 | 12 | 90 | 306.5 | 168.5 | 210 | 215 | 27.0 | F15(M6)/F12(M8) | C |
| GEL 100-12 | 12 | 100 | 328 | 172 | 215 | 220 | 29.0 | F5(M8)/F12(M8) | C |
| GEL 120-12 | 12 | 120 | 407 | 177 | 225 | 225 | 33.5 | F5(M8)/F12(M8) | C |
| GEL 134-12 | 12 | 134 | 340 | 173 | 280 | 287 | 39.0 | F5(M8)/F12(M8) | C |
| GEL 145-12 | 12 | 145 | 340 | 173 | 280 | 287 | 41.5 | F5(M8)/F12(M8) | C |

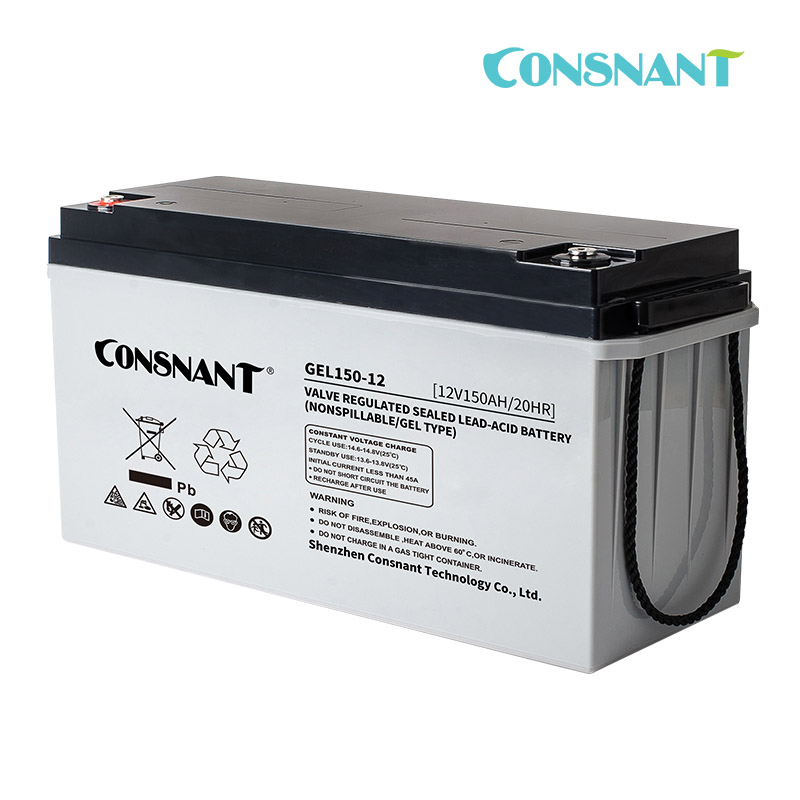

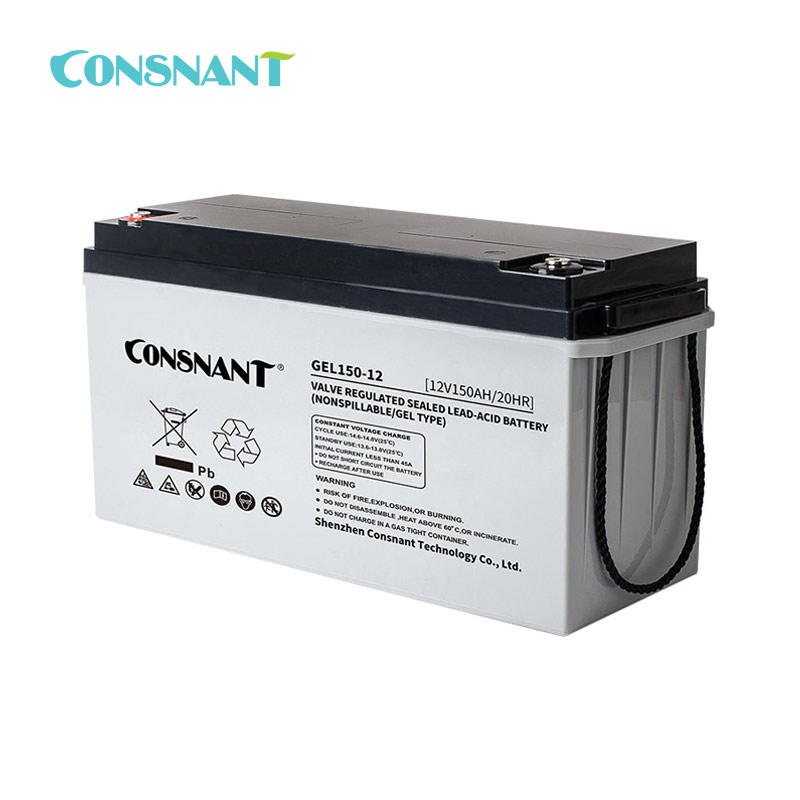

| GEL 150-12 | 12 | 150 | 483 | 170 | 241 | 241 | 43.0 | F5(M8)/F12(M8) | C |
| GEL 160-12 | 12 | 160 | 532 | 207 | 214 | 219 | 48.0 | F16(M8)/F12(M8) | E |
| GEL 180-12 | 12 | 180 | 532 | 207 | 214 | 219 | 51.0 | F16(M8)/F12(M8) | E |

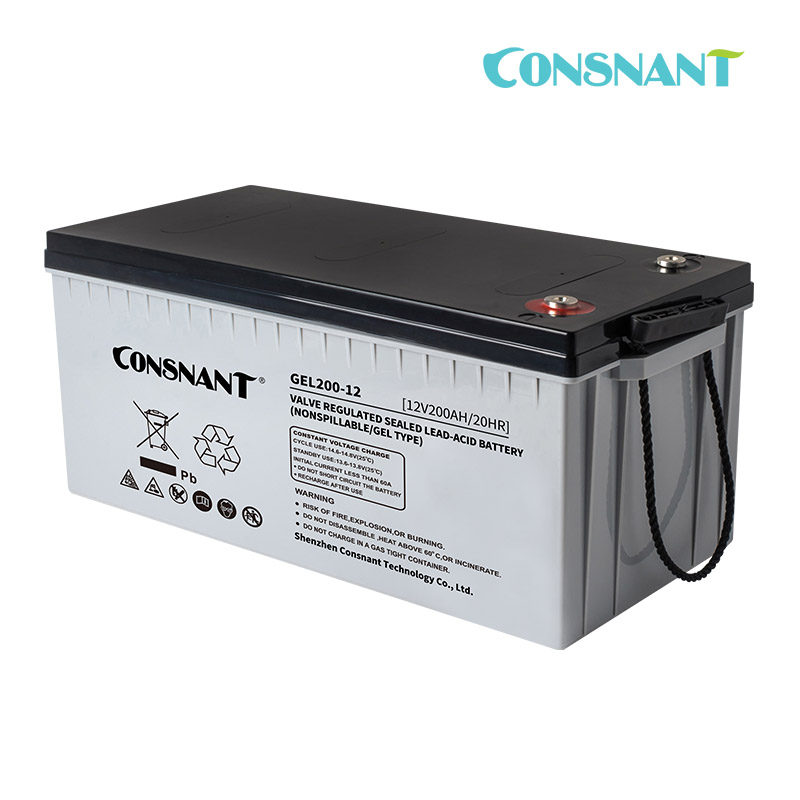

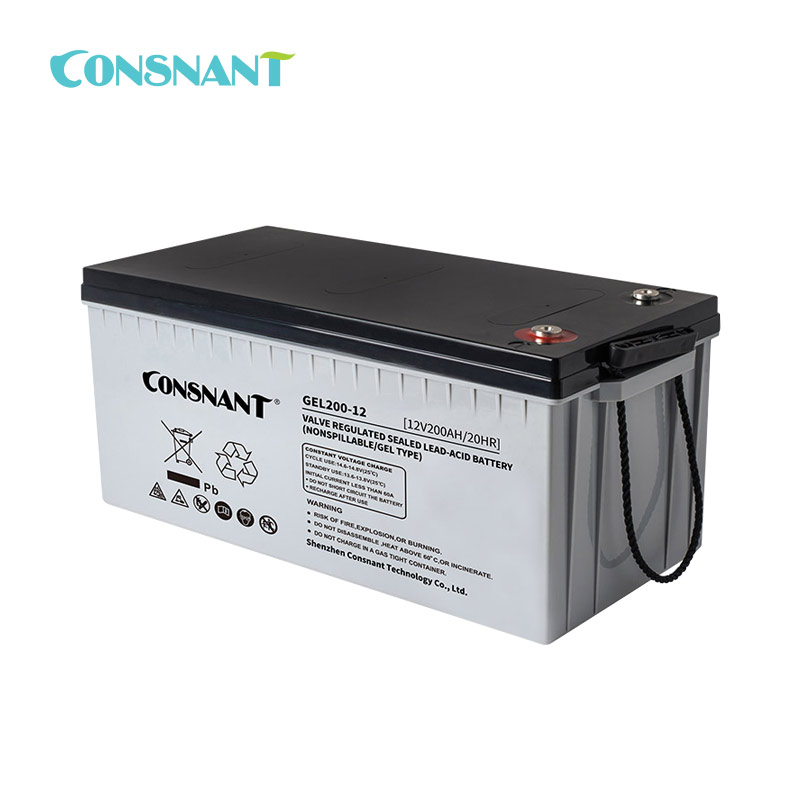

| GEL 200-12 | 12 | 200 | 522 | 240 | 219 | 224 | 59.0 | F16(M8)/F10(M8) | E |
| GEL 225-12 | 12 | 225 | 522 | 240 | 219 | 224 | 61.0 | F16(M8)/F10(M8) | E |
| GEL 230-12 | 12 | 230 | 521 | 269 | 204 | 209 | 67.0 | F10(M8) | E |

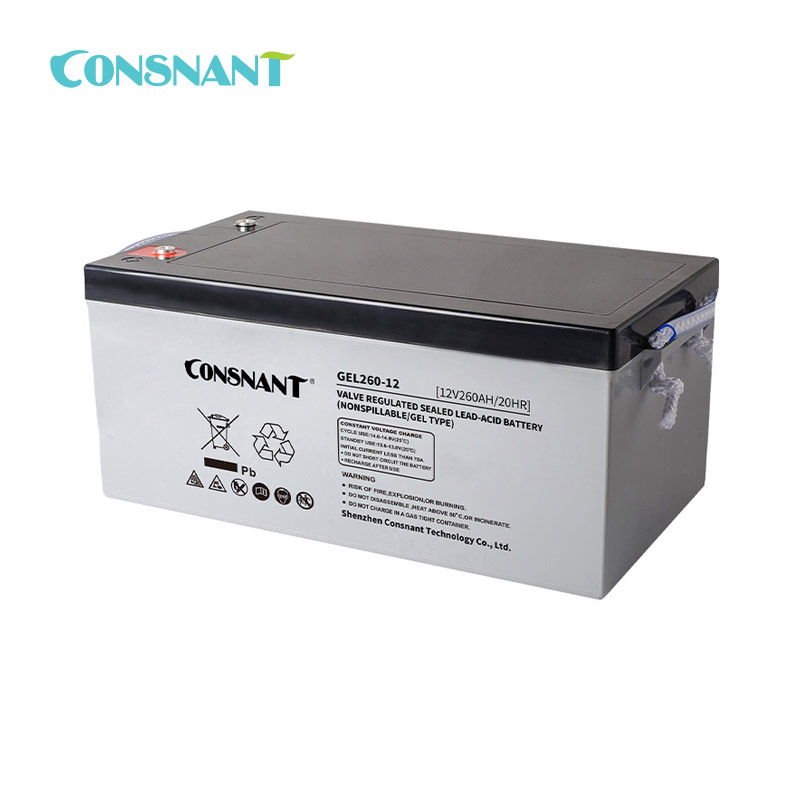

| GEL 260-12 | 12 | 260 | 521 | 268 | 220 | 225 | 72.0 | F14(M8) | E |
Compliant Standards
IEC60896-21/22-2004
DIN43539-T5
IEC61427-2005
YD/T1360-2005
GB/T 22473-2008
ISO9001.ISO14001.OHSAS18001.
UL, CE certified
