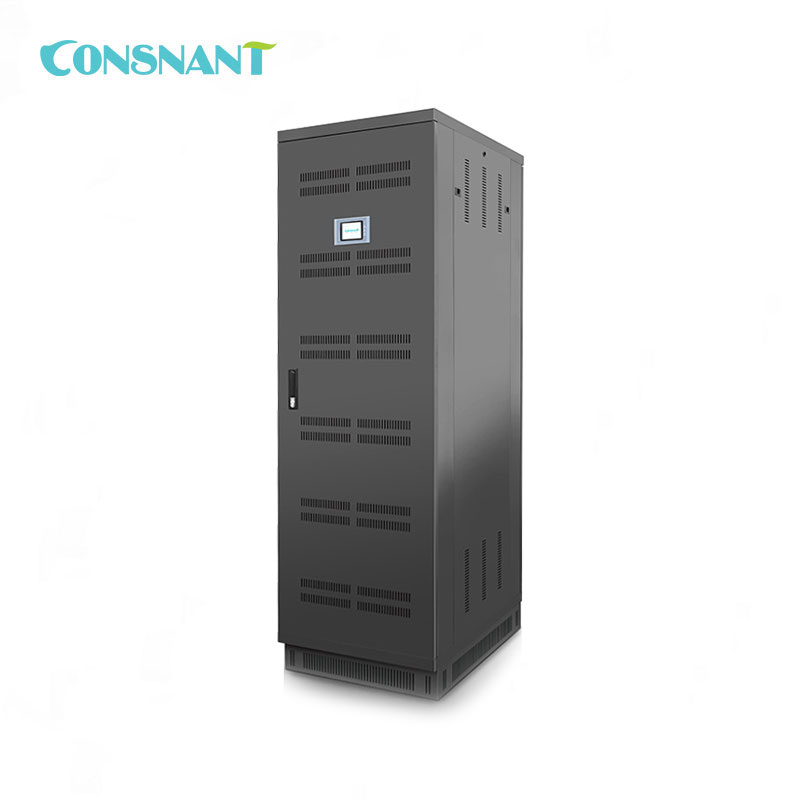

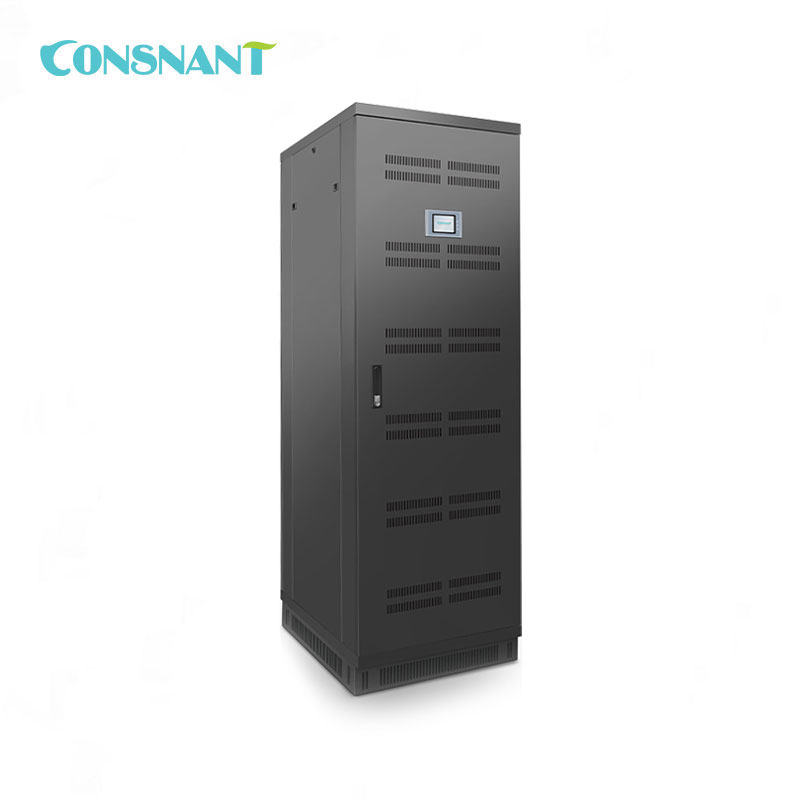

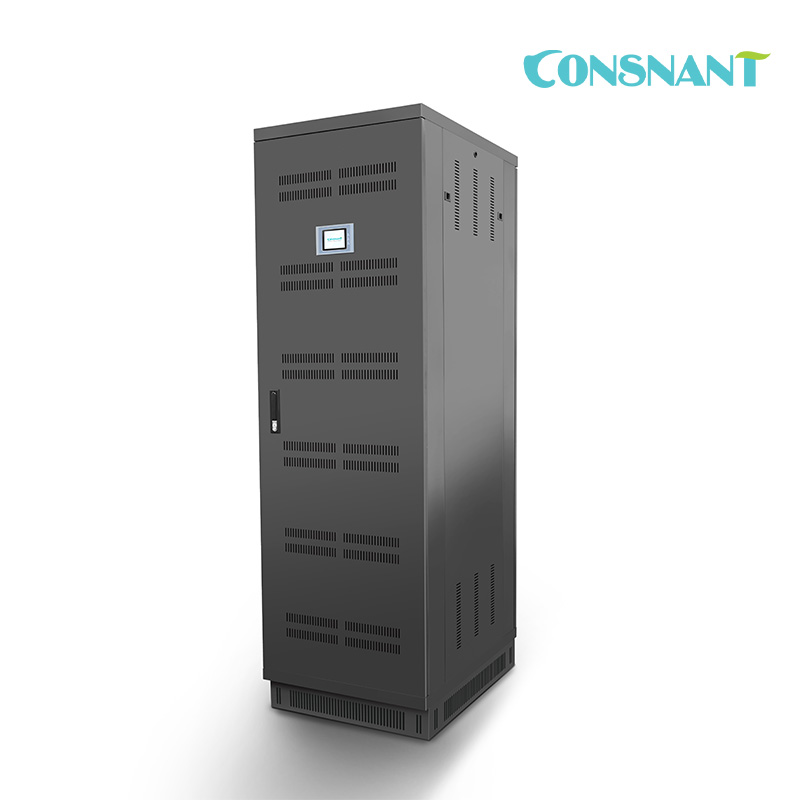

Lithium Battery System 384V 100A

Lithium Battery System Backup Power 384V 100A (LiFePO4 Battery)

Model:CNS-LFP384100

Nominal voltage:384V

Nominal capacity:100Ah



Application:

Data center, UPS backup, Solar power backup





  • Item No :

    CNS-LFP384100
  • Order(MOQ) :

    1 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Shenzhen
  • Lead Time :

    2 weeks
  • Weight :

    69 Kg

Lithium Battery System Backup Power 384V 100A (LiFePO4 Battery)

Description

Backup Power Series (LiFePO4 Battery)



For UPS Power manufacturer, the Overall solution center-tapped BMS with flexible and strong configurability, its dual battery cluster backup means double protection on the continuous power



supply to clients. BMS can adapt to the requirements of UPS for the environment and perform tasks such as battery protection and continuous power supply. It is a good helper for solving problems.



Products Advantages over Lead-acid Battery:

● Larger energy capacity

● Longer cycle life

● Lighter weight

● Higher power

● Wider temperature range

● Superior Safety

● Accurate power calculation





Technical Parameters

Model CNS-LFP384100
Battery type Lithium iron phosphate battery
Display (optional) LCD
Nominal voltage 384V
Nominal capacity 100A h
Cell 3.2V/100Ah
Battery cell grouping method 15 pieces connect in series

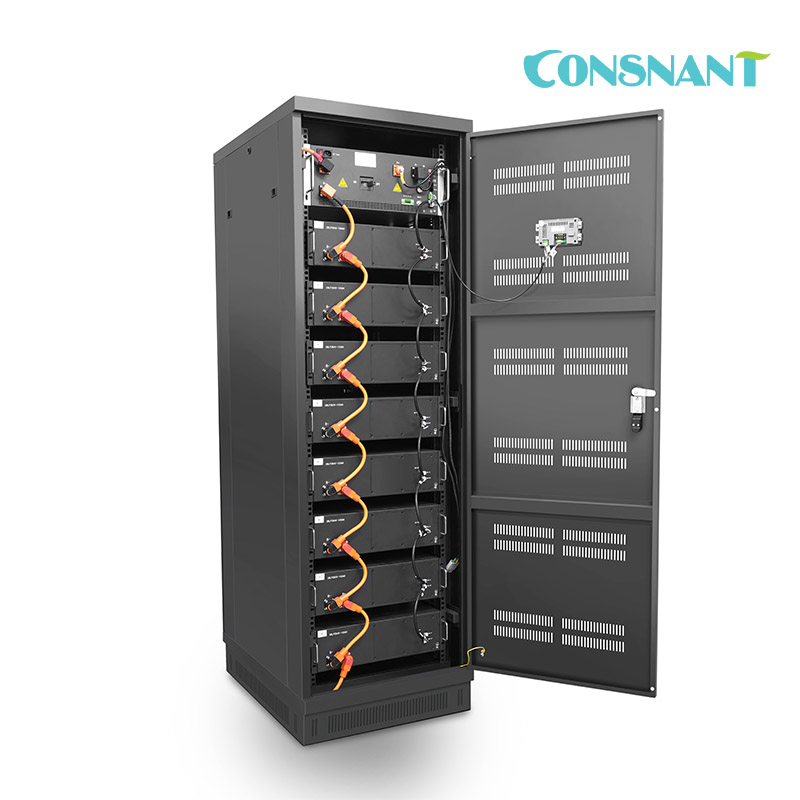

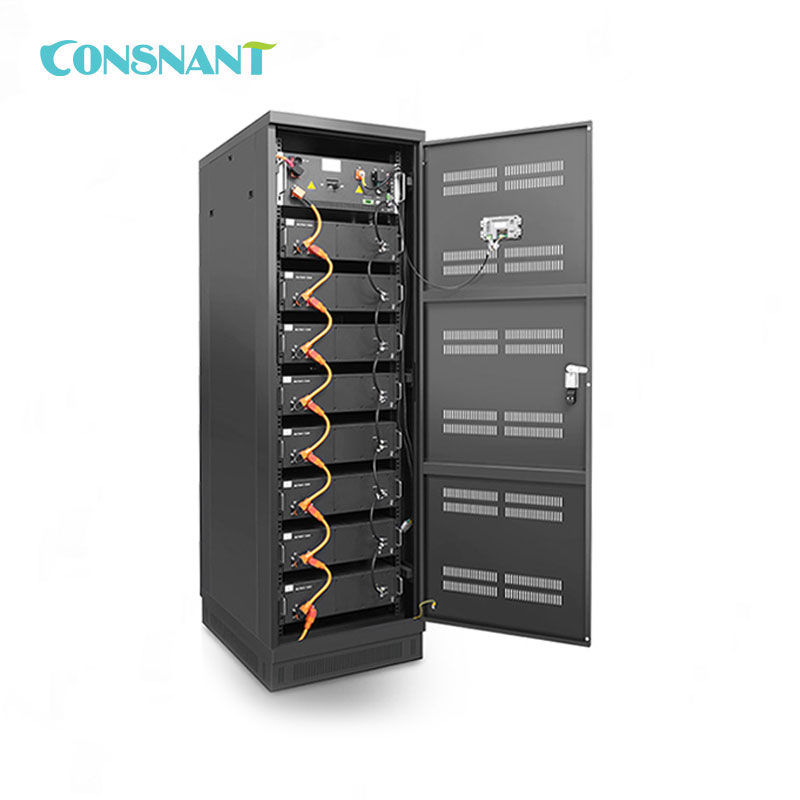

Battery module grouping method 8 modules connect in series
Size of battery module W482×D 485×H 1 33(mm )
Weight of battery module 47kg
Size of power control module W482×D500×H180 (mm )
Weight of power control module 22kg
Size of system cabinet W600×D800×H1900 (mm )
Charge cut-off voltage 438V
Discharge cut-off voltage 300V
Nominal charge current 0.5C
Maximum charge current 1.0C
Maximum discharge current 1.0C
Charge temperature 0~55℃
Discharge temperature -20~65℃
Working humidity ≤95%(4 0℃±2℃ )
Working altitude 0 ~ 4000m
Working atmospheric pressure 70kPa- 106kPa
Noise 0dB
