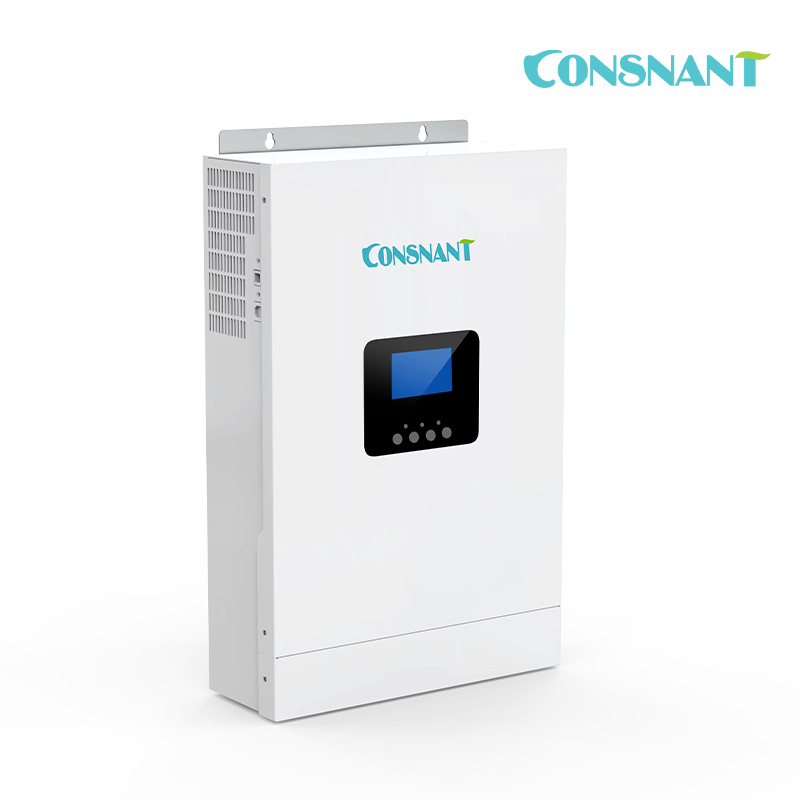

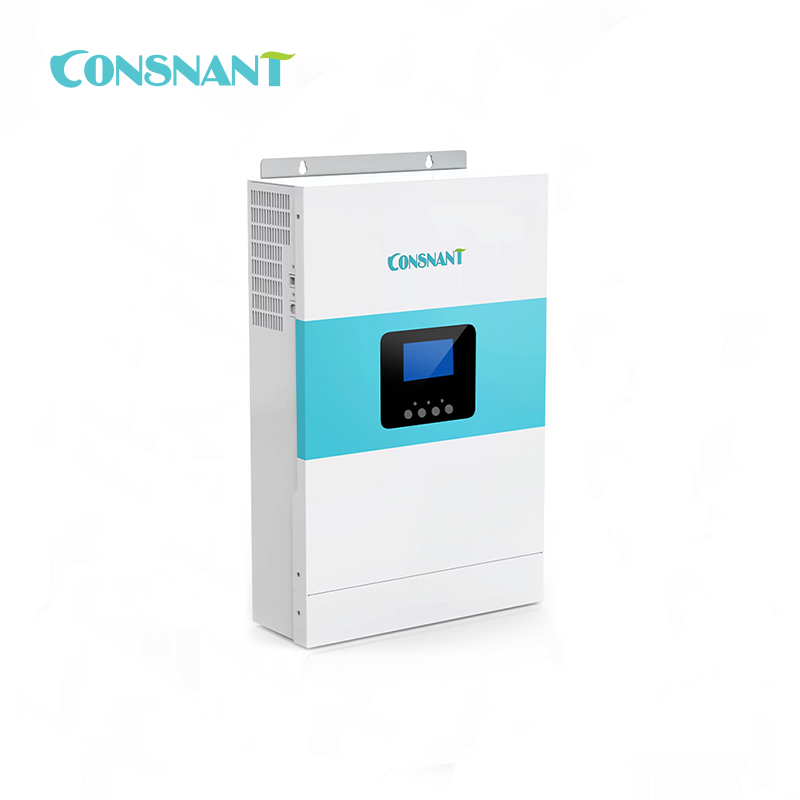

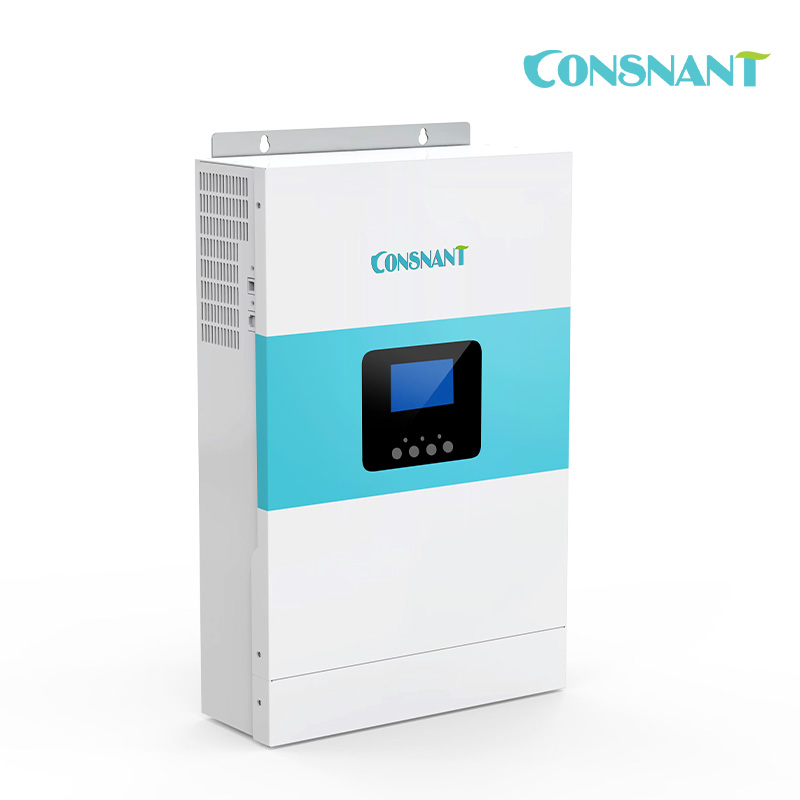

Off-Grid Solar Inverter 3500W 24VDC

CNS110 Off-Grid Solar Inverter 3500W 24VDC

Model: CNS110 3500-24

Nominal Capacity: 3.5KW

Nominal Voltage: 24VDC

Output Voltage: 230VAC

Input Voltage Range: 90 – 280VAC (Suitable for household appliances),170-280VAC (suitable for personal computers)

MPPT Operating Voltage Range: 120-450VDC

MPPT: 100A



Application field:

Household appliances



  • Item No :

    CNS110 3500-24
  • Order(MOQ) :

    25 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    White
  • Shipping Port :

    Shenzhen
  • Lead Time :

    3-5 days
  • Weight :

    10.5 Kg

CNS110 Off-Grid Solar Inverter 3500W 24VDC

Description

Performance and Functionality:

• Pure sine wave off-grid type optical storage integrated machine.

• Output power factor 1.

• Up to 6 units can be Paralleled.

• Wide PV input voltage range (120-450VDC).

• It can work normally without a battery.

• Built-in 100A MPPT solar charger.

• The battery balancing feature optimizes battery performance and extends the life.

• Built-in dust screen for use in harsh environments.

SCENARIOS

Mainly used in household solar power generation, used to drive household small power load of electrical appliances.



Other Service



Service hours: 9:00am-19:00pm (China time)



Product service:

1. Pre-sales consultation; After-sales worry-free.

2. Support OEM.

3. Online guidance and Technical support.



Product Warranty:

One year warranty period against the B/L date 45 days later.(Possible to extend the warranty period to three years by add money)



FAQ:

Q: Where is the best installation place for the solar inverter?

A: When the component is away from the grid connection point and the PV solar inverter should install at a place close to the grid connection point, the initial cost and the energy loss will be lower but the difference is not very obvious. If the DC cable is over 100m long, the MPPT matching loss may be caused. In the actual installation, various conditions, including cable distribution convenience and power station safety, shall be considered.

Q: Should I leave my solar inverter on all the time?

A: Yes, you should keep your inverter ON all the time. Otherwise, you will lose your battery backup time due to the self-discharge of batteries. You will need to start the inverter manually every time when grid power failed.

Q: Does solar inverter work at night?

A: At night your solar panels and inverter power down. The inverter isn't running overnight because it doesn't want to draw power. Instead it'll wake back up when the sun shines in the morning. Your home and solar system are connected to the utility grid.

Q: Can you over power a solar inverter?

A: Inverters and their constituent components are designed and rated for certain input voltage levels. If an input voltage were to exceed this rating, it will almost certainly result in the inverter's immediate failure. When oversizing a PV array, it is important to never exceed an inverter's maximum input voltage.

Q: How do I know what size solar inverter to buy?

A: Your inverter should be aligned with the DC rating of the solar system itself. So, if you have a 6 kilowatt (kW) system you will need an inverter that is around the 6000 W mark to match it. It is perfectly fine if your inverter is slightly smaller or larger, but you want it to be about the same size as your system so that all of the DC current being produced can be transformed into usable AC electricity for your home.

Q: Are solar inverters a fire risk?

A: When installed and maintained properly, solar inverters are just as (if not more safe) than other power sources. Especially when they are equipped with appropriate fire suppression systems. With that being said however, in some instances, solar inverters can fail, overheat, and ultimately catch on fire.

Technical Parameters:

Model CNS110 3500-24 CNS110 5500-48
Rated power 3500VA/3000W 5500VA/5500W
Input
Voltage 230VAC
Voltage range 170-280VAC(suitable for personal   computers)

90-280VAC(Suitable for household   appliances)

Frequency range 50Hz/60Hz(Automatic adaptation)
Output
Grid voltage regulation(battery mode) 230VAC±5%
Surge power 7000VA 11000VA
Efficiency >93.6%
Switch time 10ms
Waveform Pure sine wave
Battery
Battery voltage 24VDC 48VDC
Float charge voltage 27VDC 54VDC
Overcharge protection 33VDC 63VDC
PV Charge &AC Charge
PV maximum open-circuit voltage 500VDC 500VDC
PV maximum power 5500W 5500W
Maximum grid 80A 80A
MPPT operating voltage range 120VDC-450VDC 120VDC-450VDC
PV maximum charge current 100A 100A
Physical properties
Size 300*110*462
Net weight (kg) 10.5 11.5
Communication interface RS232
Environment
Humidity Relative humidity (non-condensing)
Operating temperature -10℃-50℃
Storage temperature -15℃-60℃



leave a message
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Submit
RELATED PRODUCTS
Off-Grid Solar Inverter 3500W 24VDC
CNS110 Off-Grid Solar Inverter 3500W 24VDC Model: CNS110 3500-24 Nominal Capacity: 3.5KW Nominal Voltage: 24VDC Output Voltage: 230VAC Input Voltage Range: 90 – 280VAC (Suitable for household appliances),170-280VAC (suitable for personal computers) MPPT Operating Voltage Range: 120-450VDC MPPT: 100A   Application field: Household appliances
Off-Grid Solar Inverter 5500W 48VDC
CNS110 Off-Grid Solar Inverter 5500W 48VDC Model: CNS110 5500-48 Nominal Capacity: 5.5KW Nominal Voltage: 48VDC Output Voltage: 230VAC Input Voltage Range: 90 – 280VAC (Suitable for household appliances),170-280VAC (suitable for personal computers) MPPT Operating Voltage Range: 120-450VDC MPPT: 100A   Application field: Household appliances

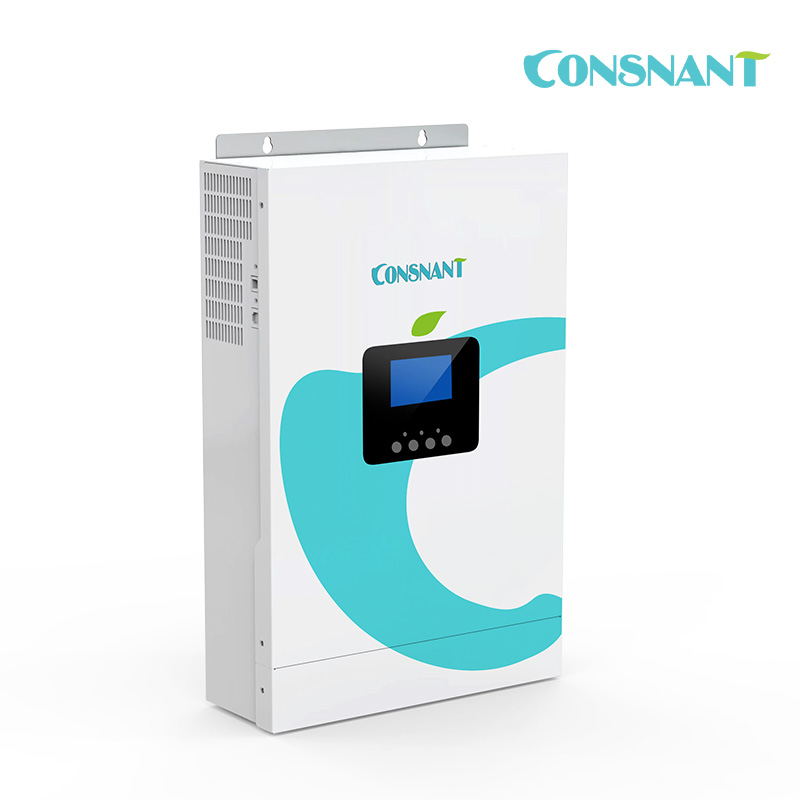

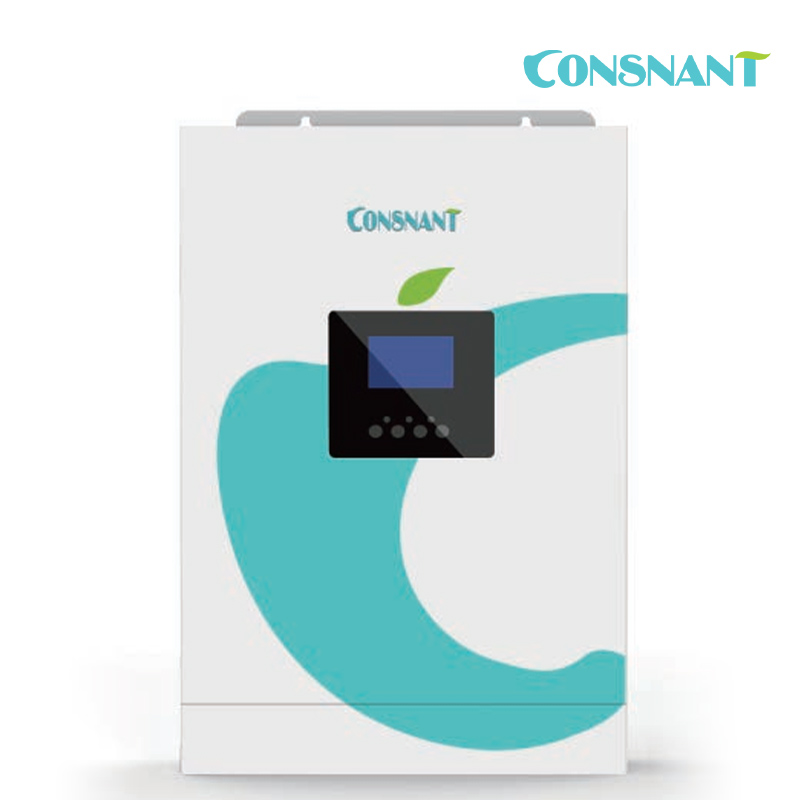

Household Off-Grid Solar Inverter
CNS110 Off-Grid Solar Inverter 5.5KW 48VDC Model: CNS110 5500-48 Nominal Capacity: 5.5KW Nominal Voltage: 48VDC Output Voltage: 230VAC Input Voltage Range: 90 – 280VAC (Suitable for household appliances),170-280VAC (suitable for personal computers) MPPT Operating Voltage Range: 120-450VDC MPPT: 100A   Application field: Household appliances

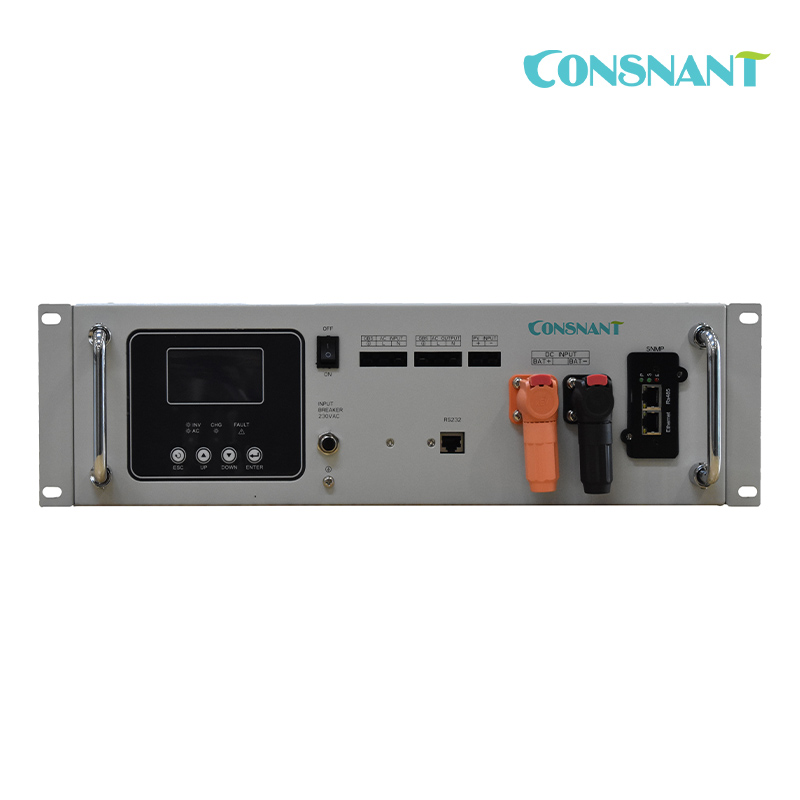

Rack Mount Solar Inverter 5500W
Rack Mount Solar Inverter 5500W   CNR110 5500-48 5.5KW 48VDC   Nominal Capacity: 3.5KW/5.5KW DC Input Voltage:48VDC Output Voltage: 230VAC

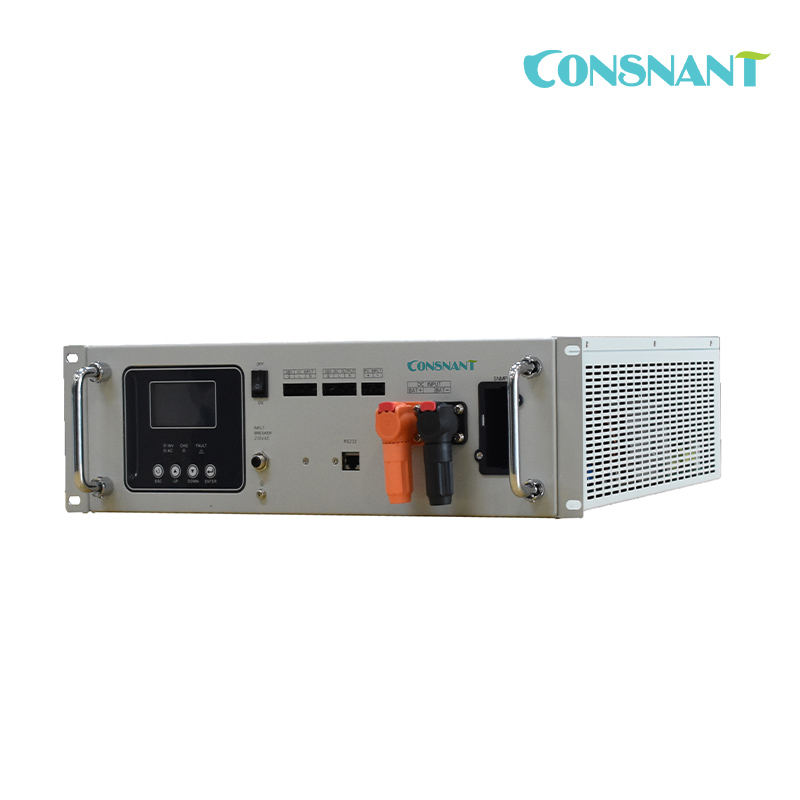

Rack Mount Solar Inverter 3500W
