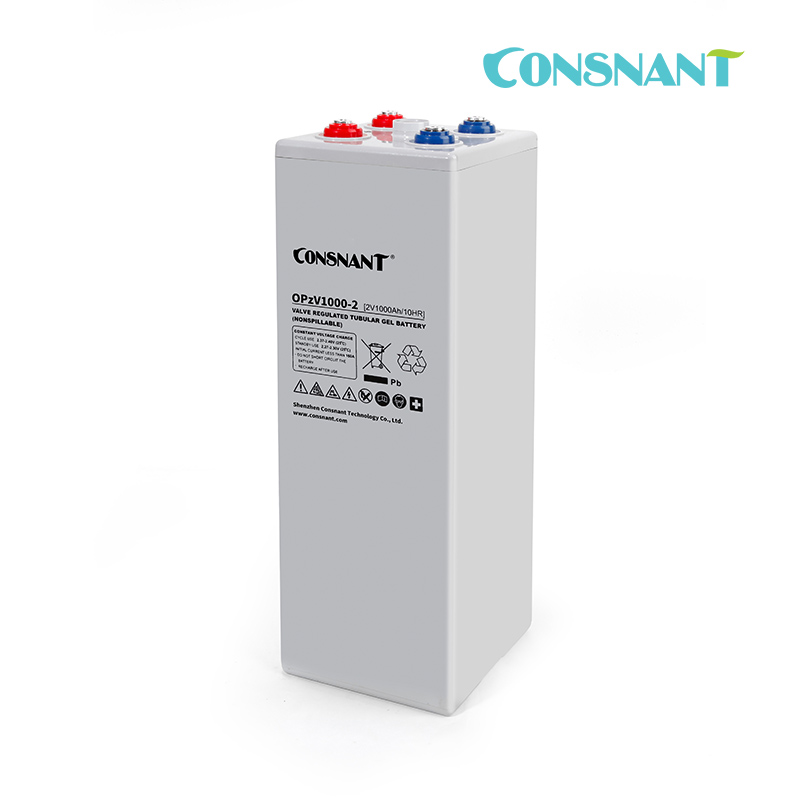

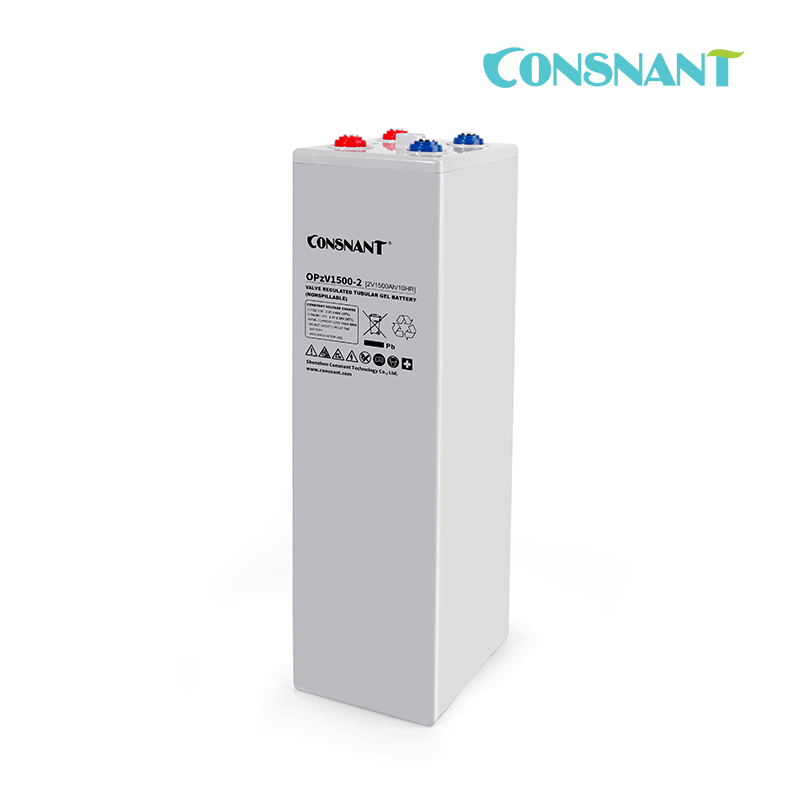

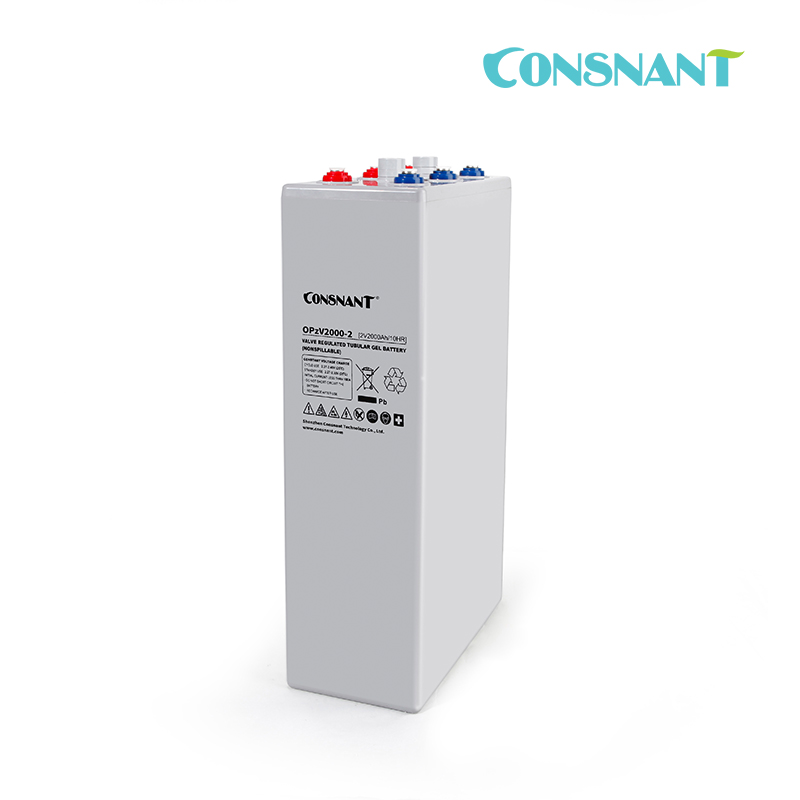

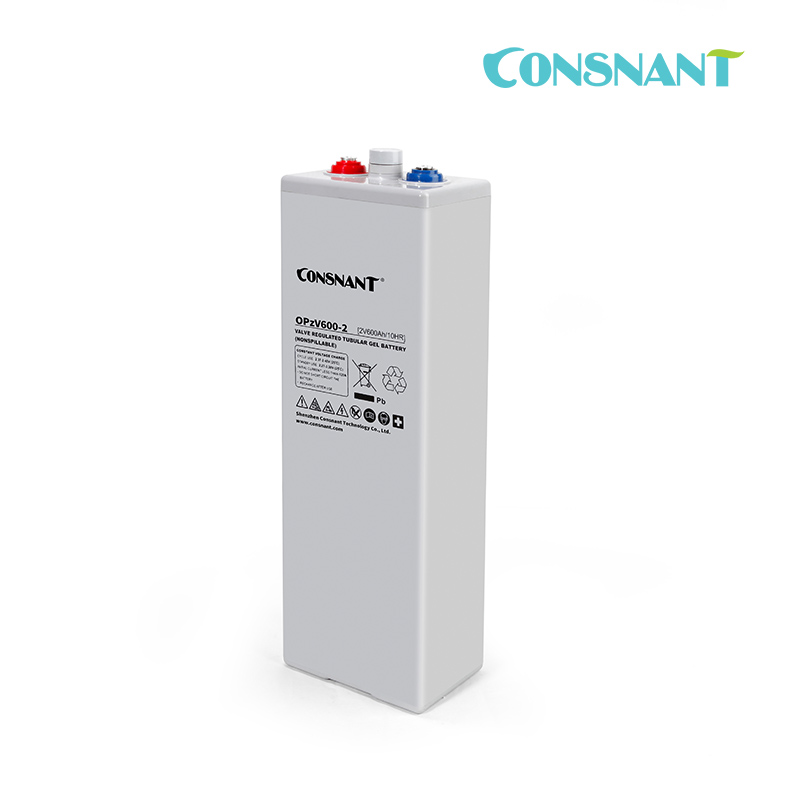

OPzV Solid-state Lead Battery

OPzV Solid-state Lead Battery (VRLA Tubular Gel Battery )

Description

OPzV Solid-state Lead Battery (VRLA Tubular Gel Battery ) is a new battery technology based on traditional lead-acid battery, which has been improved through technology research and development and countless practices. OPzV uses gas-phase nano silica as electrolyte to replace the sulfuric acid electrolyte of traditional lead-acid battery to form colloidal medium and then solidify. It not only ensures excellent conductivity, but also completely eliminates the leakage and volatilization of electrolyte, so as to prolong the service life of the battery and reduce the maintenance cost. The Battery is designed and manufactured according to DIN standards and with die-casting positive grid and patent formula of active material. OPzV series exceeds DIN standard values with 20~25 years floating design life at 25℃ and is even more suitable for cyclic use under extreme operating conditions.

Product Features

Capacity range: 60Ah-3000Ah Voltage:2V/12V

Floating design life(25℃): 20~25 years

Cycle life: 3500 at 80%DOD(2V)

                2200 at 80%DOD(12V)

Self discharge rate ≤2%/month;

High charge acceptance performance;

Wide operation temperature:-40℃~60℃

Good deep discharge recovery performance.

• Electrolyte:solid-state electrolyte uses imported silicaspecial tenich nics make it in a gel immobilized state, safer than AGM type battery; special additives make it very stablelower internal resistance and no stratification;

• Positive plate: tubular type,with die-casting thick Pb-Ca grid; it has ve ery good corrosion resistance and a very long service life;

• Negative plate: pasted flat type,radial grid designgood high rate disc harge performance;

• Separator: PVC-SiO2 separator imported from Europelow internal resistance, high pore rate and long life;

• Flooded electrolyte design:contain more electrolyte like a flooded ba ittery, space between plates and separators is full of electrolyte thus means good heating capacity and avoid“thermal runaway”;

• Safety valves: good sensitivity, safe and reliable,equipped with dou ble flame arrester/acid filter;

• Battery case: made of high strength ABS and durable design.

Advantages of OPzV solid-state lead battery in energy storage application

Safety

Nano gas-phase silica solid-state electrolyte, 100% solid-state;

Material safety: positive and negative electrodes, separators, electrolytes and other materials are fire and explosion-proof;

EMS intelligent control management: ensure that the temperature rise of the battery does not exceed 40 ℃ and no thermal runaway.

Environmental Protection and Recycling

No discharge of waste water, waste gas, waste residue, etc. during manufacturing;

The waste battery can be 100% recycled.

High Efficiency and Good Profitability

Low cost of kilowatt hour electricity, with a long design life of 25 years;

The charge discharge efficiency is more than 94%.

Wide Application Range

Energy storage of wind and solar power generation, peak and frequency regulation of power grid, virtual power plant, peak valley price difference and power guarantee;

Energy security for rural areas, charging pile + energy storage, UPS + energy storage, thermal power plant + energy storage, pumped energy storage + solid-state energy storage, etc.

Multiple Layer Construction

Can be stacked in multiple layers, the energy storage density per unit area can be 100% higher than that of other batteries.

Technical Specifications
