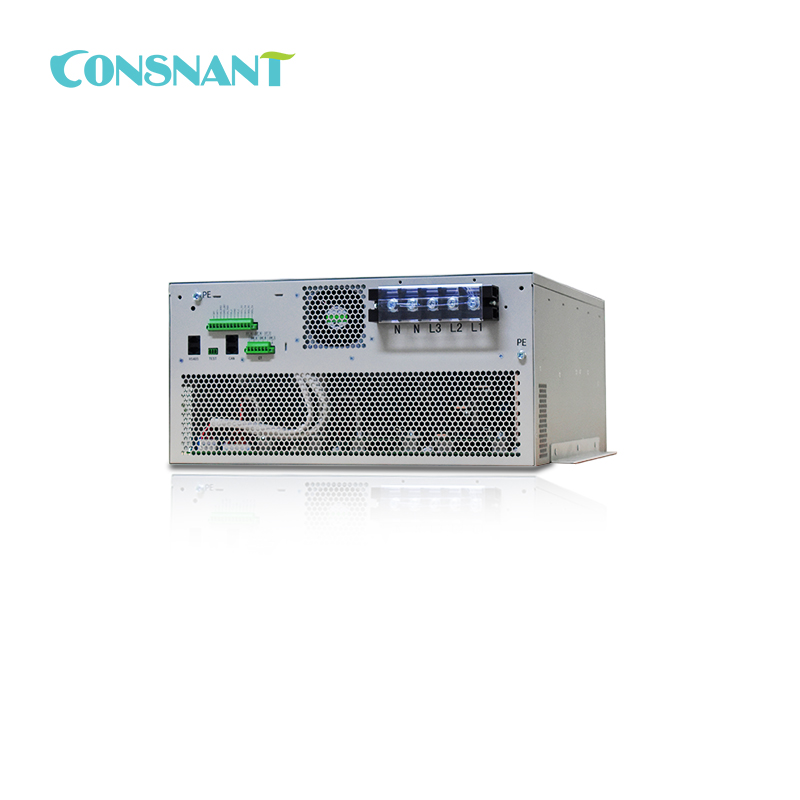

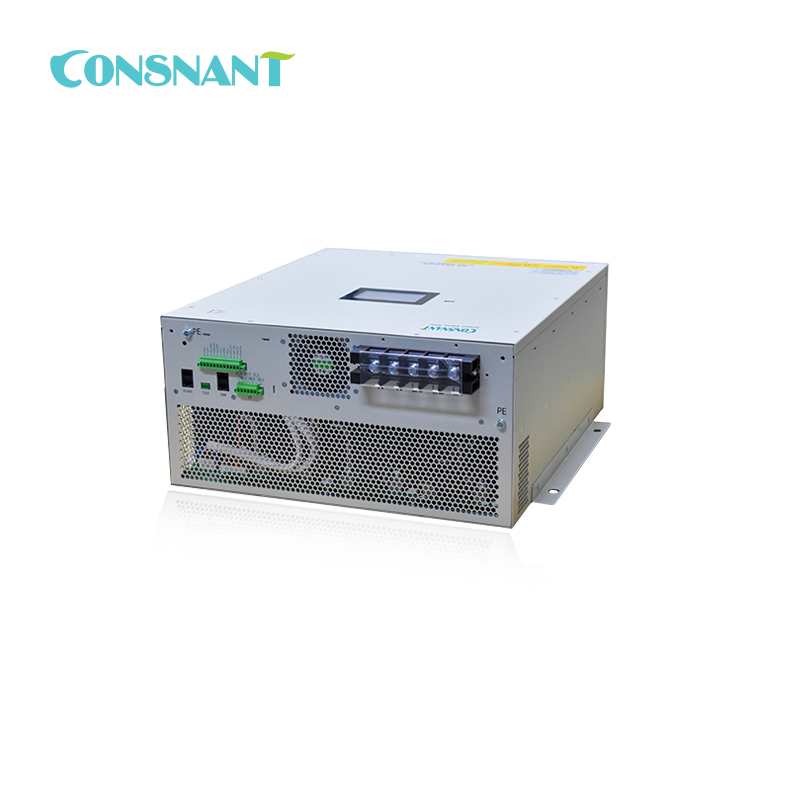

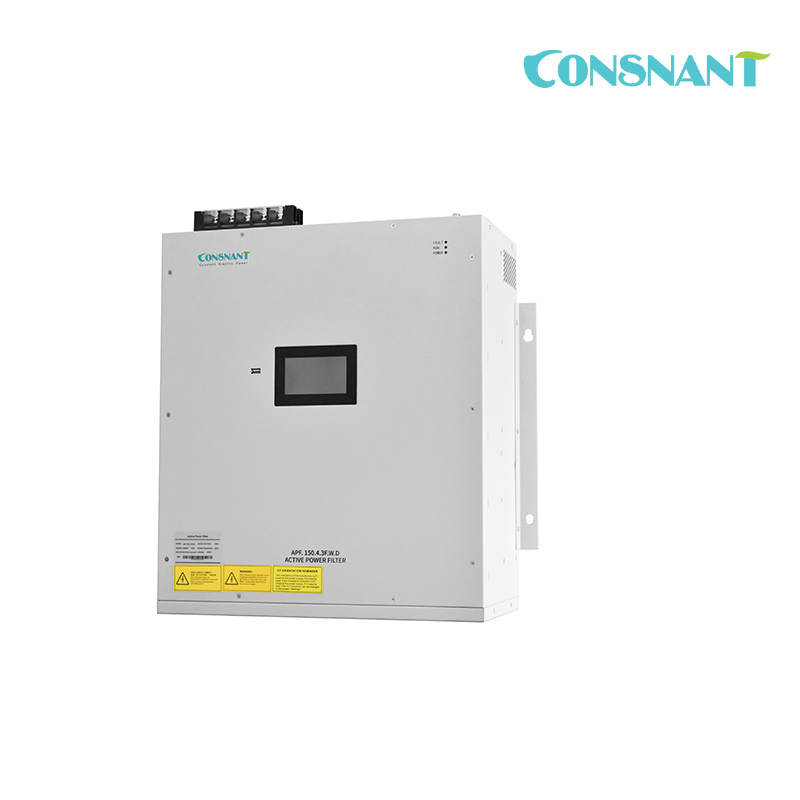

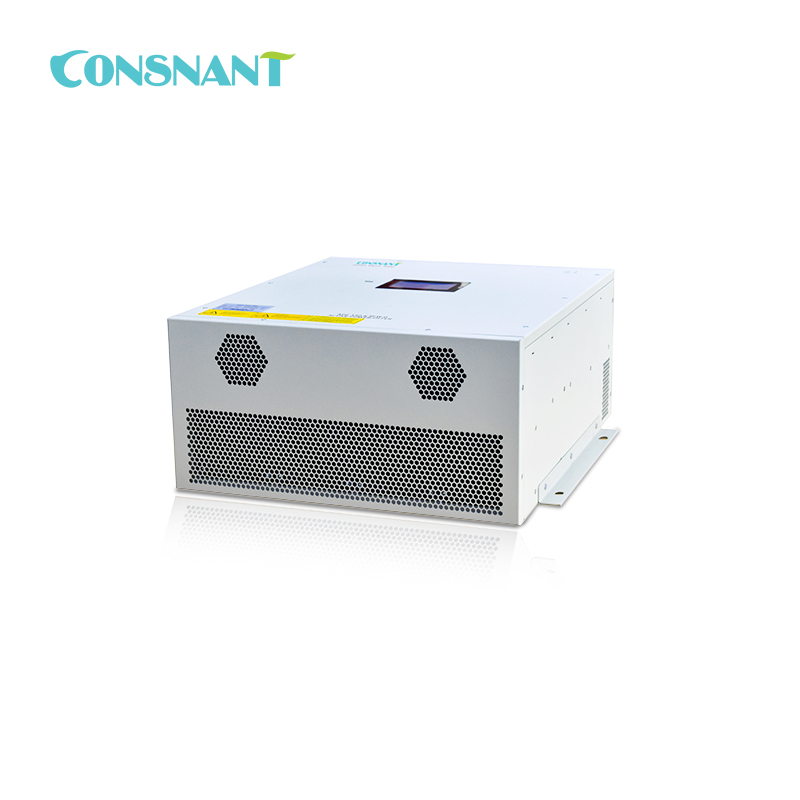

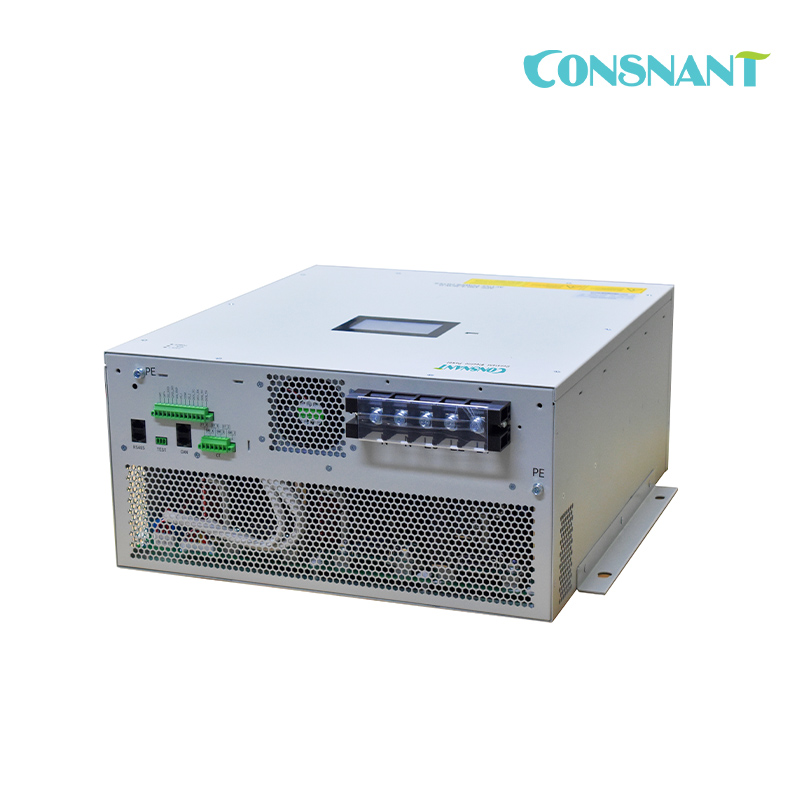

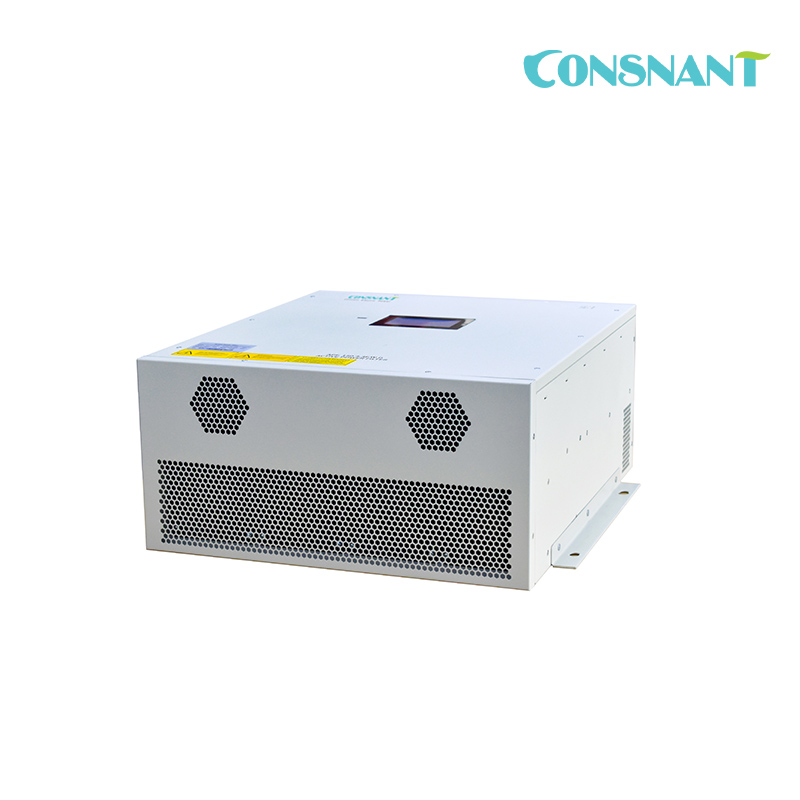

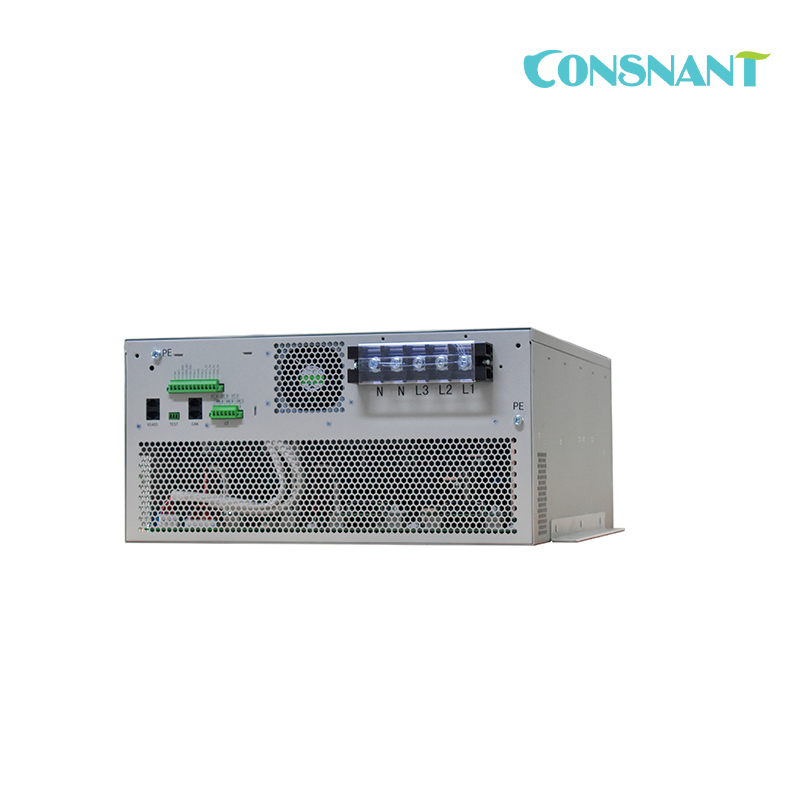

Wall Mount Active Power Filter (APF) 50A – 200A

Wall Mount Active Power Filter (APF) 50A – 200A

Model Number: APF 3P3W 50A – 200A, APF 3P4W 50A – 200A
Nominal Capacity: 50 A – 200A
Nominal Voltage: 220VAC, 400VAC, 690VAC
Nominal Frequency: 50HZ/60HZ
Installation method: Stand, Wall Mount and Rack Mount



Application field:

Rail transit, petrochemical industry, offshore oil, automobile manufacturing, machinery heavy industry, sewage treatment, mining smelting, municipal engineering, telecommunications banks, hospitals, intelligent buildings, conference centers , amusement centers, cement, electronics, paper, rubber, semiconductors, steel mills, non-ferrous metal smelting, electrification, etc.

  • Item No :

    APF 3P3W 50A – 200A, APF 3P4W 50A – 200A
  • Order(MOQ) :

    10 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    7035 grey (customization acceptable)
  • Shipping Port :

    Shenzhen
  • Lead Time :

    3-5 days
  • Weight :

    40-65 Kg

Wall Mount Active Power Filter (APF) 50A – 200A

Description

APF (Active Power Filter) is a new power electronic harmonic filtering device based on voltage source inverter that dynamically generates reverse harmonic current through real-time detection of load current waveforms to achieve filtered (offset) harmonic,dynamic reactive power compensation system,voltage fluctuations,resonance suppression,power factor improvement,and other functions.

APF module generates PWM-signal of the internal IGBTsthrough DSP calculation. It has complete protection function and stable performance. Output characteristics cf the system are not affected, no danger of harmonic amplification,fast response,wide filter range,high filtering efficiency,small size and light weight.It has become an important means of harmonic suppression and reactive power compensation.



Working principles:

1. External current transformer(CT)could detect real-time load current .

2. Internal DSP calculates and analyzes the reactive power content of the system.

3. Control PWM to send signal to IGBT to generate reactive power compensation current for power factor compensation.



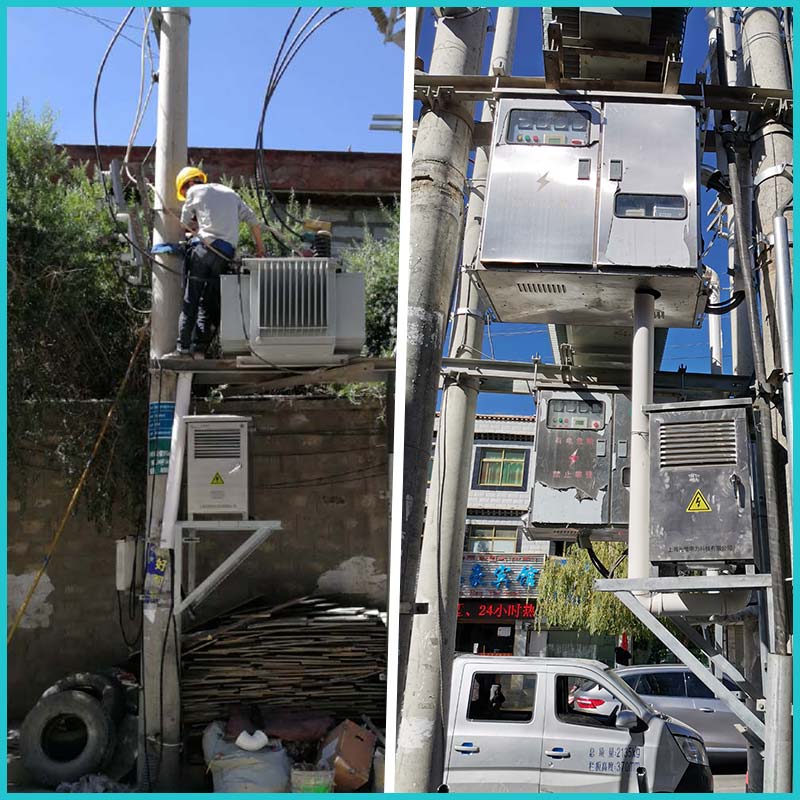

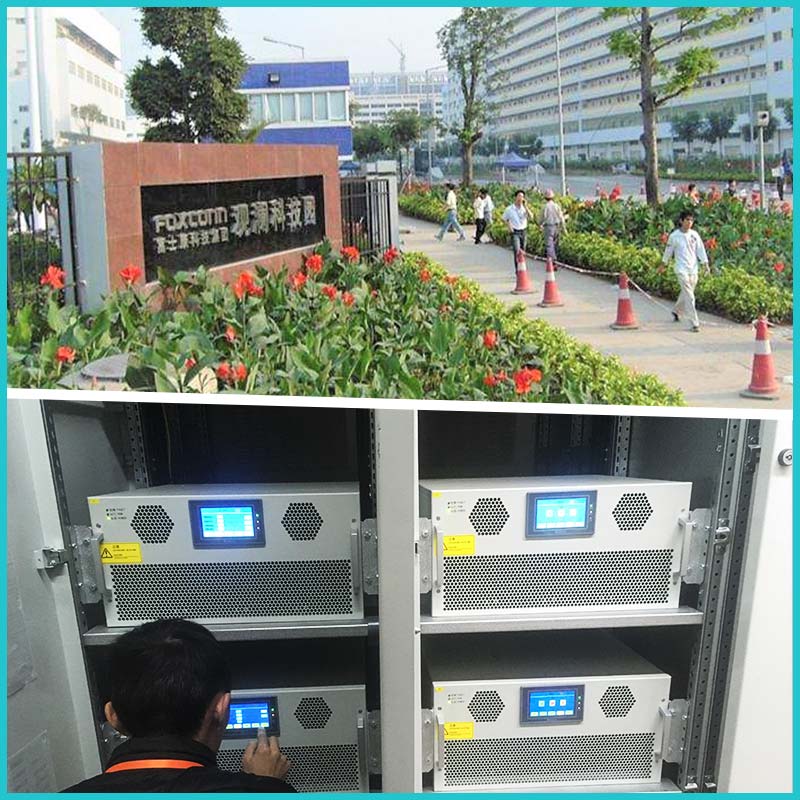

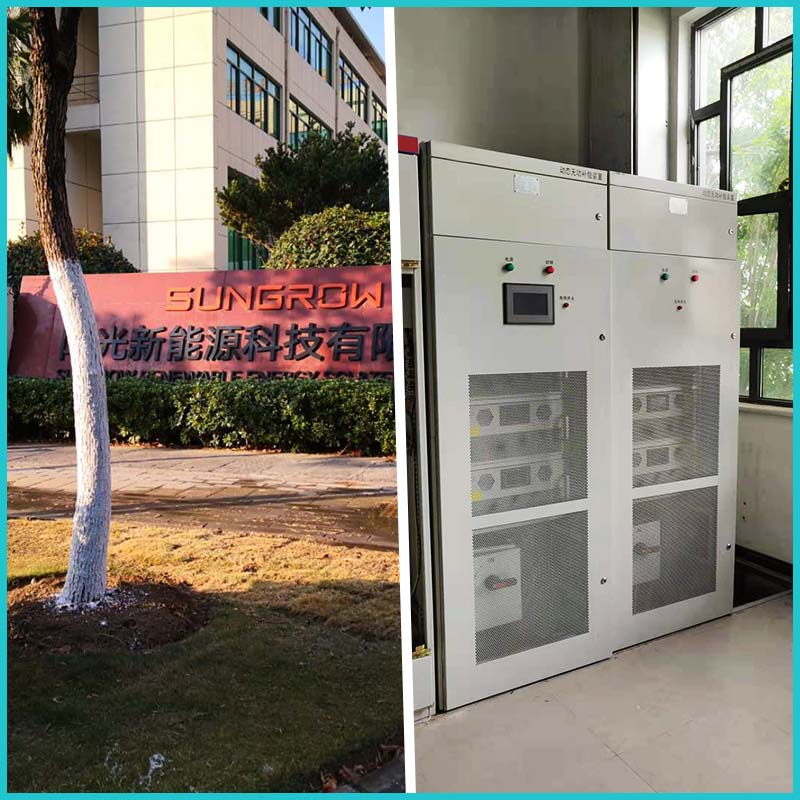

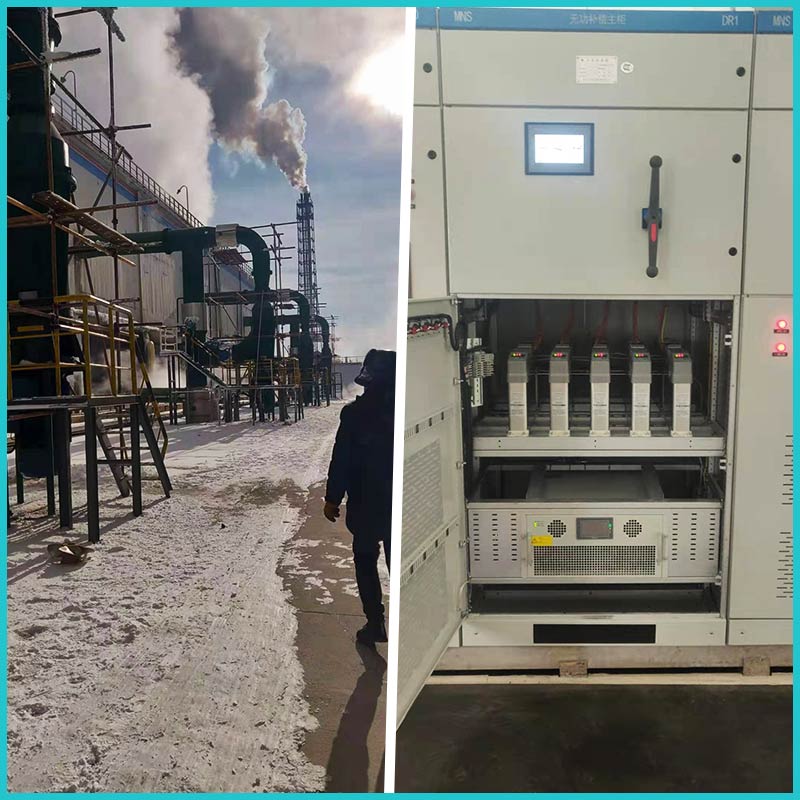

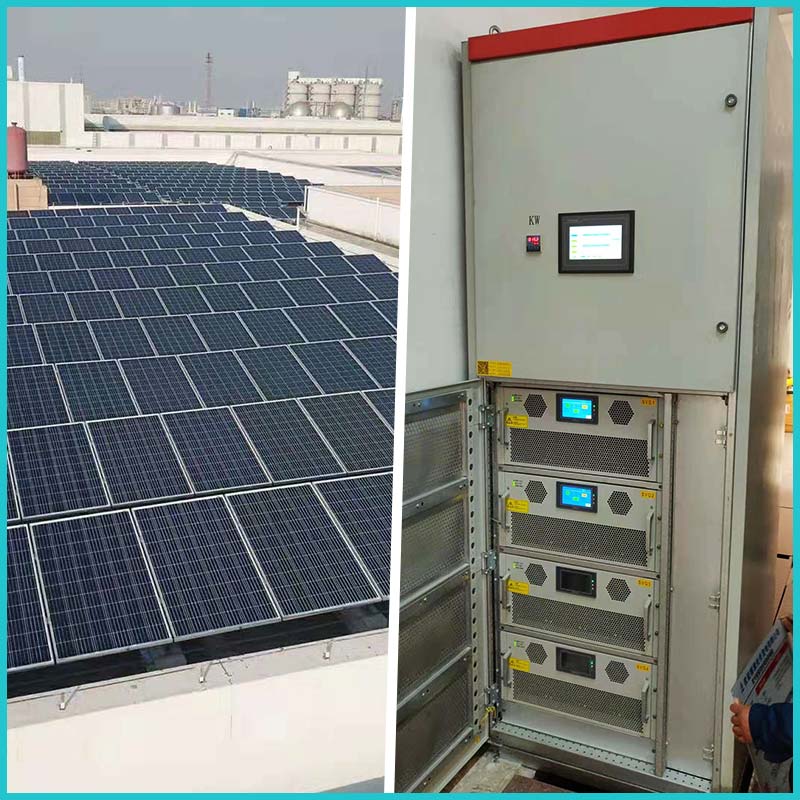

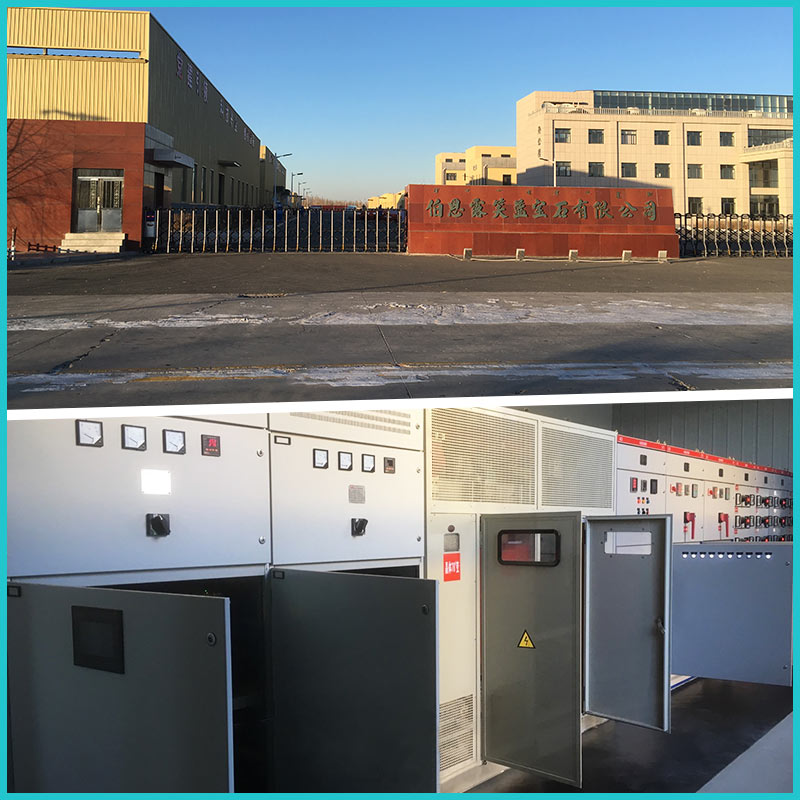

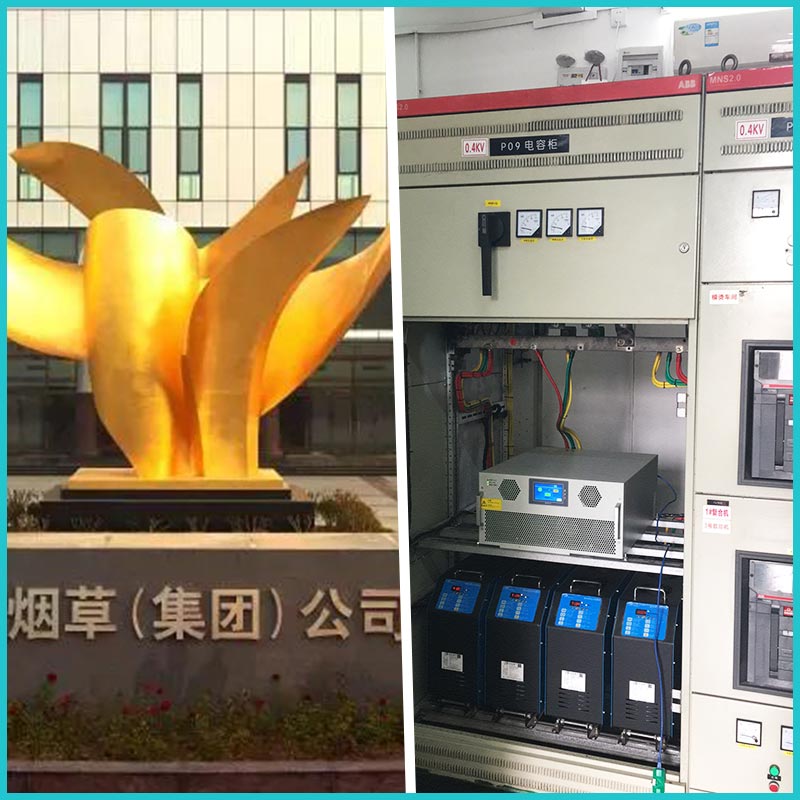

Typical Application:

• Commercial Buildings APF(three-phase four-wire products)

• Industrial-type Large-capacity LoadAPF(three-phase three-wire products)

• Telecommunication IDC Room

• UPS Systems

• Central Air Conditioning System

• Residential Building

• Municipal Facilities

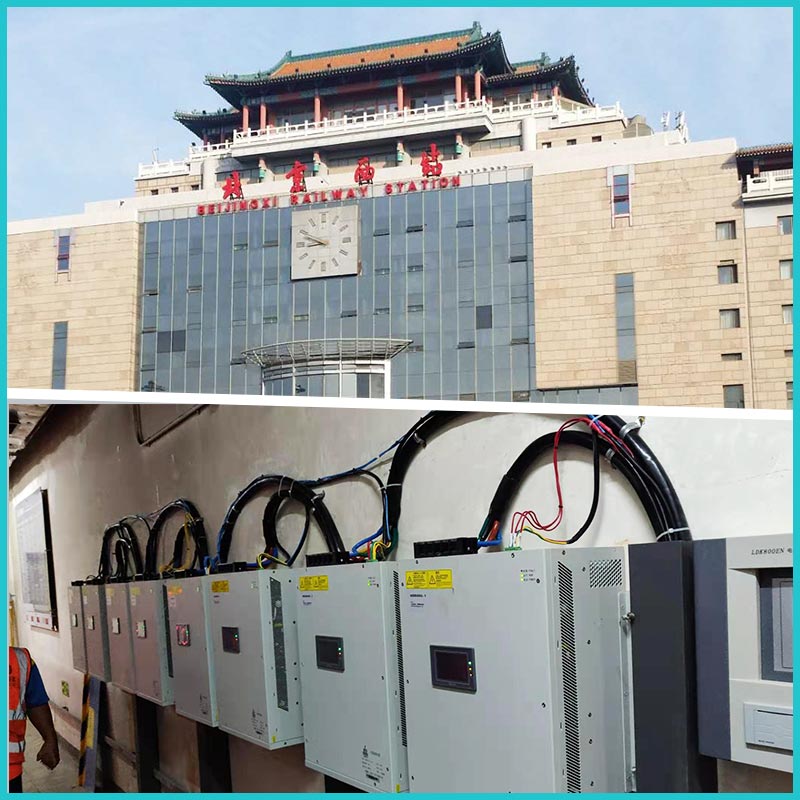

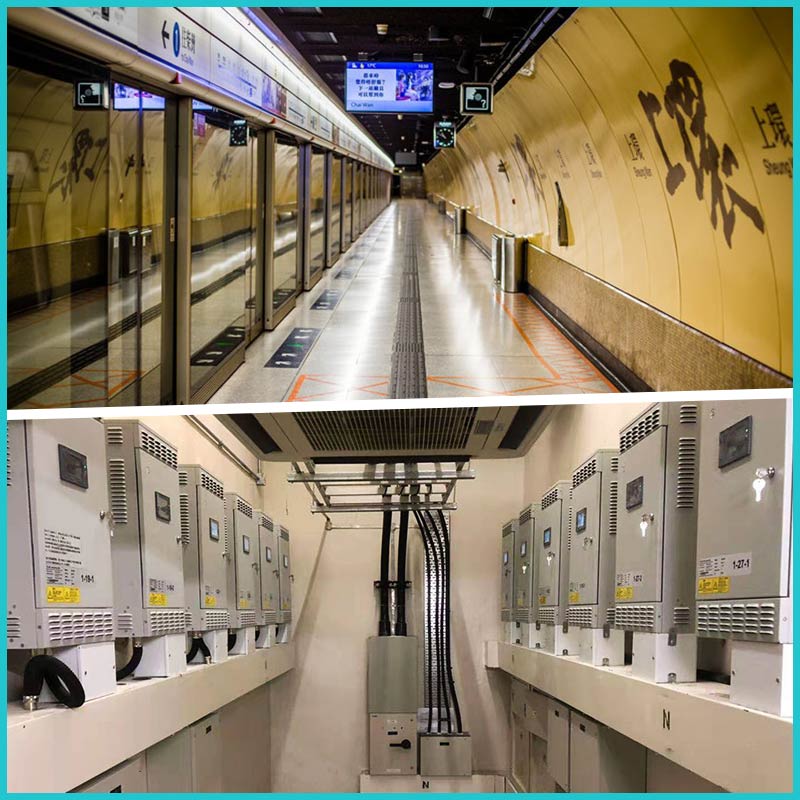

• Electrified Railway and Urban Rail Transit Industry

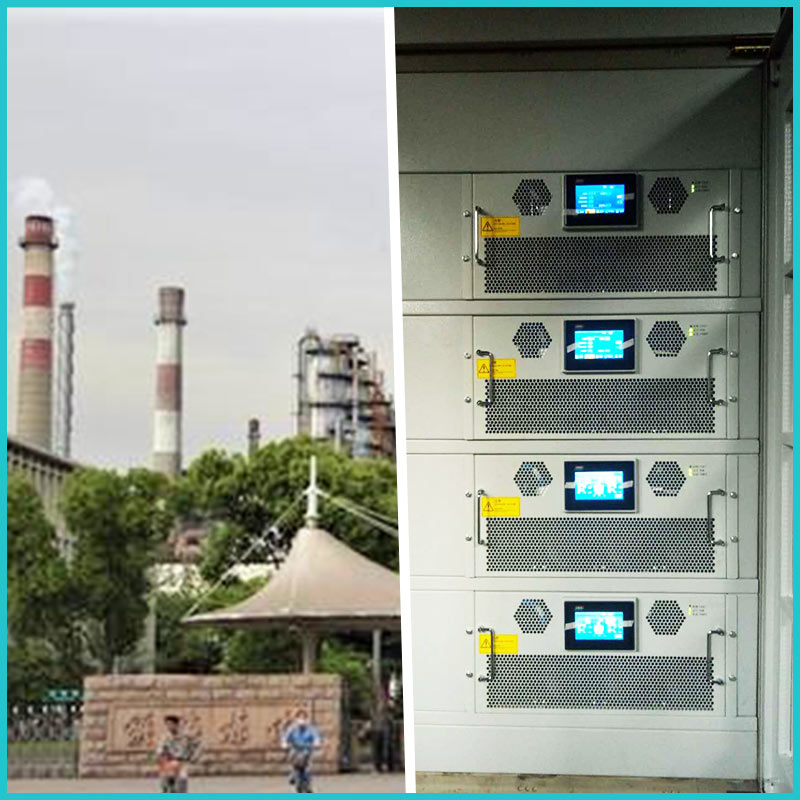

• Petrochemical and Natural Gas Industries

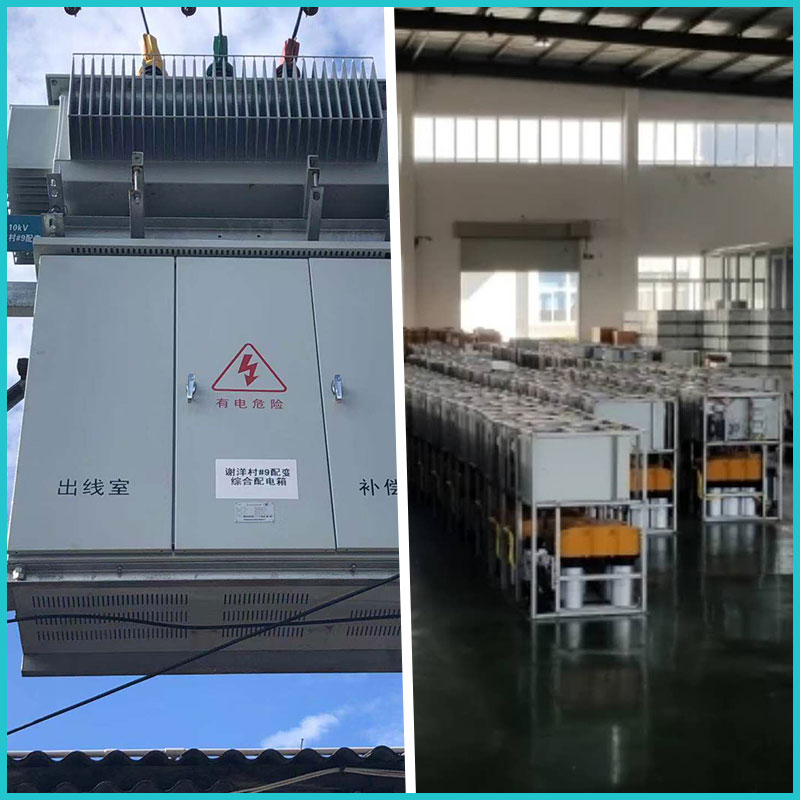

• Power Industry

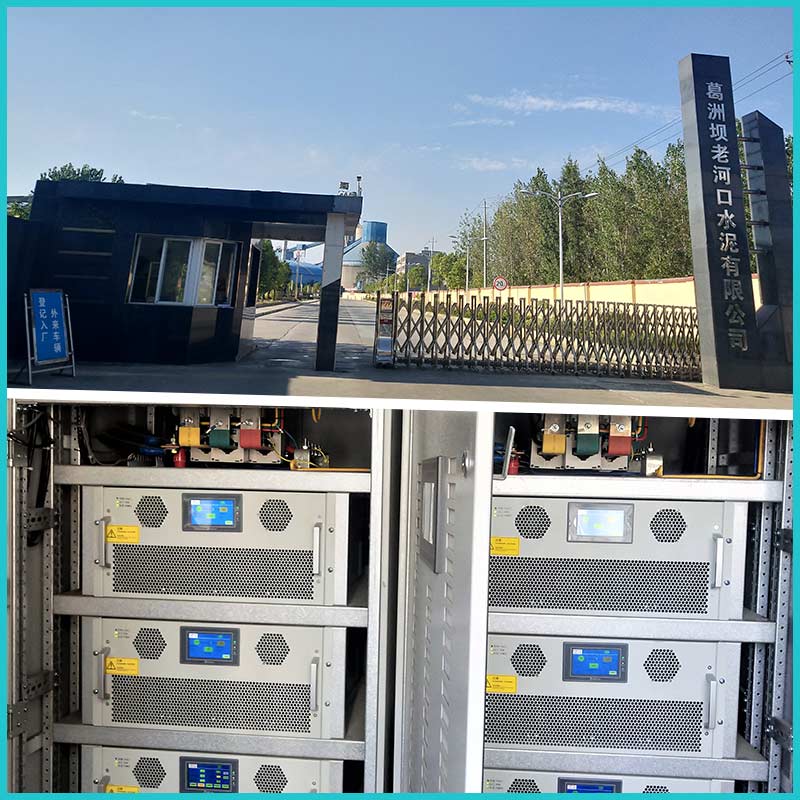

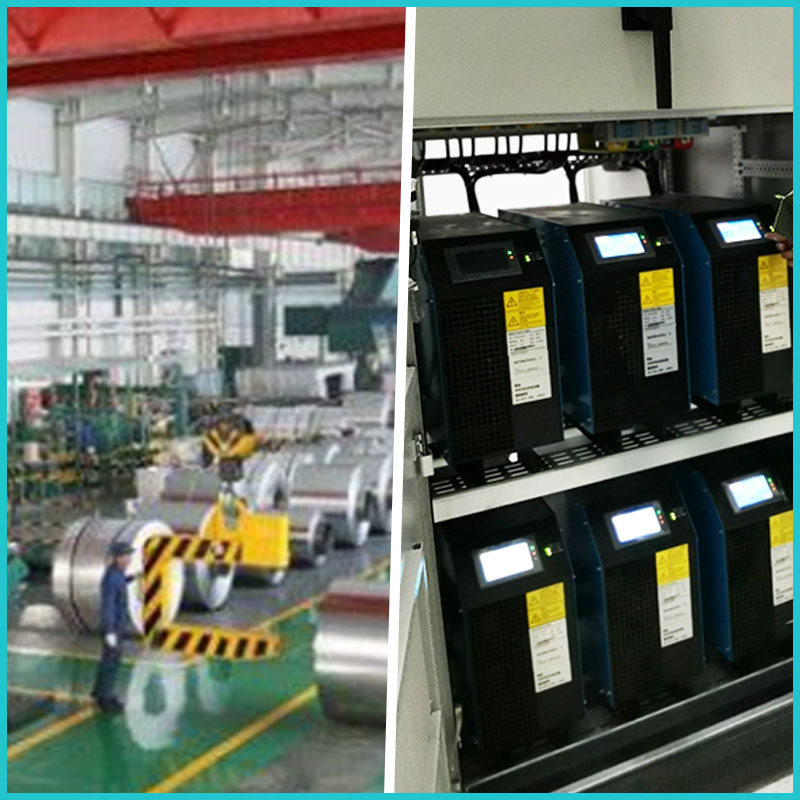

• Metallurgical Industry ·BulldingMaterialsIndustry Coal Industry

• Textile Industry

• Paper Mill

• Precision Manufacturing

• Automotive Industry

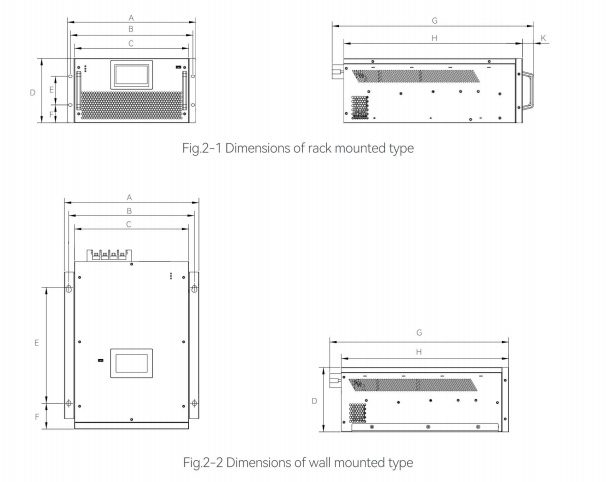

APF Dimensions



Ordering instruction

lf you have technical solution, you can check our products directly.



If you need our technical guide,please advise your problemdetails as many as you can.We can give more reasonable solutions.You may provide the following:

Single line drawing

Panel primary scheme drawing

Power quality test report(mainly about harmonics)

If you have no any drawings,you can advise us

Load nameplate,load condition,existing powerfactor,target power factor,harmonic frequency,etc.

Or rated voltage,compensation capacity,harmonic frexjuency(reactordetuningfactor),andothercomponents

If you can not provide enough information

We can supply you with our productsaccording to your technical requirements.

We can go to your project site, and give a professional test report after test.



Technical service

• Project-site power quality test (or test report for customer)

• Improvement solution and budget

• Product solution and price

• Products supply

• Product commissioning



Compensation Effect

• Harmonic filtering meets the standards

• Power factor is over 0.95,electrical bill saving, low reactive power penalty killing

• Reducing the losses of transformer and line, improve the distribution ability.prolong the lifespan of electrical equipments



Conform to IEC standards

IEC61000-4-5:2005          IEC61921:2003

IEC60931-1:1996             IEC60529:2001

IEC60664-1:2007             IEC60439-1:2005

IEC61000-4-3/2/4/5/18   IEC61000-2-4

IEC60831-1:1996             IEC622082011...

IEC60255                         IEC255-22-1





Electrical Features & Specifications

Item Description
Main Function Harmonic Filter Setting filtering from 2-51 times(under only harmonic filtering function)
While choose priority, the harmonic filtering is 2-13th
Auto/Priority function The user can also set the priority function, including H+Q/ Q+H/Q+H+B/H+Q+B  (Q power factor, H harmonic filtering, B, unblance )ref:Tab.4-1

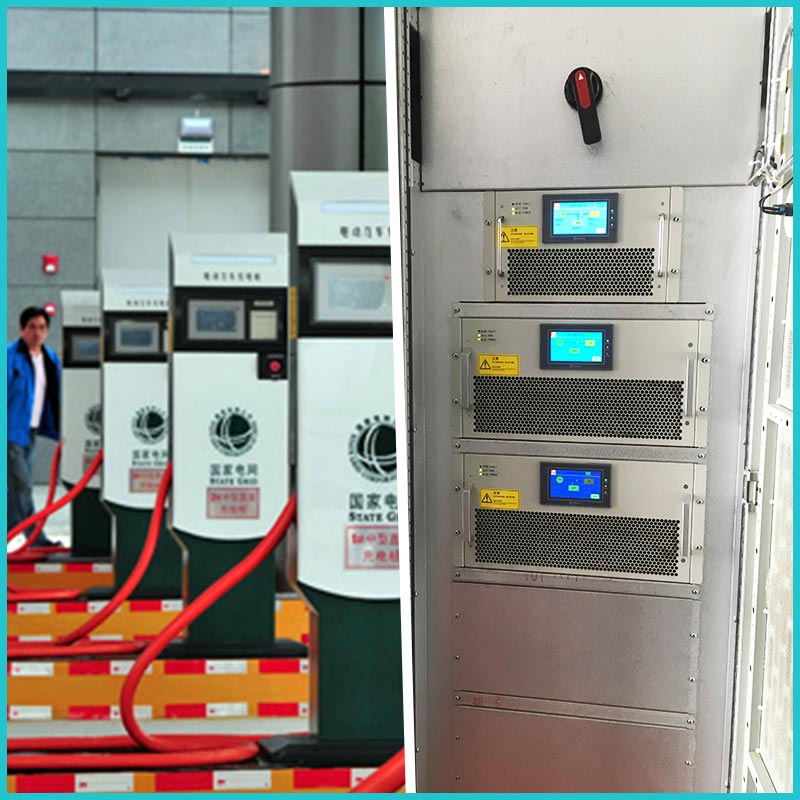

Application Hotel,Car park, Car charger station,Car 4S store,IDC, hospital,Railway,water treatment and other non-liner load

Electrical

Specifications

Rated voltage 380/400Vac or 690Vac
Wiring 3P3W or 3P4W
Frequency 50±2Hz
Capacity 20~100A(According to SVG type)
Module Consumption <2kW
Efficiency Up to 97.5%
switching frequency 20kHz
Response time Fast response time<50μs
Total response time<5ms
CT ratio 150:5~6000:5
Parallel Max.5 (customization acceptable)
Terminals Communication RS485
Environment Operating environment In-door, free from moisture, dust, corrodent or flammable gases, oil mist, vapor, water leakage or salt water.
Altitude <1000m (customized acceptable)
Work temperature -20℃~+50℃( derating is required from 40℃ to 50℃, increase every 1℃ above 40℃, derating 2%, highest temperature allowed: 50℃ )
Humidity Less than 95%RH, no condensing
Storage temperature -20℃~+70℃
Vibration Less than 5.9m/s2 (0.6g)
Enclosure Protection degree IP20
Colour 7035 grey (customization acceptable)
Size According to APF type(refer: APF Dimensions)
Cooling

Fan cooling



Specification Sheet

Model Compensation
Current(A)
Rated Voltage
    (Vac)
Electrical Wiring Type
APF-50A-3P3W-WM 400VAC 50 380/400/415 3 phase, 3 wires Wall Mounted
APF-50A-3P4W-WM 400VAC 50 380/400/415 3 phase, 4 wires Wall Mounted
APF-75A-3P3W-WM 400VAC 75 380/400/415 3 phase, 3 wires Wall Mounted
APF-75A-3P4W-WM 400VAC 75 380/400/415 3 phase, 4 wires Wall Mounted
APF-100A-3P3W-WM 400VAC 100 380/400/415 3 phase, 3 wires Wall Mounted
APF-100A-3P4W-WM 400VAC 100 380/400/415 3 phase, 4 wires Wall Mounted
APF-150A-3P3W-WM  400VAC 150 380/400/415 3 phase, 3 wires Wall Mounted
APF-150A-3P4W-WM  400VAC 150 380/400/415 3 phase, 4 wires Wall Mounted
APF-50A-3P3W-RM 400VAC 50 380/400/415 3 phase, 3 wires Rack Mount
APF-50A-3P4W-RM 400VAC 50 380/400/415 3 phase, 4 wires Rack Mount
APF-100A-3P3W-RM 400VAC 100 380/400/415 3 phase, 3 wires Rack Mount
APF-100A-3P4W-RM 400VAC 100 380/400/415 3 phase, 4 wires Rack Mount
APF-150A-3P3W-RM 400VAC 150 380/400/415 3 phase, 3 wires Rack Mount
APF-150A-3P4W-RM 400VAC 150 380/400/415 3 phase, 4 wires Rack Mount
APF-200A-3P3W-RM 400VAC 200 380/400/415 3 phase, 3 wires Rack Mount
APF-200A-3P4W-RM 400VAC 200 380/400/415 3 phase, 4 wires Rack Mount

Note: The standard voltage for above models is 400Vac; 220Vac/690Vac for option.



Usage Condition:



Ambient Temp -25℃~+45℃
Humidity ≤95%
Aptitude ≤1000m(customization  acceptable)
Max. Operating Voltage ≤110%(nominal  voltage)
Max. Current ≤130%(nominal  current)
Environment Around No corrosive gas, no conductive dust and no explosive and flammable medium around
nstallation Site No severe vibration and bump, installation angle ≤5°



leave a message
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Submit
RELATED PRODUCTS
Wall Mount Active Power Filter (APF) 50A – 200A
Wall Mount Active Power Filter (APF) 50A – 200A Model Number: APF 3P3W 50A – 200A, APF 3P4W 50A – 200ANominal Capacity: 50 A – 200ANominal Voltage: 220VAC, 400VAC, 690VACNominal Frequency: 50HZ/60HZInstallation method: Stand, Wall Mount and Rack Mount   Application field: Rail transit, petrochemical industry, offshore oil, automobile manufacturing, machinery heavy industry, sewage treatment, mining smelting, municipal engineering, telecommunications banks, hospitals, intelligent buildings, conference centers , amusement centers, cement, electronics, paper, rubber, semiconductors, steel mills, non-ferrous metal smelting, electrification, etc.

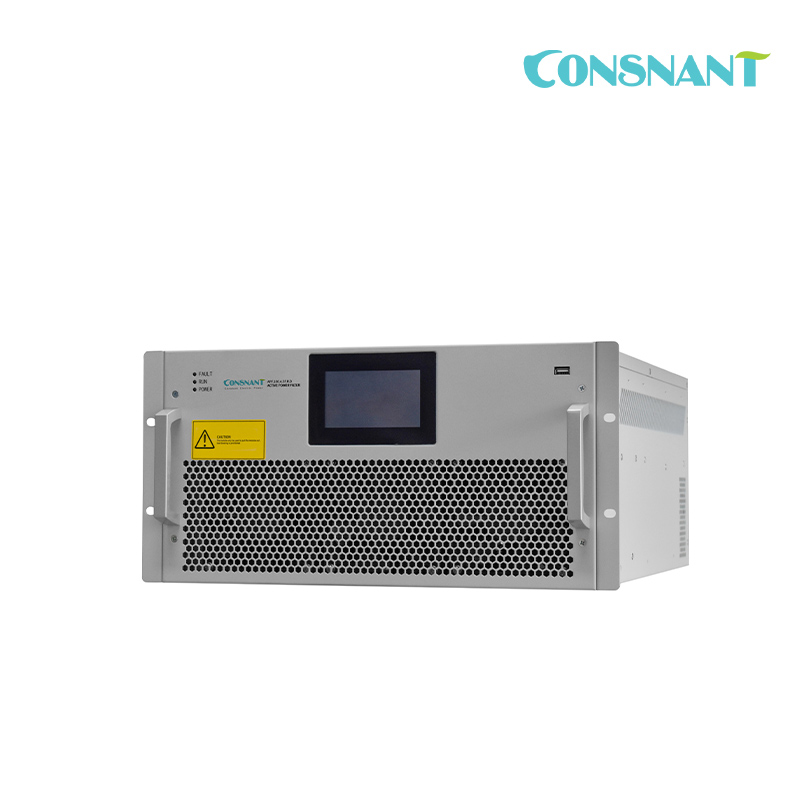

Rack Mount Active Power Filter (APF) 50A – 200A
