Wall Mount Static Var Generator (SVG) 50A – 200A

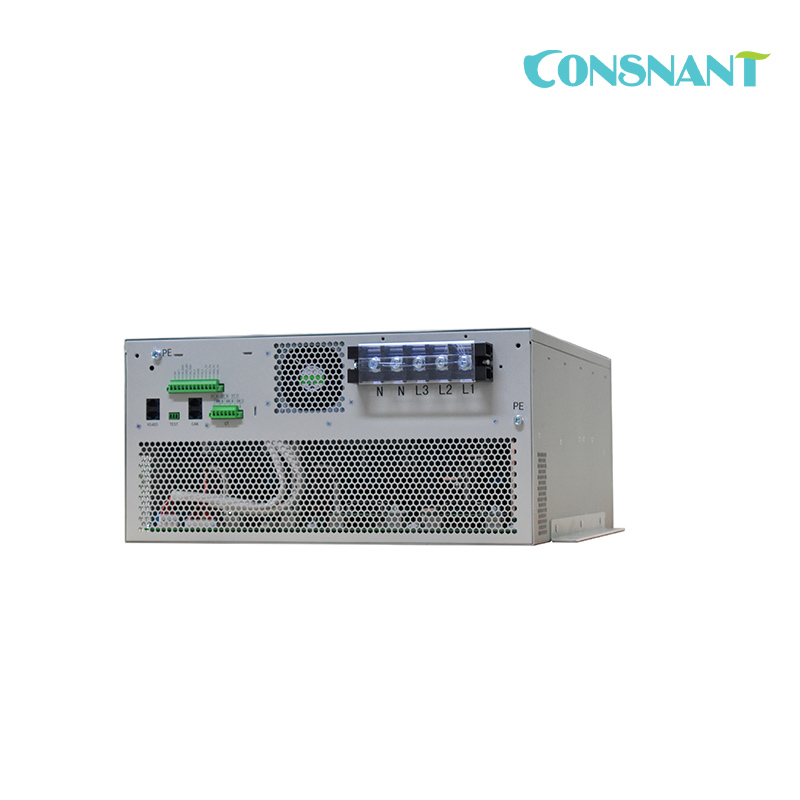

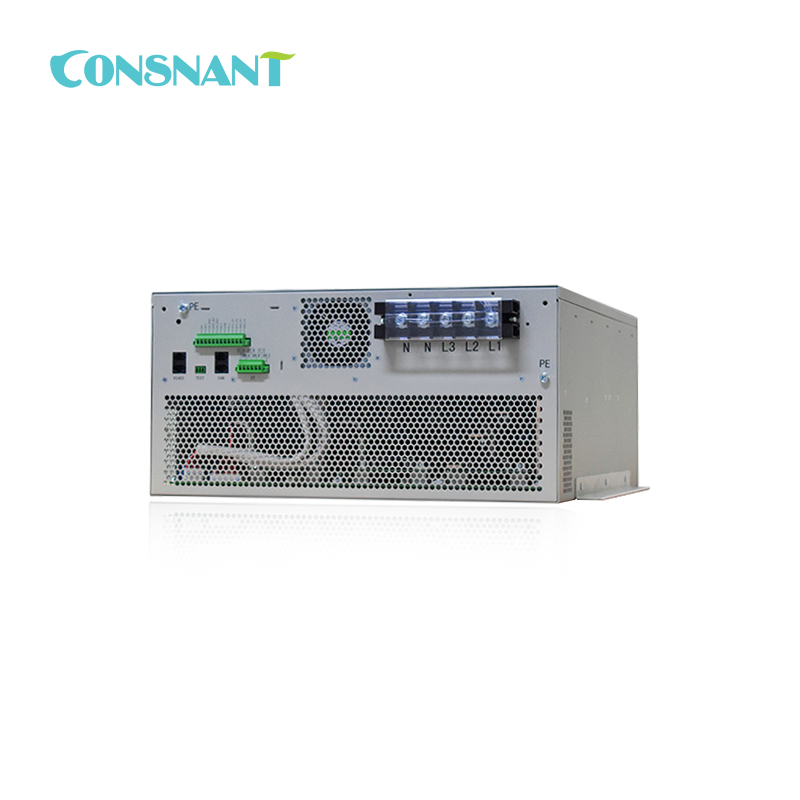

Wall Mount Static Var Generator (SVG) 50A – 200A

Model Number: SVG 3P3W 50A – 200A, SVG 3P4W 50A – 200A
Nominal Capacity: 50A – 200A
Nominal Voltage: 220VAC, 400VAC, 690VAC
Nominal Frequency: 50HZ/60HZ
Installation method: Stand, Wall Mount and Rack Mount



Application field:

Rail transit, petrochemical industry, offshore oil, automobile manufacturing, machinery heavy industry, sewage treatment, mining smelting, municipal engineering, telecommunications banks, hospitals, intelligent buildings, conference centers , amusement centers, cement, electronics, paper, rubber, semiconductors, steel mills, non-ferrous metal smelting, electrification, etc.

  • Item No :

    SVG 3P3W 50A – 200A, SVG 3P4W 50A – 200A
  • Order(MOQ) :

    10 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    7035 grey(customization acceptable)
  • Shipping Port :

    Shenzhen
  • Lead Time :

    3-5 days
  • Weight :

    60-100 Kg

Wall Mount Static Var Generator (SVG) 50A – 200A

Description

SVG STATIC VAR GENERATOR

A revolutionary modular three level inverter reactivepower management system used for power factor correction, current balancing, voltage balancing, voltage regulation and VAR support. Ideal for industrial, commercial and electricity network applications.

Available in 50/75/100kVar wall mount and 50/100/150kVar rack mount modules,400VAC three phase.



Features:

● Adopt the latest IGBT technology witha high switching frequency up to 35KHz.

● Quick response and minimal thermal and electric energy losses.

● Quickly responding DSP+FPGA processors.

● The SVGM series products adopt full digital control systems DSP, which can immediately respond to the load changes and have no overcompensation and undercompensation,and support continuous automatic control adjustment.

● Unique and spacious design for optimal thermal management.

● Best-in-business three-level topology that can better offset the current to the sine wave compared with traditional two-level inverters.

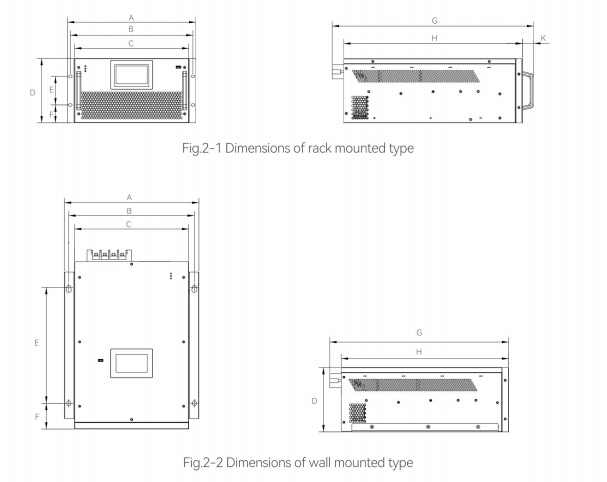

SVG Dimensions

Specification Sheet

Model Compensation
Current (KVar)
Rated Voltage
(Vac)
Electrical Wiring Type
SVG-50K-3P3W-WM 400VAC 50 380/400/415 3 phase, 3 wires Wall Mounted
SVG-50K-3P4W-WM 400VAC 50 380/400/415 3 phase, 4 wires Wall Mounted
SVG-75K-3P3W-WM 400VAC 75 380/400/415 3 phase, 3 wires Wall Mounted
SVG-75K-3P4W-WM 400VAC 75 380/400/415 3 phase, 4 wires Wall Mounted
SVG-100K-3P3W-WM 400VAC 100 380/400/415 3 phase, 3 wires Wall Mounted
SVG-100K-3P4W-WM 400VAC 100 380/400/415 3 phase, 4 wires Wall Mounted
SVG-50K-3P3W-RM 400VAC 50 380/400/415 3 phase, 3 wires Rack Mount
SVG-50K-3P4W-RM 400VAC 50 380/400/415 3 phase, 4 wires Rack Mount
SVG-100K-3P3W-RM 400VAC 100 380/400/415 3 phase, 3 wires Rack Mount
SVG-100K-3P4W-RM 400VAC 100 380/400/415 3 phase, 4 wires Rack Mount
SVG-150K-3P3W-RM 400VAC 150 380/400/415 3 phase, 3 wires Rack Mount
SVG-150K-3P4W-RM 400VAC 150 380/400/415 3 phase, 4 wires Rack Mount

Note: The standard voltage for above models is 400Vac; 220Vac/690Vac for option.





Electrical Features& Specifications

       Item Description
Function Main Maintain receiving end voltage and strengthen system voltage stability
Inverter topology: 3 level NPC topology, IGBT
Compensate system reactive power, improve power factor, reduce line loss, save energy and reduce cost
Suppress voltage fluctuation and flicker
Suppress three phase unbalance
Compensate both inductive and capacitive loads to achieve PF0.99 and avoid under and over compensation
Ability to set compensation priority, set with power factor and balance,various combinations of harmonics.
Harmonic Setting filtering from 2-13 times
Application Hotel, Car park, Car charger station, Car4S store, IDC, Hospital, Railway water treatment and other non-liner load
Electrical

spec
Rated voltage 380/400Vac
Wiring 3P3W/3P4W
Frequency 50±3Hz
Capacity 20~100kVar (According to SVG type)
Efficiency Up to 97.5%
Switching frequency 20kHz
Response time Fast response time<50us Total response time <5ms
CT ratio 150:5~6000:5
Parallel Max. 5(customization acceptable)
Terminals Relay output Max. 2, default 1
Digital input Max.2, default 1
Communication RS485
Environment Operating
environment
Indoor, free from moisture, dust, corrodent or flammable gases, oil mist vapor, water leakage and salt water.
Altitude <1000m,use as per GB/T3859.2(customization acceptable)
Work temperature  -10℃~+40℃(derating is present from 40℃ to 50℃, derate by 2% per every 1℃ increase above 40℃, highest temperature allowed: 50℃)
Humidity Less than 95%RH, no condensing
Storage temperature -40℃~+70℃
Vibration Less than 5.9m/s2(0.6g)
Enclosure Protection degree IP20
Colour 7035 grey(customization acceptable)
Size According to SVG type (refer to SVG Dimensions)
Cooling Fan cooling
Other Design standard IEC61000  EN55011  EN62477  EN61800
