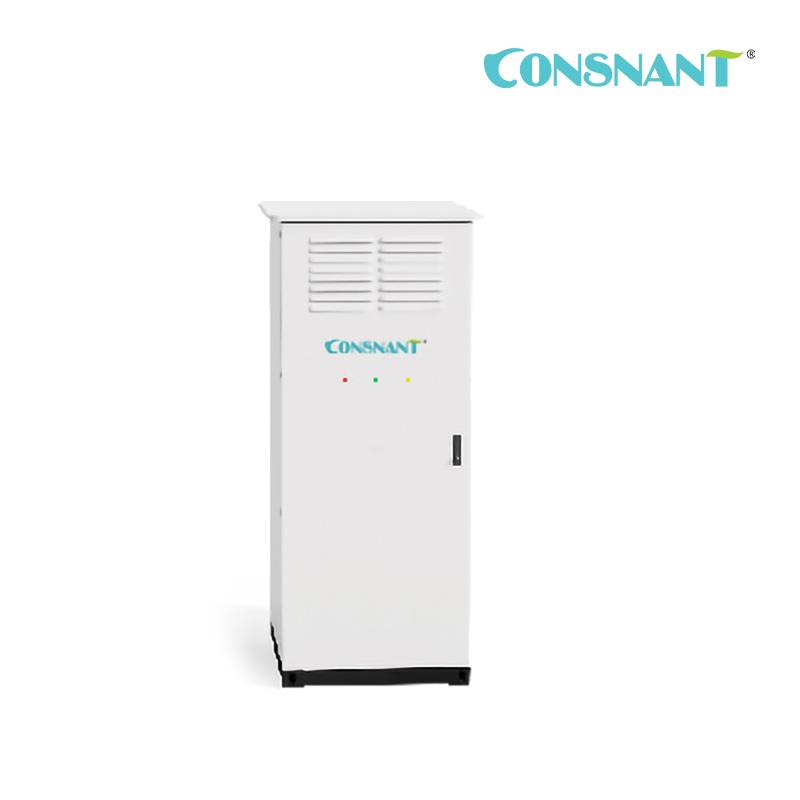

215kWh Energy Storage Cabinet

Industrial and Commercial ESS 215kWh Energy Storage Cabinet



Model: ESS1-100/215-0.4-L

Nominal energy: 215kWh

Working voltage: 600V~876V

AC rated power: 100kw

Operating temperature: -30℃~55℃



Commercial and industrial user side, grid side, power generation side applications.

  • Item No :

    ESS1-100/215-0.4-L
  • Order(MOQ) :

    1 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    White ,Grey
  • Shipping Port :

    Shenzhen
  • Lead Time :

    45 days
  • Weight :

    2000 Kg

Industrial and Commercial ESS 215kWh Energy Storage Cabinet



Description

From standardized battery boxes to configurable modular energy storage systems, achieving adual-platforms and multi-series product system, to meet the whole scenario energy storage application on the user side, grid side, and power generation side for commerce and industry.



Product Features:

High Security: Three-dimensional security system, aviation-level extreme security

Ultra-high Yield: 3-5 years payback

Long Life: 15 years super long life

Intelligent and Friendly: Independent control of the cloud platform, simplified operation and maintenance

Super High Efficiency: Charge and discharge efficiency 92.5%, discharge depth 100%

Strong and Durable: 10,000 cycles

Super Low Cost: LCOS is reduced by 40%, and operation and maintenance costs are extremely low

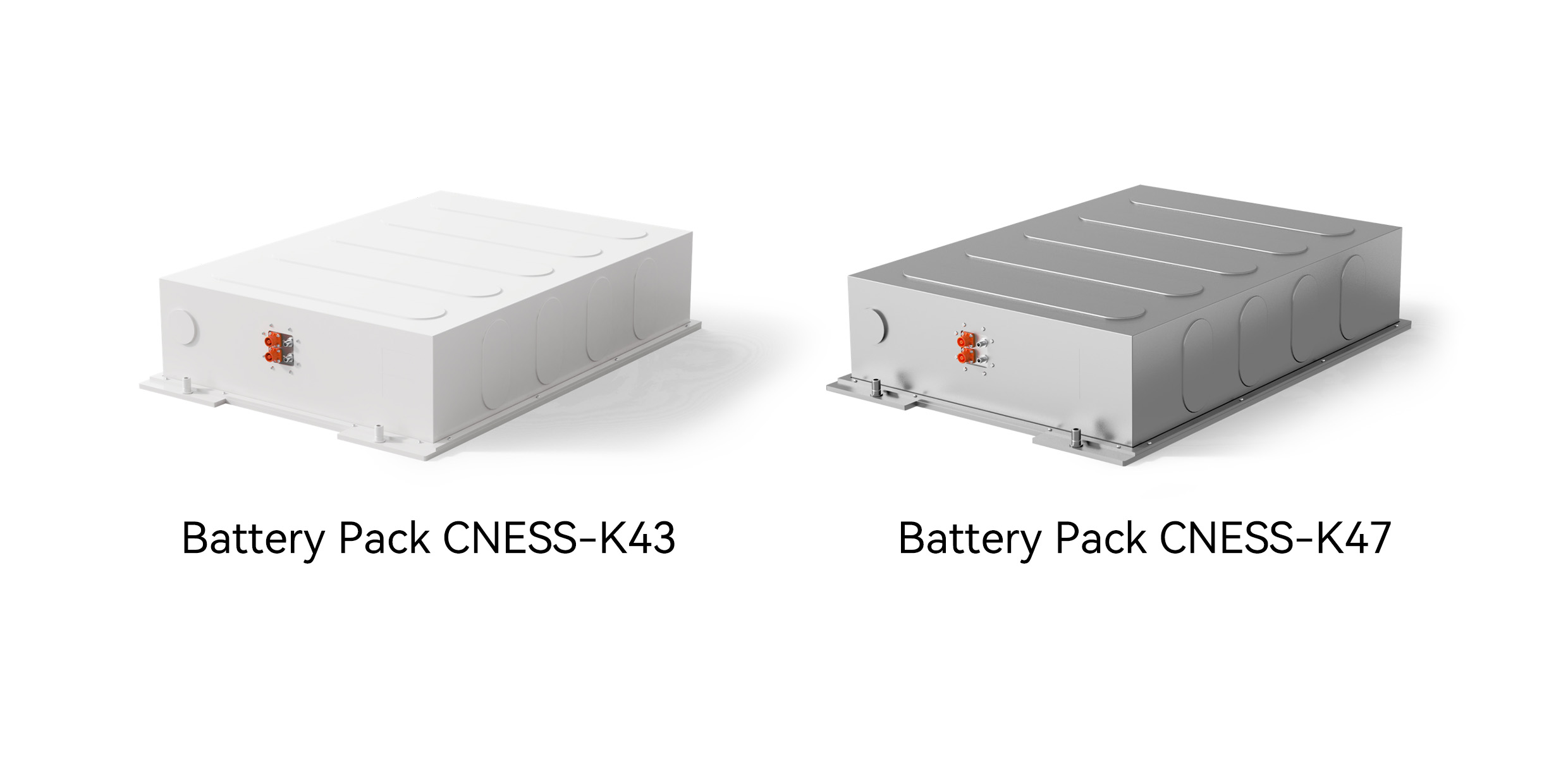

Battery Pack

• Aluminum alloy die-casting box for vehicle, reliable strength

• Vehicle CTP design, highly integrated, high energy density

• Full-time balance and good consistency

• Standard fast plug design, flexible configuration



Product model CNESS-K43  CNESS-K47
Cell type LFP cell special for energy storage
Group mode IP48S  IP52S
Nominal energy 154  166
Working voltage 120~175  130~190
Rated energy(kWh) 43.0  46.6
Rated charge/
discharge  ratio
0.5P
Working
temperature(℃)
-30~55
Protection grade IP67
Cooling mode Liquid cooling
Size(mm) 766*1050*254  766*1125*254
Weight(kg) 310  335



Other Service



Service hours: 9:00am-19:00pm (China time)



Product service:

1. Pre-sales consultation; After-sales worry-free.

2. Support  OEM.

3. Online guidance and Technical support.



Product Warranty:

Five year warranty period against the B/L date 45 days later.



FAQ:

What is a C&I energy storage system?

A C&I (Commercial and Industrial) energy storage system is an energy storage solution designed for commercial and industrial applications, such as factories, office buildings, data centers, schools, and shopping centers. These systems help businesses and organizations manage their energy consumption more efficiently, reduce energy costs, provide backup power, and support the integration of renewable energy sources.



C&I energy storage systems typically have larger capacities compared to residential energy storage systems, as they need to accommodate the higher energy demands of commercial and industrial facilities. The most common type of C&I energy storage system is battery-based, typically using lithium-ion batteries due to their high energy density, long cycle life, and efficiency. However, other types of energy storage technologies, such as thermal energy storage, mechanical energy storage, and hydrogen energy storage, can also be used in commercial and industrial applications, depending on the specific energy needs and requirements of the facility.



How does a C&I energy storage system work?

A C&I (Commercial and Industrial) energy storage system works similarly to a residential energy storage system but on a larger scale to accommodate the higher energy demands of commercial and industrial facilities.

The system can be charged with electricity generated from renewable sources like solar panels or wind turbines or from the grid during off-peak hours, with a battery management system (BMS) or charge controller ensuring the safety and efficiency. The charged batteries store the electrical energy as chemical energy, and then the inverter converts the direct current (DC) electricity stored in the batteries into alternating current (AC) electricity to power the facility's equipment and devices. A C&I energy storage system often includes advanced monitoring and control features that allow facility managers to track energy generation, storage, and consumption, helping optimize energy usage and reduce costs. The facilities with energy storage systems can also interact with the grid, participating in demand response programs, providing grid services, and exporting excess renewable energy back to the grid.

By managing energy consumption, providing backup power, and supporting renewable energy integration, C&I energy storage systems help businesses improve their energy efficiency, reduce costs, and enhance their sustainability efforts.



What are the benefits of a C&I energy storage system?

Peak Shaving & Load Shifting: Help businesses lower their energy bills and improve overall energy management by using stored energy during periods of high electricity demand.

Backup Power: Provide emergency power, minimizing downtime and potential revenue losses, while also enhancing facility resilience and reliability.

Renewable Energy Integration: Maximize the use of renewable energy sources, helping the organization achieve sustainability and meet renewable energy targets or mandates.

Grid Support: Enable the commercial and industrial facilities to participate in demand response programs and provide grid services, creating additional revenue and improving overall grid reliability.

Increased Energy Efficiency: Help businesses optimize their energy usage and reduce overall energy consumption by using stored energy to manage load fluctuations.

Enhanced Power Quality: Improve power quality by regulating voltage and mitigating fluctuations in the local grid.



What are the different types of C&I energy storage systems?

There are several types of energy storage systems suitable for commercial and industrial (C&I) applications. The choice of system depends on factors such as the facility's energy needs, available space, budget, and desired performance. The main types of C&I energy storage systems include battery-based, thermal, mechanical, hydrogen energy storage, and supercapacitors.

Battery-based systems are the most commonly used type of C&I energy storage systems. They store energy using electrochemical batteries such as lithium-ion, lead-acid, or flow batteries. Battery-based systems are popular due to their relatively high energy density, efficiency, and modularity. Lithium-ion batteries, in particular, are widely used for their longer lifespan, higher energy density, and better performance compared to other battery types.

Why do we use LFP battery only?

CONSNANT ICESS only uses Lithium Iron Phosphate (LFP) cells, which are safer than the lithium batteries used in cars. The chemical composition of LFP cells virtually eliminates the risk of overheating and thermal runaway, making them safe and non-flammable even in extreme conditions. LFP cells also have a long lifespan. Although they are slightly heavier and less compact, this is usually not a problem in a domestic situation. An additional advantage is that the LFP cells do not contain any cobalt.







Technical Parameters:



Product model ESS1-100/215-0.4-L ESS1-187/372-0.7-L
DC side parameters
Cell type LFP cell special for energy storage
Group  mode IP240S IP416S
Nominal energy 215kWh 372kWh
Working voltage 600V~876V 1040V~1518V
Rated charge/discharge  ratio 0.5P
AC side parameters
AC rated power 100kW 187kW
AC maximum  power 120kW 224kW
Rated grid voltage 380V 690V
Rated grid frequency 50HZ 50HZ
System parameters
System efficiency ≥92.0% ≥92.5%
Discharge depth 100%
Number of cycles ≥10000
Protection grade IP54(PACKIP67)
Operating temperature -30℃~55℃
Cooling mode Liquid cooling
Fire protection system Perfluoro+ Active early warning
Size 900*1300*2200(mm) 1300*1300*2400(mm)
Weight 2000kg 3200kg
