1.4M Battery cabinet and 1.8M Battery cabinet (Customizable)
Applications:
Telecommunication networks
Industrial facilities
Transportation infrastructure
Mobile telecommunication sites
Communication base stations
Remote sites, and outdoor events...
Item No :
ODC-B14/ODC-B18Order(MOQ) :
10 pcsPayment :
T/TProduct Origin :
ChinaColor :
RAL7035Shipping Port :
ShenzhenLead Time :
2 weeksWeight :
85-110 KgOutdoor battery cabinet
Description

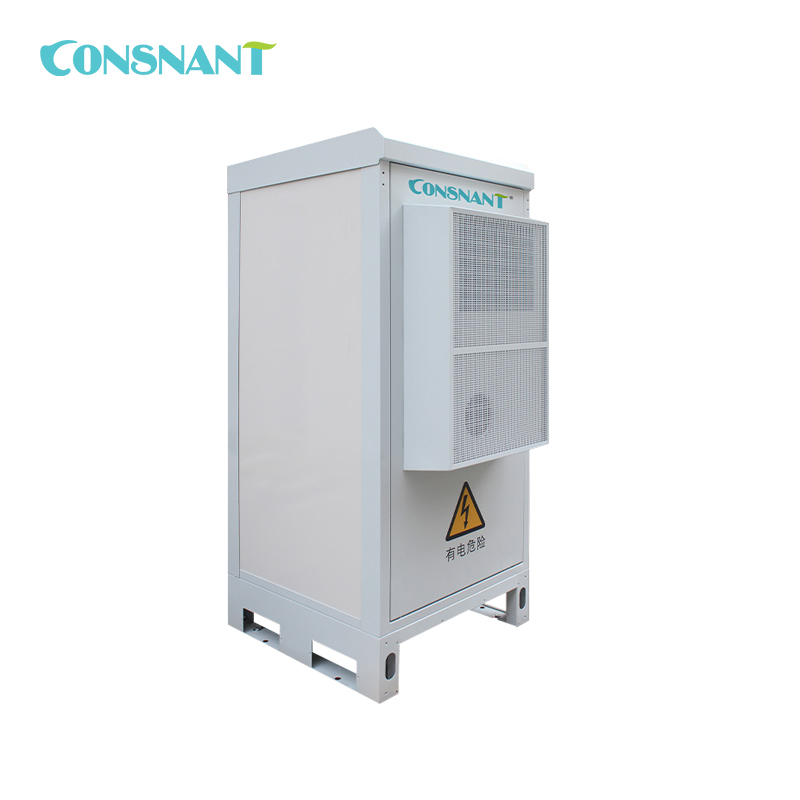

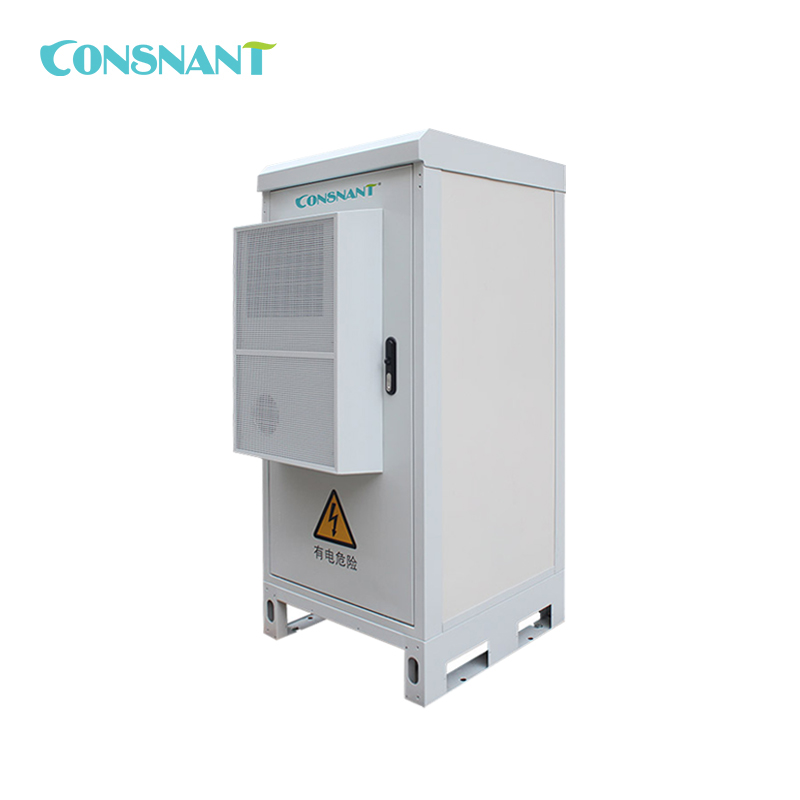

1.4M Battery cabinet
CONSNANT's Outdoor Battery Cabinet with Air Conditioner (with sandwich panel double-wall structure design) is designed to house a variety of batteries, they provide protection from vandalism, dust, rain, snow and dripping water in wireless communication base station including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission. It is designed for a variety of applications and can be tailored to fit your specific needs. This cost effective solution has a unique cube design that give flexibility to easily have various heights of cabinets.
Air conditioner(options: Heat exchanger/TEC/Fan) is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of battery and equipment. It provide a secure thermally managed environment for backup battery systems for telecommunications and cable applications.
With durable sandwich panel construction, this air-con. Outdoor Cabinet incorporates tailored air conditioners that will keep even the most sensitive electronics functioning in extreme environments.
CONSNANT Outdoor Integrated Cabinet is designed for a variety of applications and can be tailored to fit your specific needs. This cost effective solution has a unique cube design that give flexibility to easily have various heights of cabinets.
With durable Sandwich construction the Outdoor Cabinet incorporates tailored thermal systems (fan/filters, air conditioners, Heat exchangers, hybrids and heaters) that will keep even the most sensitive electronicsfunctioning in extreme environments.
The Outdoor Cabinet is well suited for power equipment, batteries, telecom gear, all integrated into a robust, economical package. The cabinet contains internal mounting rails, which allow installation of standard 19" equipment.
When you have projects or needs at hand, you need to consider below items before you find the right one:
IP Rating: IP45,IP55,IP65....
What kind of material you perfered:SPCC, Galvanized Metal, Stainless Steel or Aluminum?
What is the Equipment Usage Space want ?
Cooling Options you can afford: Cooling Fans Tray,Heat Exchanger Unitor Air Conditioner Unit ?
Optional Acccessories: EMS,FSU, PSU, Sensors,Batteries,etc

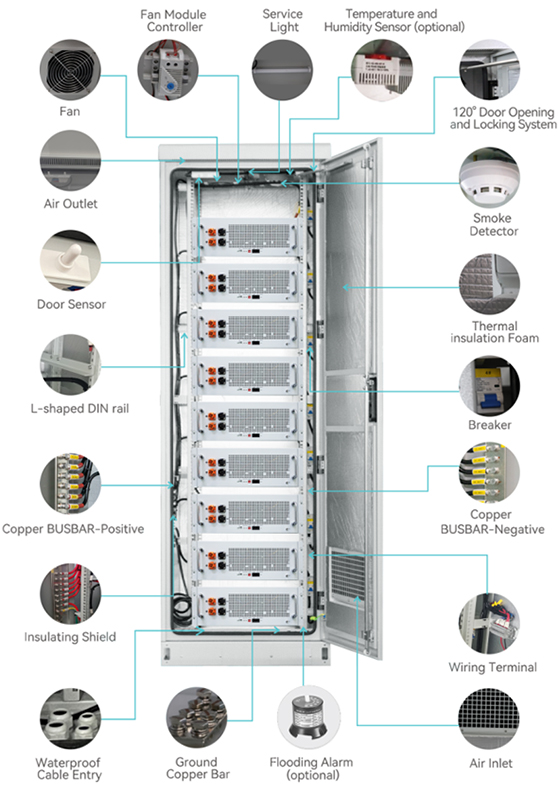

Outdoor Battery Cabinet (lithium battery)

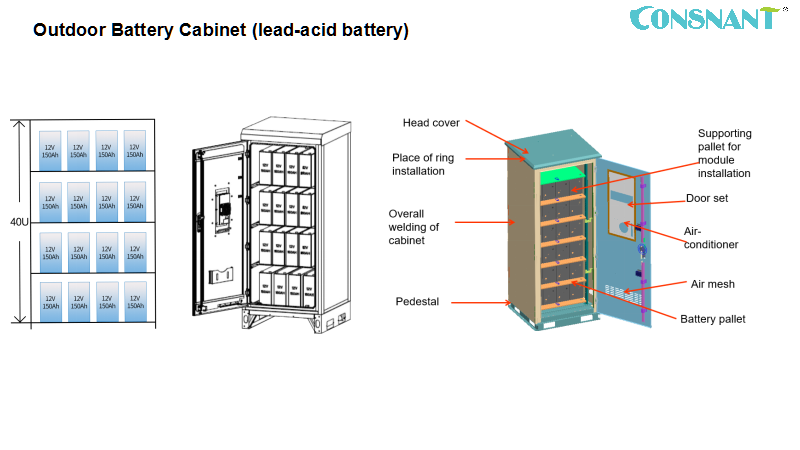

Outdoor Battery Cabinet (lead-acid battery)
Note:

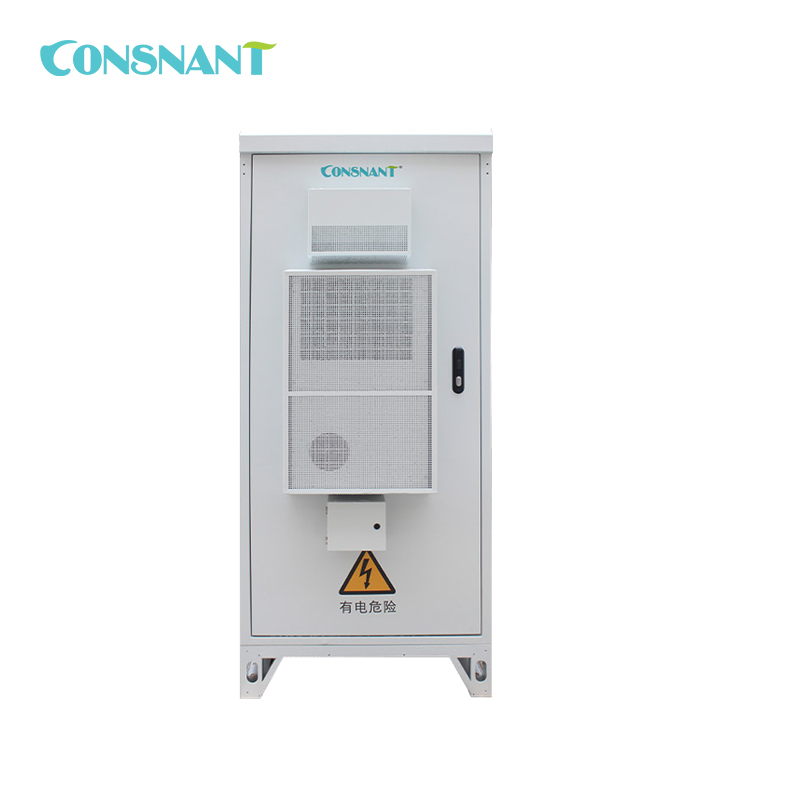

1. Air conditioner will be mounted on the front door.
2. Mounting hardware included.
3.Cooling Options will be shown based on customers request.
Technical Parameters
Model | ODC-B14TC02A01 | ODC-B14AC03A01 |
Essential information | ||
Cabinet size | 800mm(W)*800mm(D)*1400mm(H) | |
Outside cabinet size | 905mm(W)*1080mm(D)*1705mm(H) | |
Floor space | 905mm(W)*905mm(D) | |
Substructure height | 200mm | |
Weight | 85kg (excluding the equipment and battery) | 90kg (excluding the equipment and battery) |
User space | 31U | |
Frame material | SPCC - cold rolled steel (standard),Galvanized steel / Stainless Steel / Aluminium/Color Steel Sandwich Board (optional) | |
Wall plate material | Color steel sandwich plate: Color steel plate + polystyrene (polyurethane optional) | |
Wall plate thickness | 45mm | |
Gate lock | Heaven and earth three-point type anti-theft door lock, European standard lock core, can be replaced by themselves, can be equipped with the padlock | |
Levels of protection | IP55 | |
Bottom wire hole specification | 8*φ50mm | |
Shipping form | Get ready to deliver | |
Cabinet storage temperature | -40℃ ~ +70℃ | |
Relative humidity outside the cabinet | 5%~100% | |
Temperature control information | ||
Temperature control | TC02 | PC300 |
Power consumption | Typical: 300W; Maximum: 380W | 230W @L35/L35 |
Refrigeration capacity | 200W | 400W @L35/L35 |
Heater power consumption (optional) | 400W | 400W |
Battery information (optional) | ||
Battery specifications | 400Ah 2V / 150Ah 12V AGM battery | |
Battery capacity | 400Ah/450Ah | |
Battery pack number | Group 1 / 3 | |
Other information | ||
Lighting (optional) | DC-48V LED lamp | |
Certification & Standards | ||
Product certification | With the TLC certification | |
Occupation standard | YDT 1537-2015 |
