1.4M Equipment cabinet and 1.8M Equipment cabinet (Customizable)
Applications:
Telecommunication networks
Industrial facilities
Transportation infrastructure
Mobile telecommunication sites
Communication base stations
Remote sites, and outdoor events...
Item No :
ODC-E14/ODC-E18Order(MOQ) :
10 pcsPayment :
T/TProduct Origin :
ChinaColor :
RAL7035Shipping Port :
ShenzhenLead Time :
2 weeksWeight :
85-120 KgOutdoor equipment cabinet

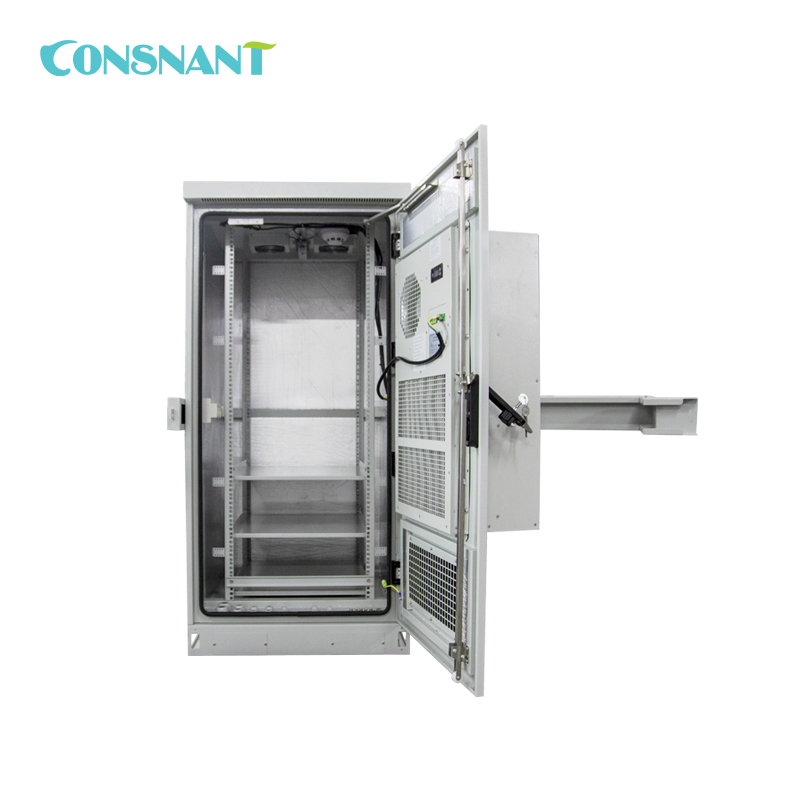

1.4M Equipment cabinet
Outdoor Equipment Cabinet is mainly used in wireless communication base station, such as 5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc. The cabinet can contain rectifier system, UPS, inverter, battery etc.
Outdoor Equipment cabinet which can protect customer’s equipment’s from damage and extreme weather conditions, vandal ism, dust, rain, snow and dripping water. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment, transmission equipment, power equipment, monitoring equipment, lithium batteries and other supporting equipment. Both active telecom equipment and passive telecom equipment can be accommodated inside the cabinet. Cabinets are available with integrated thermal management using air conditioner to control internal temperatures to protect sensitive equipment.
DATACOM offers IP55/IP66 rated floor standing equipment Cabinets. Cabinet sizes are Customizable ranging from 9U internal space to 46U special height sizes.

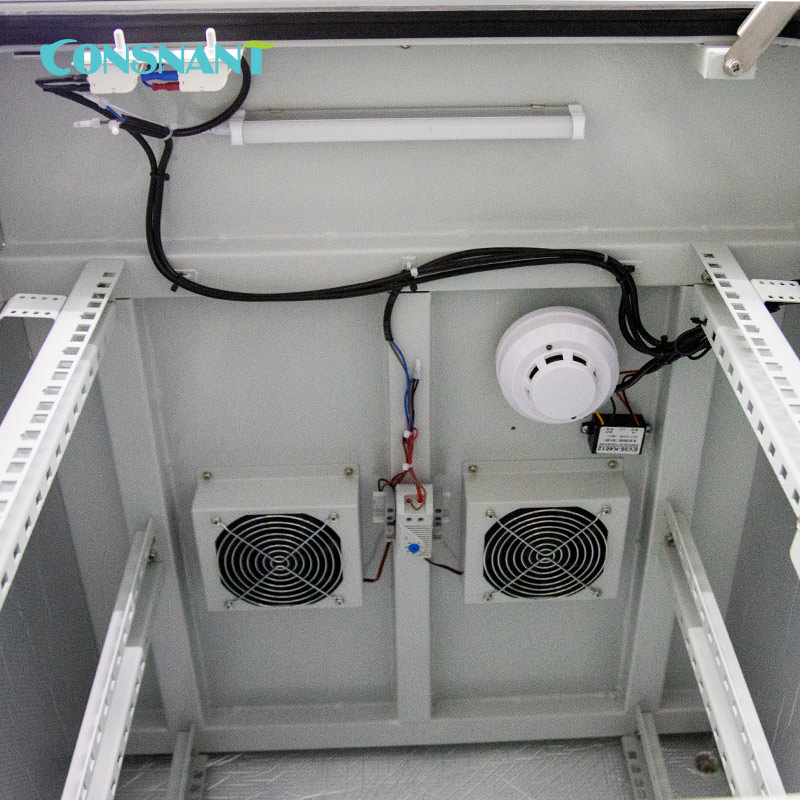

Air condition units can be configure depends on the size of cabinet and heat load requirement, cooling capacity range from 300Watts to 3000Watts.All Cabinets are constructed of Strong anti-theft ability, embedded door, inner hinge three-point lock, supporting additional pad lock.
Detailed introduction

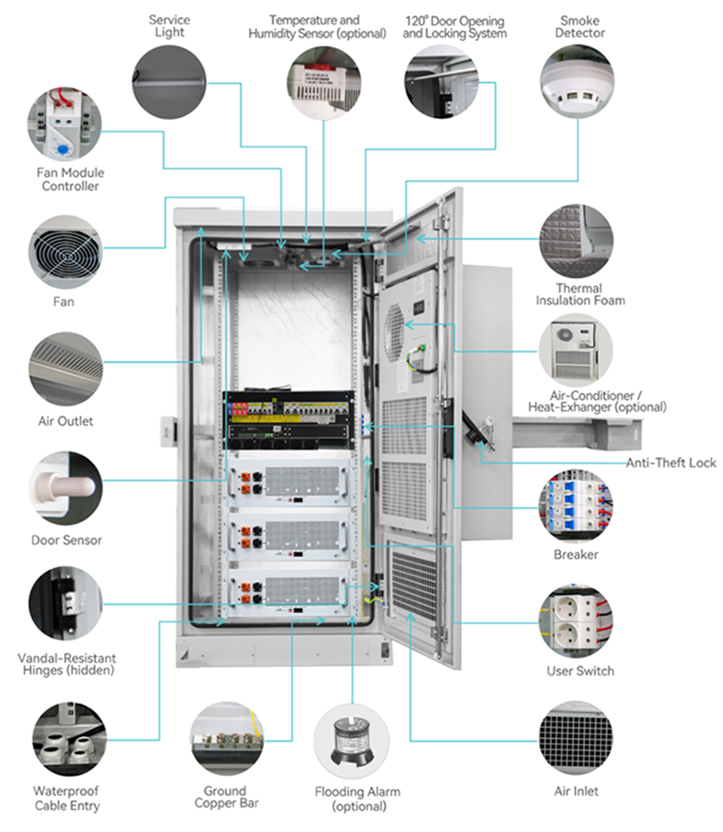

Features:
Technical Parameters
Model | ODC-E14AC15A01 | ODC-E14HX08A01 |
Essential information | ||
Cabinet size | 800mm (W) * 800mm (D) * 1400mm (H) | |
Outside cabinet size | 905mm (W) * 1080mm (D) * 1705mm (H) | |
Floor space | 905mm (W) * 905mm (D) | |
Substructure height | 200mm | |
Weight | 95kg (excluding the equipment and battery) | 85kg (excluding the equipment and battery) |
User space | 31U | |
Frame material | SPCC - cold rolled steel (standard),Galvanized steel / Stainless Steel / Aluminium/Color Steel Sandwich Board (optional) | |
Wall plate material | Color steel sandwich plate: color steel plate + polystyrene (polyurethane optional) | |
Wall plate thickness | 45mm | |
Gate lock | Heaven and earth three-point type anti-theft door lock, European standard lock core, can be replaced by themselves, can be equipped with the padlock | |
Levels of protection | IP55 | |
Bottom wire hole specification | 8*φ50mm | |
Shipping form | Get ready to deliver | |
Cabinet storage temperature | -40℃~+70℃ | |
Relative humidity outside the cabinet | 5%~100% | |
Temperature control information | ||
Temperature control of equipment module | PC1500 | HX08 |
Power consumption | 600W @L35/L35 | 70W |
PC1500 Refrigeration capacity/ HX08 heat transfer coefficient | 1500W @L35/L35 | 80W/K |
Heater power consumption (optional) | 1000W | 400W |
Other information | ||
Lighting (optional) | DC-48V LED lamp | |
Certification & Standards | ||
Product certification | With the TLC certification | |
Occupation standard | YD/T 1537-2015 |

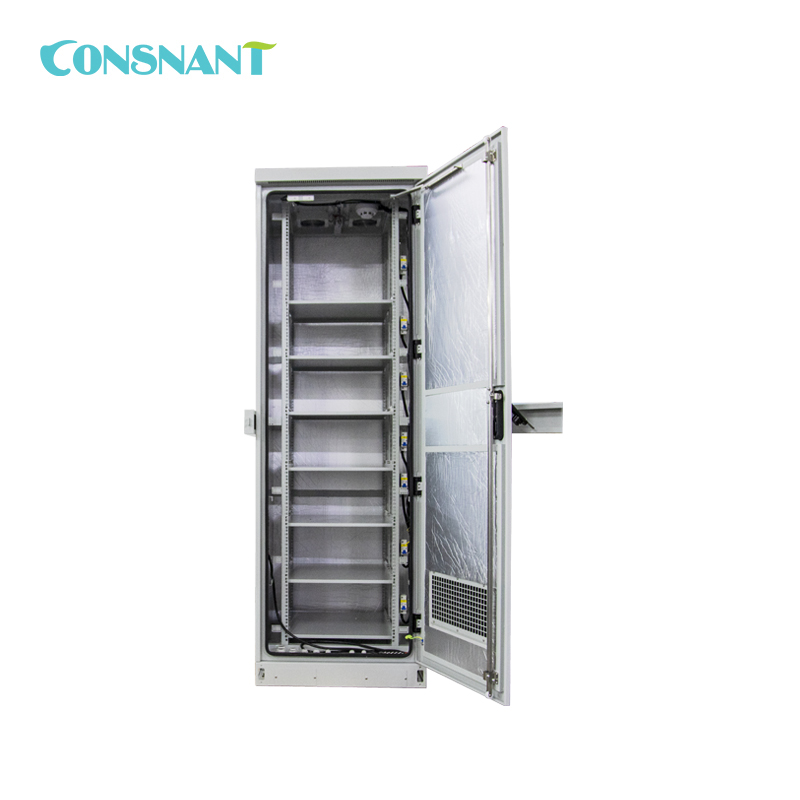

1.8M Equipment cabinet
Model | ODC -E18AC15A01 | ODC -E18HX08A01 | ODC-E18HX12A01 | ODC -E18HX19A01 |
Essential information | ||||
Cabinet size | 800mm (W) * 800mm (D) * 1800mm (H) | |||
Outside cabinet size | 905mm (W) * 1080mm (D) * 2105mm (H) | |||
Floor space | 905mm (W) * 905mm (D) | |||
Substructure | 200mm | |||
height | ||||
Weight | 120kg (Excluding equipment and battery) | 108kg (Excluding equipment and battery) | ||
User space | 40U | |||
Frame material | SPCC - cold rolled steel (standard),Galvanized steel / Stainless Steel / Aluminium/Color Steel Sandwich Board (optional) | |||
Wall plate | Color steel sandwich plate : Color steel plate + polystyrene (polyurethane optional) | |||
material | ||||
Wall plate | 45mm | |||
thickness | ||||
Gate lock | Heaven and earth three-point type anti-theft door lock, European standard lock core, can be replaced by themselves, can be equipped with the padlock | |||
Levels of protection | IP 55 | |||
Bottom wire hole specification | 8* φ50mm | |||
Shipping form | Get ready to deliver | |||
Cabinet storage temperature | -40℃~+70℃ | |||
Relative humidity outside the cabinet | 5%~ 100% | |||
Temperature control information | ||||
Temperature control of equipment module | PC 1500 | HX 08 | HX 12 | HX 19 |
Power Consumption | 600W @L35/L 35 | 70W | 190W | 190W |
PC 1500 Refrigeration capacity /HX Heat transfer coefficient |
1500W @L35/L 35 | 80W/K | 120W/K | 190W/K |
Heater power Consumption (Optional) |
1000W | 400W | 1000W | 1000W |
Other information | ||||
Lighting (optional) | DC-48V LED lamp | |||
Certification & Standerds | ||||
Product certification | With the TLC certification | |||
Occupation standard | YD /T 1537-2015 | |||
