Model : OD-TRISS-48100
Input AC voltage range: 85~300Vac
Output DC voltage range: -43.2Vdc~-57.6Vdc(Typical value-53.5Vdc)
Storage temperature Range: －45℃～＋70℃
Application：
Communication Base Station
Item No :
OD-TRISS-48100Order(MOQ) :
10 pcsPayment :
T/TProduct Origin :
ChinaColor :
RAL7035Shipping Port :
ShenzhenLead Time :
3 weeksWeight :
180 KgDescription

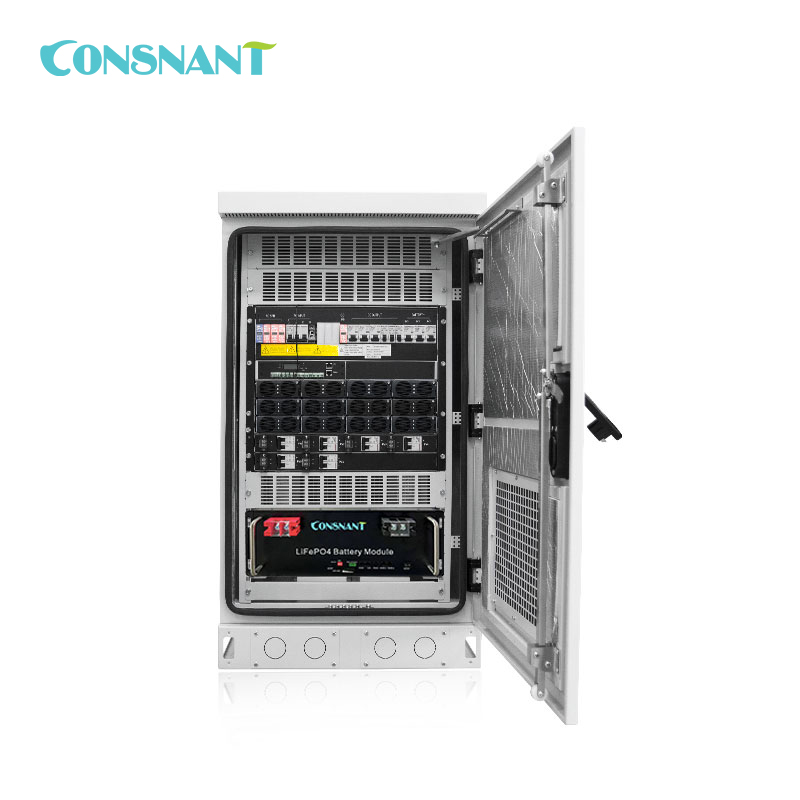

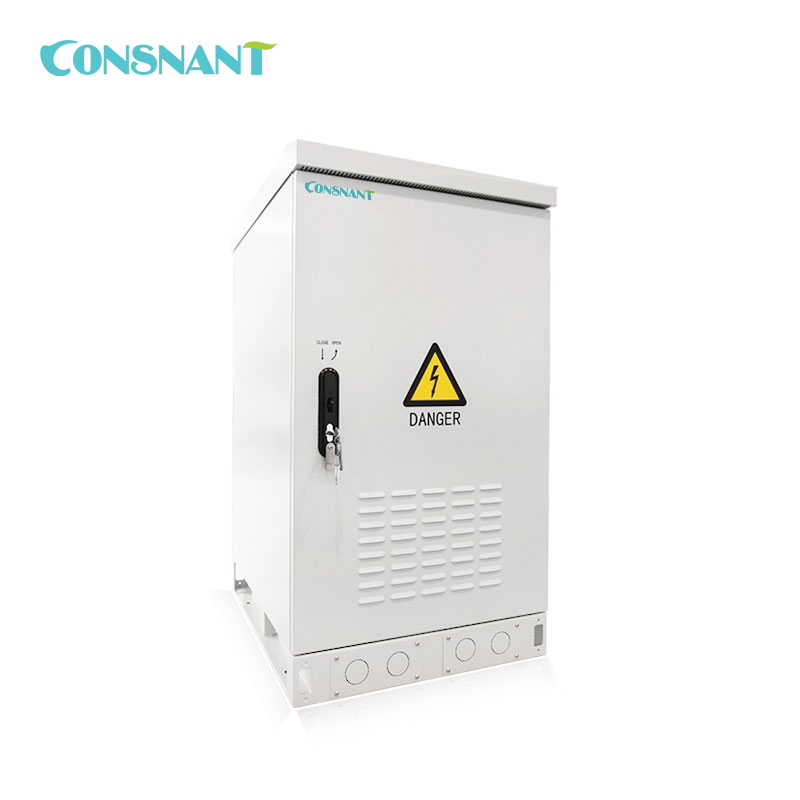

OD-TRISS series hybrid telecom power system is an integrates the inverter power, rectifier power, photovoltaic power, cooling systemand power and enviroment monitoring system, providing a safe and reliable operating environment forcommunication eauipment and can be widely used in outdoor communication base station sites.

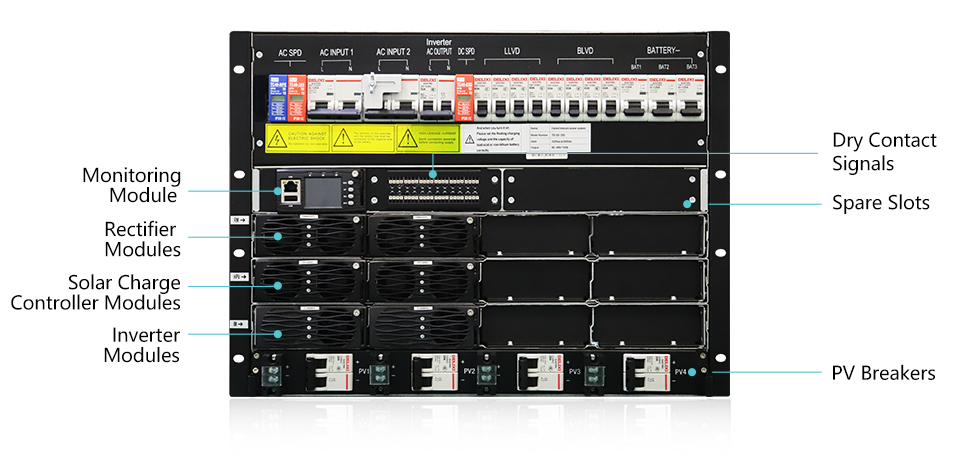

Configuration:
| Model | Configuration | Input Voltage Range | Onput Voltage | Output Current(Max) | Output Power(Max) | Modules Quantity |
|
TRISS-48 Series (Rectifier+Inverter+MPPT) |
Rectifier Modules | 85~300Vac | -53.5Vdc | 400A | 16KW | 1-4 |
| Inverter Modules | 120-425Vdc | -54.5Vdc | 400A | 12KW | 1-4 | |
| MPPT Modules | 176-265Vdc | 220Vac/23012-Vac | \ | 8KW | 1-4 |
Technical Specifications
| Model | OD-TRISS-48100 | |
| Cabinet | ||
| Size(mm) | W*D*H=759*693*1430 mm(without air conditioner) W*D*H=759*817*1430 mm (with air conditioner) |
|
| User Equipmet Space (U) | According to user needs | |
| Weight(kg) | 150/180kg (without/with air conditioner) | |
| Environmental | ||
| Operating temperature | -20℃~+45℃ | |
| Storage temperature | -40℃~+70℃ | |
| Relative humidity | 5%RH～90%RH | |
| Altitude | ≤4000m(3000~4000m capacity derated output) | |
| Temperature Control | ||

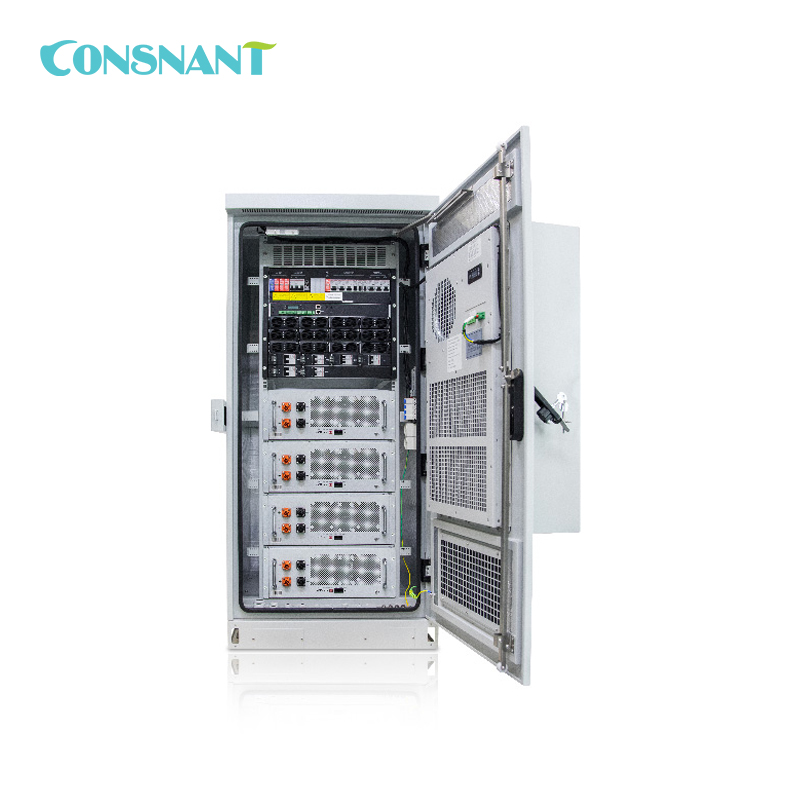

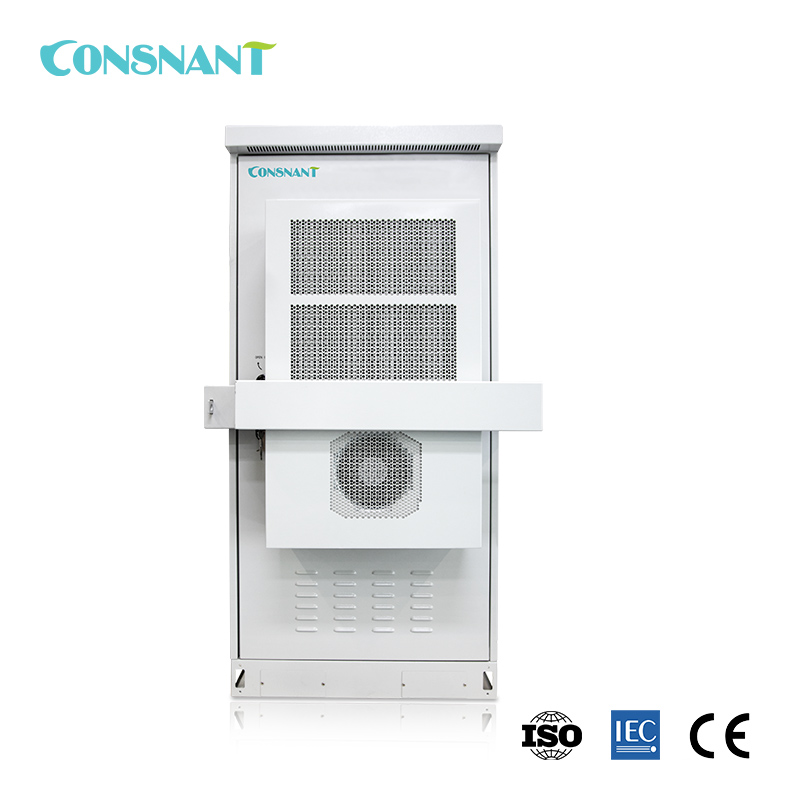

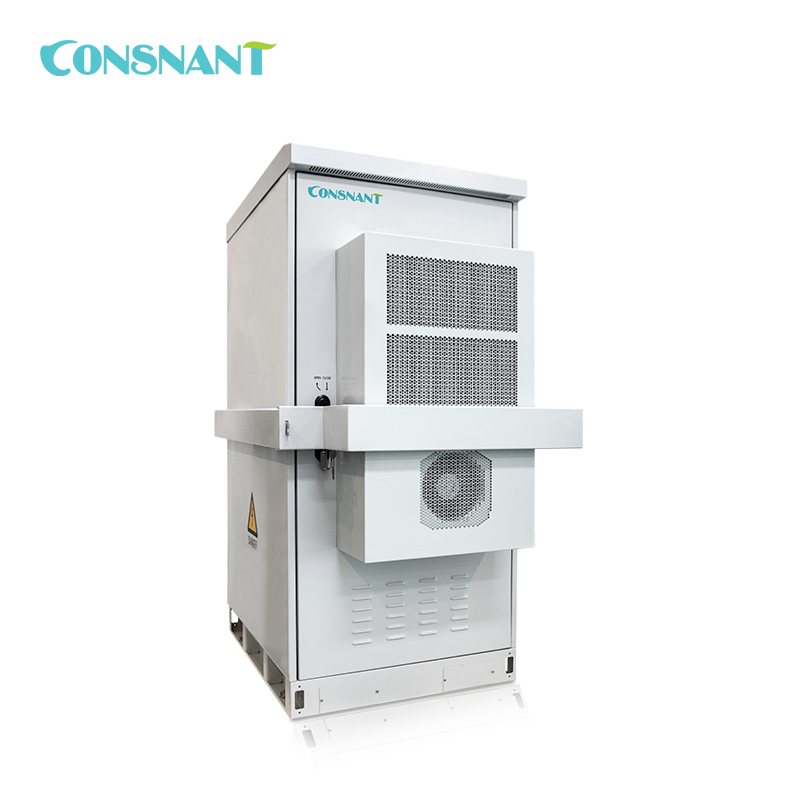

| Cooling | Single or dual fan of 48 Vdc,100W,PWM with temperature regulation.(optional) 5000W 1000W 1500W AC/DC air conditioner(optional) 500W 1000W heat exchanger(optional) |
|
| Heating(Optional) | Heater(500W) | |
| Rectifier Module | ||
| Rated Power | 3000W(standard)/4000W(Optional) | |
| Number(pcs) | 2 (1 to 4) | |
| Size(mm) | W*D*H=106.5*286*41.5(±0.5mm) | |
| Weight(kg) | <2kg | |
| Inverter Module | ||
| Rated Power | 2000VA | |
| Number(pcs) | 2 (1 to 4) | |
| Size(mm) | W*D*H=106.4*291*41.5(±0.5mm) | |
| Weight(kg) | <2kg | |
| Solar MPPT Module | ||
| Rated Power | 3000W | |
| Number(pcs) | 2 (1 to 4) | |
| Size(mm) | W*D*H=106.5*286*41.5(±0.5mm) | |
| Weight(kg) | <2kg | |
| AC Input | ||
| AC Input Rated Voltage | Single-Phase 220Vac/Three-Phase 380Vac | |
| AC Input Voltage Range | 85Vac~300Vac | |
| AC Input Maximum Current | 104A(Single-Phase) | |
| AC Input Voltage Frequency | 45~65Hz(Typical value 50/60Hz) | |
| AC Power Factor | ≥0.97(220 Vac rated Load) | |
| PV Input | ||
| PV Input Ranges | 120~425Vdc(Starting voltage over 160Vdc) | |
| PV-Rated Input Voltage | 340Vdc | |
| MPPT Voltage Range | 120Vdc to 340Vdc | |
| Maximum Input Current of PV | 17A | |
| Maximum Input Voltage of PV | 450Vdc(Power supply cannot be damaged) | |
| Photovoltaic Module Reverse Pole Protection | Error input polarity,no damage | |
| Photovoltaic Module Input Protection | Positive and negative fuse | |
| Output | ||
| System Capacity | 6 kw (Max.:16 kw) | |
| DC Output Voltage Range | -43.2Vdc~-57.6Vdc(Typical value-53.5Vdc) | |
| DC Current | 200A (Max.:400A) | |
| AC Output Voltage Range | 220Vac/230Vac | |
| AC Output Power | 4kw(Max.:8kw) | |
| Voltage Stabilization Accuracy | ≤±1% | |
| Output Ripple &Noise | ≤200mVp-p(Rated input voltage and loadand bandwidth limit of 20 MHz) | |
| Current-Sharing Imbalance | ≤±5%(Within the 50-100%load range) | |
| Rectifier Module Efficiency | ≥93%/≥95%/≥96%Optional | |
| PV Module Efficiency | ≥96% | |
| Inverter Module Efficiency | ≥90% | |
