What Are You Looking For?
Model: OD-TRIS-48100
Nominal Voltage:220/230/240VAC
Nominal Frequency: 50/60Hz
Output Power Factor: 0.99
Use temperature Range: -20℃～＋45℃
Application field:
Communication Base Station
Item No :
OD-TRIS-48100Order(MOQ) :
10 pcsPayment :
T/TProduct Origin :
ChinaColor :
RAL7035Shipping Port :
ShenzhenLead Time :
3 weeksWeight :
＞200 KgProduct Description

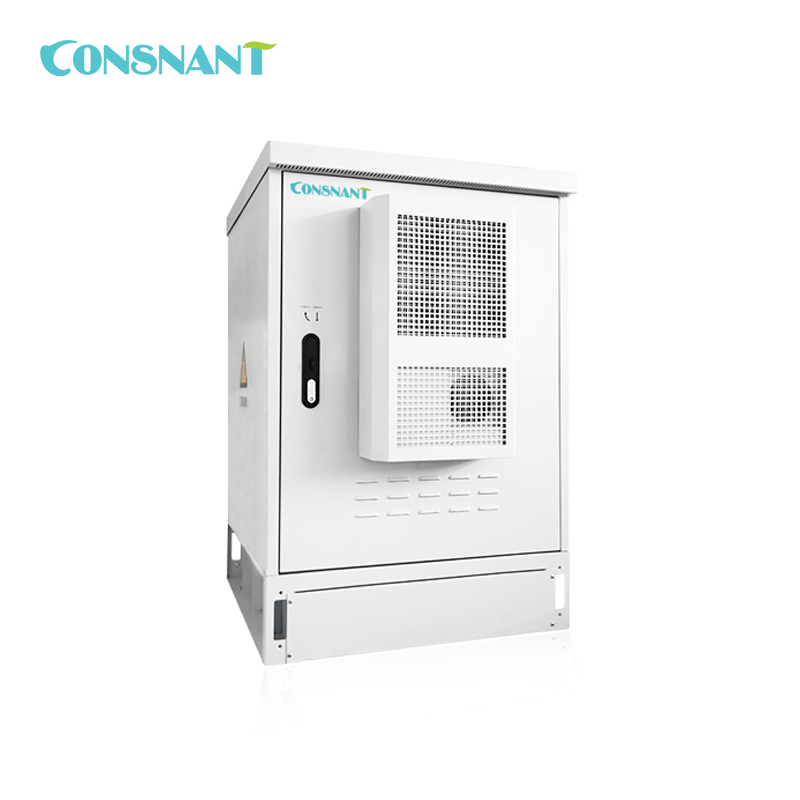

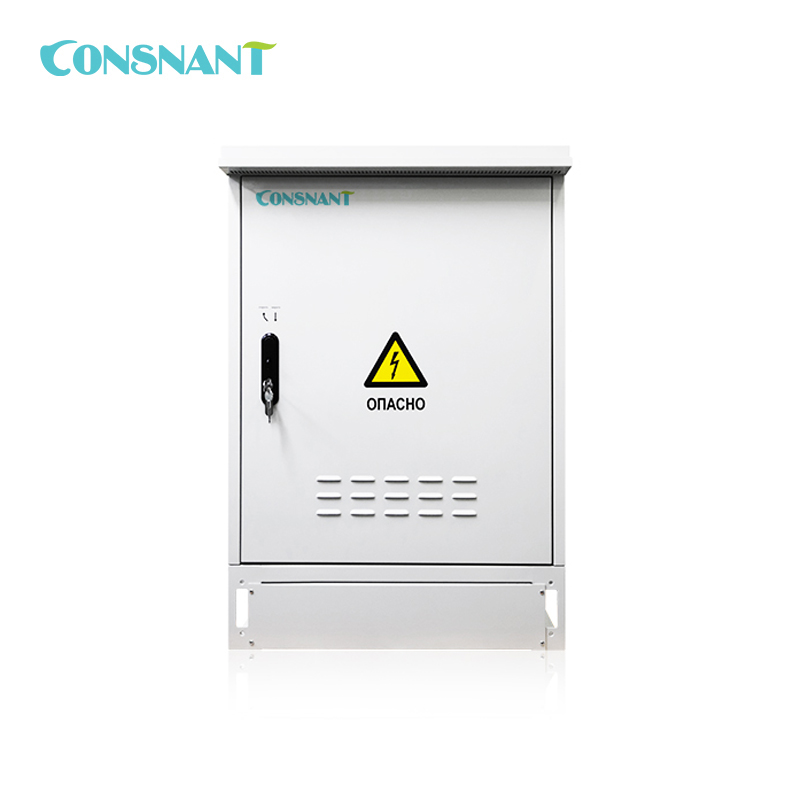

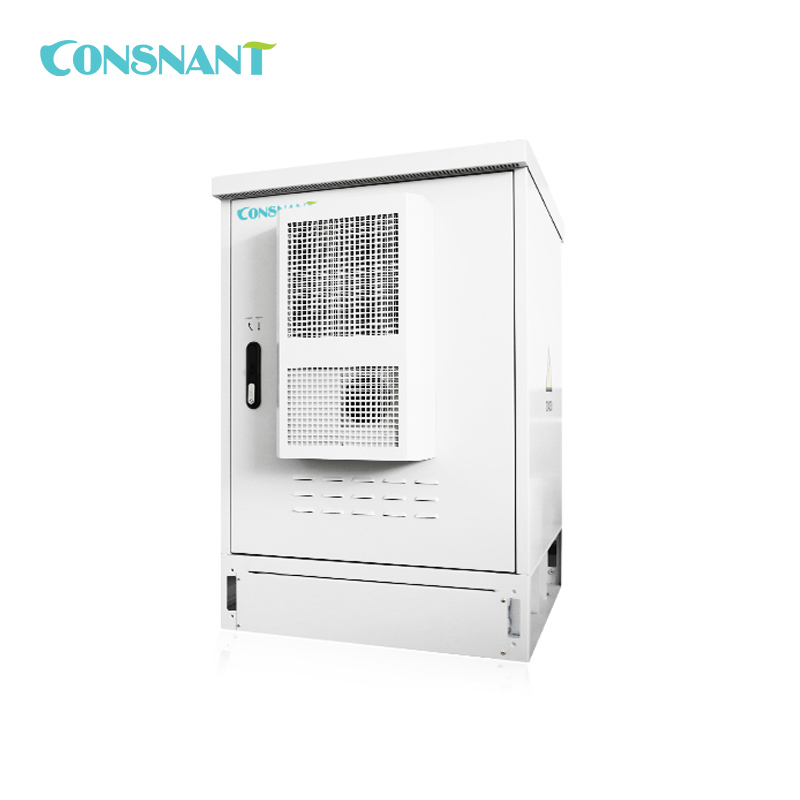

This product integrates the inverter power, rectifier power, photovoltaic power (optional), cooling systemand power and enviroment monitoring system, providing a safe and reliable operating environment forcommunication eauipment and can be widely used in outdoor communication base station sites.

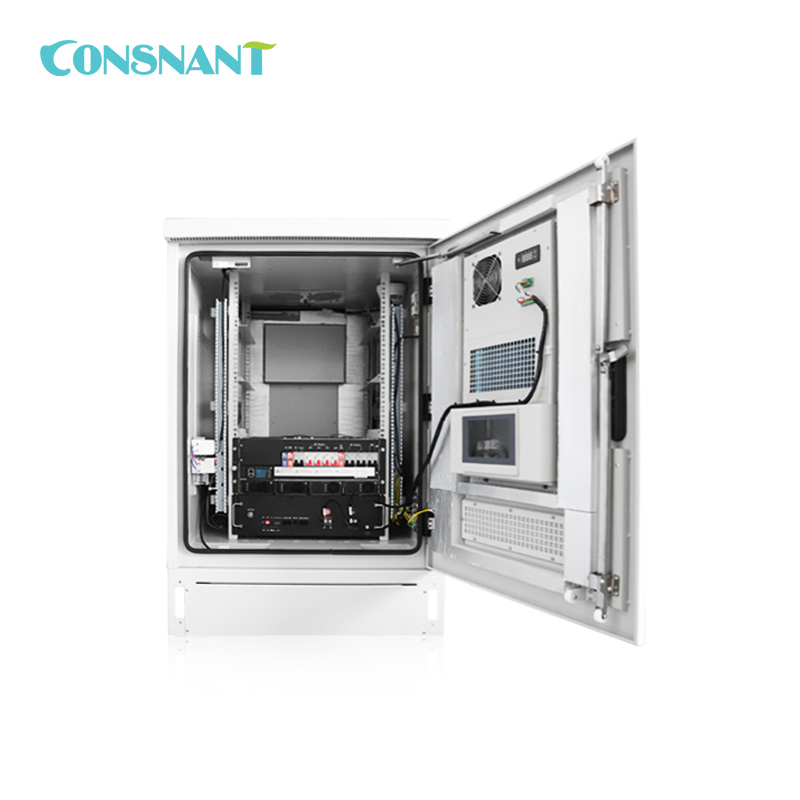

The complete components of this product include:
- Cabinet
- Inverter Module
- Rectifier Module
- Lithium battery 48V 50AH
- Monitoring System
- Temperature control system
Configuration:
| Configuration | |||
| System | Monitor module | 1 unit | |
| Inverter module:2KW | 2 units | ||
| Rectifier module:30A/50A/75A | 2 units | ||
| Solar module(Optional) | 50A (Input Voltage Range:60~150Vdc) | ||
| Power distribution unit |
AC distribution | SPD | SPD at AC side |
| 1 route of input MCB:1×63A/4P | |||
| DC distribution | SPD | SPD at DC side | |
| Battery | 2 routes of battery input fuses:2×300A/100kA | ||
| Load output | 6 routes of output current≤50A,among which: Priority load:2 outputs,(1x32A MCB,1×16A MCB) Non-priority load:4 outputs,(1x63A MCB,1x32A MCB,2x 16A MCB) |
||
| User equipment space | 11U | ||
| Temperature control unit | 1 cabinet air conditioner AC 500W with 2 heaters 150W; 2 fan modules | ||
| Others | Door sensor; water sensor; smoke sensor; temperature and humidity sensor | ||
Features:
Technical Specifications
| Model | OD-TRIS-48100 | |
| AC Input | ||
| AC Input Rated Voltage | Single-Phase 220Vac/Three-Phase 380Vac | |
| Input Voltage Range | 85Vac~300Vac | |
| Input AC Voltage Frequency | 45Hz~65Hz | |
| Max.Input Current | ≤55A(Single phase) | |
| Power Factor | ≥0.99 | |
| Output | ||
| DC Output Voltage Range | 42Vdc~58Vdc | |
| DC Output Rated Voltage | 54.5V | |
| DC Maximum Output | Constant current 52A | |
| Output Frequency | Rated 50Hz/60Hz(Frequency optional) | |
| AC Output Rated Voltage | 220Vac/230Vac(Optional) | |
| AC Output Power | 2000VA | |
| Battery | ||
| Charge Voltage | DC54.75V | |
| Nominal Voltage | 48V | |
| Nominal Capacity | 50Ah | |
| Battery Size | 3U | |
| Max.Charge Current | 25A | |
| Max.Disharge Current | 50A | |
| Mechanical | ||
| Dimensions(mm) | Cabinet | 800(W)×900/1000(D)×1200(H) without/with air-conditioner |
| User equipment space |
Height:3U;width:19inches | |
| Inverter module:2KW | 106.4(W) x 291(D) x 41.5(H) | |
| Rectifier module:50A | 106.5(W) x 286(D) x 41.5(H) | |
| System Weight (kg) | >200 | |
| Environmental | ||
| Operating Temperature | -20℃~+45℃ | |
| Storage Temperature | -40℃~+70℃ | |
| Relative Humidity | 5%RH~90%RH | |
| Altitude | ≤3000m(Derate to use,if above 3000m) | |
