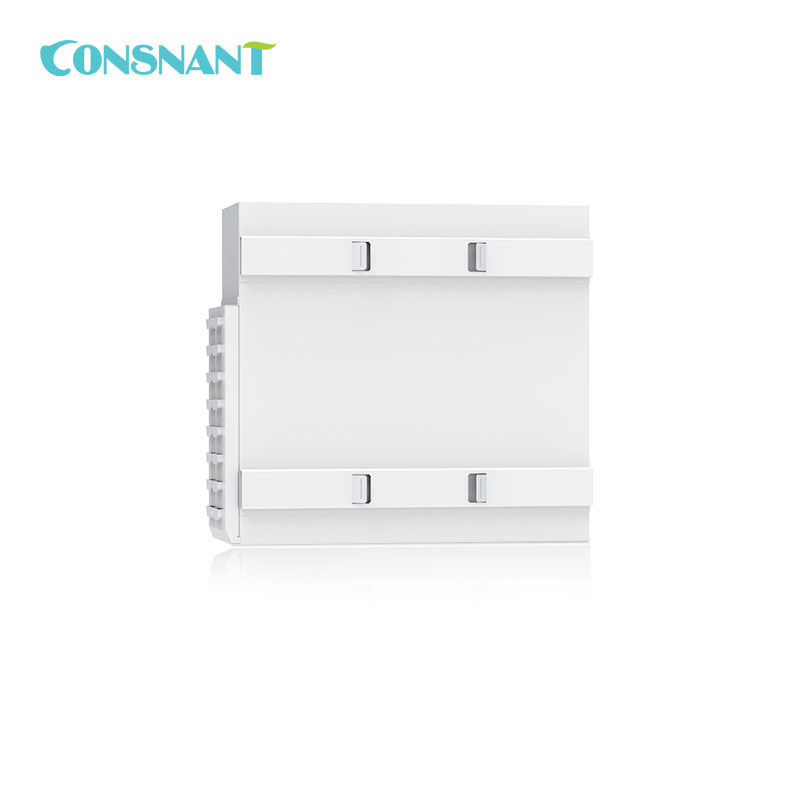

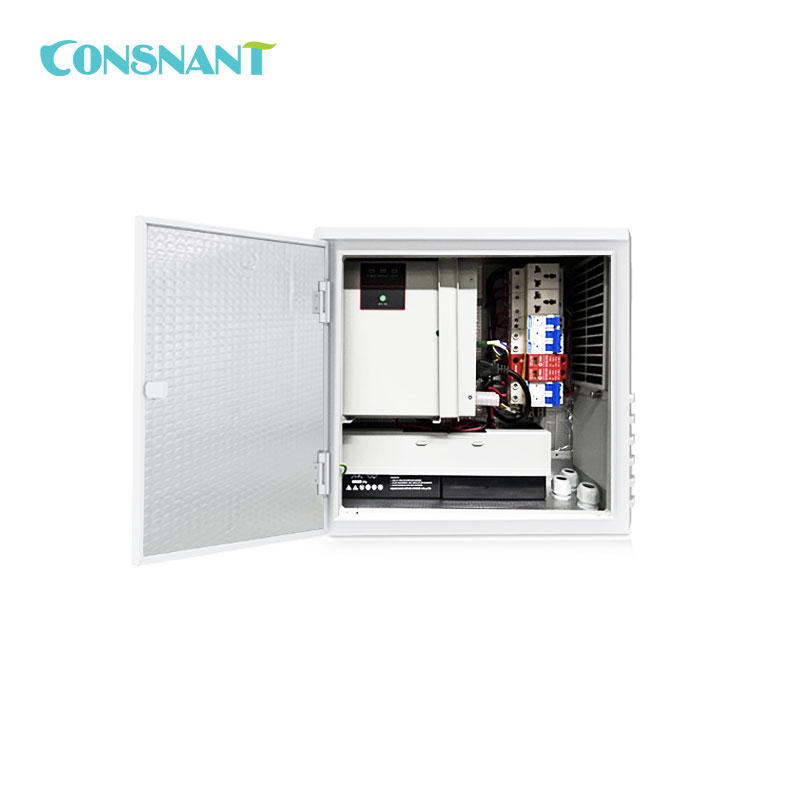

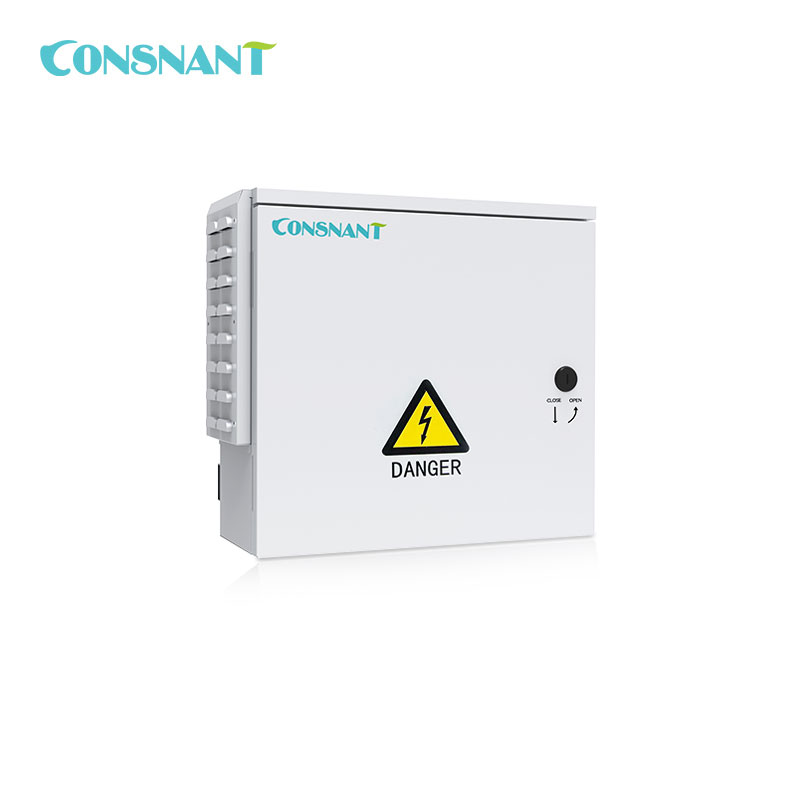

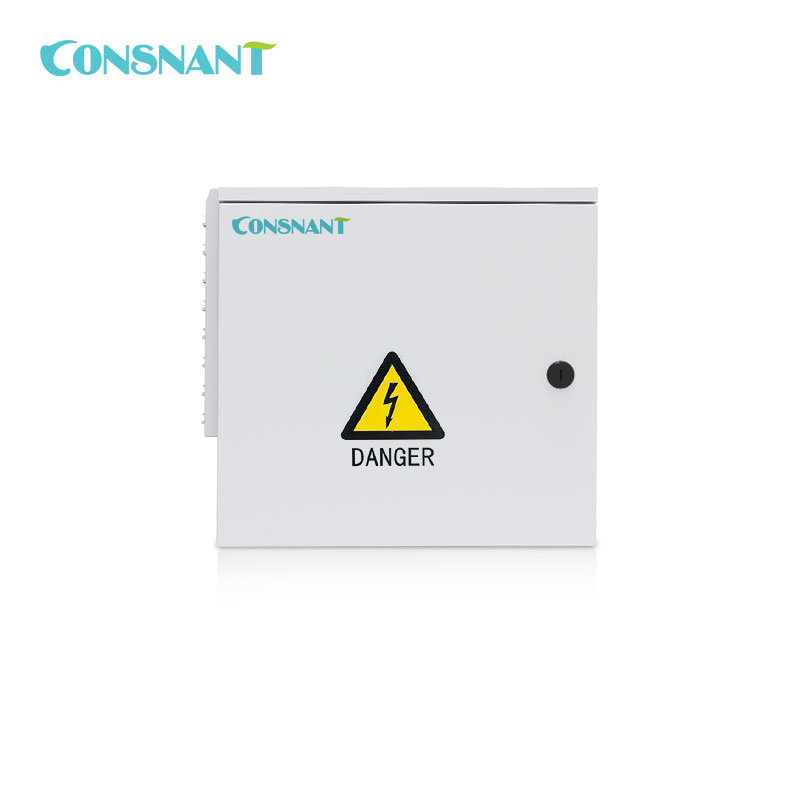

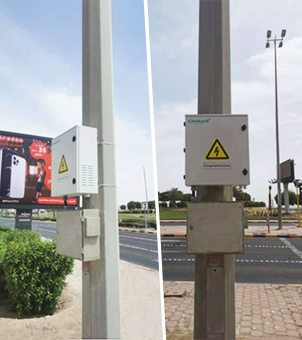

Pole/Wall-Mounted Outdoor UPS 1K 600VA/360W

Model: CNW110-1K

Nominal Voltage: 220VAC

Nominal Frequency: 50/60HZ

Installation Method: Pole-Mounted / Wall-Mounted

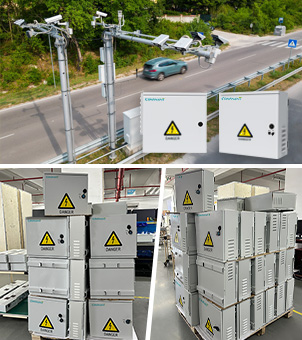

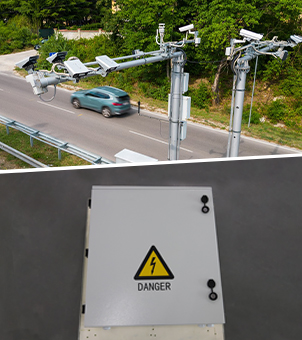

Application field:

CCTV
Traffic Lights
Road Monitors
Telecom

Item No :
CNW110-1K
Order(MOQ) :
10 pcs
Payment :
T/T
Product Origin :
China
Color :
RAL7035
Shipping Port :
Shenzhen
Lead Time :
3 weeks
Weight :
16.5 Kg

Inquire Now

Pole/Wall-Mounted Outdoor UPS 1K 600VA/360W

Description

Pole/Wall-Mounted Outdoor UPS is an outdoor power project solution specially designed for municipal transportation, security systems, and communications industries.

Features:

The drawer-type control unit is easier to install and maintain.
Boost and buck AVR for voltage stabilization.
Auto restart while AC is recovering.
Excellent microprocessor control optimizes reliability.
Lightning protection.
Built-in Network Monitor Card for remote monitoring.
Built-in super smart charger, shorten charging time.

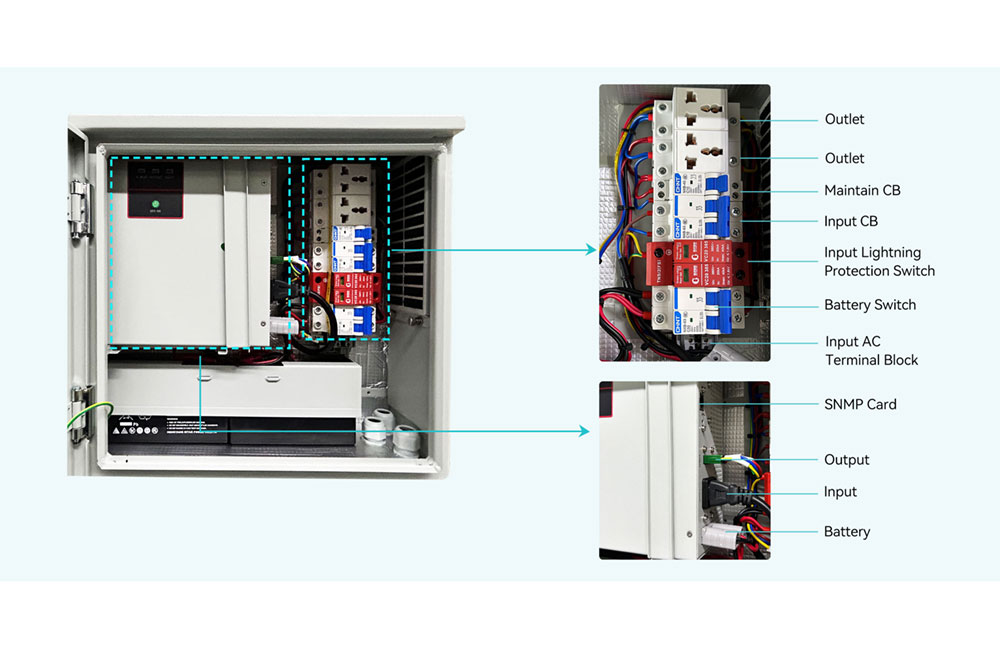

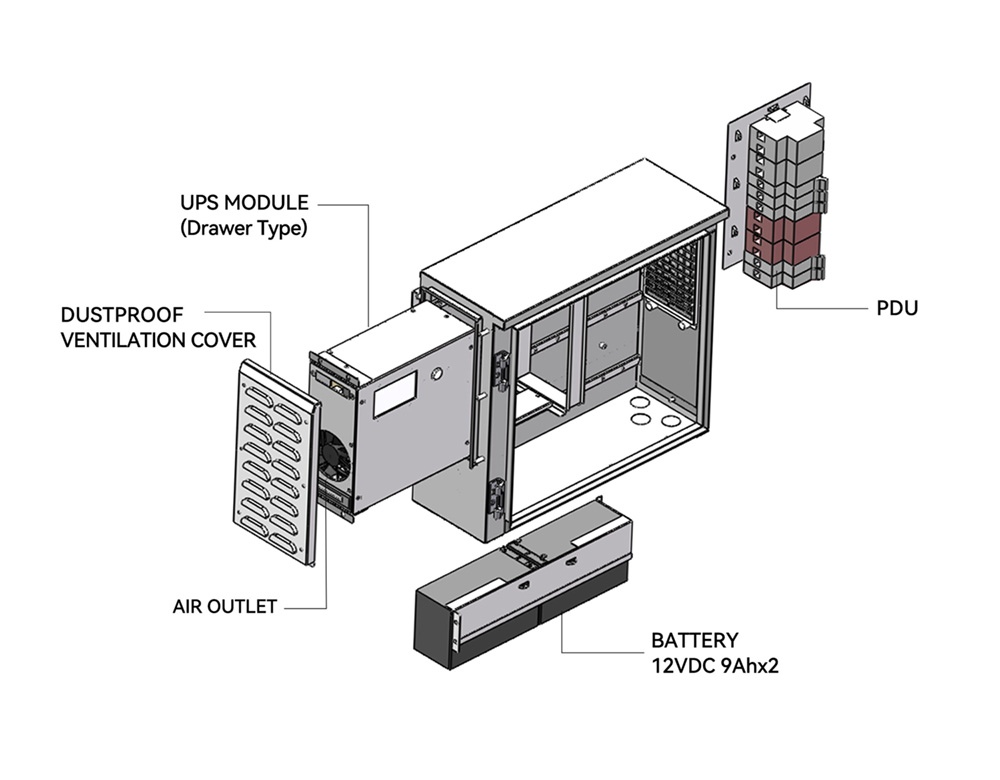

Product Structure Diagram

Technical Parameters

Model	CNW110-1K
Capacity	600VA/360W	1000VA/600W
Input
Voltage	220 VAC
Voltage Range	140-300 VAC
Frequency	50/60Hz
Output
Voltage Regulation	230 VAC(+-10%)
Frequency	50/60Hz
Transfer Time	Typical 2-6ms,10ms max.
Waveform	Simulated sine wave
Battery
Type &Number	12V/9AHx2
Charging Time	6 hours recover to 90%capacity
Physical
Dimension(WxDxH mm)	380359163
Net Weight(KGS)	16.5kg
Material	Cold rolled steel plate with outdoor spray powder
Installation	Pole-Mount
Protection Level	IP55
Display
Display	LED display	LEM dispaly
Communications
Communication Interface	SNMP Card
Work Environment
Humidity	0-95%RH (non-condensing)
Temperature	0-50℃
Altitude	Less than 1500 M

-----------------------------
