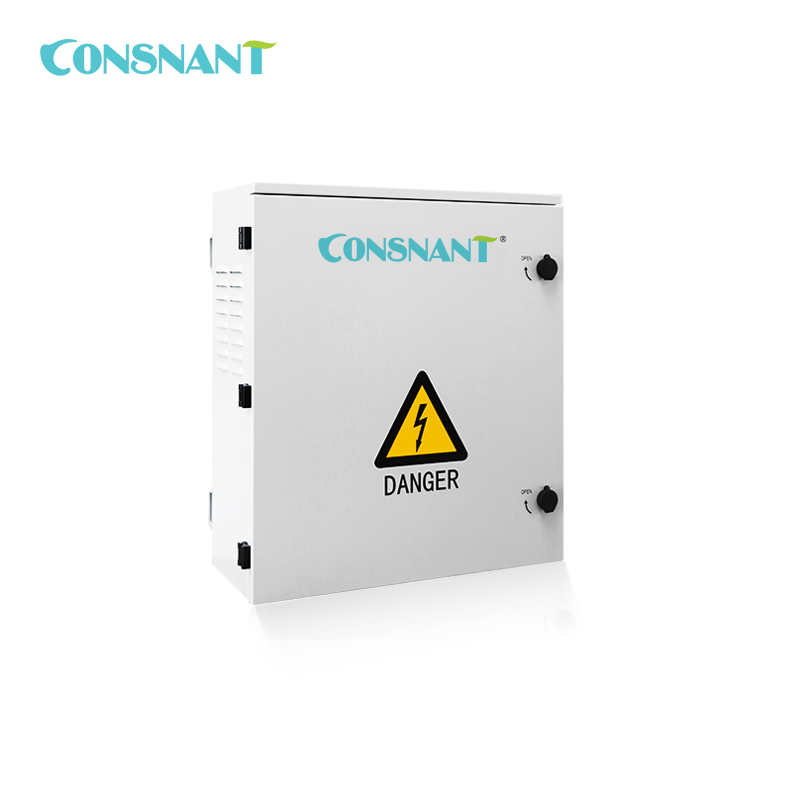

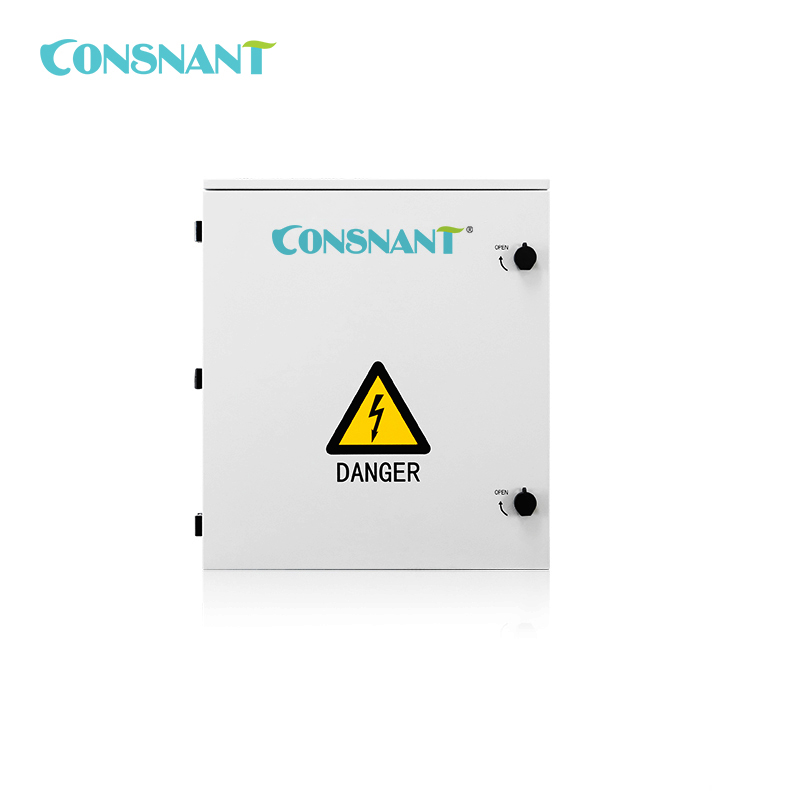

Pole/Wall Mounted Outdoor UPS 1KVA/800W

Model: CNW110L-1K

Nominal Voltage: 240VAC

Nominal Frequency: 50/60HZ

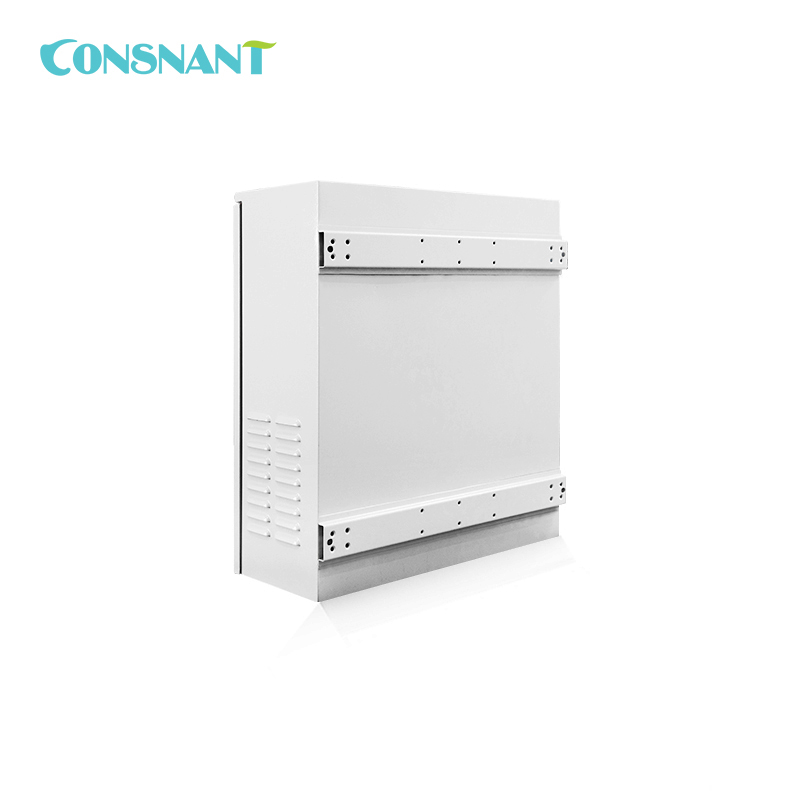

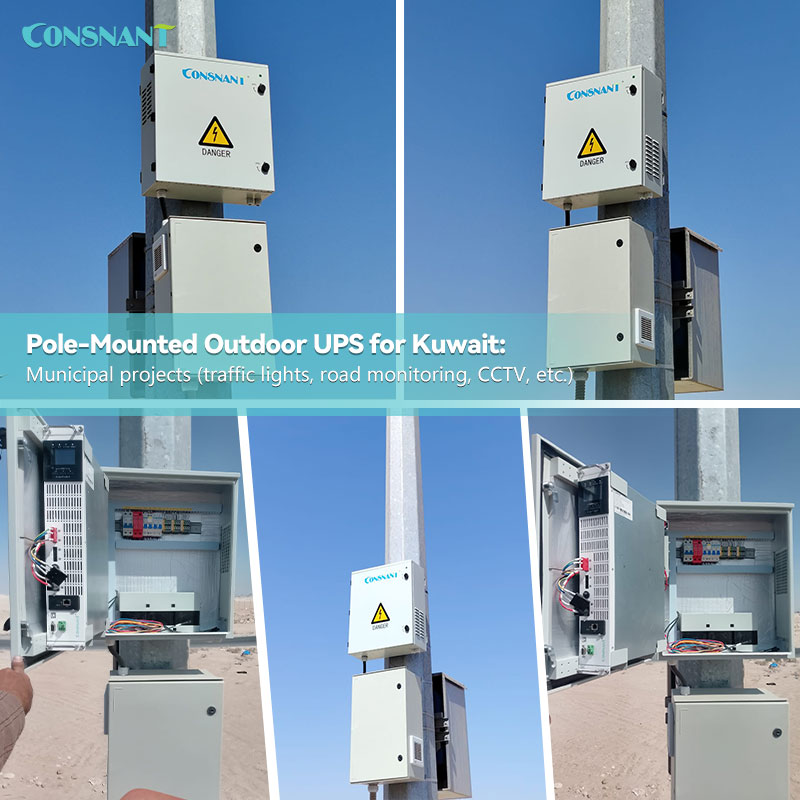

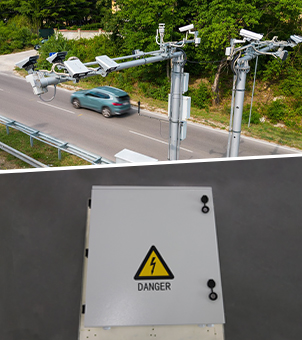

Installation Method: Pole-Mounted / Wall-Mounted



Application field:

  • CCTV
  • Traffic Lights
  • Road Monitors
  • Telecom
  • Item No :

    CNW110L-1K
  • Order(MOQ) :

    10 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    RAL7035
  • Shipping Port :

    Shenzhen
  • Lead Time :

    3 weeks
  • Weight :

    25 Kg

Pole/Wall-Mounted Outdoor UPS 1KVA/800W



Description



Pole/Wall-Mounted Outdoor UPS is an outdoor power project solution specially designed for municipal transportation, security systems, and communications industries.



Features:

  • The drawer-type control unit is easier to install and maintain.
  • Boost and buck AVR for voltage stabilization.
  • Auto restart while AC is recovering.
  • Excellent microprocessor control optimizes reliability.
  • Lightning protection.
  • Built-in Network Monitor Card for remote monitoring.
  • Built-in super smart charger, shorten charging time.

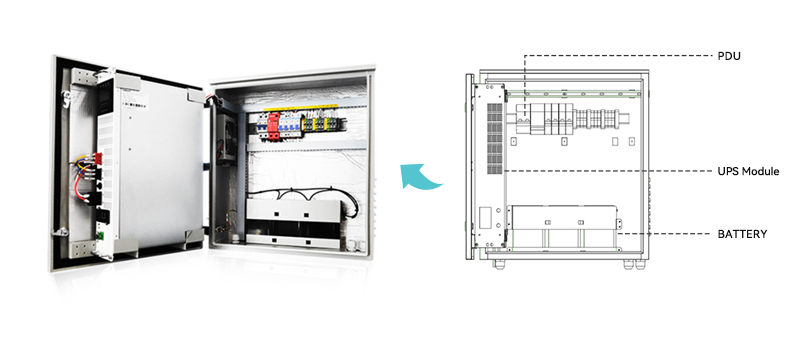

Product Structure Diagram



Pole/Wall-Mounted Outdoor UPS

Pole/Wall-Mounted Outdoor UPS





 The outdoor UPS system has good protection function: such as heat insulation, dustproof, damp proof, waterproof etc.

 Double conversion on line technology, which enables the UPS to provide a pure sine wave voltage, with constant frequency, constant voltage, low noise and no interruption, no matter the utility power fluctuation. It protects the user’s equipment ideally all the time.

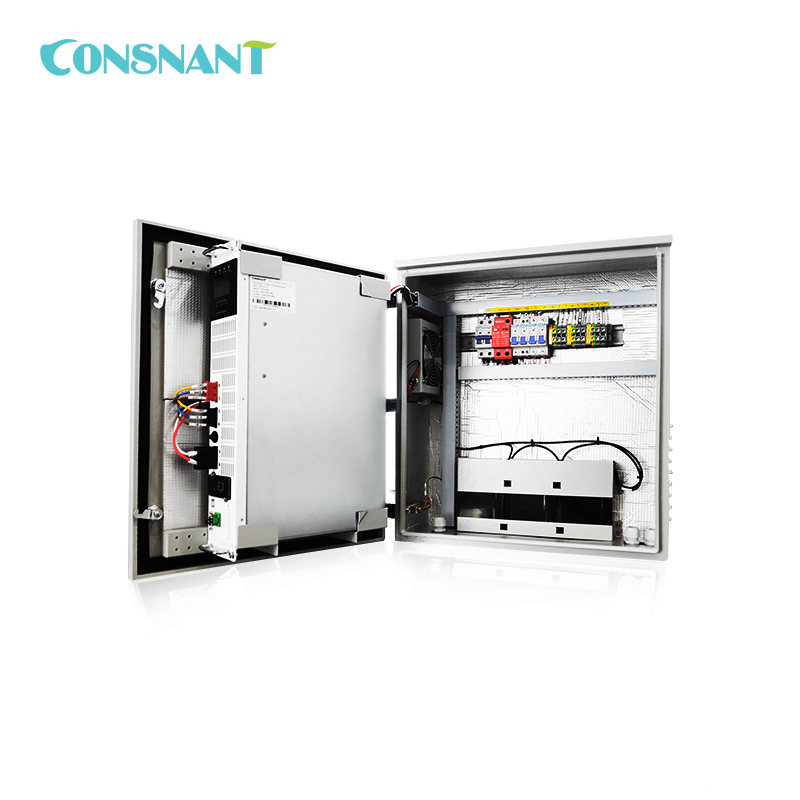

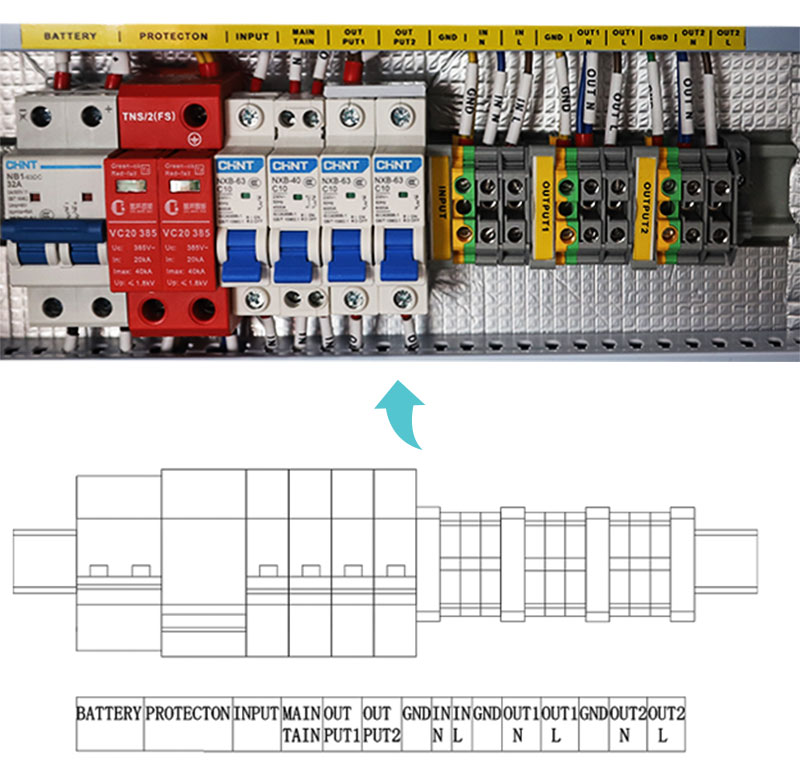

 The system has one door; you can open the front door to operate the system. There are two layers inside the system, the first layer is used to hold batteries;The second floor installation lightning protection device, power distribution equipment etc. The UPS module is hanged on the door.

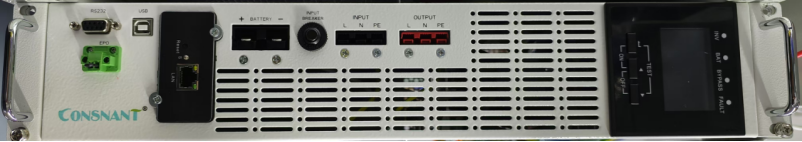

UPS module Introduction



Outdoor UPS module



●This UPS is a precision piece of equipment with 16 bit microprocessor and advanced software programming technology. High frequency SPWM is created to control the inverter of UPS. The simplified control circuit, enhances the stability of UPS and real-time performance. That makes UPS respond the variety of external environment rapidly and ensures the control is compact and reliable.

 Advanced voltage compensation technique, makes the input voltage range from 115VAC to 295VAC, using batteries less, enhancing the adaptability against the bad power condition.

 Advanced wide input frequency technique, makes the input frequency range from 45Hz to 55Hz, compatible with generator under variable circumstance.

 The advanced PFC technology, improves the input power factor close to utility, raises the power efficiency, removes the harmonic noise from UPS to utility, lowers UPS operational cost, it’s really a good environmental protection power supply.

 Standard bypass function, when the UPS faults, it can transfer to bypass mode and provide alarm signal.

 Smart management function. If main power blackout, ups will transfer to backup mode to supply loads. When battery voltage is low, ups would protect itself and shuts down. When the main power recovers, the UPS would check the main power itself, if the main power is also normal, ups would turn on automatically to supply loads; if main power is abnormal, UPS would just turn on charger to charge the battery until the main power is normal.

 DC start function, when there is no main power; UPS can be turned on by battery, to meet the user’s emergency needs. The cold start function is quite strong. UPS can be cold started on full load situation.

Technical Parameters



Model

 CNW110L-1K

Capacity

1kVA/0.8kW

Input

Nominal Voltage

208/220/230/240VAC, L+N+PE

Voltage Range

100-300VAC

Frequency

40-70Hz

Power Factor

>0.99

THDi

≤4% (linear load); ≤5% (non-linear load)

Output

Nominal Voltage

208/220/230/240VAC, L+N+PE

Voltage Regulation

±1%

Frequency

50/60Hz±0.1%

Crest Ratio

3:1

THDu

≤2% (linear load); ≤5%(non-linear load)

Transfer Time

Line mode to battery mode,0ms; inverter to bypass ,4ms (typical)

Waveform

Pure sine wave

Overload Time

Line mode:                 Battery mode:

30min@102%-110% load        1min@102%-110% load

10 min@110-130% load          10s@110-130% load

30s@130%-150% load           3s@130%-150% load

200ms@>150% load           200ms@>150% load

Efficiency

Line Mode

94.5%

Battery Mode

88.5%(36VDC)

ECO Mode

98%

Battery

Type

Lithium-ion battery

Voltage

36VDC

Battery Number

8Ah*3pcs External

Charging Current

4A

Charging Mode

Two/Three-period charging

Management

Intelligent Port

RS232/USB port/SNMP card (optional)/Dry contact kit (optional)

Environment

Operation Temperature

0-40℃

Relative Humidity

0-95%(non-condensing)

Noise

<50dB@1 meter

Altitude

Up to1000m without derating
