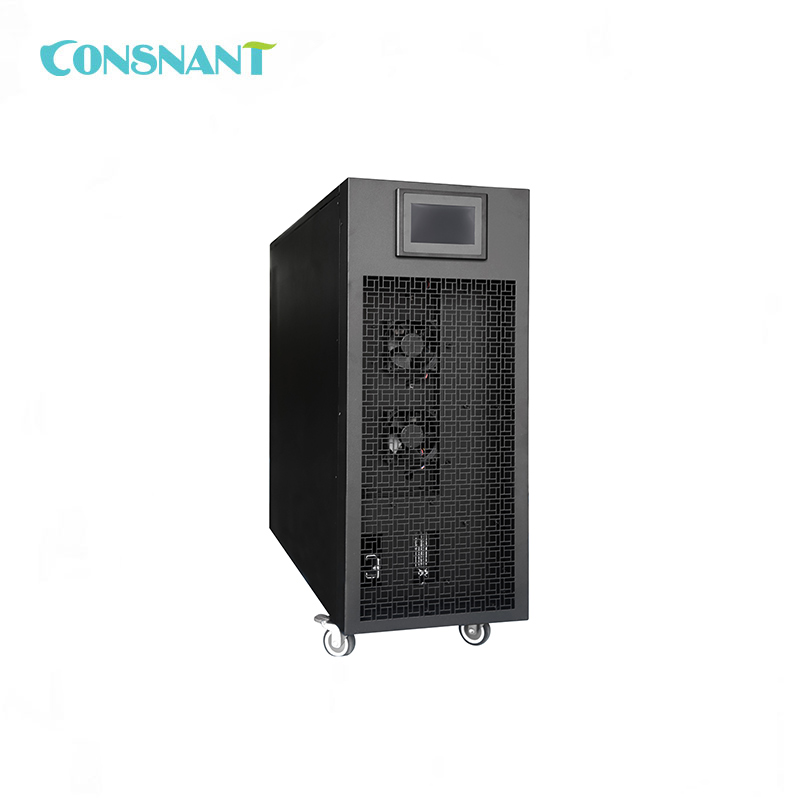

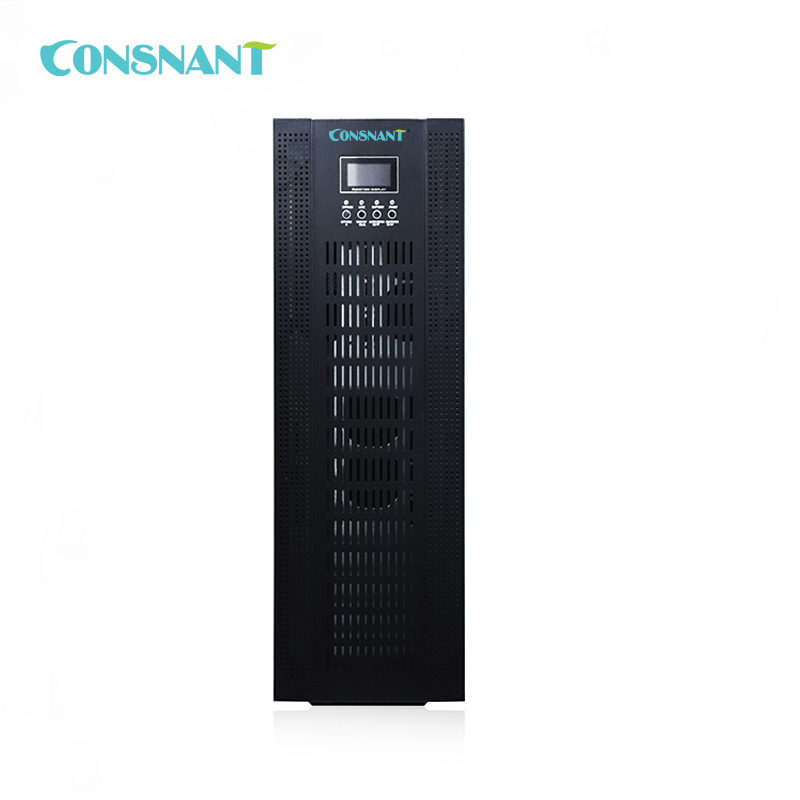

Three Phase High Frequency Online UPS 10-20KVA

3P/3P 400V High Frequency Online UPS 10-20K



Model Number: CNH330 10 - 20KVA

Nominal Capacity: 10-20KW

Nominal Voltage: 380/400/415VAC

Input Voltage Range: 110 – 300VAC

Nominal Frequency: 50/60HZ

  • Item No :

    CNH330 10 - 20KVA
  • Order(MOQ) :

    1 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Shenzhen
  • Lead Time :

    1 week
  • Weight :

    28-141 Kg

3P/3P 400V High Frequency Online UPS 10-20K



Feature:

DSP technology guarantees high reliability

DSP and MCU dual chips to secure the product reliability.



Output power factor 1

For critical applications,this 3-phase online UPS with output power factor 1.0 ensures higher efficiency and advanced performance.



Adapting the latest Silicon carbide diodes to enhance the system efficiency

Through adapting the latest Silicon carbide diodes,no matter it's in AC mode and battery mode, the efficiency ishigher than 96%.



● Dual Inputs

CNH330 series is also available for optional dual inputs to support various in puts to have flexibility for systemconfiguration.



● Very powerful charger to shorten the recharge time

Adapting the charger rating equals to 30% of UPS capacity on 10/20Kva.Charger rating is also 20% of UPS capacity for 30Kva and above models.



● Adjustable charging current

Users can adjust charging current via LCD setting based on various battery configurations.



● Parallel up to 6 units with common battery pack

Supports maximum 6 units in parallel with common battery pack for the parallel system.



● 5" color touch type LCD display

Inbuilt 5"color touch type LCD display with 500 event/data logs.



● Optional programmable relay dry contact card

Configurable4 dry contact ports definition through software for various applications.



● Voice warning / error code notice

Inbuilt the speaker to have human voice for the warning / error codes notice instead oftraditional beeps.



● High overload capability

Supporting 110% overload capacity for 60 min and up to 1 min overload condition at 150% load.



● Adjustable battery design

The number of connected batteries can be adjusted flexibly based on different power demands.



● Dynamic password feature optimizes service performance

This dynamic password is automatically generated from our exclusive utility tool. Each time when it is required to change service-related settings, this utility tool would generate an unique password on time basis. It secures UPS from unexpected operation due to unauthorized settings.



● Power walk-in function

CNH330 is designed to have flexible power walk-in by way of adjusting the power walk-in time. This setting will optimize generator sizing and reduce the impact to the AC source by having different walk-in time period for different paralleled UPS system when AC grid is recovered.





Technical Parameters:

MODEL

10K(S)/10K(L)

15K(S)/15K(L)

20K(S)/20K(L)

CAPACITY*

10KVA / 10KW

15KVA / 15KW

20KVA / 20KW

INPUT

Voltage Range

Low Line Loss

110 VAC(Ph-N) ± 3 % at 50% Load; 176 VAC(Ph-N) ± 3 % at 100% Load

Low Line Comeback

Low Line Loss Voltage + 10V

High Line Loss

300 VAC(L-N) ± 3 % at 50% Load; 276 VAC(L-N) ± 3 % at 100% Load

High Line Comeback

High Line Loss Voltage - 10V

Frequency Range

46Hz ~ 54 Hz @ 50Hz system

56Hz ~ 64 Hz @ 60Hz system

Phase

3 Phase with Neutral

Power Factor

≧ 0.99 at 100% Load

OUTPUT

Phase

3 Phase with Neutral

Output voltage

360/380/400/415VAC (Ph-Ph)

208*/220/230/240VAC (Ph-N)

AC Voltage Regulation

± 1%

Frequency Range

(Synchronized Range)

46Hz ~ 54 Hz @ 50Hz system;

56Hz ~ 64 Hz @ 60Hz system

Frequency Range (Batt. Mode)

50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz

Overload

AC mode

100%~110%: 60min; 110%~125%: 10min; 125%~150%:1min;>150% : immediately

Battery mode

100%~110%: 60min; 110%~125%: 10min; 125%~150%:1min;>150% : immediately

Current Crest Ratio

3:1 max

Harmonic Distortion

≦ 2 % @ 100% Linear Load; ≦ 5 % @ 100% Non-linear Load

Transfer Time

Line Battery

0 ms

Inverter Bypass

0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass)

Inverter ECO

<10 ms

EFFICIENCY

AC mode

95.5%

Battery Mode

94.5%

BATTERY

Standard Model

Type

12 V / 9 Ah

12 V / 9 Ah

Numbers

(10+10)pcs

(16+16)pcs

Recharge Time

9 hours recover to 90% capacity

Charging Current (max)

2.0 A ± 10% (Recommended)

1.0~12.0A (Adjustable)

Charging Voltage

+/-136.5 VDC ± 1%

+/-218 VDC ± 1%

Long-run Model

Type

Depending on applications

Numbers

20

32 ~ 40 (adjustable)

Charging Current(max.)

1.0~12.0A ±10% (Adjustable)

Charging Voltage

+/-136.5 VDC ± 1%

+/- 13.65 VDC * N ± 1% (N = 16~20)

PHYSICAL

Standard Model

Dimension, D X W X H (mm)

630 x 250 x 826

Net Weight (kgs)

124/126

139/141

Long-run Model

Dimension, D X W X H (mm)

630 x 250 x 826

Net Weight (kgs)

28/30

43/45

ENVIRONMENT

Operation Temperature

0 ~ 40°C (the battery life will down when > 25°C)

Operation Humidity

<95 % and non-condensing

Operation Altitude**

<1000m**

Acoustic Noise Level

Less than 55dB @ 1 Meter

Less than 58dB @ 1 Meter

MANAGEMENT

Smart RS-232 or USB

Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC

Optional SNMP

Power management from SNMP manager and web browser

   *Derate capacity to to 90% when the output voltage is adjusted to 208VAC.

 **If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated 1% per 100m.

***Product specifications are subject to change without further notice.
