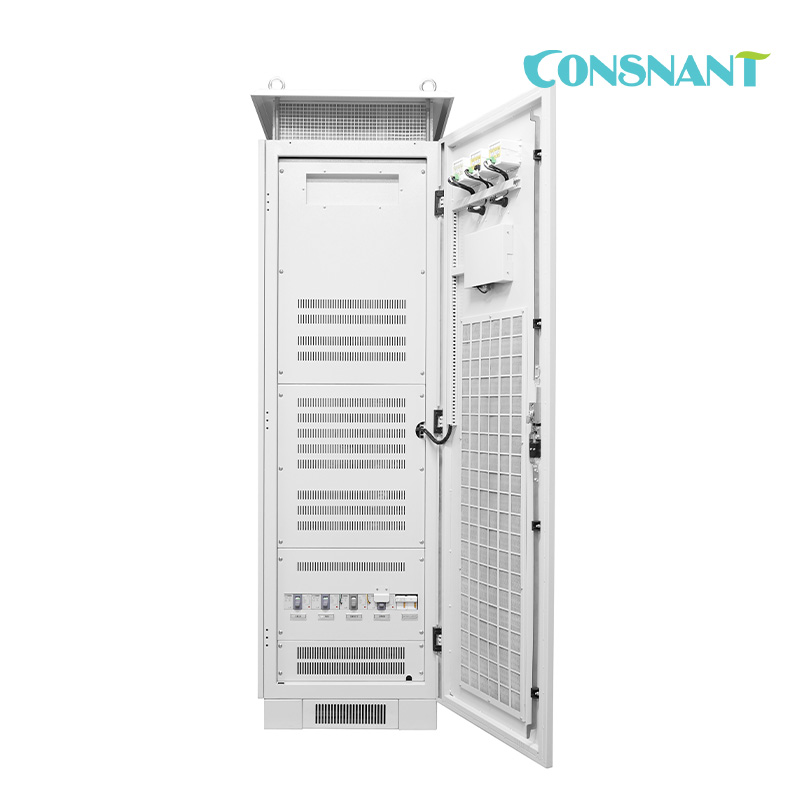

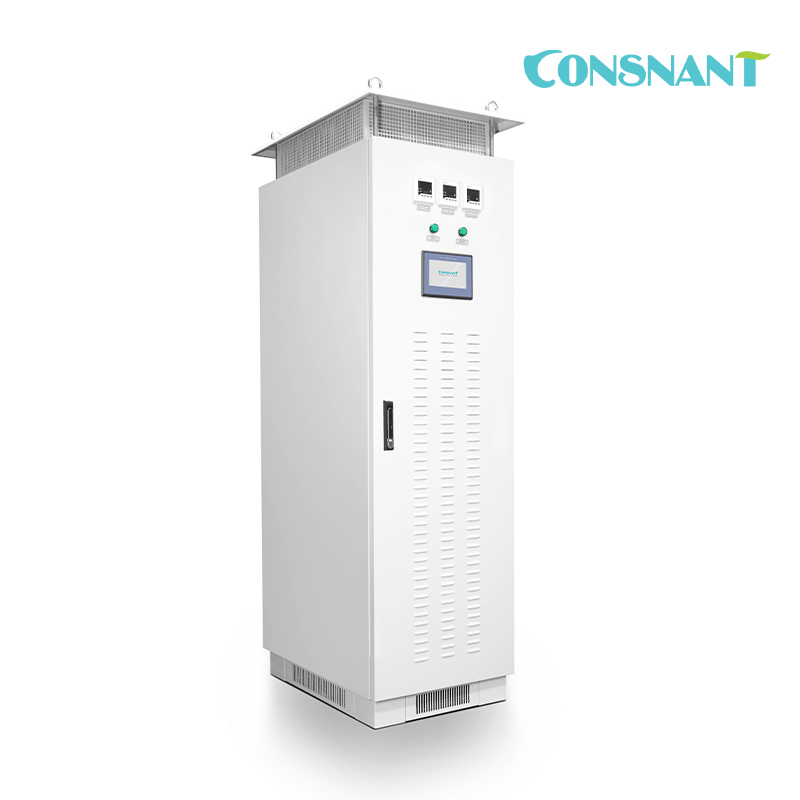

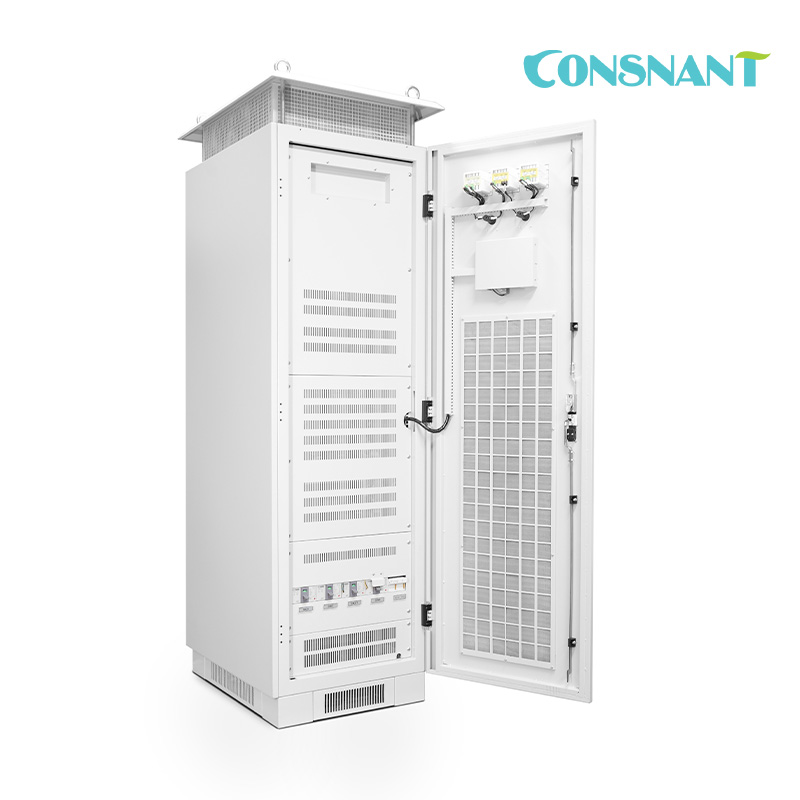

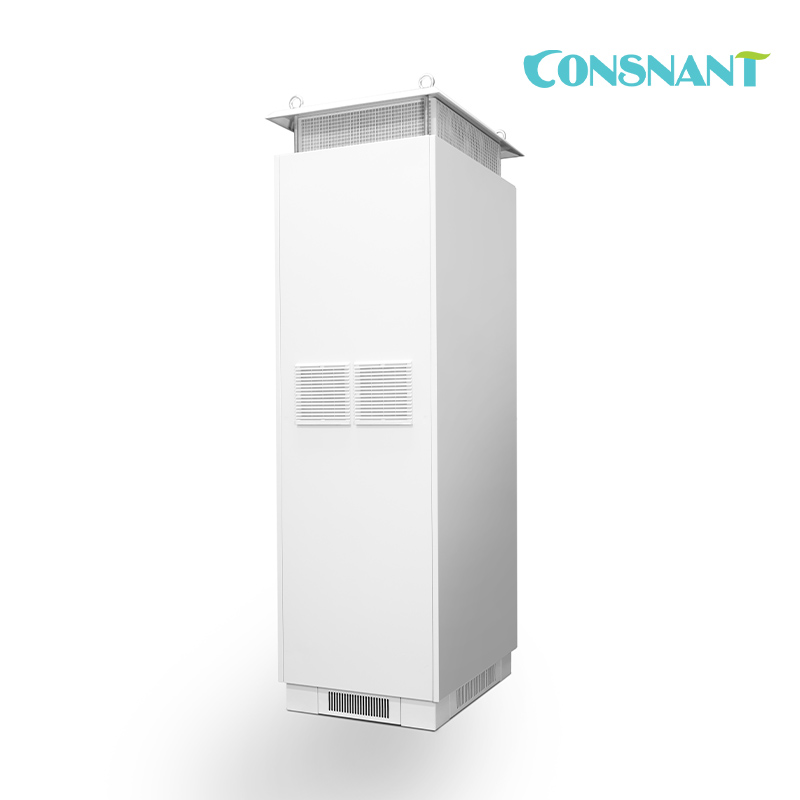

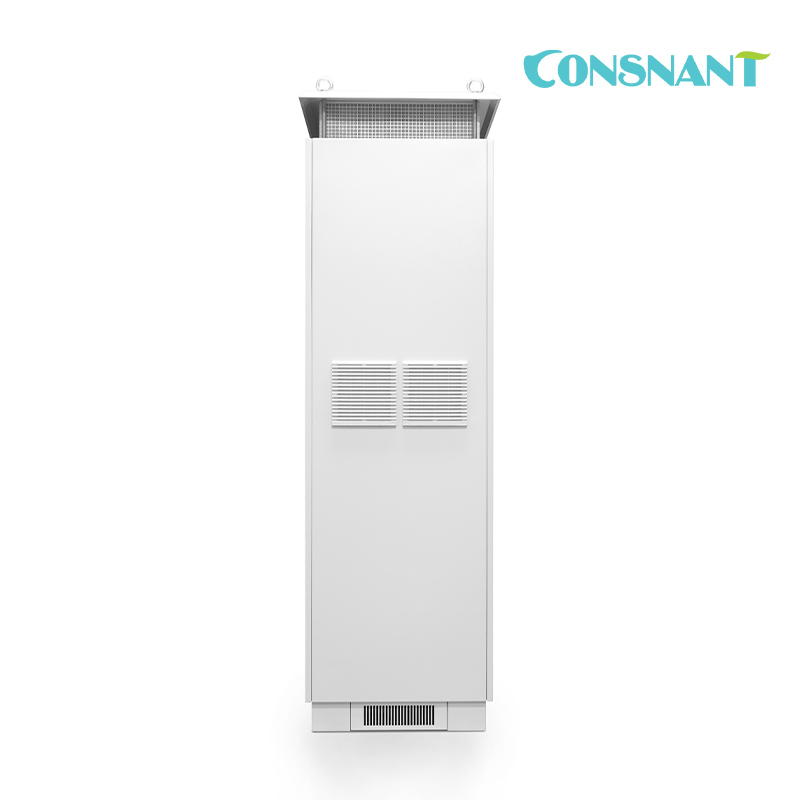

Three Phase Output 100-120KVA Industrial Online UPS

Three Phase Output 100-120KVA Industrial Online UPS

Model Number: CNI330 100-120KVA

Nominal Capacity: 100 – 120KVA

Nominal Voltage: 380/400/415VAC

Maximum Input Voltage Range: +-20%

Nominal Frequency: 50/60HZ



Application field:

  • Power Plant DCS Control System
  • Boiler Safety Monitoring System
  • Steam turbine inspection
  • Bypass systems and other automatic protection devices
  • Petrochemical, natural gas, plastics, production lines
  • laboratory testing equipment
  • Item No :

    CNI330 100-120KVA
  • Order(MOQ) :

    1 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    RAL7035
  • Shipping Port :

    Shenzhen
  • Lead Time :

    3-4 weeks
  • Weight :

    770-1300 Kg

Three Phase Output 100-120KVA Industrial Online UPS

Description

Application:
Petroleum, chemical industry, gas and power station and so on.

Key features:
• Adopt full digital control technology.
• Intelligent detection and monitoring function.
• Digitally control the static switch with zero switch.
• Full isolation between input and output.
• Super low output zero earth voltage.
• DC UPS isolated with utility power completely.
• Cubical design with power standard (customization).
• Multifunctional protection for over-voltage, under voltage, over current, short circuit and over temperature and so on.
• Large-screen LCD monitor with Chinese and English operation interface.
• Ultra-long 256 event record, user-friendly analysis and management to the situation of the power supply (touch screen display).
• Static bypass has a strong anti-overload capability.



Other Service

Service hours: 9:00am-19:00pm (China time)



Product service:

1. Pre-sales consultation; After-sales worry-free.

2. Support ODM and OEM.

3. Online guidance and Technical support.



Product Warranty:

One year warranty period against the B/L date 45 days later.(Possible to extend the warranty period to three years by add money)



FAQ:

We try to answer some frequently asked questions here, if these FAQs don't answer your questions, please refer to related information from our Product page: Documents Option, which contains Datasheet and Manual for you to download, or you can contact us directly.



What is an uninterruptible power supply system (UPS) and why do I need one?

An uninterruptible power supply (UPS) is an electrical device that provides emergency power to a load when the main power source (typically utility power) fails. It conditions incoming power to ensure clean and uninterrupted power, protects devices from power problems and enables seamless system shutdown during complete outages.

With aging electrical grids, rising power demand, severe weather, faulty wiring and disruptive devices connected to AC lines, equipment is under constant threat from power problems, making a UPS system an important investment. A UPS system is especially useful for networking equipment and other devices that can lose data when power is unexpectedly lost. With a wide range of cost-effective models available, a UPS system is an essential investment to prevent damage, data loss and downtime caused by power problems.

What is the difference between single-phase UPSs vs. three-phase UPSs vs. split-phase UPSs?

Phases of a UPS, such as a single-phase UPS or a three-phase UPS, describe the number of electrical phases that a UPS receives and transmits. Electrical utilities generate three-phase power because that is the most efficient way to transport electricity over long distances. And for larger power consumers, such as large data centers, industrial manufacturing and hospitals, the power stays as three-phase, requiring a three-phase UPS. For smaller power consumers, including residential or office buildings and most K-12 schools, the power is converted to single-phase power.

Some applications contain a mix of single-phase and three-phase equipment and require a UPS that can protect both. For those deployments, a split-phase UPS, which can simultaneously provide 120V and 208V output, is often the best option.

Do UPS systems offer surge and noise protection?

Incorporating built-in surge suppression and noise filtering, uninterruptible power supply (UPS) systems provide comprehensive protection to electronic equipment from transient voltages and electromagnetic/radio frequency interference (EMI/RFI) line noise. This eliminates the need for separate surge protectors, simplifying the setup and saving space. By offering all these features in a single package, a UPS system provides a cost-effective and efficient solution to safeguard valuable equipment from power-related damages.



Technical Parameters:

Model 100KVA 120KVA
Capacity 80KW 96KW
Input
Rated voltage 380/400/415 Vac three-phase
Voltage range ±20%
Frequency range 50/60HZ±5%
Power factor ≥0.8
Current harmonic distortion <5%with harmonic filter
Soft Start 0-100% in 10″
Bypass Input
Rated voltage 380/400/415 Vac single-phase
Permitted voltage range ±15%(selectable from ±10% to±25% from front panel)
Rated frequency 50/60Hz
Permitted frequency range ±2%(selectable from ±1% to 5% from front panel)
Standard features BackFeed portection;split bypass line
Batteries
Type Maintenance-free lead-acid VRLA AGM/GEL;NICd
Maximum recharge current(A) 0.2 X C10
DC Voltage 384VDC 480VDC
AC ripple voltage <1%
Inverter output
Number of phases 3+N
Rated voltage(V) 380/400/415Vac
Regulation of the output voltage 348~424Vac phase/neutral(from control panel)
Crest factor(Ipeak/Irms) 3:1
Static stability ±1%
Dynamic stability ±5%
Frequency 50/60Hz configurable
Overload 110% 125% 150% of the rated current for 5h/10’/1′
Frequency stability ±0.05% on mains failure;±2%(selectable from ±1% to ±5%)with mains supply present
System
Remote signaling Volt free contacts
Remote controls EPO and Bypass
Communication RS232+romote contacts
Operation temperature 0℃/+40℃
Relative humidity <95% non condensing
Colour Light grey (RAL7035)
Noise 50-65dBA at 1m
Protection degree IP42
Efficiency Smart Mode up to 98%
Compliance Safty: EN 62040-1-1(Directive 2006/95/EC);EMC:6200-2(Directive 2004/108/EC)
Weight(KG)N.W 770 855
