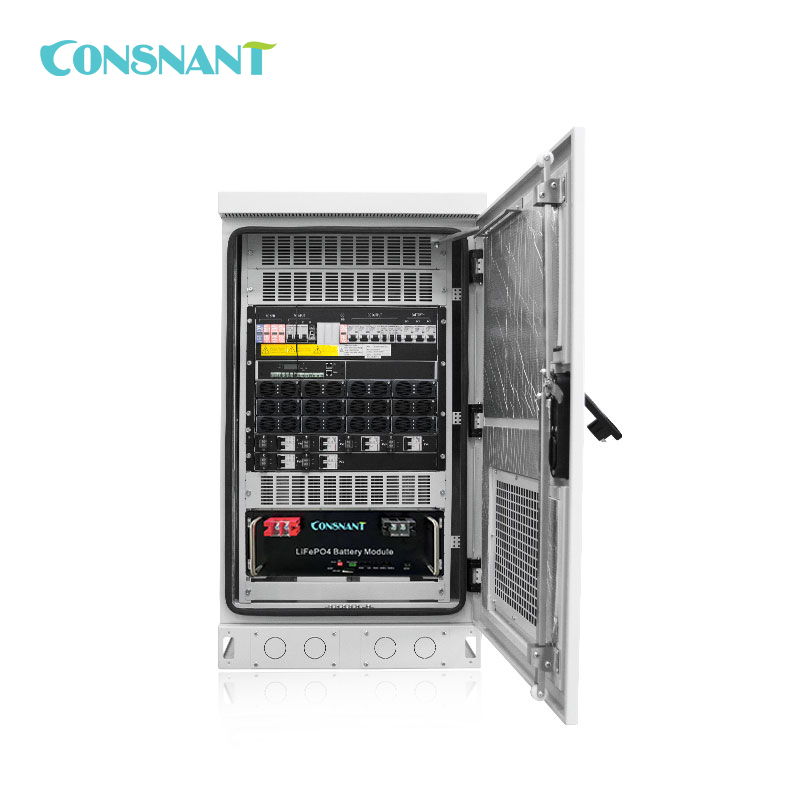

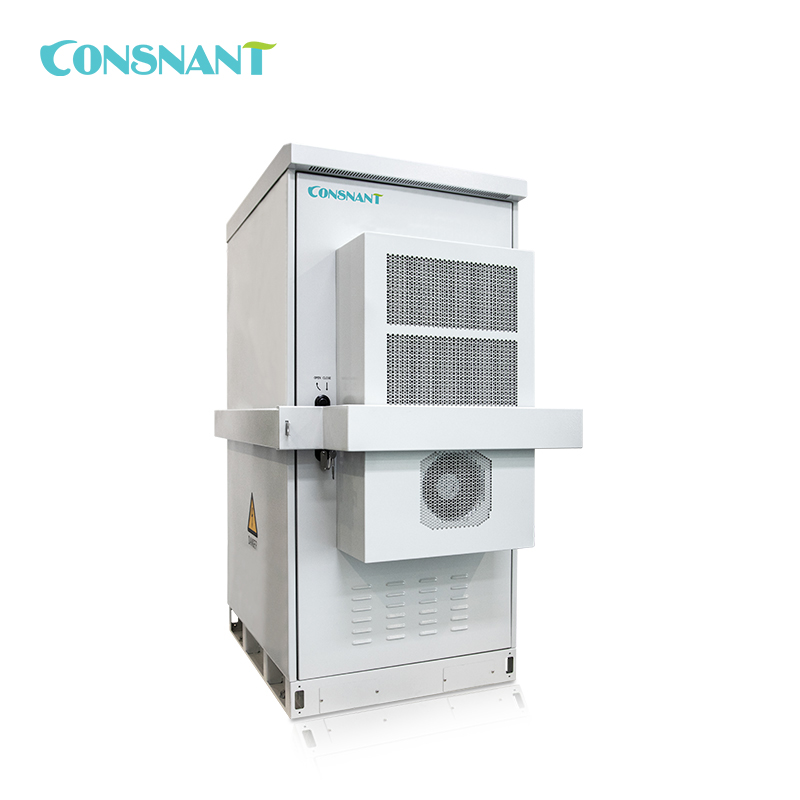

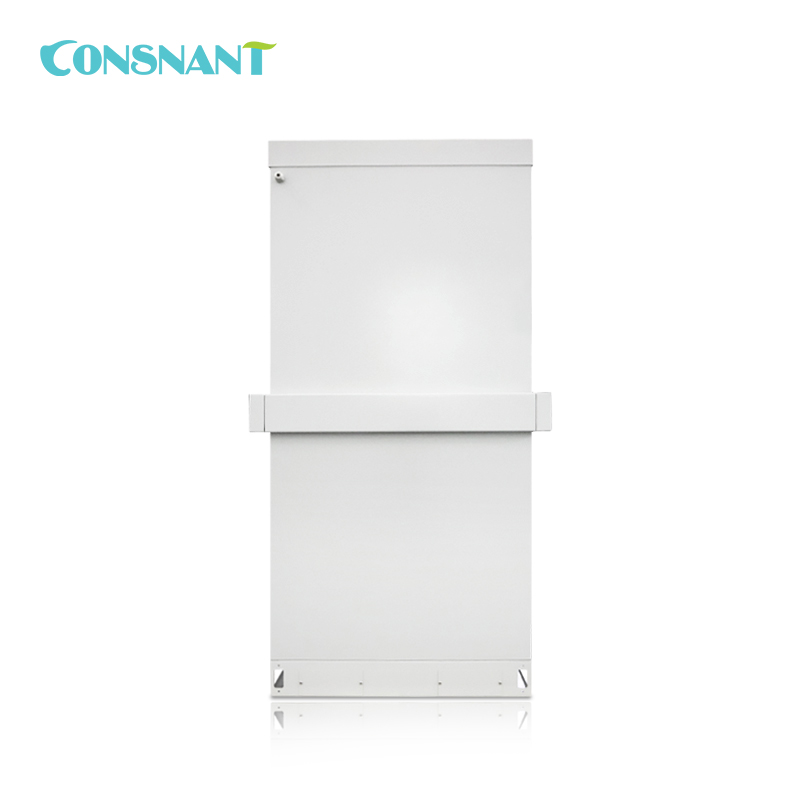

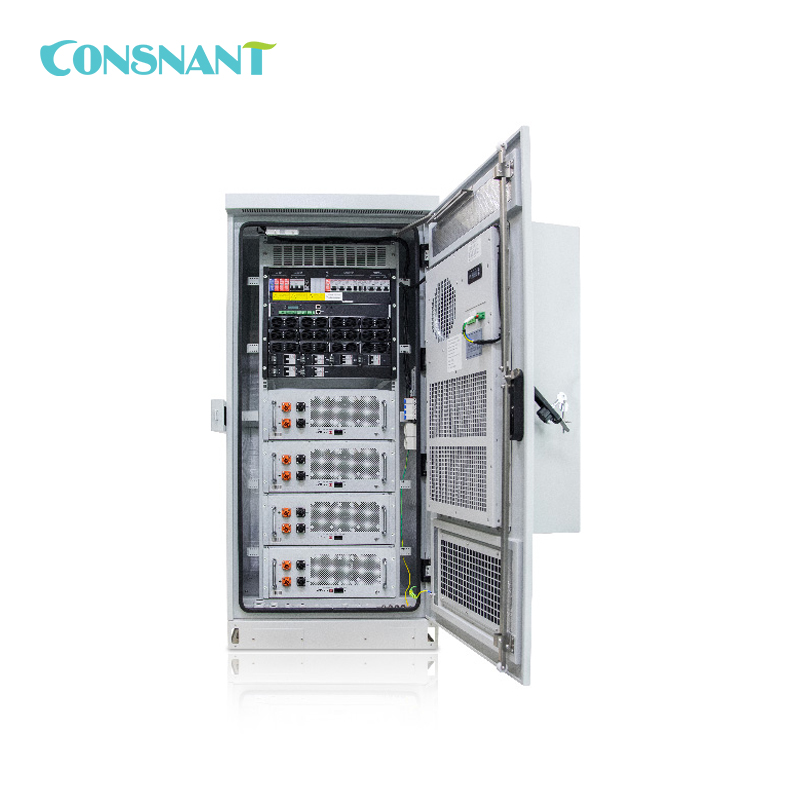

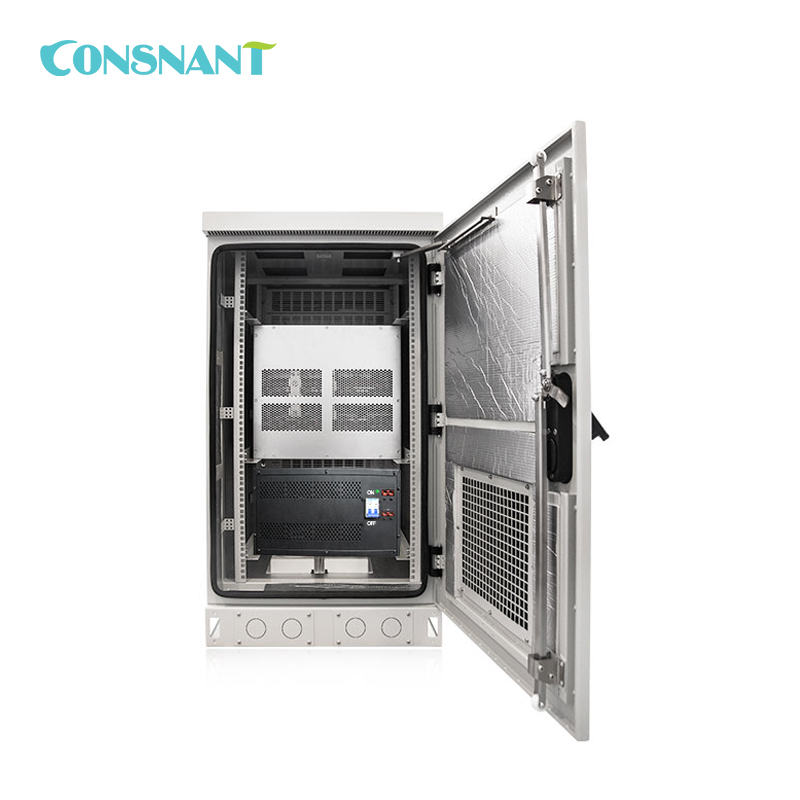

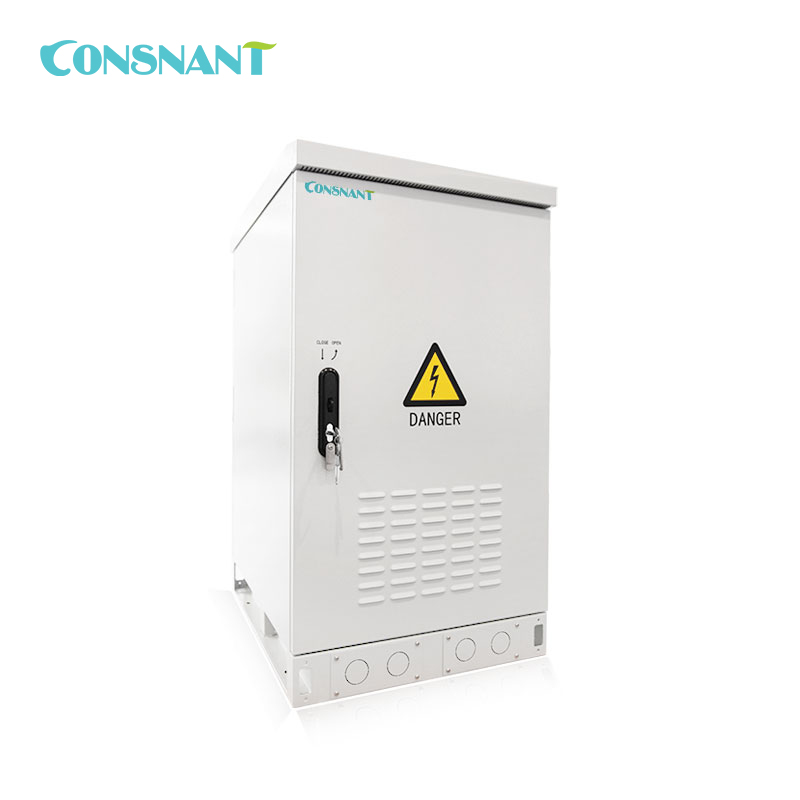

Hybrid Telecom Power System 48VDC 300A/600A

Hybrid Telecom Power System 48VDC 300A/600A

Model Number: OD-TRSS-48300/OD-TRSS-48600

Input AC voltage range:176Vdc~300Vac

Output DC voltage range: -43.2Vdc~ -57.6Vdc (Typical value-53.5Vdc)

Storage temperature Range: -45℃~+70℃



Application field:

  • Communication Base Station
  • Item No :

    OD-TRSS-48300/OD-TRSS-48600
  • Order(MOQ) :

    10 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    RAL7035
  • Shipping Port :

    Shenzhen
  • Lead Time :

    3 weeks
  • Weight :

    100 Kg

Hybrid Telecom Power System 48VDC 300A/600A

Description

OD-TRSS series telecom power system is an integrated solar telecom power supply that can be directly used outdoors.



Working Principle:

Normally,the power system runs in a parallel floating charge state,that is,the rectifier module,solar module,load,and battery work in parallel.Solar modules and rectifier modules provide floating charge current for power communication devices and batteries.If the output power of the solar module is insufficient to feed all the loads,the rectifier module will provide supplementary power for the communication devices.

When the mains power is off,the rectifier module stops working.If the solar power supply is normal,the solar module will feed the communication devices and charge the battery.If the output power of the solar module is insufficient to feed all the loads,the battery will provide supplementary power for the communication devices.

When the mains power is off,the rectifier module stops working.If the solar energy fails at the same time,the communication devices will be powered by batteries.When the battery discharge continues for a period of time to the point of the generator start,.the monitor sends start signal to the generator.Generator provides AC input power for the rectifier module,then the rectifier can supply power to the communication devices again and charge the battery to compensate for the consumption.When reaching the stop point of the generator,the monitor unit sends out a stop signal to the generator,and the generator turns off.

Features:

Features

Description











Module characteristic







The solar module has maximum power point tracking function. The maximum power point tracking accuracy is over 99.5%

The rectifier module adopts active power factor compensation technology, the power factor value is up to 0.99

The maximum efficiency of rectifier module is over 93%

The maximum efficiency of the solar module is over 95%

The solar module and rectifier module have high power density

The solar module and the rectifier module adopt the non-destructive hot swap technology, that is Plug-and-Play. It takes less than one minute to replace the solar module and rectifier module

The solar module and the rectifier module have output over-voltage protection function, including hardware over-voltage protection and software over-voltage protection. And the software over-voltage protection has two modes for option: the first time over-voltage lockout mode, the fourth time over-voltage lockout mode

Battery management

Perfect battery management: battery protection, and functions like automatic voltage regulating, stepless current limiting, battery capacity calculation, automatic equalization/float charge conversion, online battery test.

Light and electricity complementary management

Perfect light/electricity complementary management function, which can achieve the priority of the solar power supply and and maximize the use of the solar energy

Power statistic

Load electricity consumption, solar power generated energy, mains generated energy, DG generated energy, battery discharge, battery charge

Data record

90 days record of historical data, the historical data can be uploaded.

200 records of history alarm,

10 groups of battery test data

Alarm function

Perfect fault protection and fault alarm functions

Network design

Providing dry contact and other communication ports for network flexibility;

Enabling proximal end software upgrade and unattended operation

Humanized operation interface

LCD is designed with 15 degrees angle, which is more intuitional and convenient for the user’s operation.

Query the operating parameters, statistics, and historical alarms of the system through the LCD.

Control the system manually through the LCD

Lightning Protection

Perfect lightning protection design at AC and DC sides

Energy-saving design

The system, in addition to the sleep energy-saving function of the rectifier module, also supports and gives priority to the use of solar energy input to the load, makes full use of solar energy, to achieve energy saving and reduce greenhouse gas emissions

Outdoor type

The system protection level is up to IP55, can be used outdoors. The system is compact and easy to install

System







All the equipment in the system support the maintenance at the front

The system adopts rectifier module sleep technology, dual steady state contactor, low-power shunt and fan speed adjustable technology, and has more prominent energy-saving function

The optional AC heater makes the system work in low temperature reliably

Remote monitoring

The Modem is configured with GPRS function which can realize remote monitoring through providing data to the Internet server



Application field

  • Communication Base Station















Technical Specifications:

Model

OD-TRSS-48300

OD-TRSS-48600

Cabinet

Size(mm)

W*D*H=759*693*1430(without air-conditioner)

W*D*H=759*817*1430(with air-conditioner)

W*D*H=759*693*1430(without air-conditioner)

W*D*H=759*817*1430(with air-conditioner)

User equipment space(U) Height: 17U; Width: 15U Height: 15U; Width: 15U
Weight (kg) N.W :130 kg   N.W :160 kg
Rectifier module

Number (pcs)

1-6 pcs(Optional) 1-12 pcs(Optional)
Size(mm) Individual module: W*D*H=106.5*286*41.5(±0.5mm)
Weight (kg) < 1.75 kg (Individual module)

Solar MPPT module



Number (pcs) 1-6pcs(Optional) 1-12 pcs(Optional)
Size(mm) Individual module: W*D*H=106.5*286*41.5(±0.5mm)
Weight (kg)

< 1.75 kg (Individual module)

AC Input characteristics

AC input rated voltage

Single-phase 220Vac / three-phase 380Vac

Single-phase 220Vac / three-phase 380Vac

AC-input voltage range

176Vdc~300Vac (Full of work)

176Vdc~300Vac (176-275Vac@ system output rated capacity.)

AC input maximum current

40A (1 phase, the most power supply: 2 modules)

80A (One phase can control up to 4 modules)

AC input voltage frequency

45~65Hz (Typical value 50 / 60Hz )

AC power factor

≥0.99 (220 Vac rated load)

Input current harmonics

≤3% (220 Vac)

Midline current

<30% phase line current (In three-phase balanced system)

PV Input characteristics

Pv module input

120Vdc ~ 425Vdc (Starting voltage over 160Vdc)

Pv-rated input voltage

340Vdc

MPPT voltage range

120Vdc to 340Vdc

Maximum input current of PV module

17A

Photovoltaic module reverse pole protection

Wrong input polarity, no damage

Photovoltaic module input protection

Positive and negative insurance

PV maximum input voltage

450Vdc (Power supply not be damaged)

Output characteristics

Rectifier output voltage range

-43.2Vdc~ -57.6Vdc (Typical value-53.5Vdc)

Rectifier output maximum power

18kW 36kW
PV output voltage range -42Vdc~ -58Vdc (Typical value-54.5Vdc)
Voltage stabilization accuracy ≤±1%
Output ripple & noise ≤200mVp-p (Rated input voltage and load and bandwidth limit of 20 MHz) ≤100mVp-p (Rated input voltage and load and bandwidth limit of 20 MHz)
Current-sharing imbalance ≤±5% (Within the 50- -100% load range) ≤±3% (Within the 50- -100% load range and when there is no monitoring, the modules can autonomously share current.)
Rectifier module efficiency ≥93% ,≥95%,≥96% (220 Vac / rated load)

≥94% (220Vac/100% load rate)

PV module efficiency ≥96%
Startup time 3~10S (The rated input voltage starts to the output voltage establishes to the setting value, the starting output needs to use the pre-flow limit function)
On/off overshoot amplitude ≤±5% (When either module is hot plugged (the load current should not be greater than the total output current in the working module), the system output voltage fluctuates) ≤±3% (When either module is hot plugged (the load current should not be greater than the total output current in the working module), the system output voltage fluctuates)

Dynamic response



Overshoot range

≤±5% (25% -50% -25% or 50% -75% -50% load change)

≤±1% (25% -50% -25% or 50% -75% -50% load change)

Recovery time

≤200µS (25% -50% -25% or 50% -75% -50% load change)

≤10µS (25% -50% -25% or 50% -75% -50% load change)

Temperature coefficient

≤±0.02%/℃

≤±0.02%/℃ (The difference between the DC output voltage and the output voltage setting value when the temperature changes by 10°C should not exceed ±0.02% of the output voltage setting value.)

Psophometrically weighted noise voltage

≤2mV

Wide-band noise voltage



3.4~150KHz

≤50mV

≤3mV

0.15~30MHz

≤20

≤5mV

Discrete noise voltage








3.4~150KHz

≤5mV

≤2mV

150~200KHz

≤3mV

≤1mV

200~500KHz

≤2mV

≤1mV

0.5~30MHz

≤1mV

≤1mV

Voltage drop

≤500mV

Protection characteristics

AC input overvoltage protection 300Vdc (Can self-recovery, the difference of not less than 10 Vac)
AC input undervoltage protection
85Vdc (Can self-recover with a return difference of not less than 5 Vac)
80Vdc (Can self-recover with a return difference of not less than 5 Vac)
Photovoltaic input overvoltage protection 430Vdc (Can self-recovery, the difference of not less than 15 Vac)
Photovoltaic input undervoltage protection 110Vdc (Can self-recovery, the difference of not less than 40 Vac)
Rectifier output overvoltage protection -59Vdc~-61Vdc (Lock, can not recover, need to restart)  -58.5Vdc~-60.5Vdc (Locked)
Photovoltaic output overvoltage protection Internal-58.5 to-60.5Vdc, External: 63Vdc (Lock, can not recover, need to restart)
Output undervoltage protection Battery disconnect protection (Through monitoring, the battery can be powered down, and the protection point can be set)
Output limit protection Have Have (Output current limiting range: adjusted between 20% and 110% of the nominal current value)
Output short circuit protection Have (Long-term short circuit, can recover from itself)
Overtemperature protection It can recover automatically at the ambient temperature of 75℃. It can recover automatically at the ambient temperature of 65℃.
Battery polarity is connected to reverse protection Not have (According to the user needs can have the battery polarity reverse connection protection function)
Battery manual power-off protection
Not have
PV underpower protection

Input power <50W and shutdown for 5 minutes (The module starts when the input voltage is greater than 160 Vdc for 5 minutes.)

Environmental
Operating temperature

-40℃-50℃

15-45

Storage temperature

-45℃-70℃

-40℃-70℃

Relative humidity

5%-95%

Altitude(m)

 4000m (3000~4000m capacity derated output)
