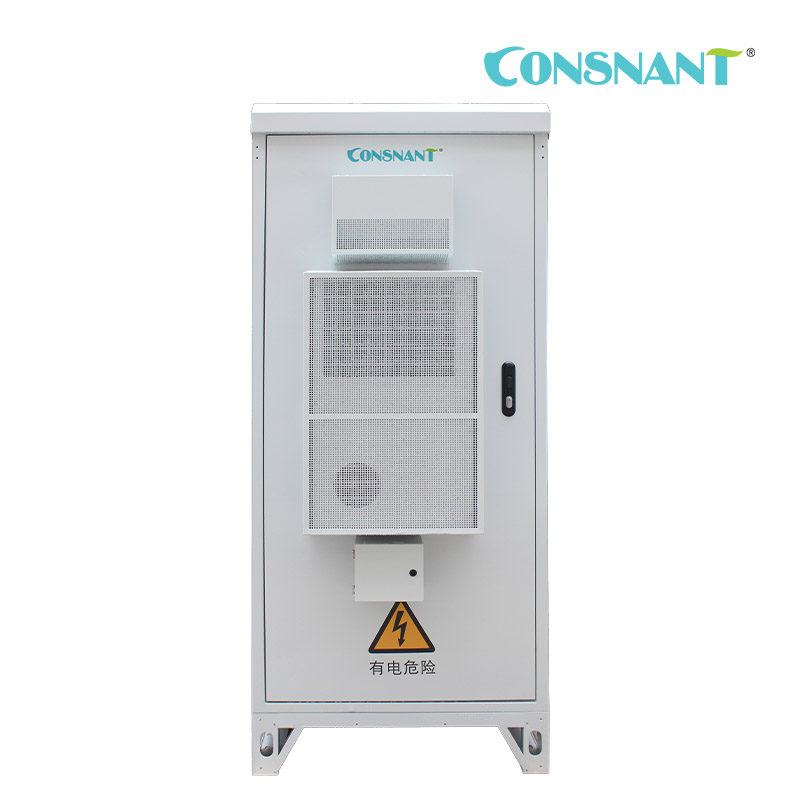

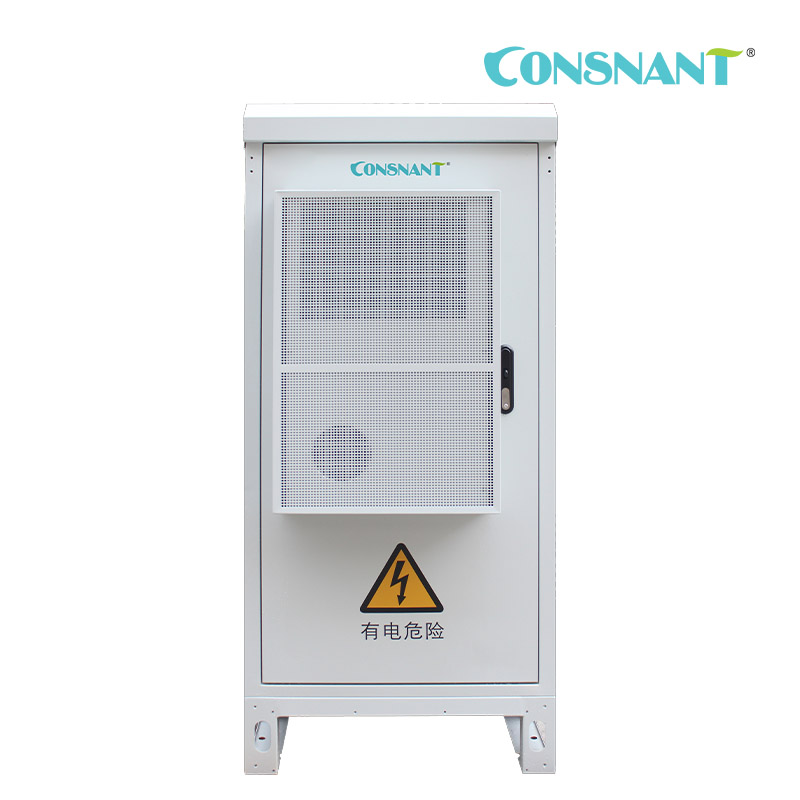

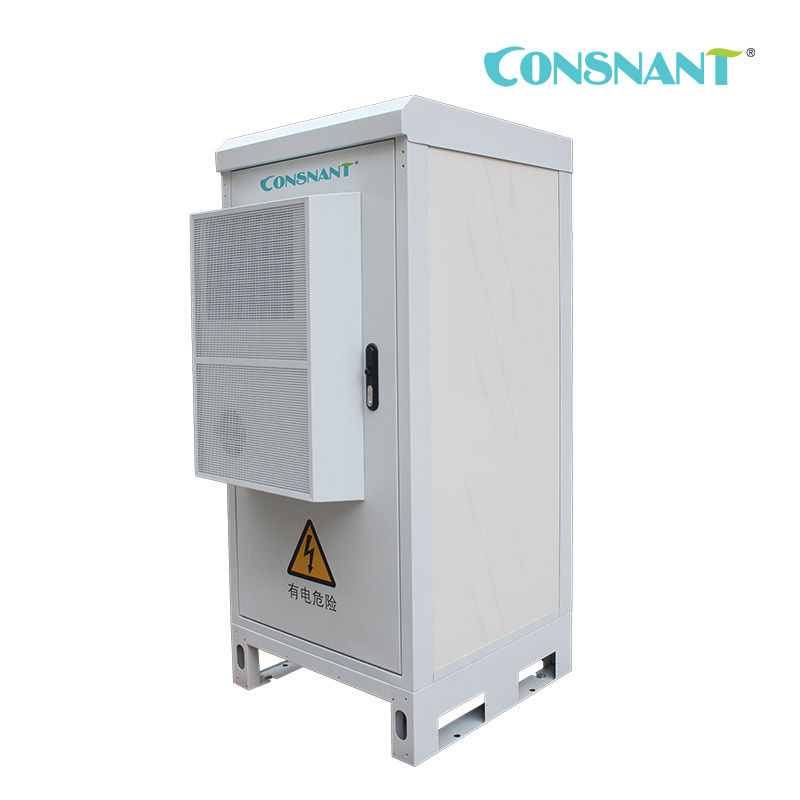

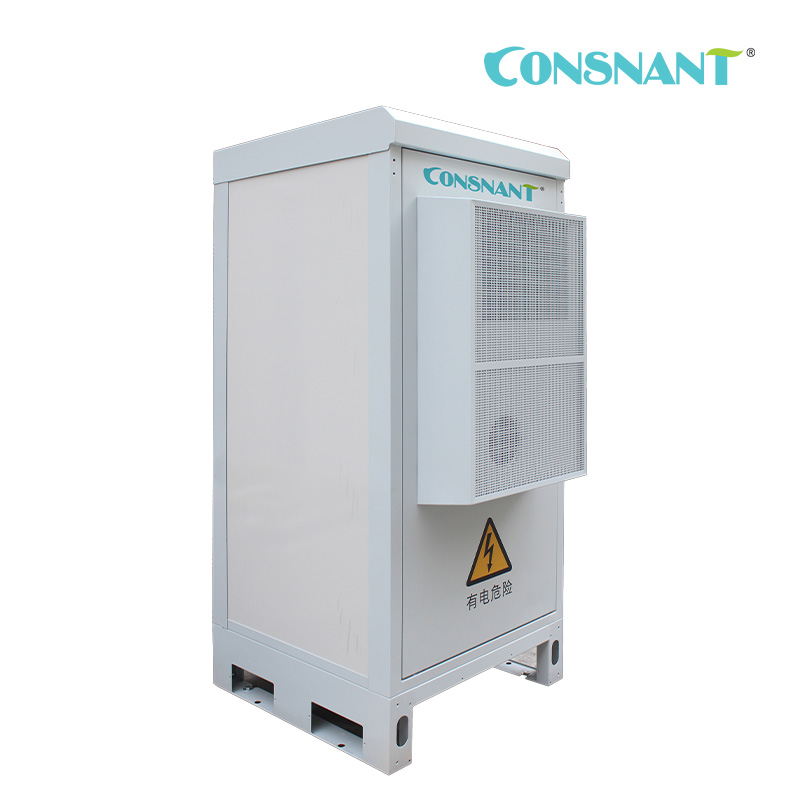

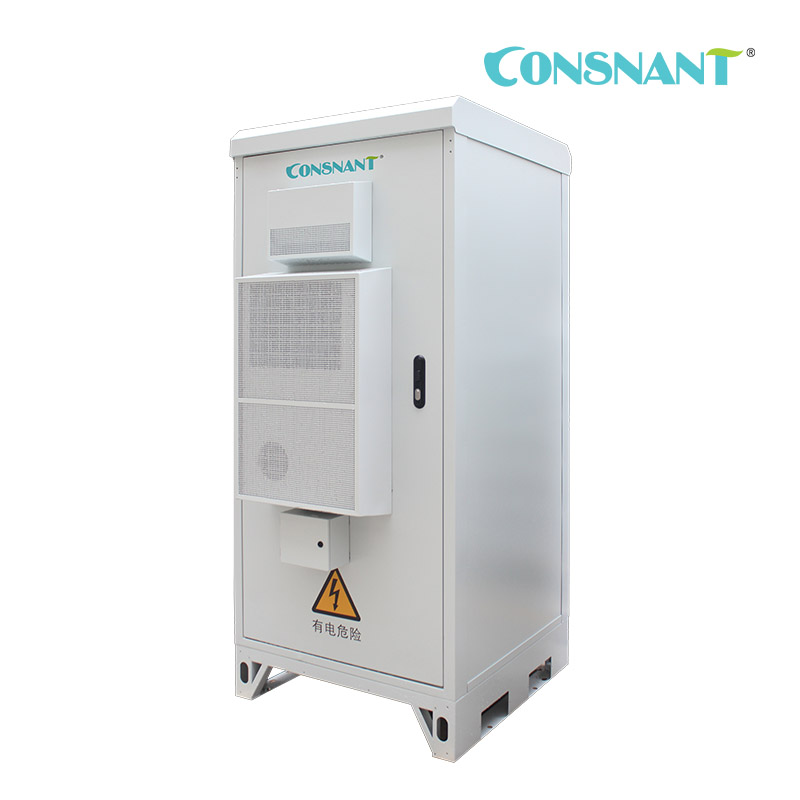

Outdoor battery cabinet

Outdoor battery cabinet

1.4M Battery cabinet and 1.8M Battery cabinet (Customizable)

  • Item No :

    ODC-B14/ODC-B18
  • Order(MOQ) :

    10 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    RAL7035
  • Shipping Port :

    Shenzhen
  • Lead Time :

    2 weeks
  • Weight :

    85-110 Kg

Outdoor battery cabinet

Description

1.4M Battery cabinet

CONSNANT's Outdoor Battery Cabinet with Air Conditioner (with sandwich panel double-wall structure design) is designed to house a variety of batteries, they provide protection from vandalism, dust, rain, snow and dripping water in wireless communication base station including the new generation of 4G system, communication network/network integrated services, access/transmission switching station, emergency communication/transmission. It is designed for a variety of applications and can be tailored to fit your specific needs. This cost effective solution has a unique cube design that give flexibility to easily have various heights of cabinets.

Air conditioner(options: Heat exchanger/TEC/Fan) is installed on cabinet for keeping a stable temperature inside cabinet so as to increase service life and stability of battery and equipment. It provide a secure thermally managed environment for backup battery systems for telecommunications and cable applications.
With durable sandwich panel construction, this air-con. Outdoor Cabinet incorporates tailored air conditioners that will keep even the most sensitive electronics functioning in extreme environments.

  •  Material: SPCC,stainless steel,galvanized steel or as customer's requirements.
  •  Cooling System: Air conditioner(Fans,or Heat exchange).
  •  Protection Level: IP55 ,Waterproof,dust proof.
  •  Sandwich panel construction Design: Cabinet design avoid the cold air and heat air exchange to providing a better cooling performance for the equipment.
  •  Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection.
  •  Machine Protection Solution: the cabinet is designed specifically to protect it from human damage, earthquake and other damages.
  •  All fixings are internal to the cabinet to provide a secure solution.
  • Battery Storage Space based on the battery specification.
  • Come with plinth for mounting on the floor ground, with cable gromments for the cabling.
  •  Available in colours, Grey, Green or customized colors.
  •  Can support OEM and ODM services.



CONSNANT Outdoor Integrated Cabinet is designed for a variety of applications and can be tailored to fit your specific needs. This cost effective solution has a unique cube design that give flexibility to easily have various heights of cabinets.

With durable Sandwich construction the Outdoor Cabinet incorporates tailored thermal systems (fan/filters, air conditioners, Heat exchangers, hybrids and heaters) that will keep even the most sensitive electronicsfunctioning in extreme environments.

The Outdoor Cabinet is well suited for power equipment, batteries, telecom gear, all integrated into a robust, economical package. The cabinet contains internal mounting rails, which allow installation of standard 19" equipment.



When you have projects or needs at hand, you need to consider below items before you find the right one:

IP Rating: IP45,IP55,IP65....

What kind of material you perfered:SPCC, Galvanized Metal, Stainless Steel or Aluminum?

What is the Equipment Usage Space want ?

Cooling Options you can afford: Cooling Fans Tray,Heat Exchanger Unitor Air Conditioner Unit ?



Optional Acccessories: EMS,FSU, PSU, Sensors,Batteries,etc



Outdoor Battery Cabinet (lithium battery)





Outdoor Battery Cabinet (lead-acid battery)

Note:

1. Air conditioner will be mounted on the front door.

2. Mounting hardware included.

3.Cooling Options will be shown based on customers request.



  • Two pairs of mounting rails, fully adjustable from front to back.
  • Sandwich , unitized construction for durability.
  • Wind stays located on front access door.
  • 3-Points Locking Door System.
  • High protection category of up to IP 65.
  • An extensive range of system accessories.
  •

Technical Parameters

Model ODC-B14TC02A01 ODC-B14AC03A01
Essential information
Cabinet size 800mm(W)*800mm(D)*1400mm(H)
Outside cabinet size 905mm(W)*1080mm(D)*1705mm(H)
Floor space 905mm(W)*905mm(D)
Substructure height 200mm
Weight 85kg (excluding the equipment and battery) 90kg (excluding the equipment and battery)
User space 31U
Frame material SPCC - cold rolled steel (standard),Galvanized steel / Stainless Steel / Aluminium/Color Steel Sandwich Board (optional)
Wall plate material Color steel sandwich plate: Color steel plate + polystyrene (polyurethane optional)
Wall plate thickness 45mm
Gate lock Heaven and earth three-point type anti-theft door lock, European standard lock core, can be replaced by themselves, can be equipped with the padlock
Levels of protection IP55
Bottom wire hole specification 8*φ50mm
Shipping form Get ready to deliver
Cabinet storage temperature -40℃ ~ +70℃
Relative humidity outside the cabinet 5%~100%
Temperature control information
Temperature control TC02 PC300
Power consumption Typical: 300W; Maximum: 380W 230W   @L35/L35
Refrigeration capacity 200W 400W   @L35/L35
Heater power consumption (optional) 400W 400W
Battery information (optional)
Battery specifications 400Ah 2V / 150Ah 12V AGM battery
Battery capacity 400Ah/450Ah
Battery pack number Group 1 / 3
Other information
Lighting (optional) DC-48V LED lamp
Certification & Standards
Product certification With the TLC certification
Occupation standard YDT 1537-2015



  • Outdoor Battery Cabinet (lithium battery) for Morocco Project




  • Outdoor Battery Cabinet (lithium battery) Project in Africa
