Outdoor equipment cabinet

Outdoor equipment cabinet

1.4M Equipment cabinet and 1.8M Equipment cabinet (Customizable)

Application:



  • Outdoor cabinet is widely used in telecom operators’ mobile Telecommunication sites.
  • Communication Base Stations.
  • Item No :

    ODC-E14/ODC-E18
  • Order(MOQ) :

    10 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    RAL7035
  • Shipping Port :

    Shenzhen
  • Lead Time :

    2 weeks
  • Weight :

    85-120 Kg

Outdoor equipment cabinet

Description

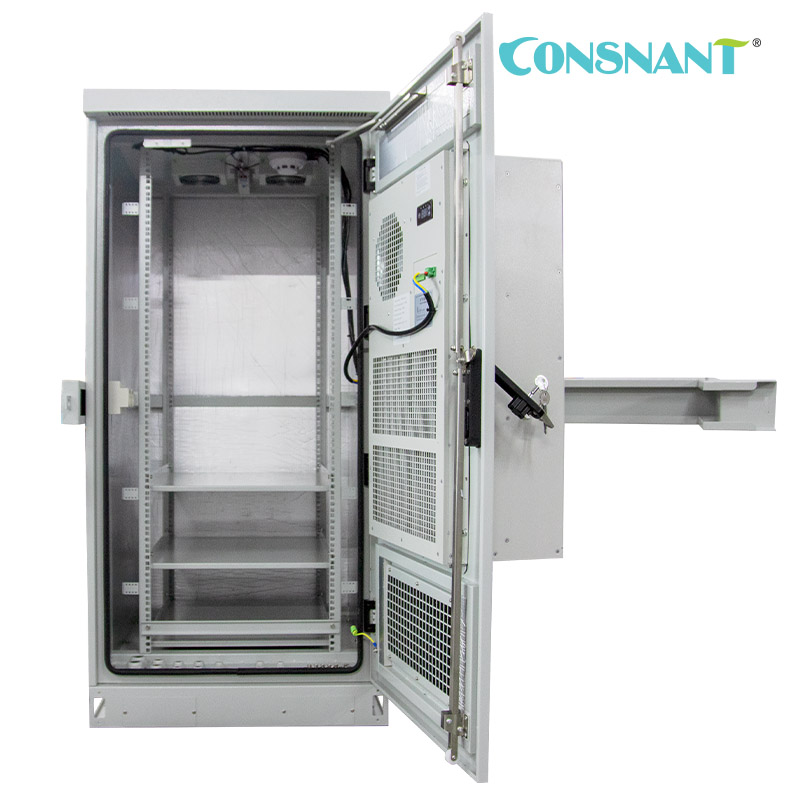

1.4M Equipment cabinet

Outdoor Equipment Cabinet is mainly used in wireless communication base station, such as 5G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc. The cabinet can contain rectifier system, UPS, inverter, battery etc.

Outdoor Equipment cabinet which can protect customer’s equipment’s from damage and extreme weather conditions, vandal ism, dust, rain, snow and dripping water. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment, transmission equipment, power equipment, monitoring equipment, lithium batteries and other supporting equipment. Both active telecom equipment and passive telecom equipment can be accommodated inside the cabinet. Cabinets are available with integrated thermal management using air conditioner to control internal temperatures to protect sensitive equipment.

DATACOM offers IP55/IP66 rated floor standing equipment Cabinets. Cabinet sizes are Customizable ranging from 9U internal space to 46U special height sizes.



Air condition units can be configure depends on the size of cabinet and heat load requirement, cooling capacity range from 300Watts to 3000Watts.All Cabinets are constructed of Strong anti-theft ability, embedded door, inner hinge three-point lock, supporting additional pad lock.



Detailed introduction

Features:

  • The cabinet is dustproof, sunproof fireproof and rainproof, which is used in outdoor environment.
  • Cabinet cooling: heat exchanger. (Other cooling option: air conditioner and fans).
  • The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlet individually for power cable, signal cable and optical cable.
  • Compact structure and easy maintenance AC Unit.
  • Use outdoor powder coating with high anti-corrosion.
  • High protection grade: IP55.
  • Strong anti-theft ability, embedded door, inner hinge three-point lock, supporting additional pad lock.
  • Cooling system is installed on cabinet, convenient for maintenance, cleaning and replacement.

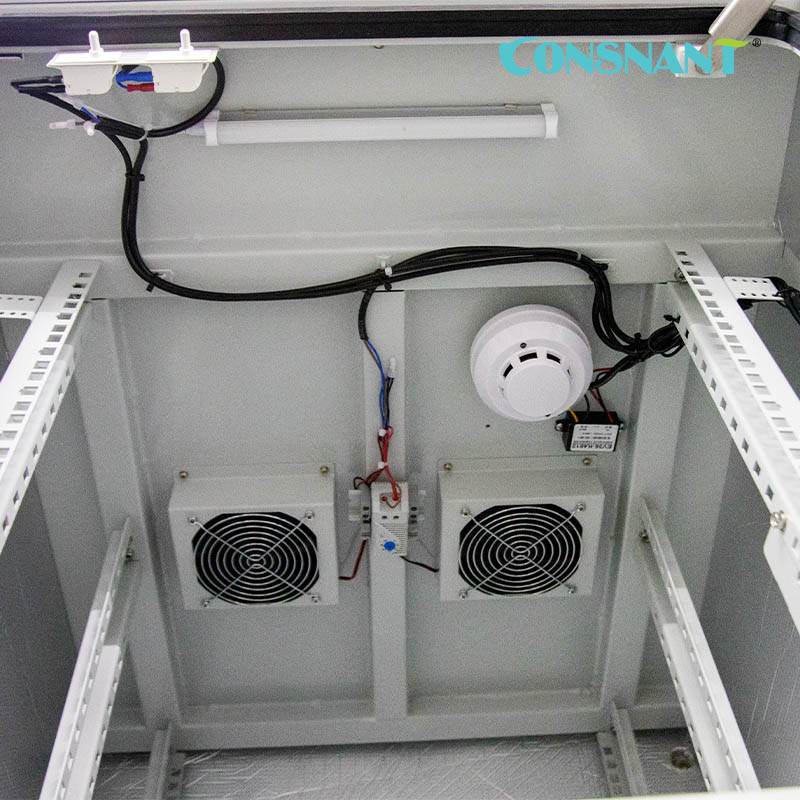

  • Comprehensive protection: door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.
  • Support remote management, improve security and minimize customer’s operation cost.

Technical Parameters

Model ODC-E14AC15A01 ODC-E14HX08A01
Essential information
Cabinet size 800mm (W) * 800mm (D) * 1400mm (H)
Outside cabinet size 905mm (W) * 1080mm (D) * 1705mm (H)
Floor space 905mm (W) * 905mm (D)
Substructure height 200mm
Weight 95kg (excluding the equipment and battery) 85kg (excluding the equipment and battery)
User space 31U
Frame material  SPCC - cold rolled steel (standard),Galvanized steel / Stainless Steel / Aluminium/Color Steel Sandwich Board (optional)
Wall plate material Color steel sandwich plate: color steel plate + polystyrene (polyurethane optional)
Wall plate thickness 45mm
Gate lock Heaven and earth three-point type anti-theft door lock, European standard lock core, can be replaced by themselves, can be equipped with the padlock
Levels of protection IP55
Bottom wire hole specification 8*φ50mm
Shipping form Get ready to deliver
Cabinet storage temperature -40℃~+70℃
Relative humidity outside the cabinet 5%~100%
Temperature control information
Temperature control of equipment module PC1500 HX08
Power consumption 600W   @L35/L35 70W
PC1500 Refrigeration capacity/ HX08 heat transfer coefficient 1500W  @L35/L35 80W/K
Heater power consumption (optional) 1000W 400W
Other information
Lighting (optional)  DC-48V LED lamp
Certification & Standards
Product certification With the TLC certification
Occupation standard YD/T 1537-2015

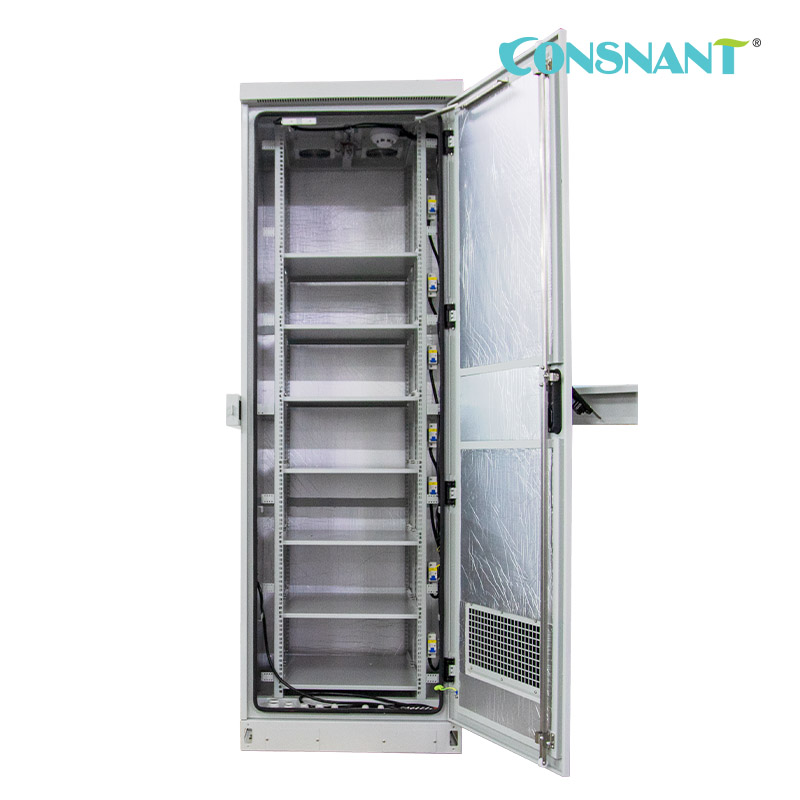

1.8M Equipment cabinet

Model ODC -E18AC15A01 ODC -E18HX08A01 ODC-E18HX12A01 ODC -E18HX19A01
Essential information
Cabinet size 800mm (W) * 800mm (D) * 1800mm (H)
Outside cabinet size 905mm (W) * 1080mm (D) * 2105mm (H)
Floor space 905mm (W) * 905mm (D)
Substructure 200mm
height
Weight 120kg (Excluding       equipment and battery) 108kg (Excluding equipment and battery)
User space 40U
Frame material  SPCC - cold rolled steel (standard),Galvanized steel / Stainless Steel / Aluminium/Color Steel Sandwich Board (optional)
Wall plate Color steel sandwich plate : Color steel plate + polystyrene (polyurethane optional)
material
Wall plate 45mm
thickness
Gate lock Heaven and earth three-point type anti-theft door lock, European standard lock core, can be replaced by themselves, can be equipped with the padlock
Levels of protection IP 55
Bottom wire hole specification 8* φ50mm
Shipping form Get ready to deliver
Cabinet storage temperature -40℃~+70℃
Relative  humidity outside the cabinet 5%~ 100%
Temperature control information
Temperature      control of       equipment module PC 1500 HX 08 HX 12 HX 19
 Power Consumption 600W   @L35/L 35 70W 190W 190W
PC 1500 Refrigeration
capacity /HX Heat transfer coefficient
1500W  @L35/L 35 80W/K 120W/K 190W/K
Heater power Consumption
(Optional)
1000W 400W 1000W 1000W
Other information
Lighting (optional) DC-48V LED lamp
Certification & Standerds
Product certification With the TLC certification
Occupation standard YD /T  1537-2015
