Off-grid Solar Power System 5500W

Nov 20, 2023

Off-grid Solar Power System 5500W

System equipment includes:

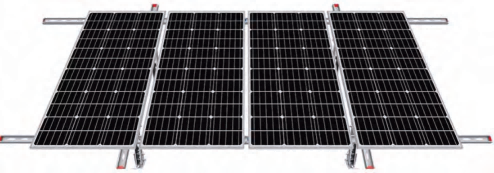

Rooftop installation(Various installation methods):Solar Panel 550W (8-10 pcs)+ Mounting brackets

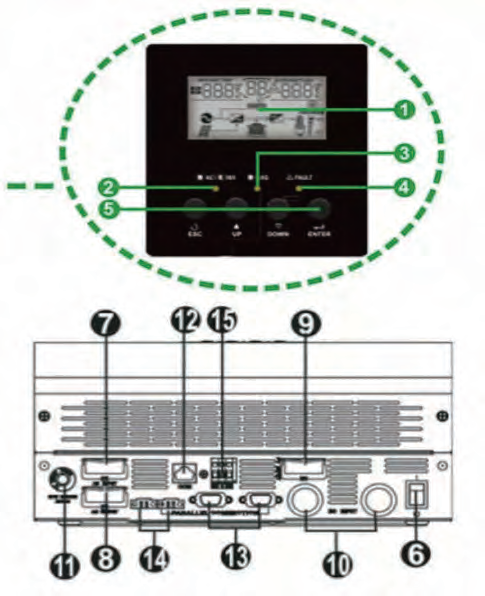

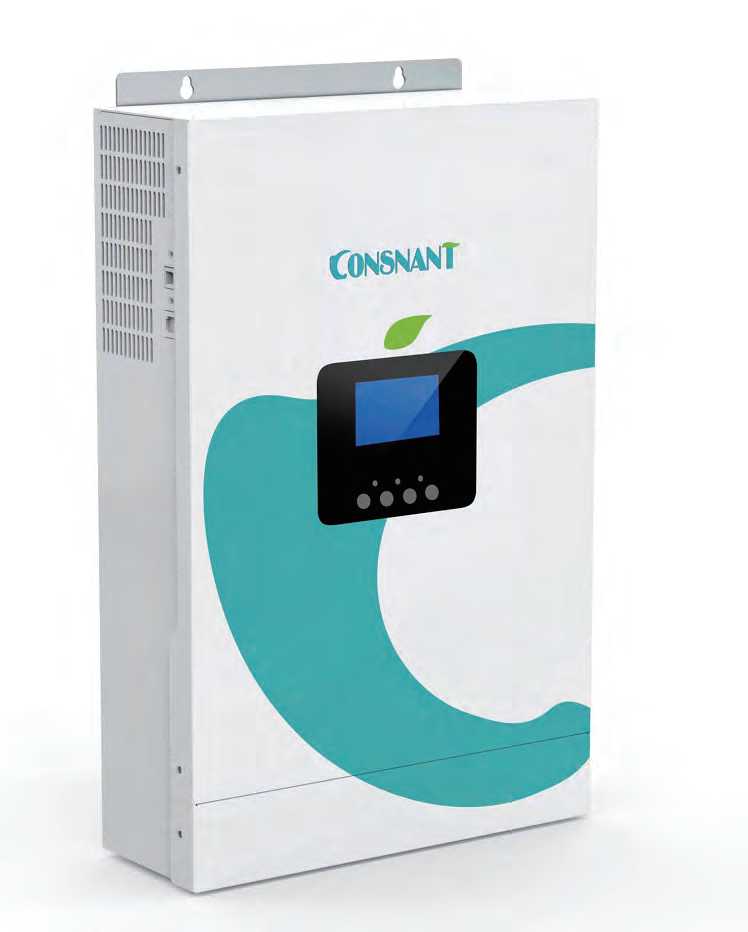

5500W 48V Solar Hybrid Inverter(1 pc)

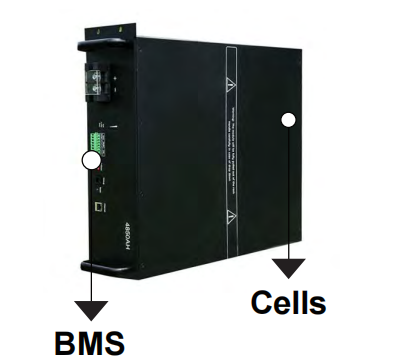

48V 100AH Lithium Battery(1 pc)

2 in 1 out PV combiner box(1 pc)

PV cable(1 pc)

DC cable(1 pc)

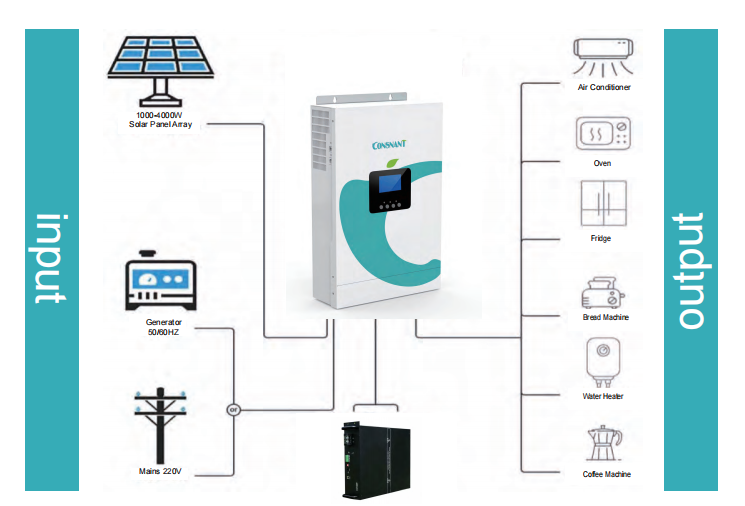

Working principle diagram:

An off-grid solar power system with a capacity of 5.5KW is an excellent solution for those looking to generate their own electricity without relying on the traditional power grid. This system is ideal for remote areas or locations where grid connection is not feasible or cost-effective.


The 5.5KW off-grid solar power system consists of several key components. Firstly, it includes a solar panel array, which is responsible for converting sunlight into electricity. The size of the solar panel array will depend on the energy requirements of the user and the available space for installation.


In addition to the solar panels, the system also includes a charge controller. The charge controller regulates the flow of electricity from the solar panels to the battery bank. It ensures that the batteries are charged optimally and prevents overcharging or discharging, which can damage the batteries.


The heart of the off-grid solar power system is the battery bank. The battery bank stores the electricity generated by the solar panels and provides power during periods of low or no sunlight. It acts as a backup power source, ensuring a continuous supply of electricity even when the sun is not shining.


To convert the stored electricity from the battery bank into usable AC power, an inverter is required. The inverter converts the DC power from the batteries into AC power, which can be used to power appliances and electrical devices.


To monitor and control the system, a charge controller and an energy management system can be integrated. These systems provide real-time data on energy production and consumption, allowing users to optimize their energy usage and make informed decisions to reduce energy wastage.


The 5.5KW off-grid solar power system offers several advantages. Firstly, it provides energy independence, allowing users to generate their own electricity and reduce their reliance on the grid. This can lead to significant cost savings in the long run, as users are no longer subject to fluctuating electricity prices.


Additionally, off-grid solar power systems are environmentally friendly, as they produce clean and renewable energy. By utilizing solar power, users can reduce their carbon footprint and contribute to a more sustainable future.


Furthermore, off-grid solar power systems are highly reliable, especially when combined with a well-designed battery bank. They can provide uninterrupted power supply even during power outages or in remote locations with limited access to electricity.


In conclusion, the 5.5KW off-grid solar power system is a practical and efficient solution for generating electricity in remote or off-grid locations. With its various components working together, it offers energy independence, environmental sustainability, and reliable power supply. Investing in such a system can bring long-term benefits and contribute to a greener and more sustainable future.
