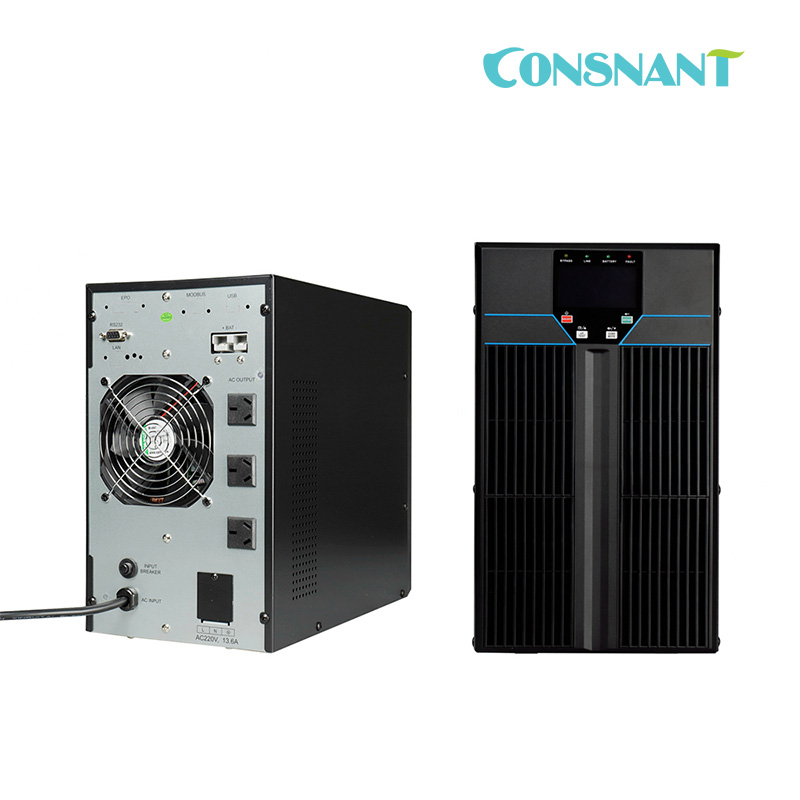

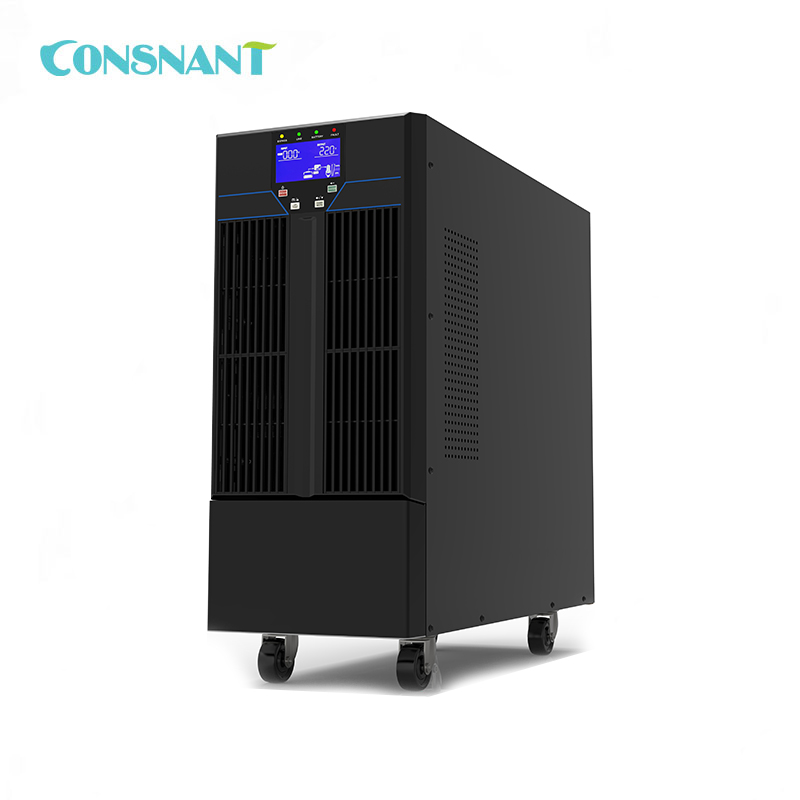

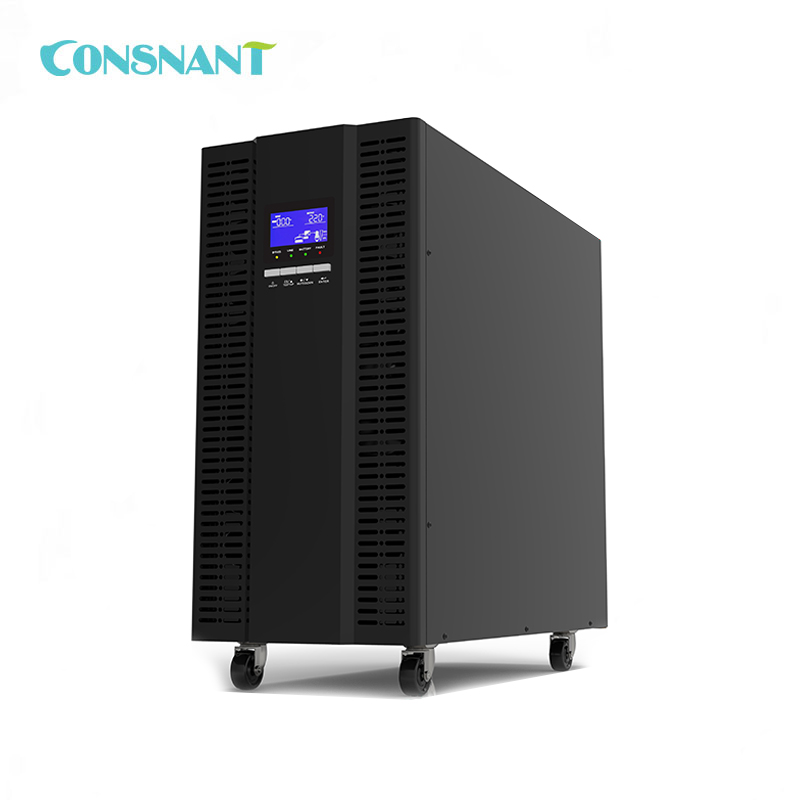

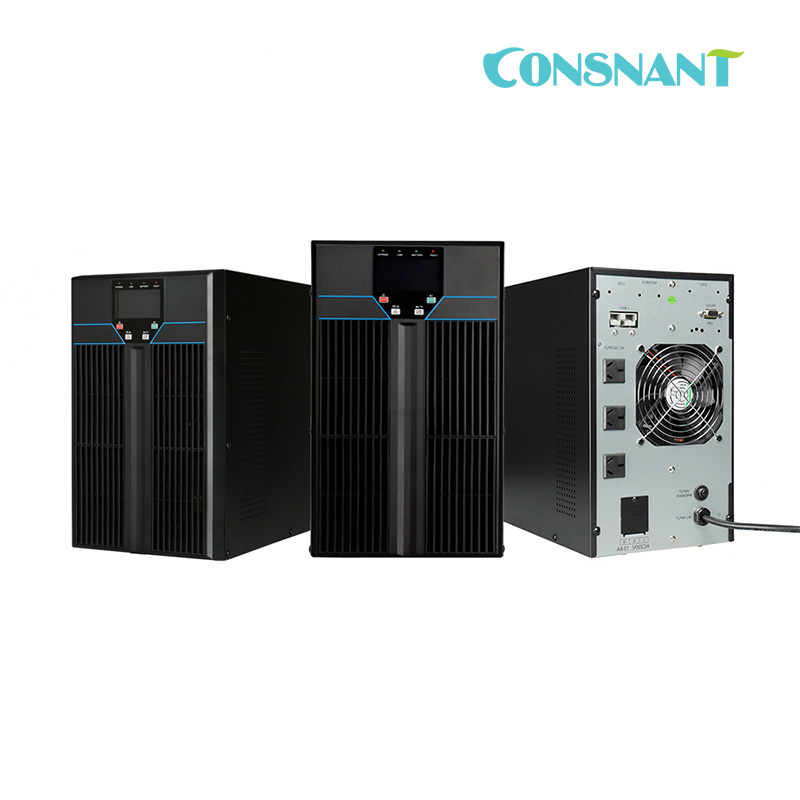

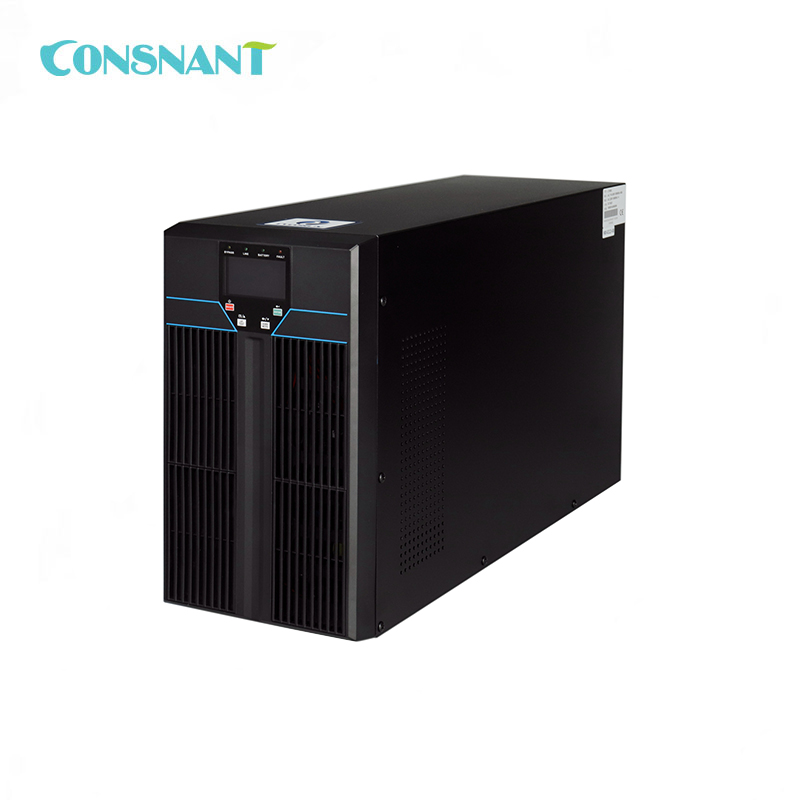

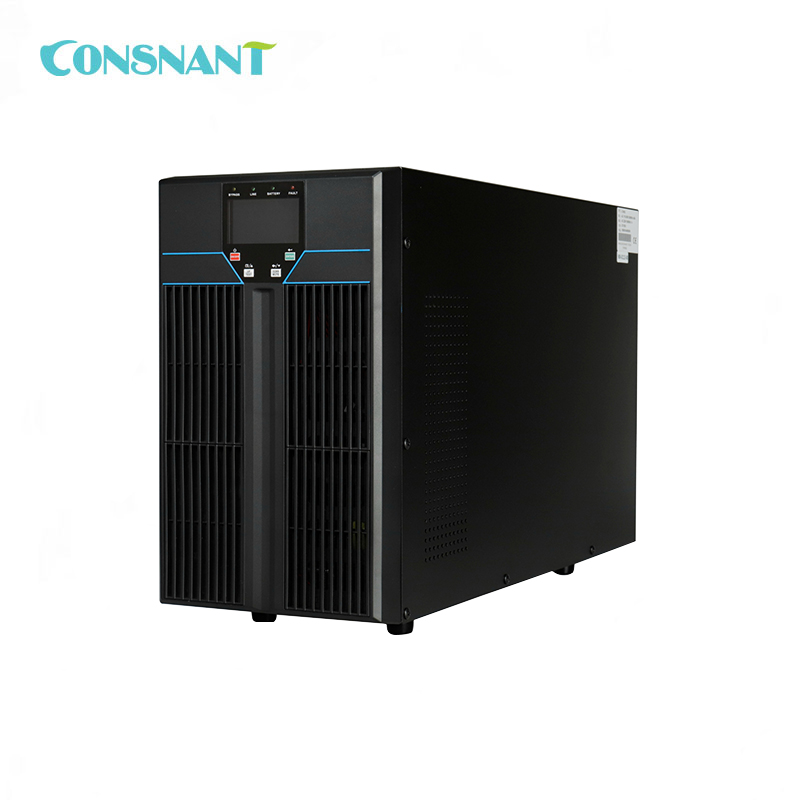

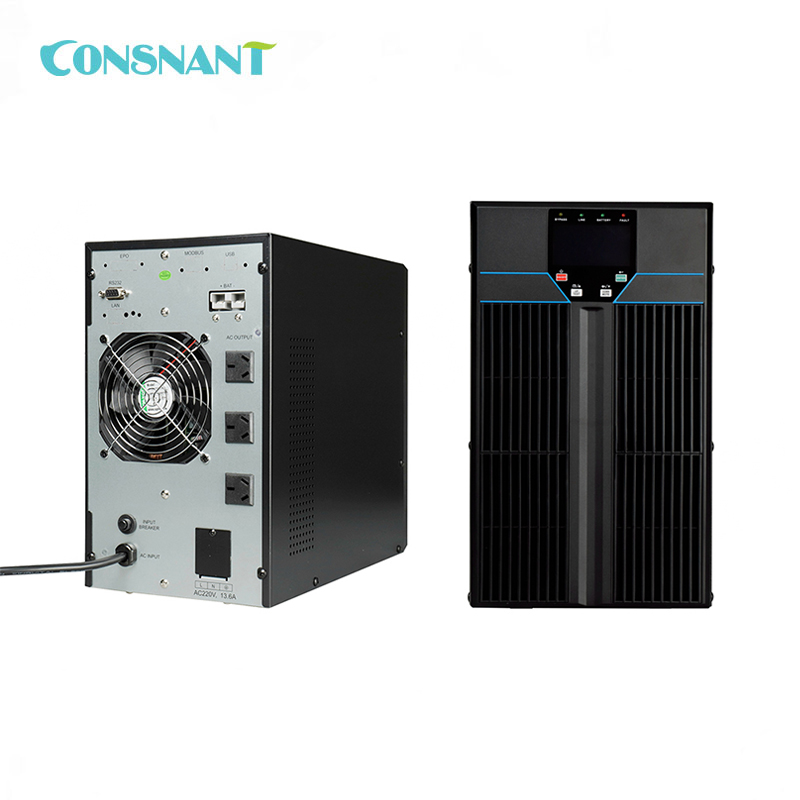

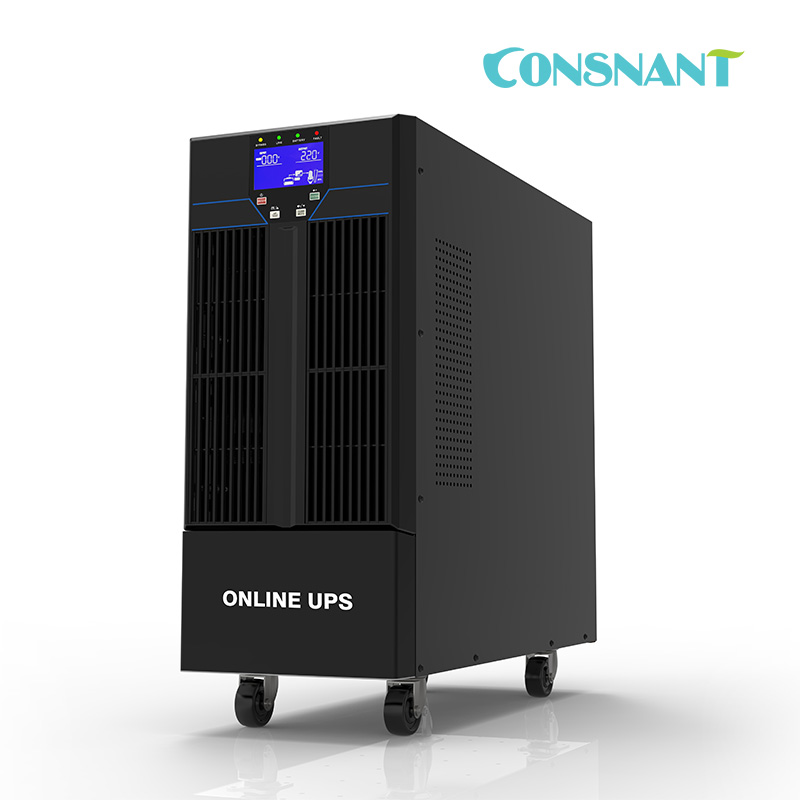

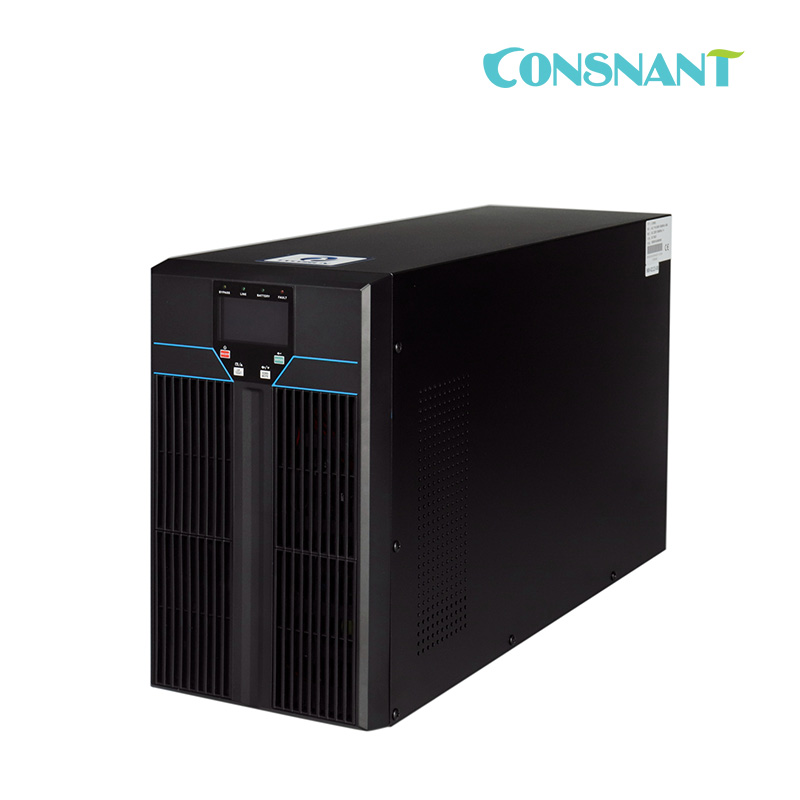

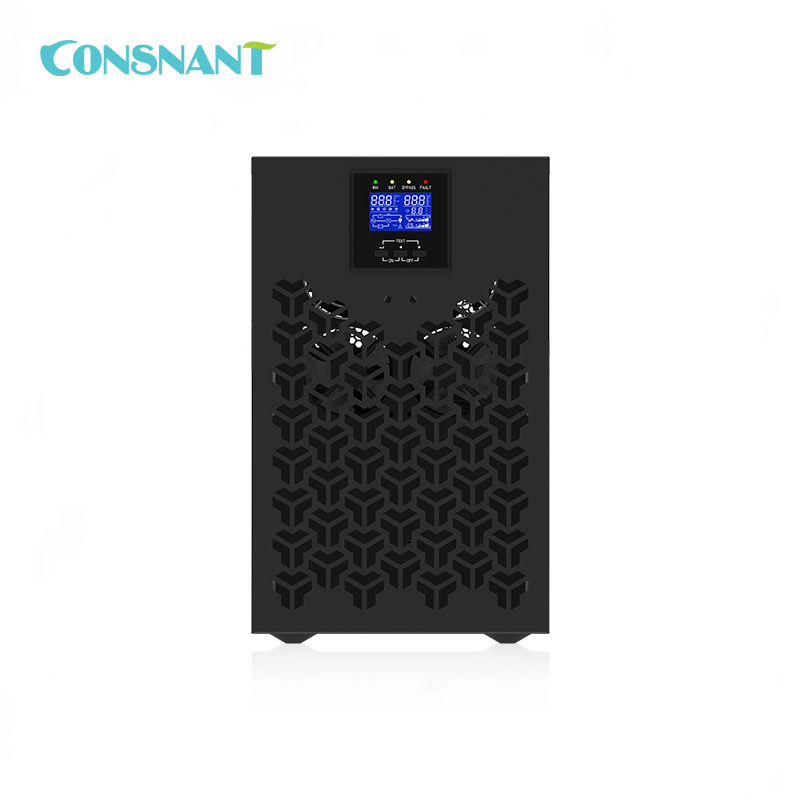

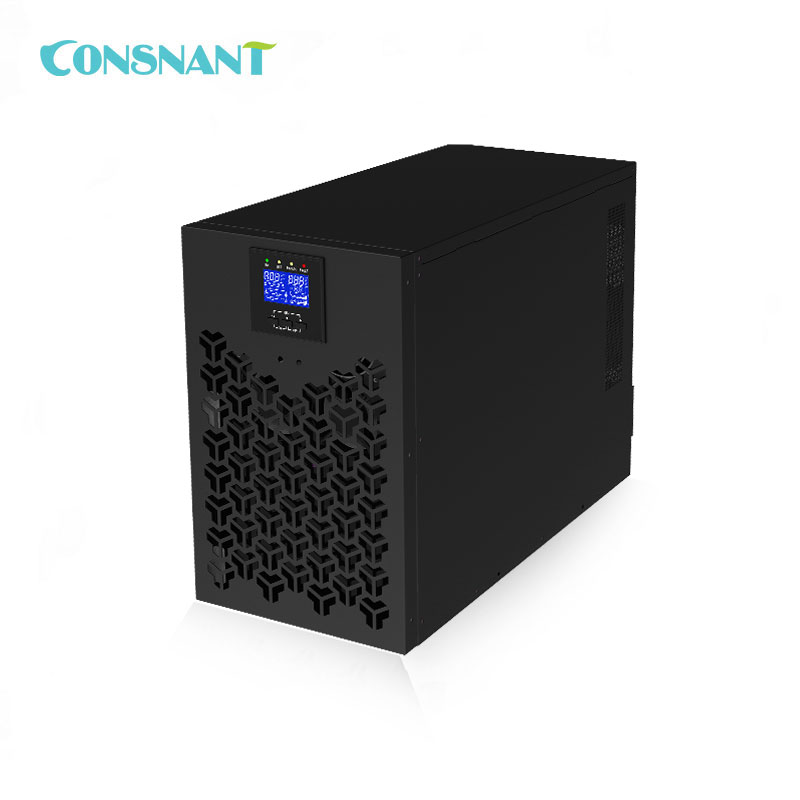

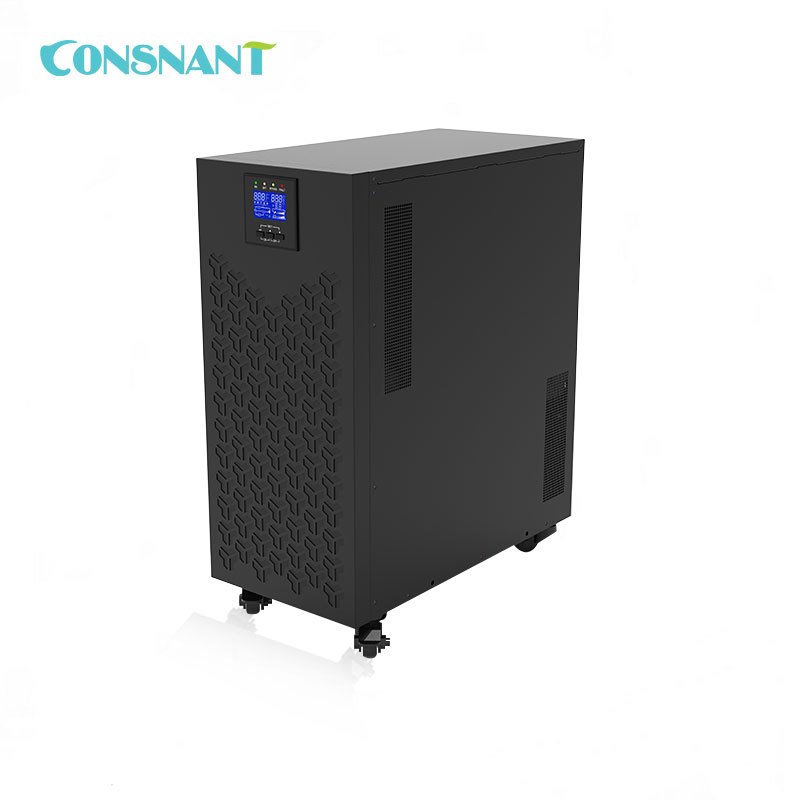

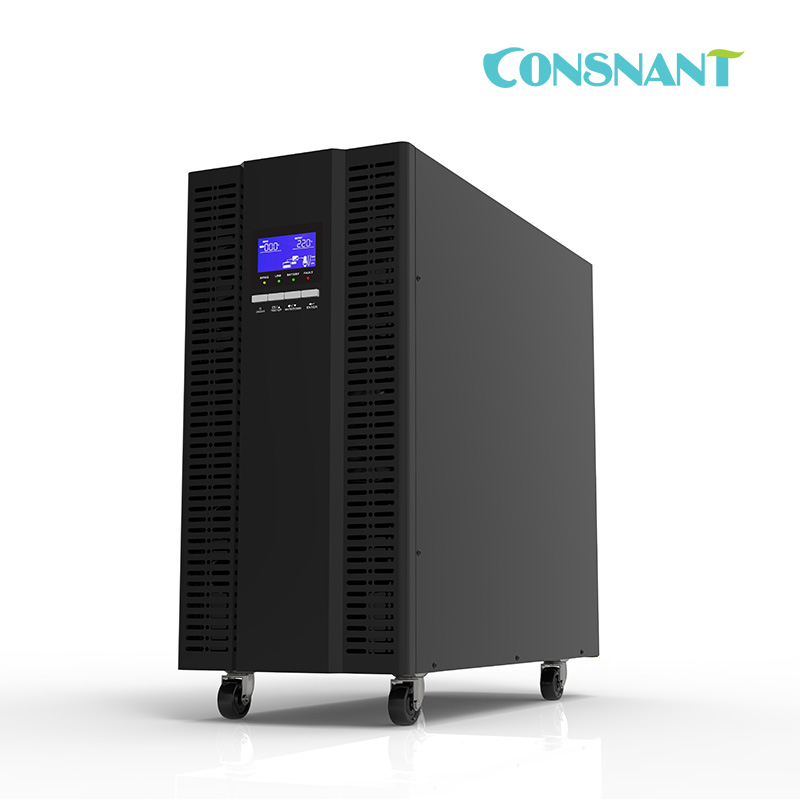

Tower High Frequency Online UPS 10 - 20KVA

Tower High Frequency Online UPS 10 - 20KVA

Model Number: CNH310 10 - 20KVA

Nominal Capacity: 10– 20KVA

Nominal Voltage: 220VAC

Maximum Input Voltage Range: 90 – 300VAC

Nominal Frequency: 50/60HZ



Application field:

  • Data Center
  • Telecom
  • Local Area Networks
  • Servers
  • Item No :

    CNH310 10 - 20KVA
  • Order(MOQ) :

    1 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Shenzhen
  • Lead Time :

    3 weeks
  • Weight :

    17-90.1 Kg

Tower High Frequency Online UPS 10 - 20KVA

Description

10-20KVA Tower High Frequency Online UPS Datasheet:


Feature:

1. Zero Transfer time

True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.

2. DSP Digital Control Based

Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply.

3. Ultra Wide Input Mains range

Strong compatible with ultra with electric environment, stay well with ultra wide range mains of  90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life.

4. Best Loading Capability

Up to 0.9 (1.0 optional) Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application.

5. Genset Compatible

Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.

6. High Input power factor

Thanks to digital controlled  PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer.

7. Reliable design

Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.

8. Open to customization

Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system.







Technical Parameters:

Model CNH310 10K CNH310 10KS CNH310 15K  3C15KS CNH310 20K CNH310 20KS
Capacity VA/W 10kVA/9kW(Optional 10KW) 15kVA/13.5kW(Optional 15KW) 20kVA/18kW(Optional 10KW)
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output  OR
AC
Mains Input
Wiring Single Phase L/N+PE   OR
3 Phases (L1,L2,L3,N)/N+PE
Rated Voltage 208/220/230/240VAC
Voltage Range Line-Neutral  90~300VAC
Line-Line 150~500VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring L/N+PE
Rated Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave
Distortion <2%(Linear Load)
(THDV%) <7%(None-Linear Load)
Over load capability 10Min@105%~125%Rated Load
60Sec.@125%~150%Rated Load
0.5Sec.@>150%Rated Load
Efficiency AC/AC Mode >94%
DC/AC Mode >92%
Battery
&
Charge
Rated Battery Voltage 192VDC 192/240VDC External Battery 192VDC 192/240VDC External Battery 192VDC 192/240VDC External Battery
12Vx16pcs 12Vx32pcs 12Vx32pcs
Battery Capacity 12V/7AH External Battery Depends 12V/7AH External Battery Depends 12V/7AH External Battery Depends
Backup Time >6mins >8mins >6mins
@half Load @half Load @half Load
Charging Current Long Backup Time Model :4A
Physical Chassis Style  Tower
Tower Dimension  3C10kS: 190(W)X340(H)x535(D)mm
3C10k: 190(W)X456(H)x534(D)mm
3C15/20kS: 238(W)X528(H)x540(D)mm
3C15/20k: 300(W)X700(H)x698(D)mm
Weight (kg) 47.8kg 17.0kg 89.6kg 25.6kg 90.1kg 26.1kg
HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards
Communication Interface
1.  RS232 PORT
2. Ethernet Port:  Support remote monitor the UPS via Smart Phone APP, Web page,  PC Monitor Software , Support Server / NAS shutdown
Optional Extension Card 3.  MODBUS Card,
4. USB Card
5. Relay Card (Needs assembly according to order request before shipping
Operating Environment
Endurance
Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <60dB @ 1 meters

Note:

① Battery rated voltage is open to customization

② Dimension might vary for different bezel

③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order

④ More parameter customization,please contact sales representative
