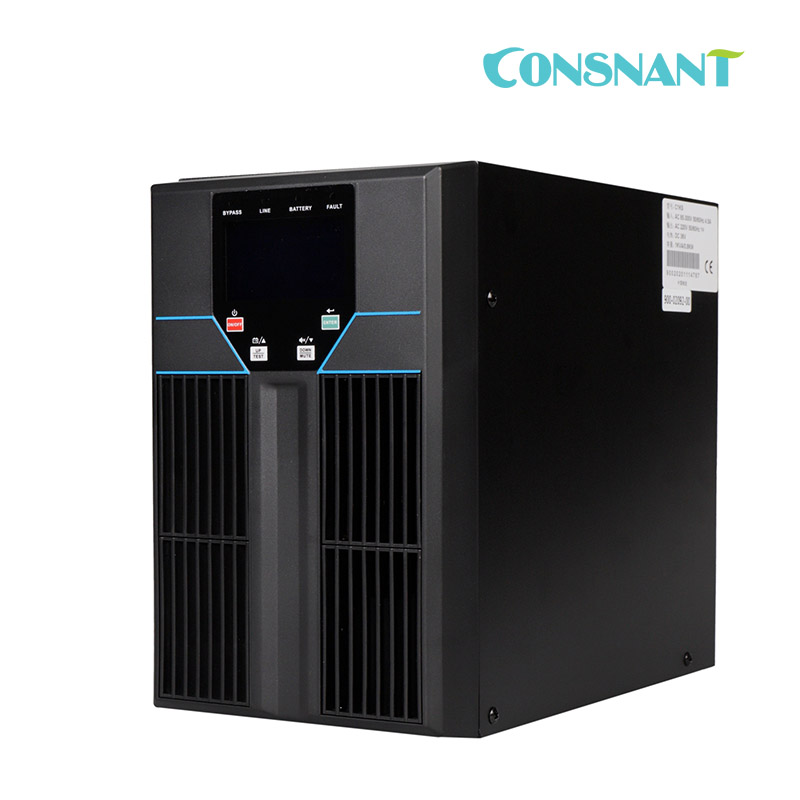

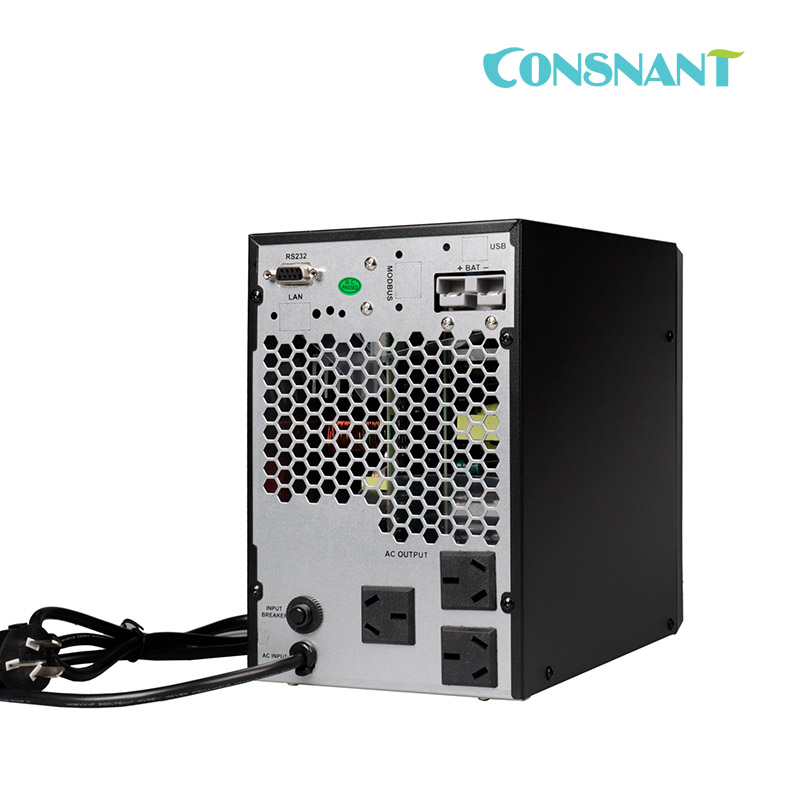

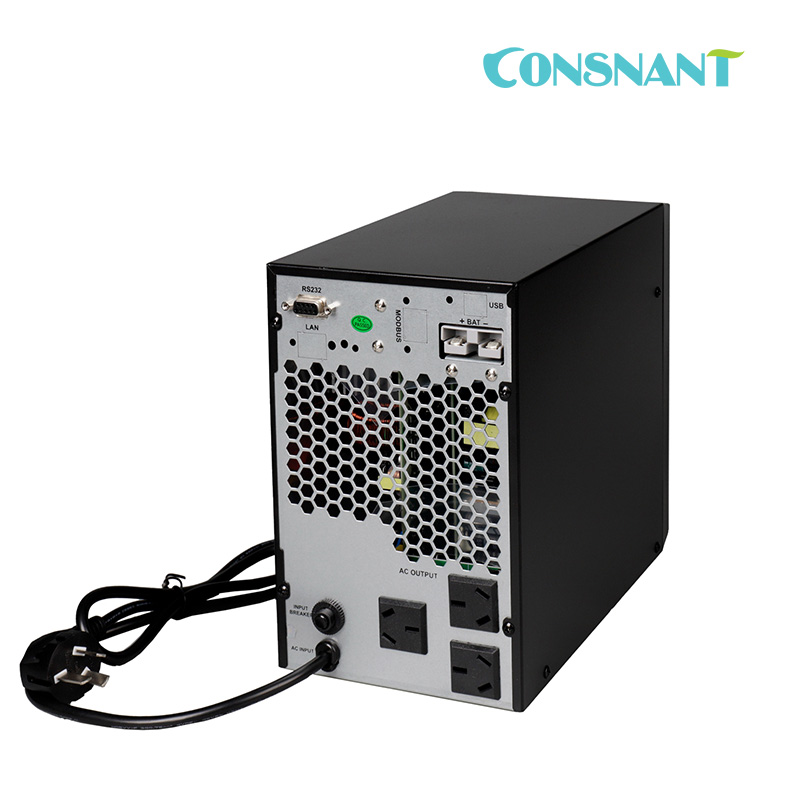

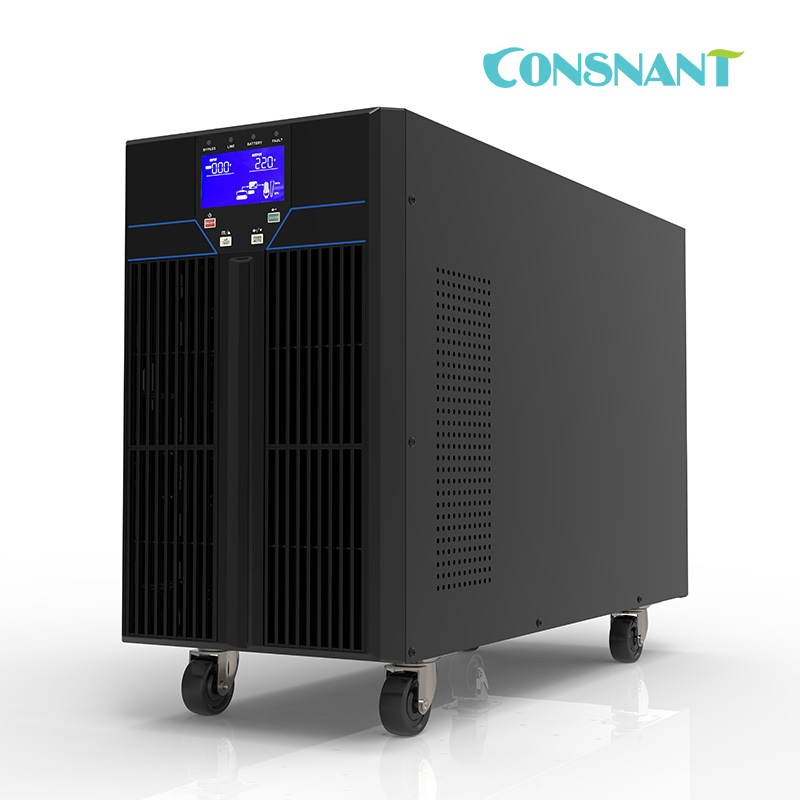

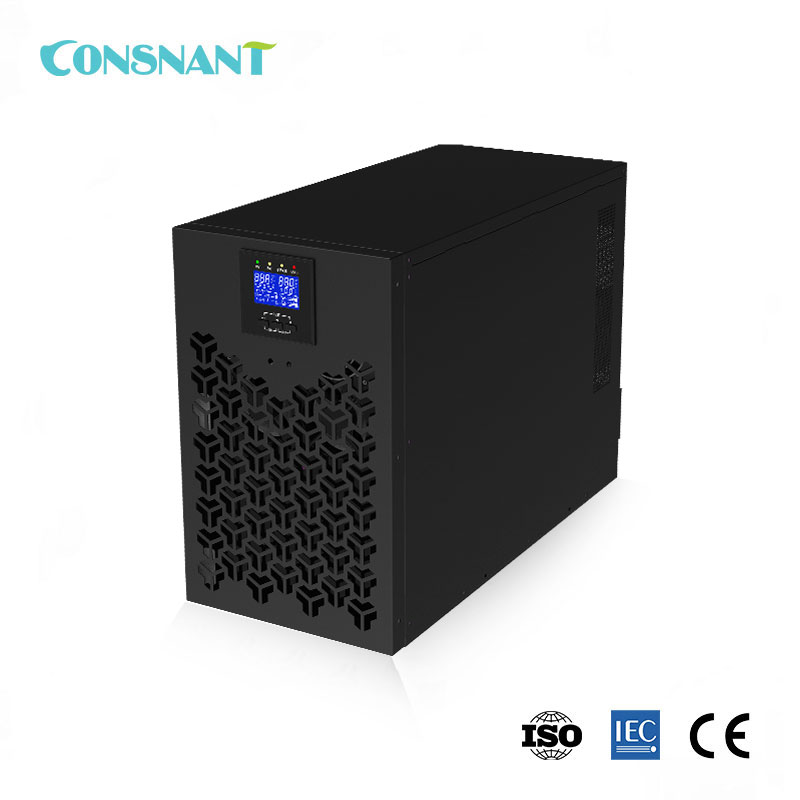

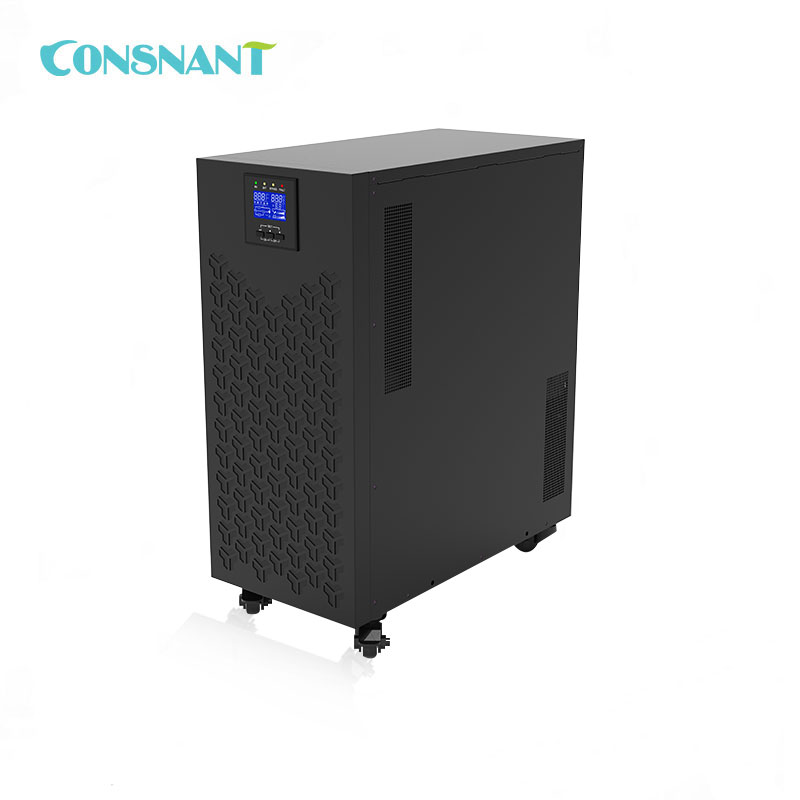

Tower High Frequency Online UPS 6 - 10KVA

Tower High Frequency Online UPS 6 - 10KVA

Model Number: CNH110 6 - 10KVA
Nominal Capacity: 6 – 10KVA
Nominal Voltage: 220VAC
Maximum Input Voltage Range: 90 – 300VAC
Nominal Frequency: 50/60HZ



Application field:

  • Office
  • ATM Machine
  • Bank
  • Servers
  • Item No :

    CNH110 6 - 10KVA
  • Order(MOQ) :

    10 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Shenzhen
  • Lead Time :

    3 weeks
  • Weight :

    14.8-54.2 Kg

Tower High Frequency Online UPS 6-10KVA

Description

6-10KVA Tower High Frequency Online UPS Datasheet:


Feature:

1. Zero Transfer time

True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.

2. DSP Digital Control Based

Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply.

3. Ultra Wide Input Mains range

Strong compatible with ultra with electric environment, stay well with ultra wide range mains of  90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life.

4. Best Loading Capability

Up to 0.9 (1.0 optional) Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application.

5. Genset Compatible

Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.

6. High Input power factor

Thanks to digital controlled  PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer.

7. Reliable design

Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.

8. Open to customization

Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system.



Technical Parameters:

Model CNH110-6K CNH110-6KS CNH110-10K CNH110-10KS
Capacity VA/W 6kVA/5.4kW(Optional 6KW) 10kVA/9kW(Optional 10KW)
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output
Mains Input Wiring L/N+PE
Rated Voltage 208/220/230/240Vac
Voltage Range 90~300VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring L/N+PE
Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60±4Hz(Sync   Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave
Distortion <2%(Linear Load)
(THDV%) <7%(None-Linear Load)
Over load capability 10Min@105%~125%Rated Load
60Sec.@125%~150%Rated Load
0.5Sec.@>150%Rated Load
Efficiency AC/AC Mode >93%
DC/AC Mode >91%
Battery&Charge Rated Battery Voltage 144/192VDC
Internal/
192/240VDC
External
192VDC
Internal
192/240VDC
External
Battery Capacity 12V/7AHx12Pcs/
12V/7AHx16Pcs
External Battery Depends 12V/7AHx16Pcs/
12V/9AHx16Pcs
External Battery Depends
Backup Time >6mins @ Half Load >6mins @ Half Load
Charging Current Standard Model   with Internal Battery:1A
Long Backup Time Model :4A
Physical Chassis Style Tower
Tower Dimension C6KS, C10kS: 190(W)X340(H)x534(D)mm
C6K-12BAT:190(W)X360(H)x534(D)mm C6K-16BAT, C10K: 190(W)X456(H)x534(D)
Weight (kg) C6K-12BAT:   37kg
C6K-16BAT: 46.5kg
14.8kg C10K-7AHx16: 47.8kg
C10K-9AHx16: 54.2kg
16kg
HMI LCD DISPLAY Input Mains   Voltage, Frequency, Load level, Operation Mode, Health Status
Standards Communication Interface 1. RS232 PORT
Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart   Phone APP, Web page, PC Monitor   Software , Support Server / NAS shutdown
3. MODBUS Card,
4. USB Card
5. Relay Card (Needs assembly according to order request before shipping

Operating Environment

Endurance

Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <55dB @ 1 meters

Note:

① Battery Capacity and voltage is open to customization

② Dimension might vary for different bezel

③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order

④ More parameter customization,please contact sales representative

leave a message
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Submit
RELATED PRODUCTS

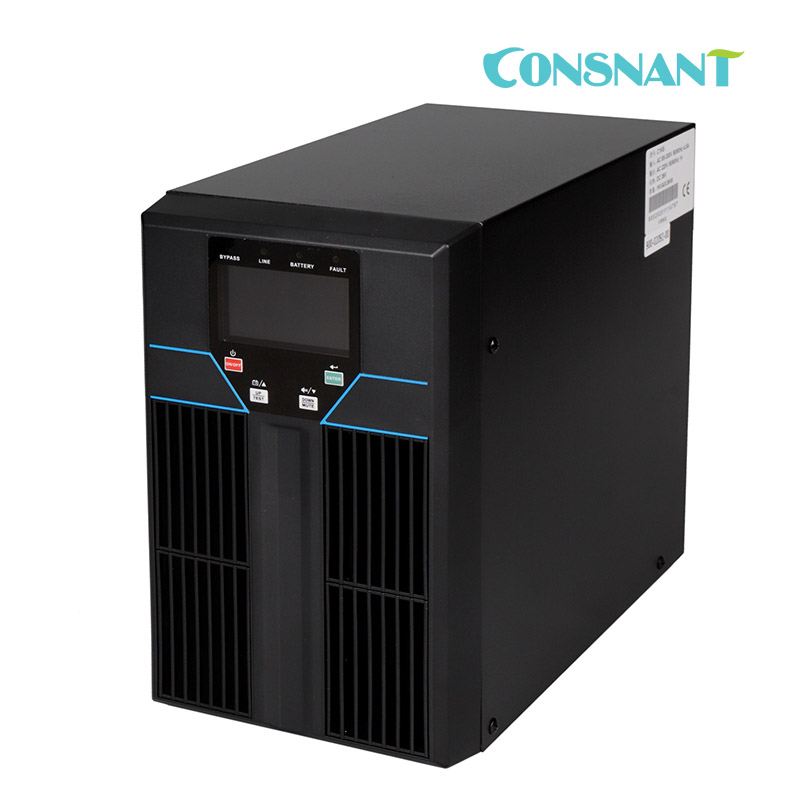

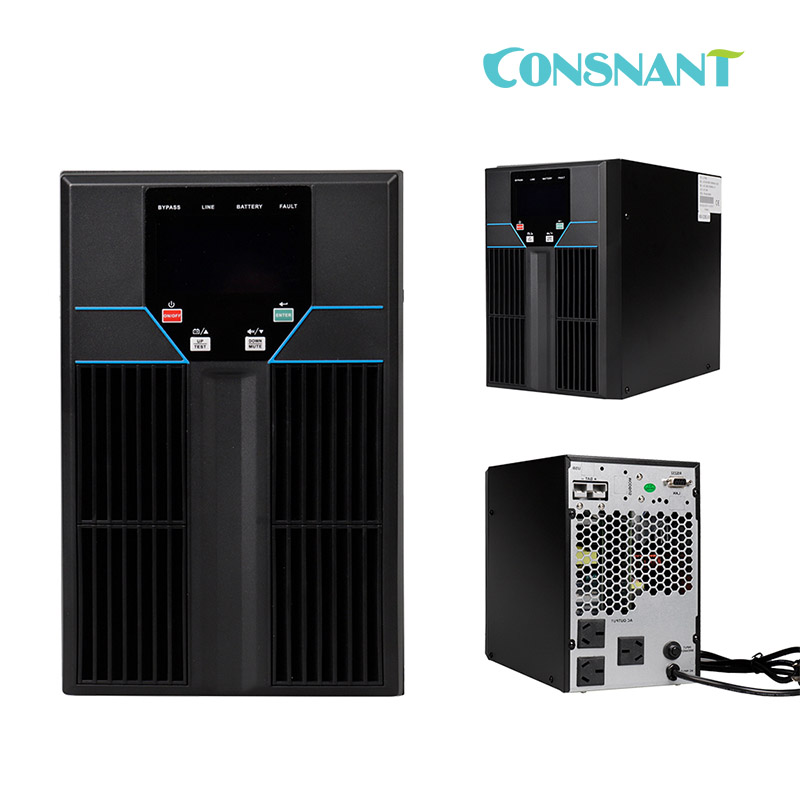

Tower High Frequency Online UPS 1-3KVA
Tower High Frequency Online UPS 1-3KVA Model Number: CNH110 1-3KVANominal Capacity: 1 – 3KVANominal Voltage: 220VACMaximum Input Voltage Range: 90 – 300VACNominal Frequency: 50/60HZ   Application field: Office ATM Machine Bank Servers
Tower High Frequency Online UPS 6 - 10KVA
Tower High Frequency Online UPS 6 - 10KVA Model Number: CNH110 6 - 10KVANominal Capacity: 6 – 10KVANominal Voltage: 220VACMaximum Input Voltage Range: 90 – 300VACNominal Frequency: 50/60HZ   Application field: Office ATM Machine Bank Servers

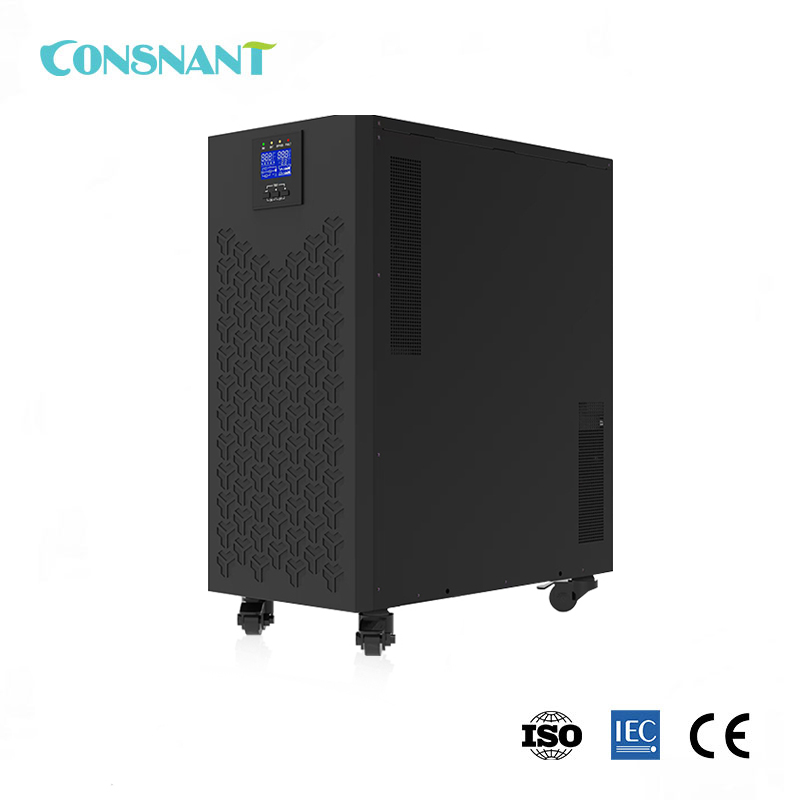

Tower High Frequency Online UPS 10 - 20KVA
