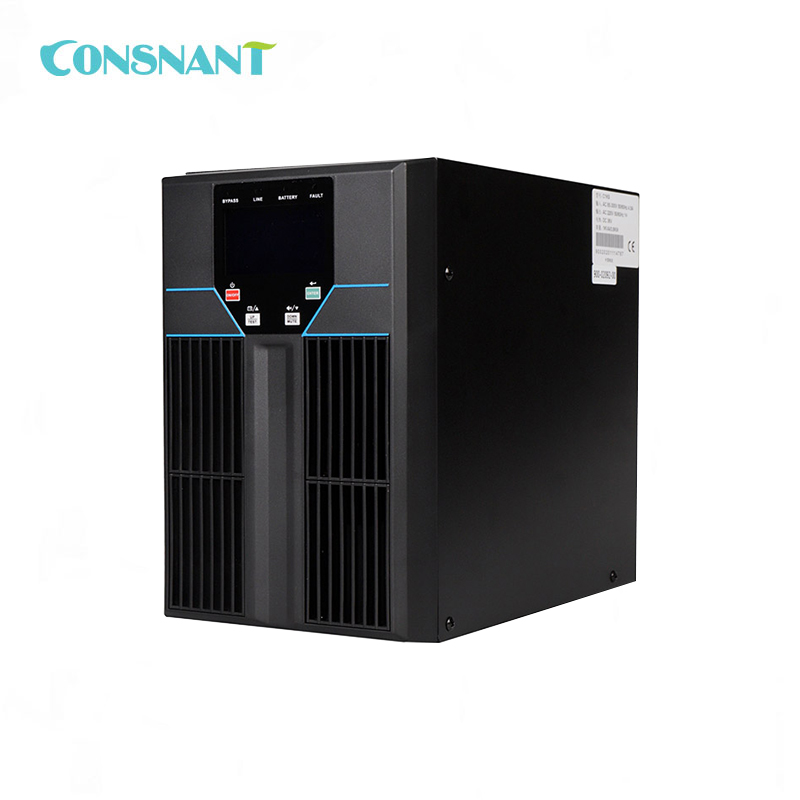

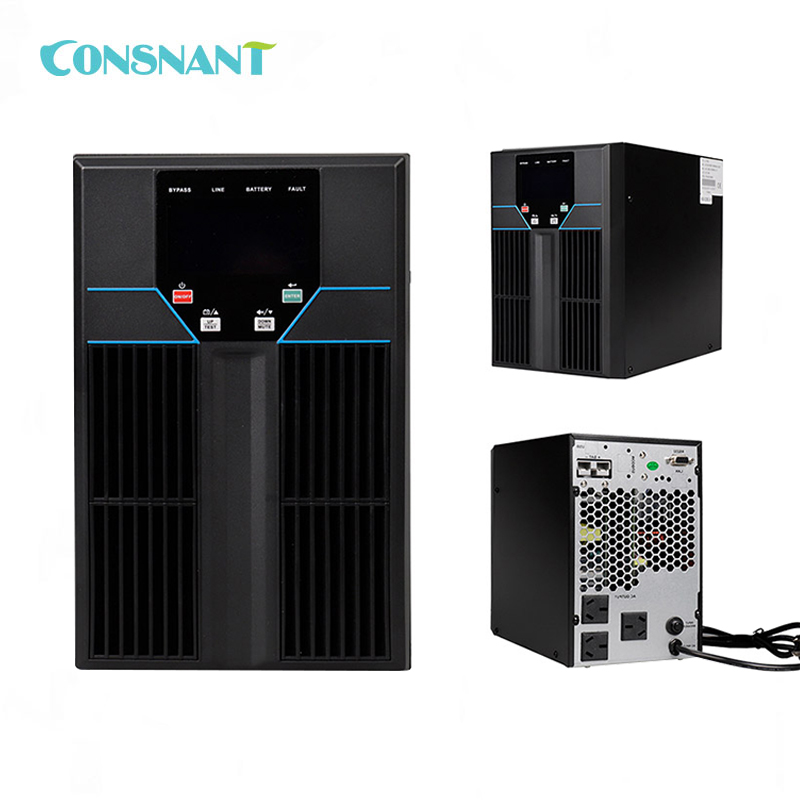

Tower High Frequency Online UPS 1-3KVA

Tower High Frequency Online UPS 1-3KVA

Model Number: CNH110 1-3KVA
Nominal Capacity: 1 – 3KVA
Nominal Voltage: 220VAC
Maximum Input Voltage Range: 90 – 300VAC
Nominal Frequency: 50/60HZ



Application field:

  • Office
  • ATM Machine
  • Bank
  • Servers
  • Item No :

    CNH110 1-3KVA
  • Order(MOQ) :

    20 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Shenzhen
  • Lead Time :

    3 weeks
  • Weight :

    4.2-21.6 Kg

Tower High Frequency Online UPS 1-3KVA

Description

1-3KVA Tower High Frequency Online UPS Datasheet:


Feature:

1. Zero Transfer time

True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.

2. DSP Digital Control Based

Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply.

3. Ultra Wide Input Mains range

Strong compatible with ultra with electric environment, stay well with ultra wide range mains of  90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life.

4. Best Loading Capability

Up to 0.9 (1.0 optional) Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application.

5. Genset Compatible

Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.

6. High Input power factor

Thanks to digital controlled  PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer.

7. Reliable design

Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.

8. Open to customization

Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system.



Technical Parameters:

Model CNH110-1K CNH110-1KS CNH110-2K CNH110-2KS CNH110-3K CNH110-3KS
Capacity VA/W 1kVA/900W(Optional 1KW)
2kVA/1.8kW(Optional 2KW) 3kVA/2.7kW(Optional 1KW)
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output
Mains Input Wiring L/N+PE
Rated Voltage 208/220/230/240VAC
Voltage Range 90~300VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring L/N+PE
Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60±4Hz(Sync   Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave
Distortion
(THDV%)
<2%(Linear Load)
<7%(None-Linear Load)
Over load capability 1Min@105%~125%Rated   Load
30Sec.@125%~150%Rated Load
0.5Sec.@>150%Rated Load
Efficiency AC/AC Mode 88% 89% 90%
DC/AC Mode 86% 87% 88%
Battery&Charge Rated Battery Voltage ① 24VDC Internal 36VDC External 48VDC External 72VDC External 72VDC External 96VDC
Battery Capacity 12V/7AHx2pcs External Battery Depends 12V/7AHx4pcs External Battery Depends 12V/7AHx6pcs External Battery Depends
Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load
Charging Current Standard Model   with Internal Battery:1A
Long Backup Time Model :4A
Physical Chassis Style Tower
Tower Dimension 1KS:   145(W)X220(H)x250(D)mm
1K, 2KS: 145(W)X220(H)x318(D)mm
2K:145(W)X220(H)x390(D)mm
3K/3KS: 190(W) x 318(H) x 368(D)mm
Weight (kg) 8.9 4.2 14 5.9 21.6 8.3
HMI LCD DISPLAY Input   Mains Voltage, Frequency, Load level, Operation Mode, Health Status

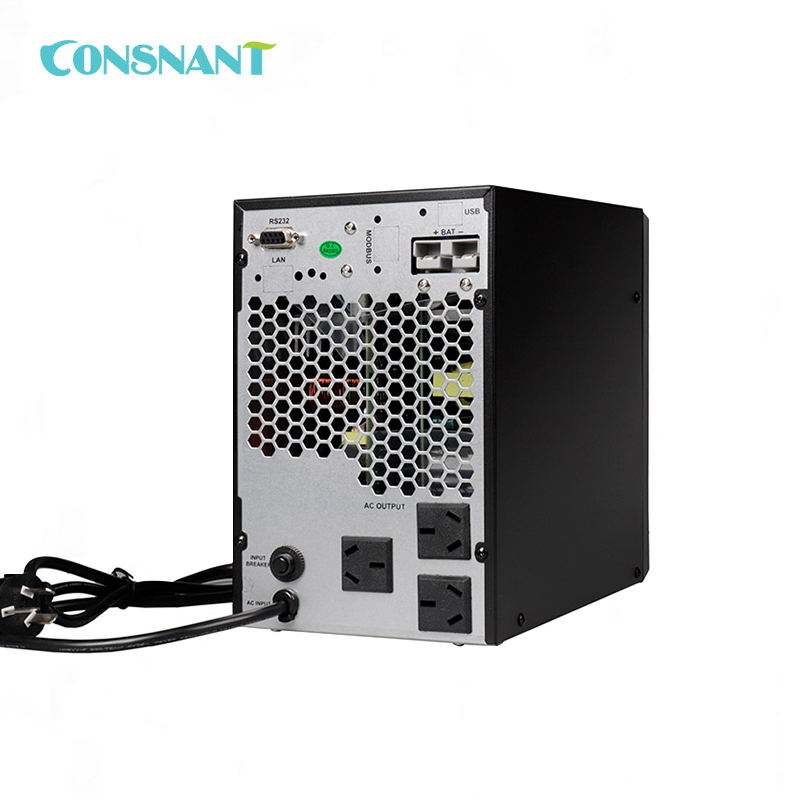

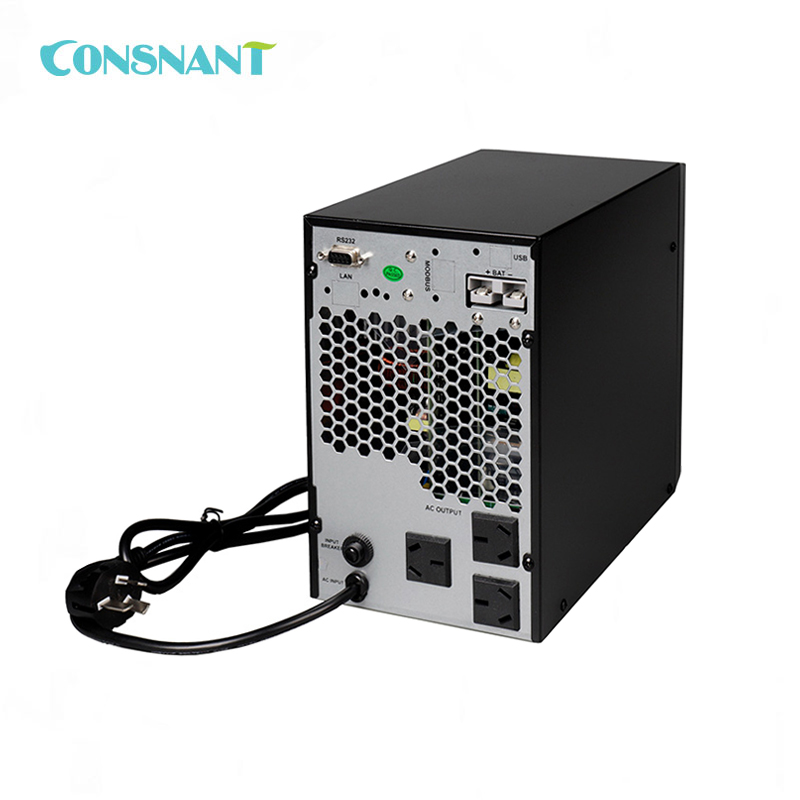

Standards Communication Interface 1.    RS232 PORT
Optional Extension Card 2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
3. MODBUS Card,
4. USB Card
5. Relay Card (Needs assembly according to order request before shipping

Operating

Environment

Endurance

Temperature range -10~50oC
Relative   Humidity 0-98%(Non-condensing)
Acoustics Noise <55dB @ 1 meters

 Note:

① Battery Capacity and voltage is open to customization

② Dimension might vary for different bezel

③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order

④ More parameter customization,please contact sales representative
