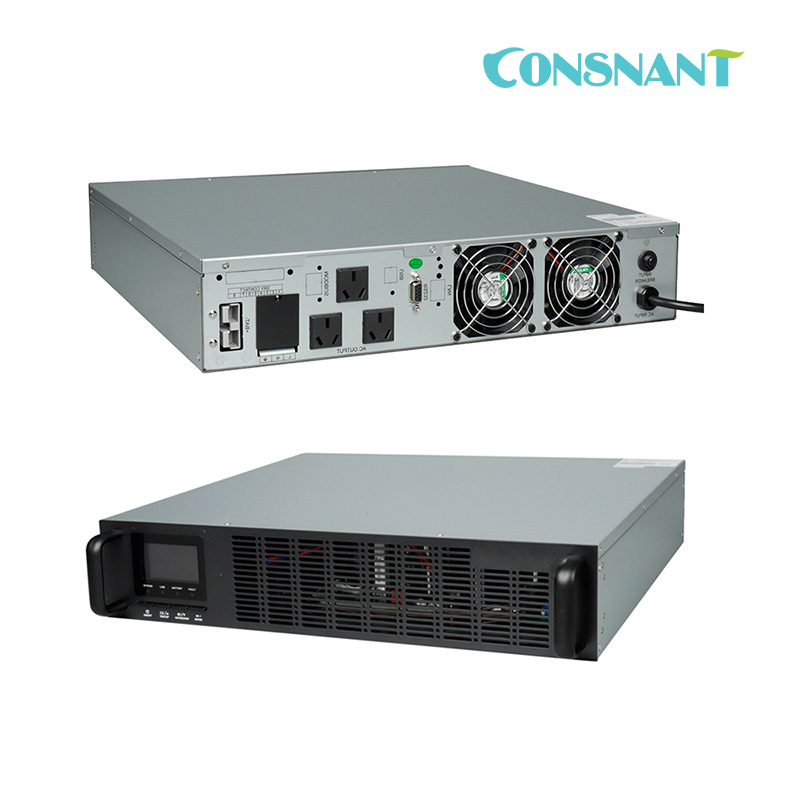

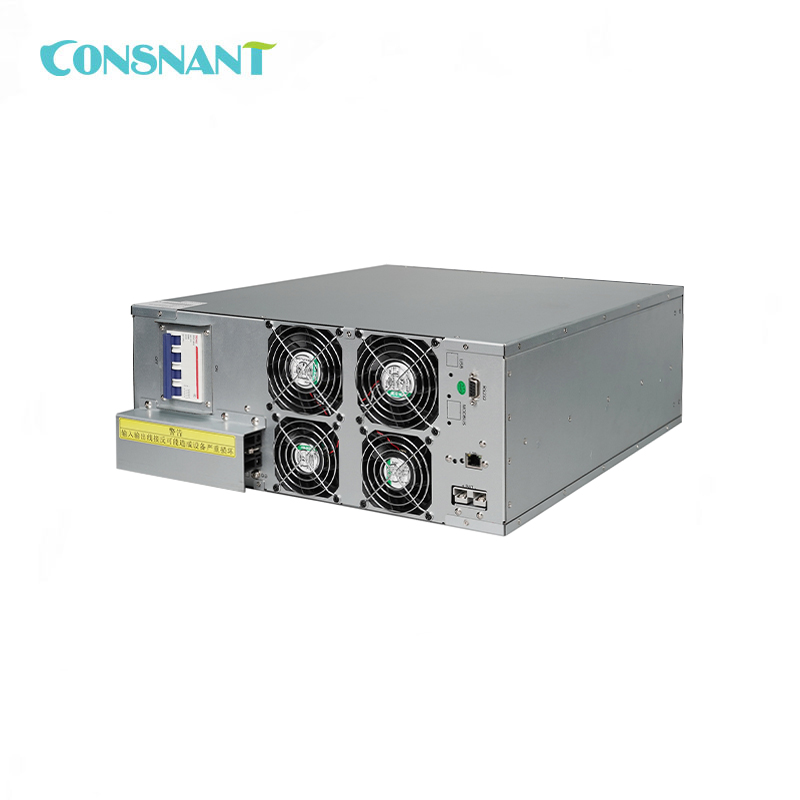

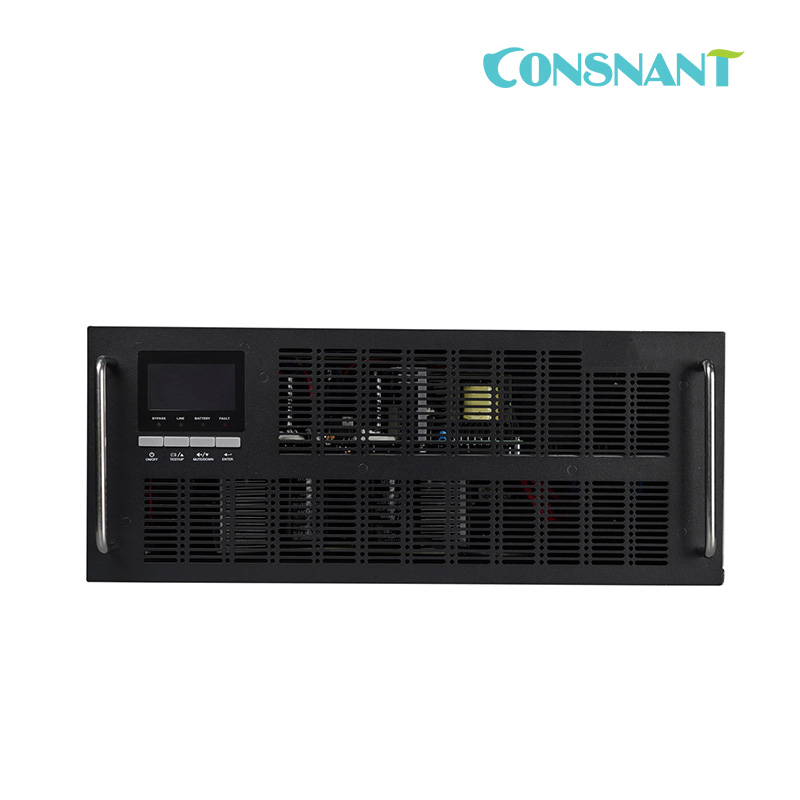

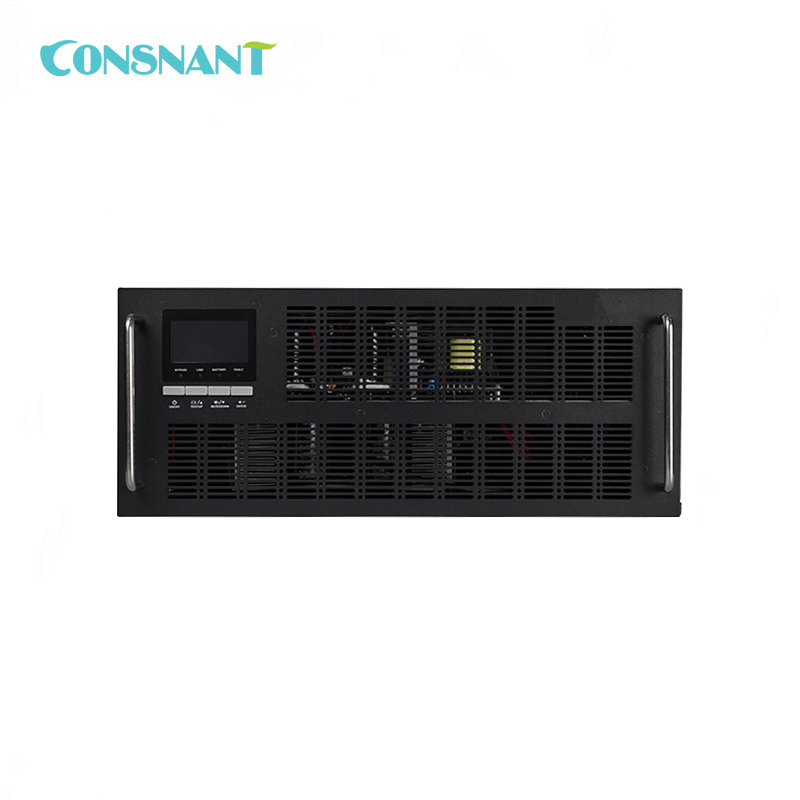

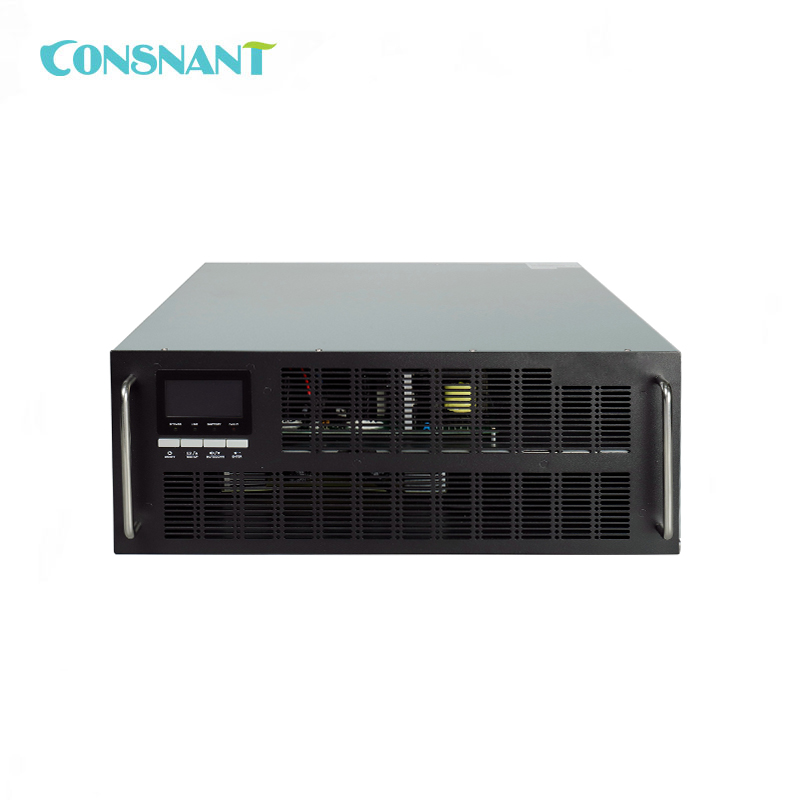

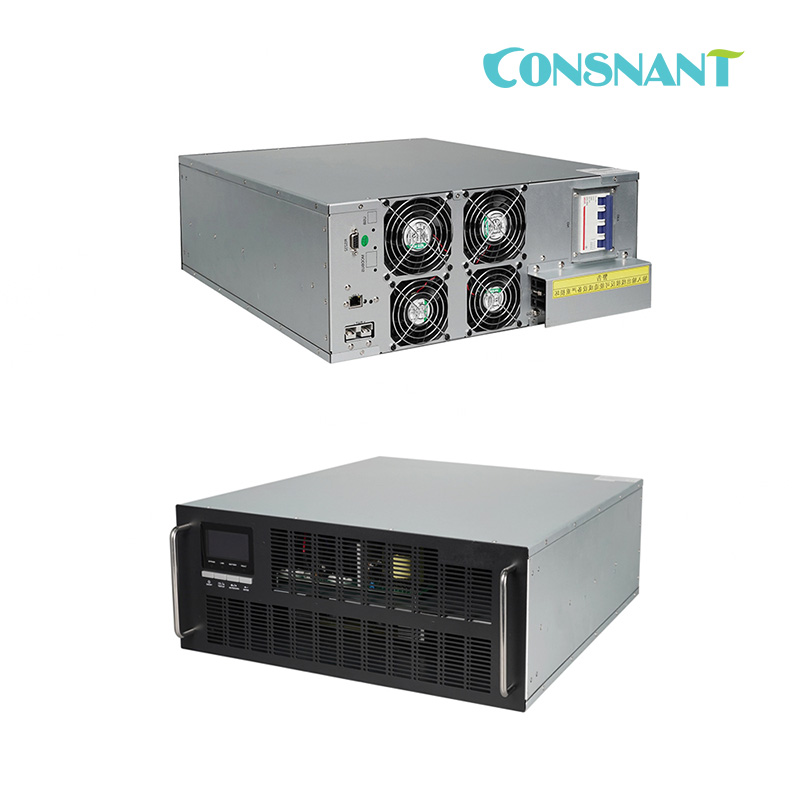

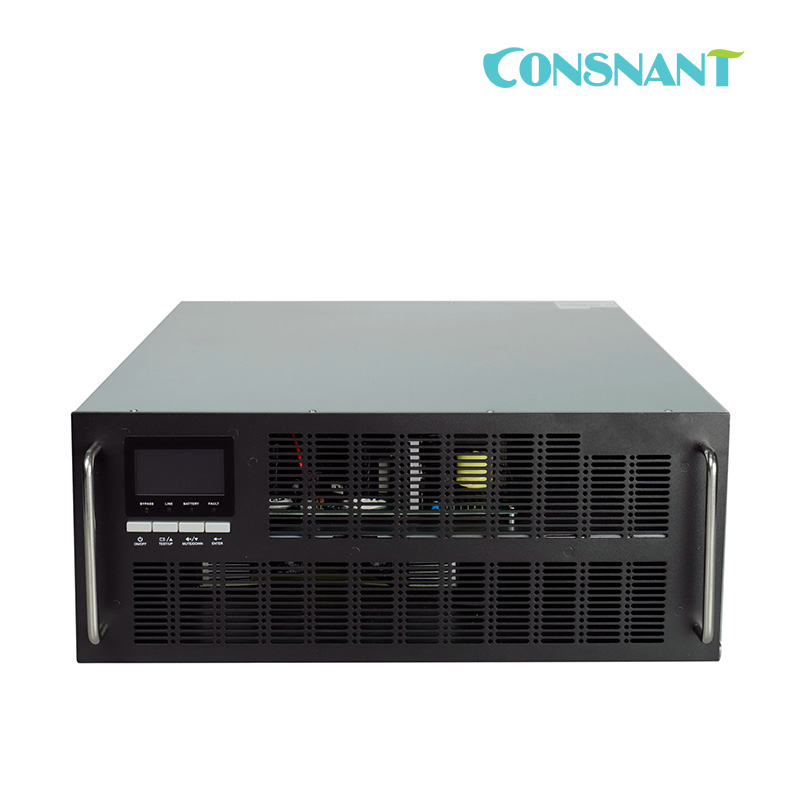

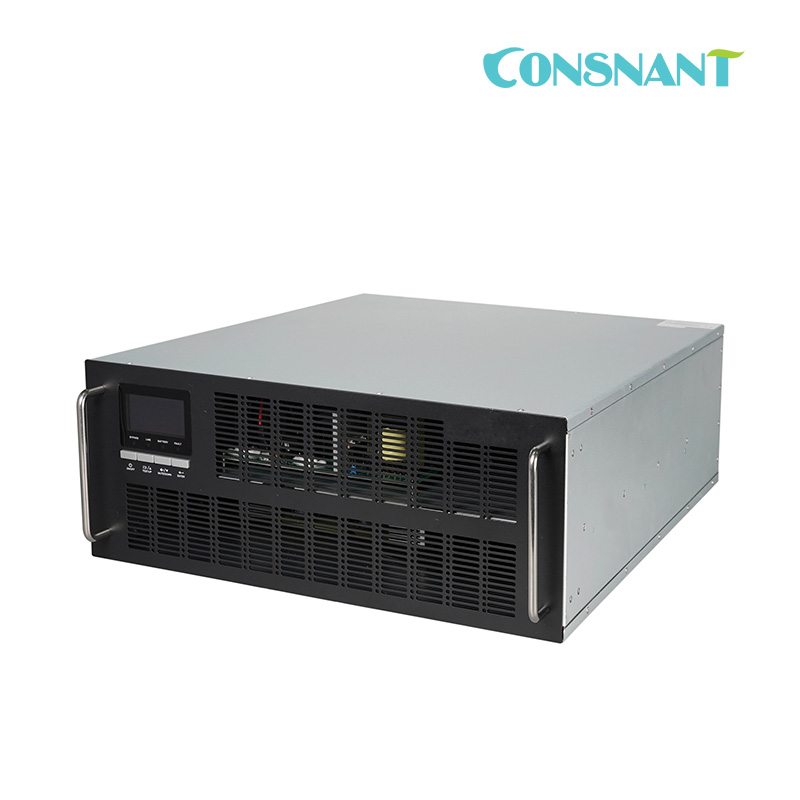

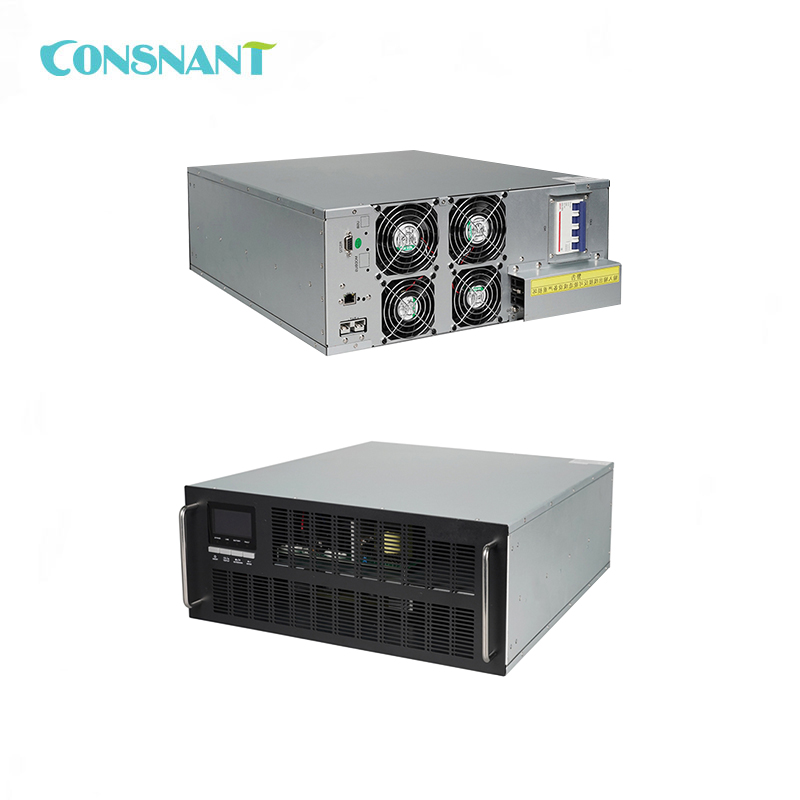

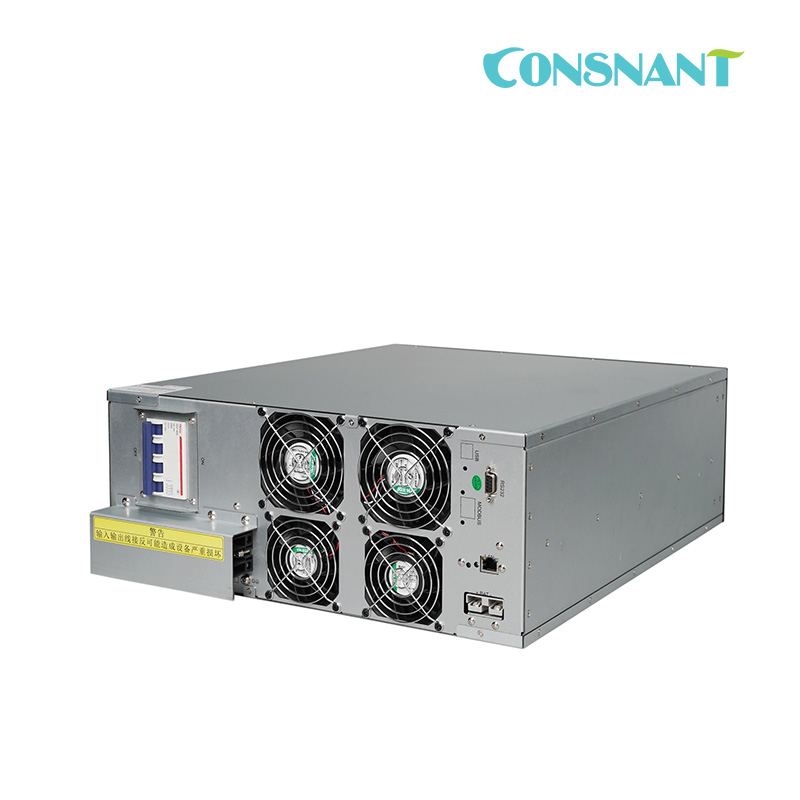

Rack Mount High Frequency Online UPS 10 - 20KVA

Rack Mount High Frequency Online UPS 10 - 20KVA

Model Number: CNH110 10 - 20KVA

Nominal Capacity: 10– 20KVA

Nominal Voltage: 220VAC

Maximum Input Voltage Range: 90 – 300VAC

Nominal Frequency: 50/60HZ



Application field:

  • Data Center
  • Telecom
  • Local Area Networks
  • Servers
  • Item No :

    CNH110 10 - 20KVA
  • Order(MOQ) :

    1 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Shenzhen
  • Lead Time :

    3 weeks
  • Weight :

    11.5-21.9 Kg

Rack Mount High Frequency Online UPS 10 - 20KVA

Description

10 - 20KVA Rack-Mounted High Frequency Online UPS Datasheet:


Feature:

1. Zero Transfer time

True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.

2. DSP Digital Control Based

Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with perfect sine wave AC power supply.

3. Ultra Wide Input Mains range

Strong compatible with ultra with electric environment, stay well with ultra wide range mains of  90V~300V, 40~70Hz ,dramatically reduce battery discharge , prolong battery life

4. Best Loading Capability

Up to 0.9 (1.0 optional) Output Power Factor, 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application.

5. Genset Compatible

Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.

6. High Input power factor

Thanks to digital controlled  PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer.

7. Reliable design

Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.

8. Open to customization

Based on powerful controller and open architecture, the product is able to be customized to match need of integration of automatic system or intelligent supervisory system.



Technical parameters:

Model CNH110 1KR CNH110 1KRS CNH110 2KR CNH110 2KRS CNH110 3KR CNH110 3KRS
Capacity VA/W 1kVA/900W(Optional 1KW) 2kVA/1.8kW(Optional 2KW) 3kVA/2.7kW(Optional 3KW)
Topology Double Conversion Online UPS
Phase Single Phase Input Single Phase Output
Mains Input Wiring L/N+PE
Rated Voltage 208/220/230/240VAC
Voltage Range  90~300VAC
Frequency Range 40Hz-70Hz
Input Power Factor ≥0.99
AC Output Wiring L/N+PE
Output Voltage 208/220/230/240VAC
Voltage Regulation ±1%
Output Frequency 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run)
Waveform Pure Sine Wave
Distortion
(THDV%)
<2%(Linear Load)
<7%(None-Linear Load)
Over load
 capability
1Min@105%~125%Rated Load
30Sec.@125%~150%Rated Load
0.5Sec.@>150%Rated Load
Efficiency AC/AC Mode 88% 89% 90%
DC/AC Mode 86% 87% 88%
Battery
&
Charge
Rated Battery Voltage ① 24VDC 36VDC
External
48VDC
Internal
72VDC
External
48VDC
Internal
96VDC
External
Internal
Battery Capacity 12V/7AH External Battery Depends  12V/7AH
x4pcs
External Battery Depends  12V/9AH
x4pcs
External Battery Depends
X2pcs
Backup Time >6mins @ Half Load >6mins @ Half Load >6mins @ Half Load
Charging Current Standard Model with Internal Battery:1A
Long Backup Time Model :4A
Physical Chassis Style Rack-Mounted
Rack  Dimension 1KR/1KSR/2KR/2KSR/3KSR:  438mm(W) x 88mm(2U)(H) x 360mm(D)
3KR:  438mm(W) x 88mm(2U)(H) x 500mm(D)  Include Internal Battery
Weight (kg) 13 8.5 18.5 11.5 21.9 12
HMI LCD DISPLAY Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
Standards
Communication Interface
1.  RS232 PORT
Optional Extension Card 2. NMC Card:  Support remote monitor the UPS via Smart Phone APP, Web page,  PC Monitor Software , Support Server / NAS shutdown
3. MODBUS Card,
4. USB Card
5. Relay Card (Needs assembly according to order request before shipping
Operating Environment
Endurance
Temperature range -10~50oC
Relative Humidity 0-98%(Non-condensing)
Acoustics Noise <55dB @ 1 meters

Note:

① Battery rated voltage is open to customization

② Dimension might vary for different bezel

③ The socket and terminal configuration on the rear panel may be different for countries or regions according to order

④ More parameter customization,please contact sales representative





leave a message
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Submit
RELATED PRODUCTS
Rack Mount High Frequency Online UPS Module 1-3KVA
Rack Mount High Frequency Online UPS Module 1-3KVA   Model Number: CNHR112 1-3KVA Nominal Capacity: 1 – 3KVA Nominal Voltage: 220VAC Maximum Input Voltage Range: 90 – 300VAC Nominal Frequency: 50/60HZ   Application field: Data Center Telecom Local Area Networks Servers
Rack Mount High Frequency Online UPS 10 - 20KVA
Rack Mount High Frequency Online UPS 10 - 20KVA Model Number: CNH110 10 - 20KVA Nominal Capacity: 10– 20KVA Nominal Voltage: 220VAC Maximum Input Voltage Range: 90 – 300VAC Nominal Frequency: 50/60HZ   Application field: Data Center Telecom Local Area Networks Servers

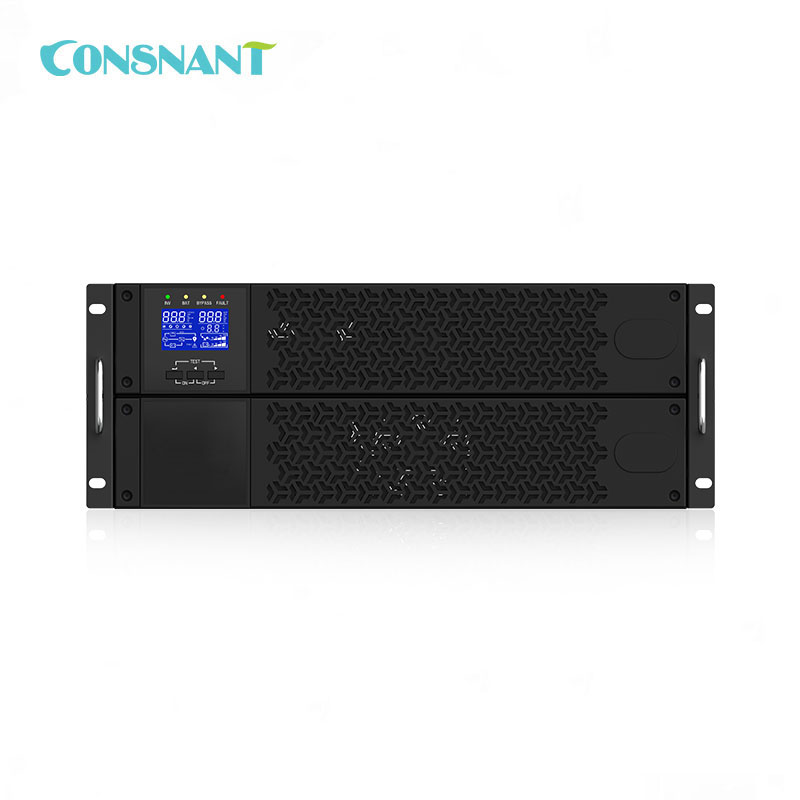

Rack Mount High Frequency Online UPS 1-3KVA
