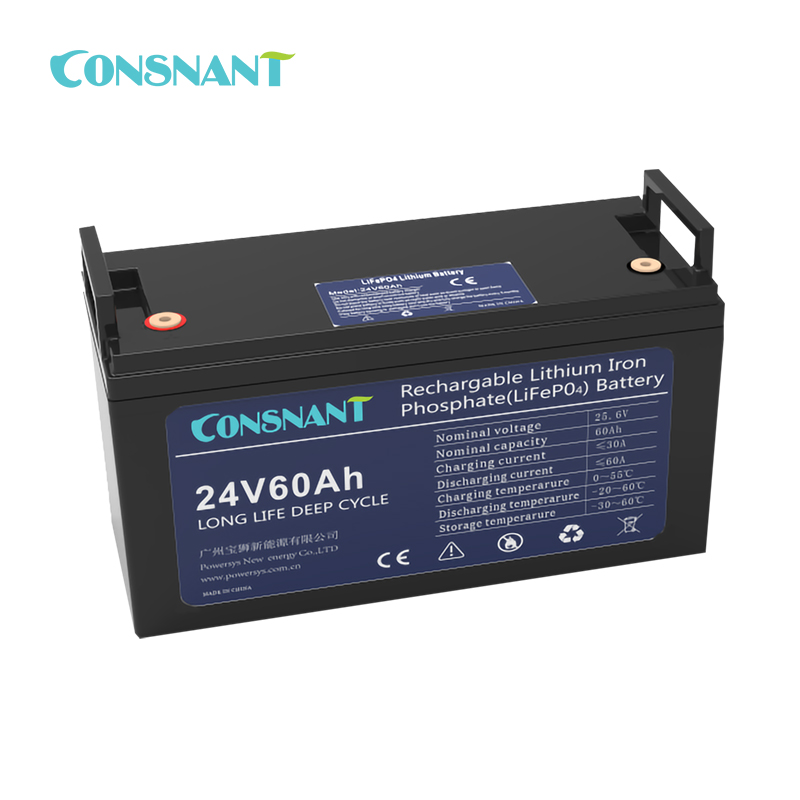

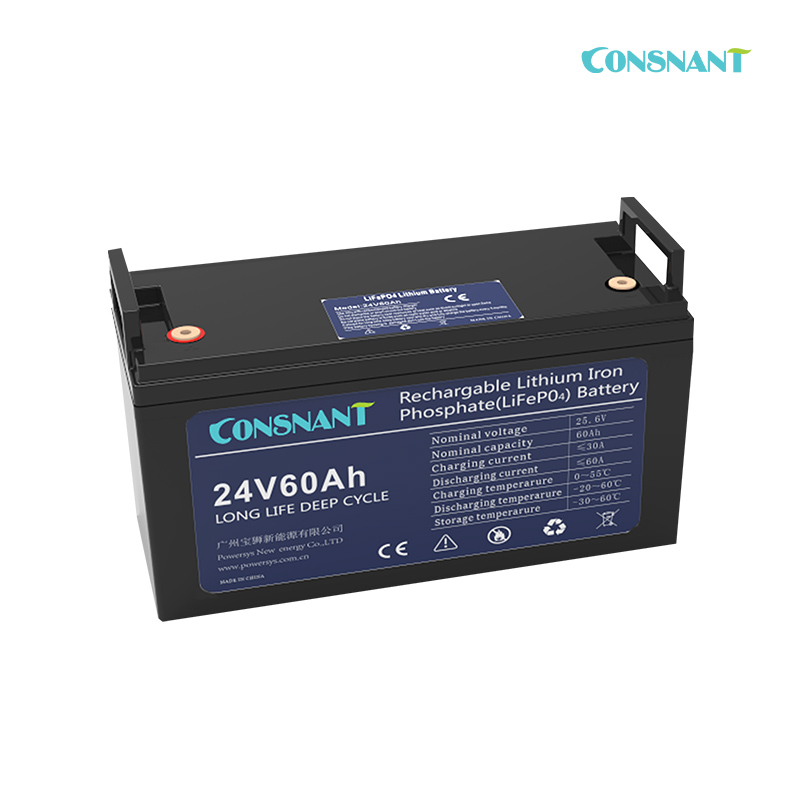

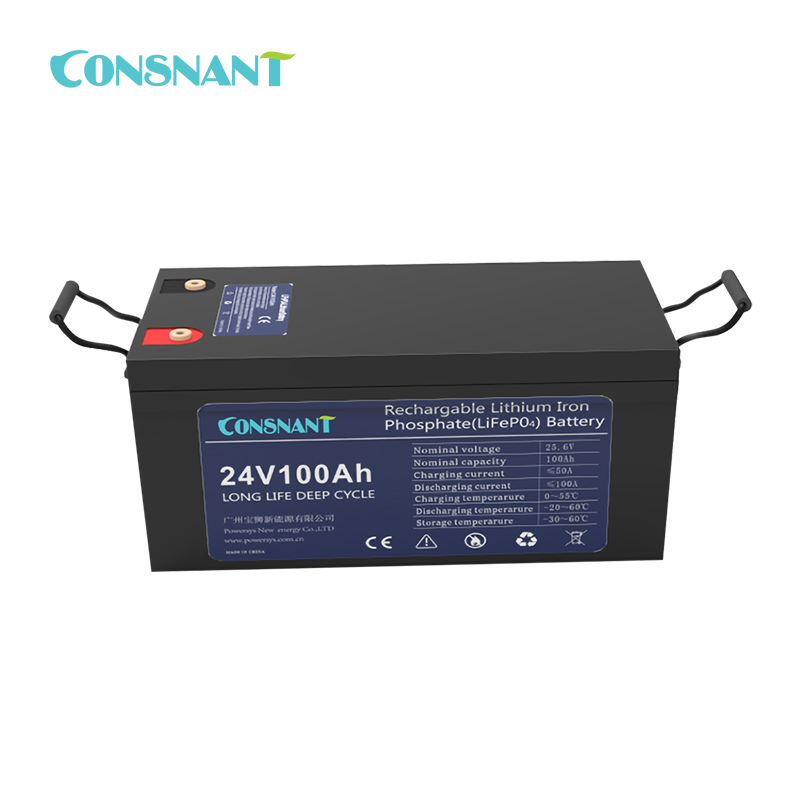

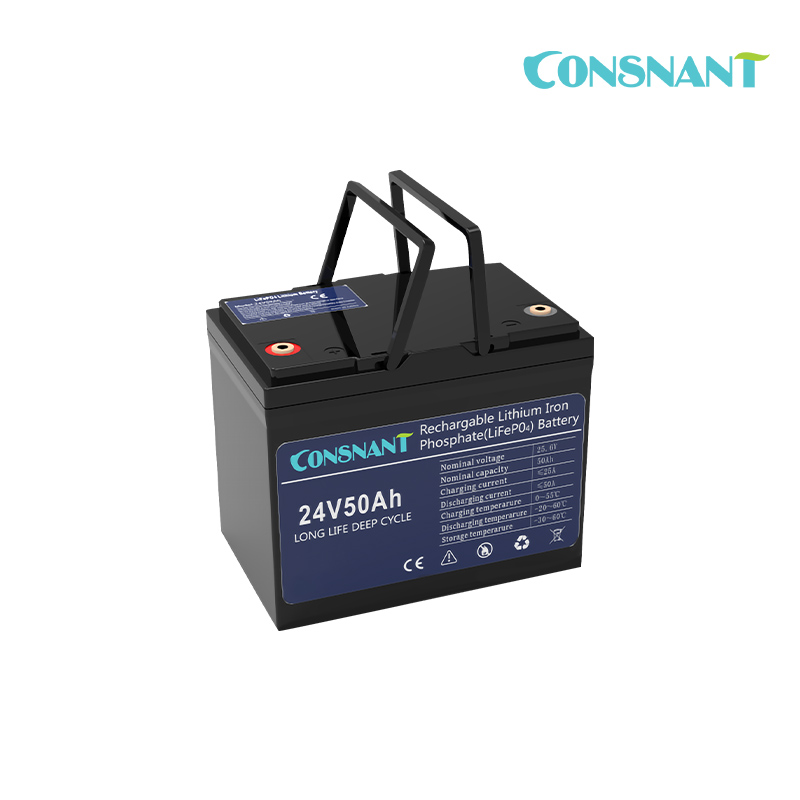

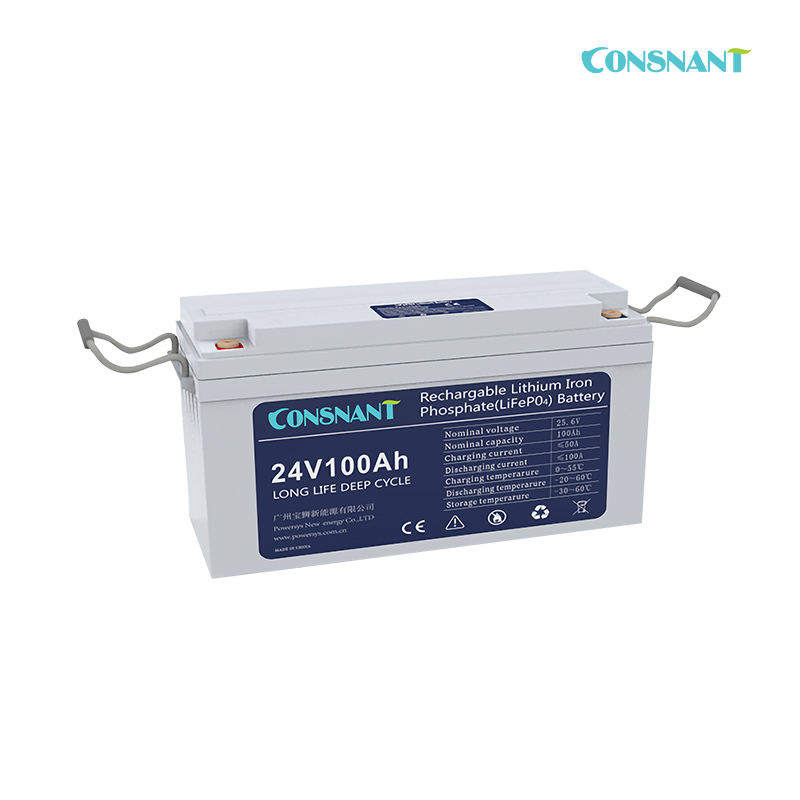

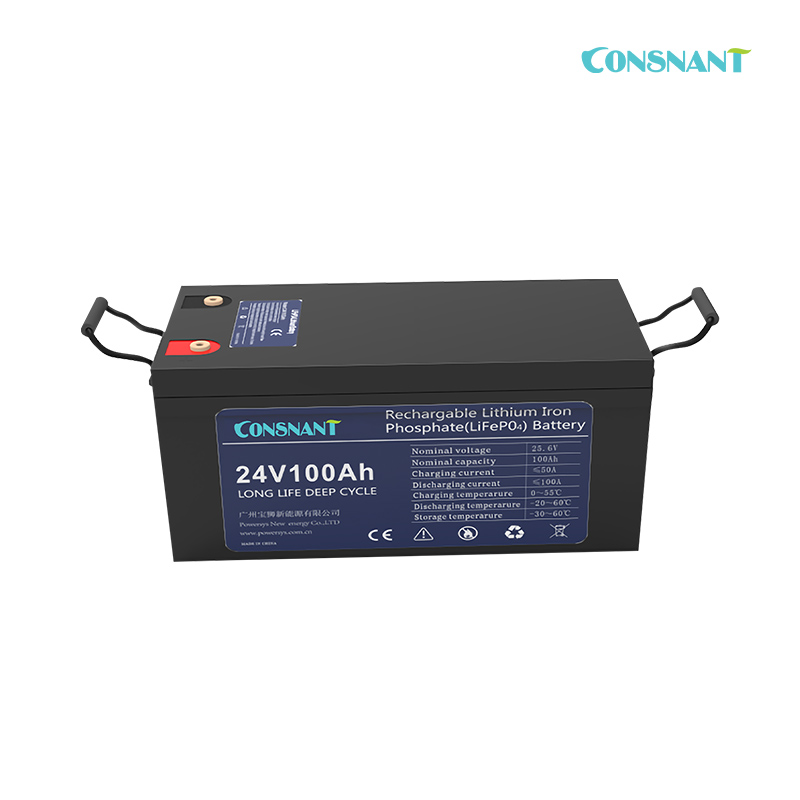

24V Lead Acid Replacement Battery ( LiFePO4 )

24V Lead Acid Replacement Battery ( LiFePO4 )

CNS-LFP24V Series

Rate capacity: 50Ah-150Ah
Rate voltage: 24V
Cyclelife  :>3000 cycles 80% DOD

  • Item No :

    CNS-LFP24V Series
  • Order(MOQ) :

    50 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Shenzhen
  • Lead Time :

    1 week
  • Weight :

    11-23 Kg

24V Lead Acid Replacement Battery ( LiFePO4 )

Description

Technical Parameters:

Model LFP2450 LFP2460 LFP24100-A LFP24100-B
Electrical  Parameter
Rate voltage 25.6V
Rate capacity 50AH 60AH 100AH 100AH
Energy 1280Wh 1536Wh 2560Wh 2560Wh
Cyclelife                                              >3000 cycles 80% DOD
Operating    Parameter
Charge voltage 28.4V
Charge current 25A 30A 50A 50A
Max. charge current 50A 60A 100A 100A
Discharge cut-off voltage 20V
Discharge current 25A 30A 50A 50A
Max. cischarge current 50A 60A 100A 100A
Max. pulse discharge
current(<0.3S)
150A 180A 300A 300A
Discharge temperature -20~60℃
Charge temperature 0~55℃
Storage temperature -10~45℃
Optional   items
Display CD/Bluetooth
Mechanical    Parameter
Terminal M8
Weight 11KG 13.5KG 22KG 23KG
Dimension(LxWxH)mm 260x168x209 406x173x236 483x170x240 522x240×218
Standard
Certification CE
leave a message
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
Submit
categories
RELATED PRODUCTS
Wall Mount LiFePO4 Battery Pack 48V 100AH
Wall Mount LiFePO4 Battery Pack  48V 100AH CNS-LFP48100-WM Nominal Capacity: 100AhNominal Voltage: 48VCycle life:DOD(≥1800 cycles at 85% DOD) Communication mode:SMBuS/RS485/RS232/CAN   Application field: Home energy storage system Communication base station Data center Indoor distribution stations Integrated base stations Marginal stations Distributed power supply
Wall Mount LiFePO4 Battery Pack 48V 200Ah
Wall Mount LiFePO4 Battery Pack 48V 200Ah Nominal Capacity: 200AhWatt Hour: 9600WhNominal Voltage: 48VOperating voltage range: 37.5V~54.75VCommunication mode: RS485   Application field Indoor distribution stations Integrated base stations Marginal stations Distributed power supply
Rack Mount Lithium Battery Pack 51.2V 100AH
Rack Mount Lithium Battery Pack 51.2VDC 100Ah Model: CN-LFP48100Ah Nominal Capacity: 100AH Watt Hours: 5120Wh Nominal Voltage: 51.2VDC Application field: Solar ESS Telecom
48V Telecom Battery ( LiFePO4 )
48V Telecom Battery ( LiFePO4 ) CNS-LFP48V Backup Power Series Rate capacity: 100Ah-200AhRate voltage: 48VCyclelife : >4000 cycles 80% DOD

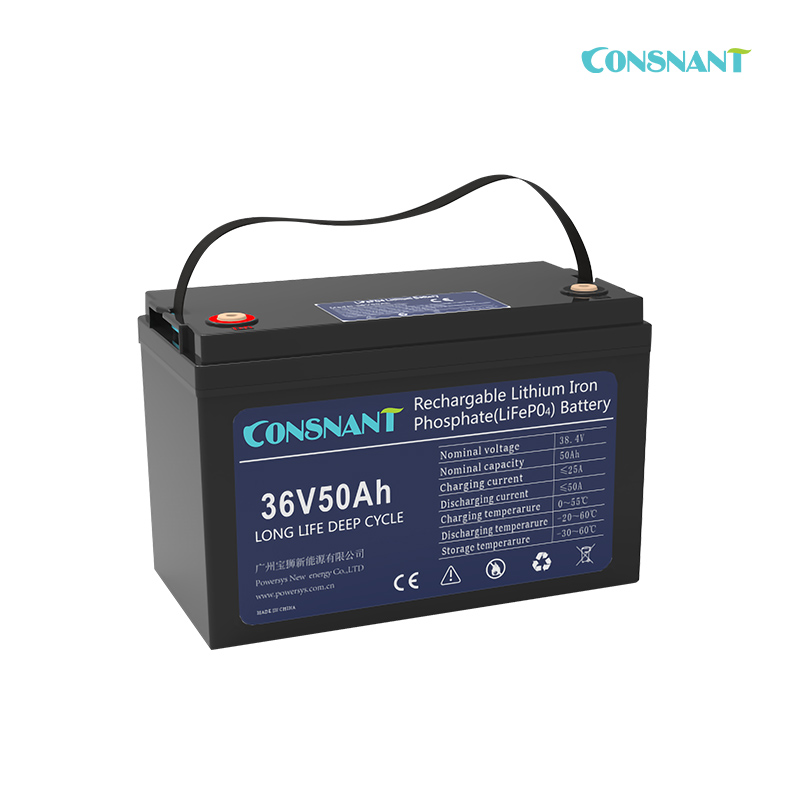

36V Lead Acid Replacement Battery ( LiFePO4 )
36V Lead Acid Replacement Battery ( LiFePO4 ) CNS-LFP36V Series Rate capacity: 50Ah-150AhRate voltage: 36VCyclelife  :>3000 cycles 80% DOD
24V Lead Acid Replacement Battery ( LiFePO4 )
24V Lead Acid Replacement Battery ( LiFePO4 ) CNS-LFP24V Series Rate capacity: 50Ah-150AhRate voltage: 24VCyclelife  :>3000 cycles 80% DOD

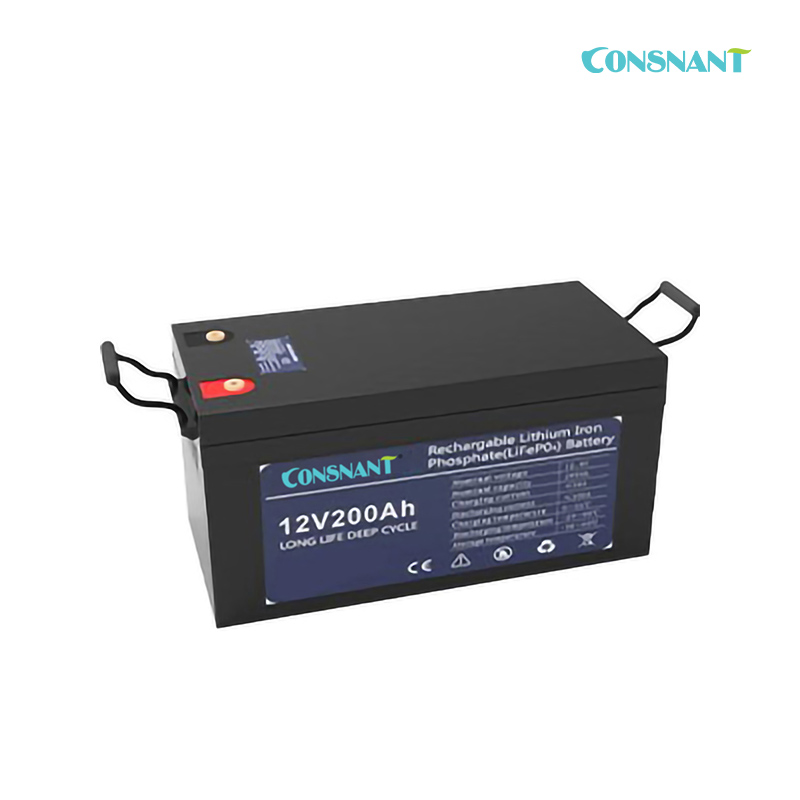

12V Lead Acid Replacement Battery ( LiFePO4 )
