Lithium Ion Battery

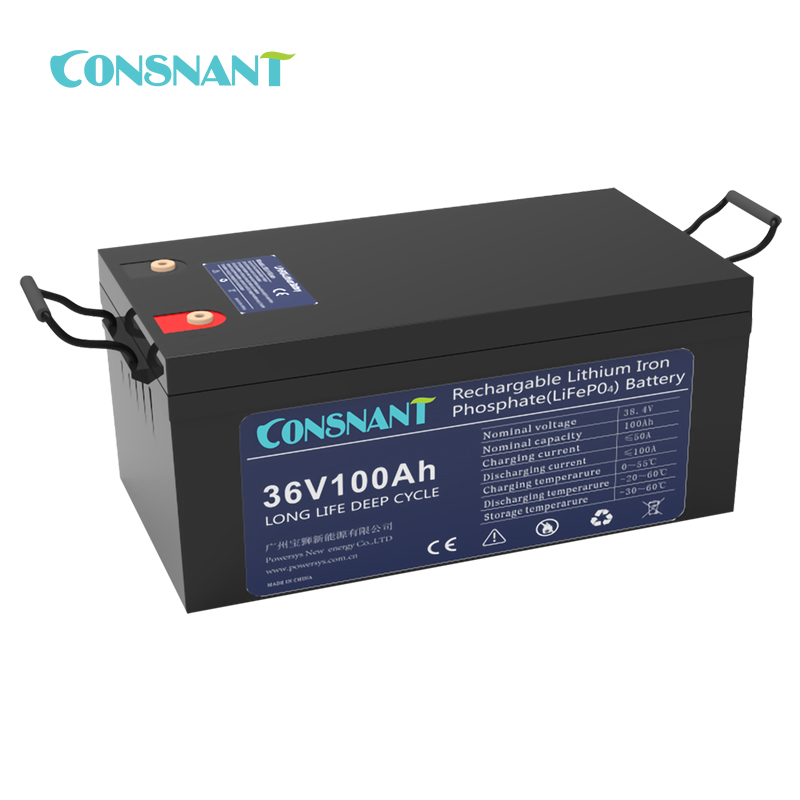

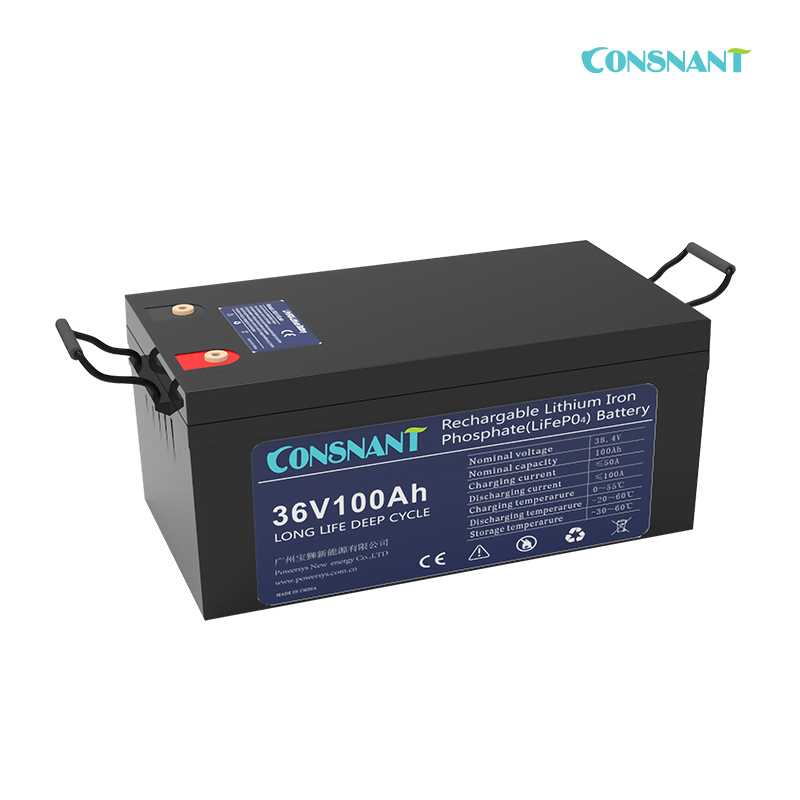

36V Lead Acid Replacement Battery ( LiFePO4 )

36V Lead Acid Replacement Battery ( LiFePO4 )

CNS-LFP36V Series

Rate capacity: 50Ah-150Ah
Rate voltage: 36V
Cyclelife  :>3000 cycles 80% DOD





  • Item No :

    CNS-LFP36V Series
  • Order(MOQ) :

    50 pcs
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Black
  • Shipping Port :

    Shenzhen
  • Lead Time :

    1 week
  • Weight :

    16-33 Kg

36V Lead Acid Replacement Battery ( LiFePO4 )

Description

Technical Parameters:

Model LFP3650 LFP3660 LFP36100
Electrical   Parameter
Rate voltage 38.4V
Rate capacity 50AH 60AH 100AH
Energy 1920Wh 2304Wh 3840Wh
Cycle life                                                >3000 cycles 80% DOD
Operating     Parameter
Charge voltage 42.6V
Charge current 25A 30A 50A
Max. charge current 50A 60A 100A
Discharge cut-off voltage 30V
Discharge current 25A 30A 50A
Max. discharge current 50A 60A 100A
Max, pulse discharge
current(<0.3S)
150A 180A 300A
Discharge temperature -20~55℃
Charge temperature 0~55℃
Storage temperature -10~45℃
Optional   items
Display LCD/Bluetooth
Mechanical     Parameter
Terminal M8
Weight 16KG 20KG 33KG
Dimension(LxWxH)mm 330×173×215 483x170x240 520×269×220
Standard
Certification CE
