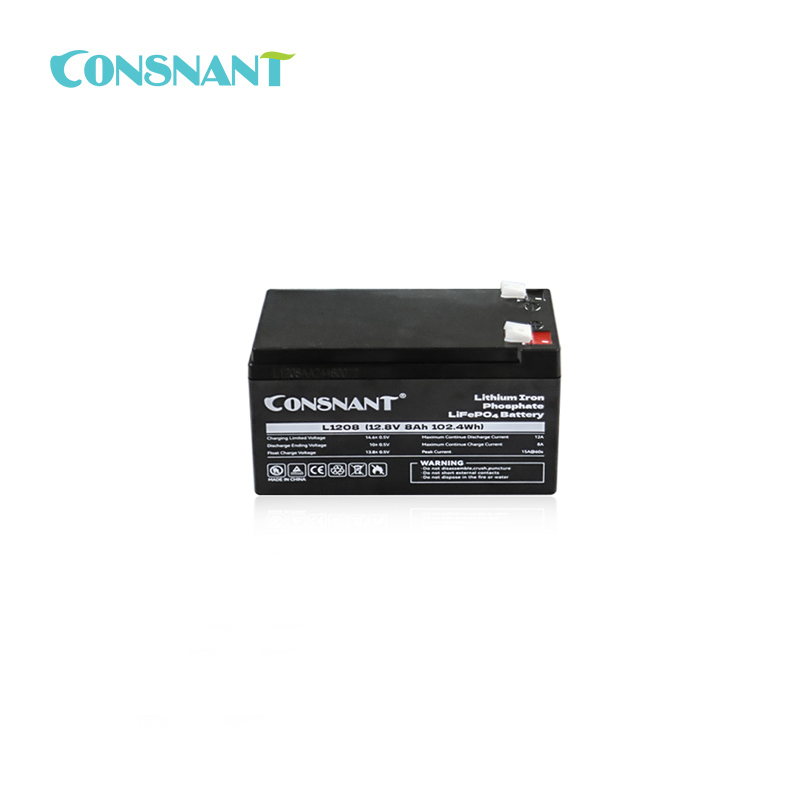

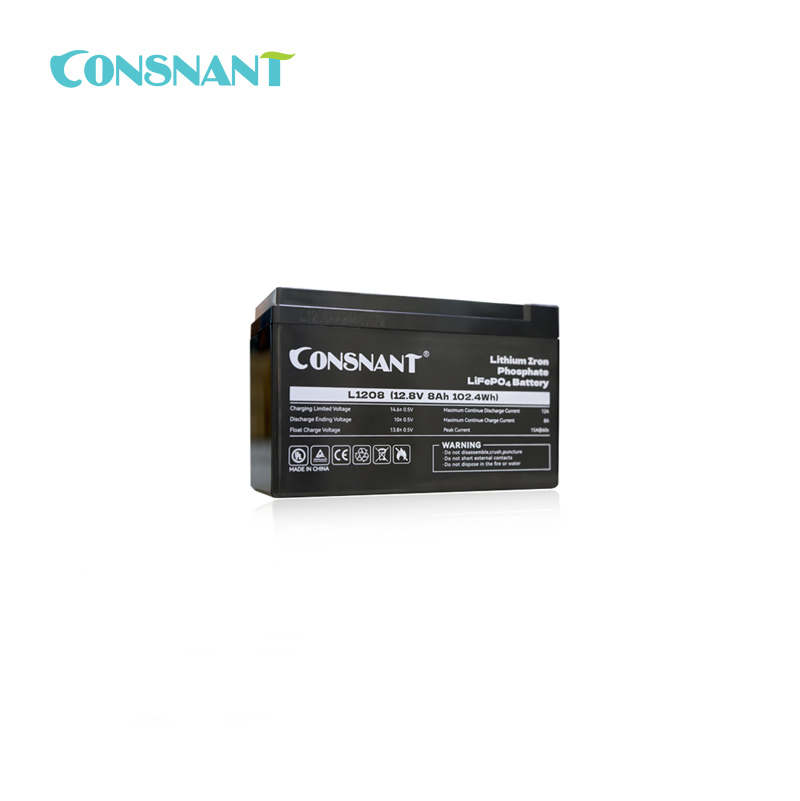

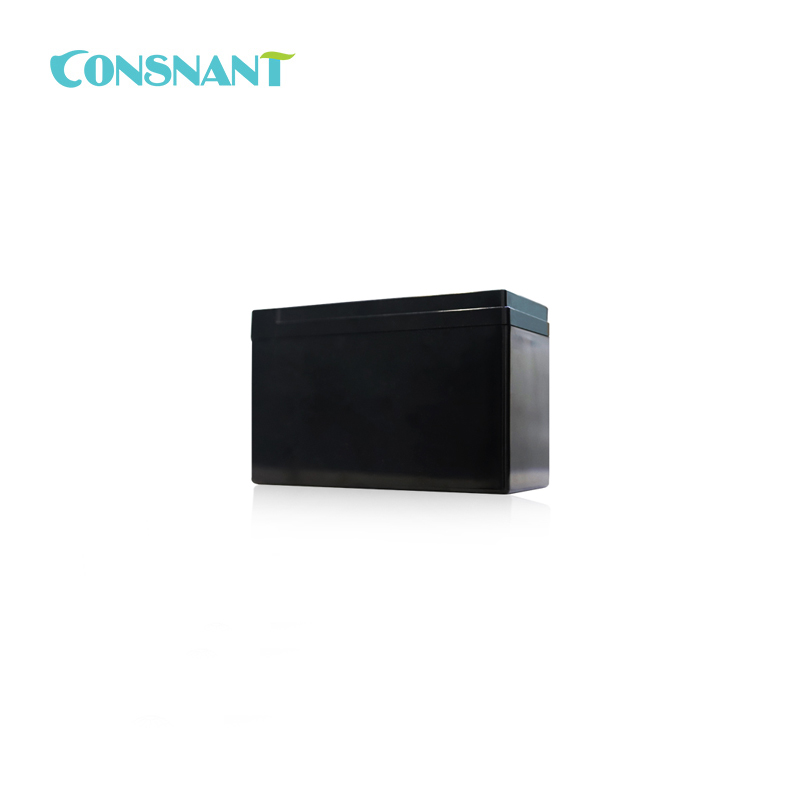

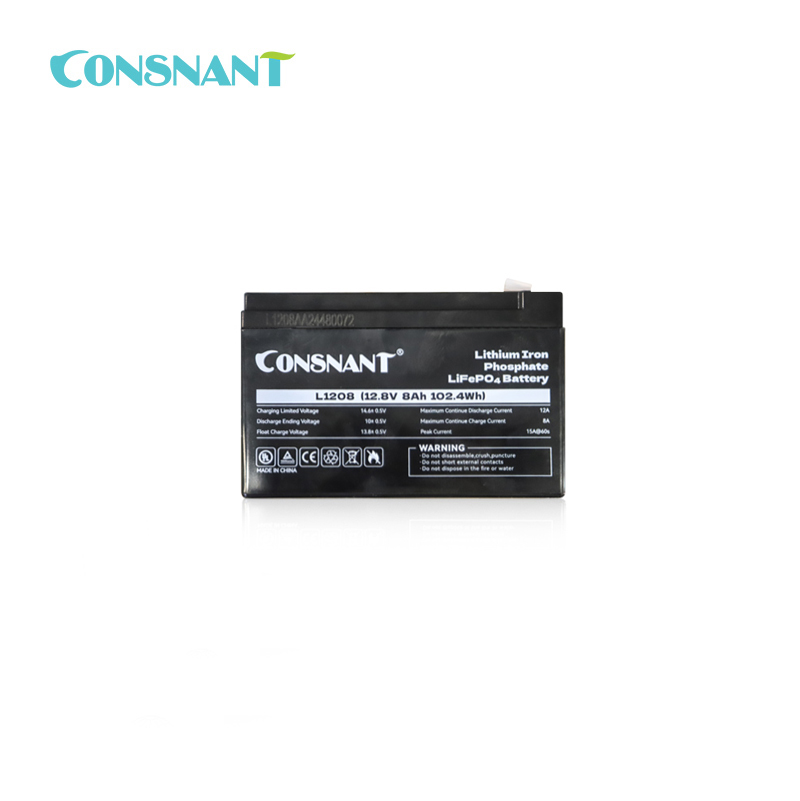

12V Lithium lon Iron Phosphate Battery（LiFePO4）

CNS-L1208

Nominal Voltage: 12.8V

Nominal Capacity: 8Ah

Cycle Life: 6000 @ 0.5C 80% DOD

Applications:

Energy Storage

Solar-Wind Power System / City Grid (On/Off) / Community and Household

Back-up System and UPS

Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment

Other Applications

Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light

RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard

LED Backup / Engine Starting Battery,etc.

Item No :
CNS-L1208
Order(MOQ) :
50 pcs
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Shenzhen
Lead Time :
1 week
Weight :
1.2 Kg

Inquire Now

12V Lithium lon Iron Phosphate Battery（LiFePO4）

Long Cycle Life: Provides up to 20 times longer cycle life and 5 times longer foat/serice life than lead acid, batter help to minimize replacement costs and reduce total cost of ownership.

Smaller Footprint: Better gravimetric/volumetric specifc energy up to 3 times compare with lead acid batter.

More Available Energy: Deliver twice energy of the lead acid batter, when discharged with heavy load.

Superior Safety: Build-in BMS——Eliminates the risk of explosion or combustion due to high impact, overcharging or shor circuit situation with safe lithium iron phosphate chemistry.

Fully compatible: Design to replace VRLA batter, compatible with conventional lead acid powered system.

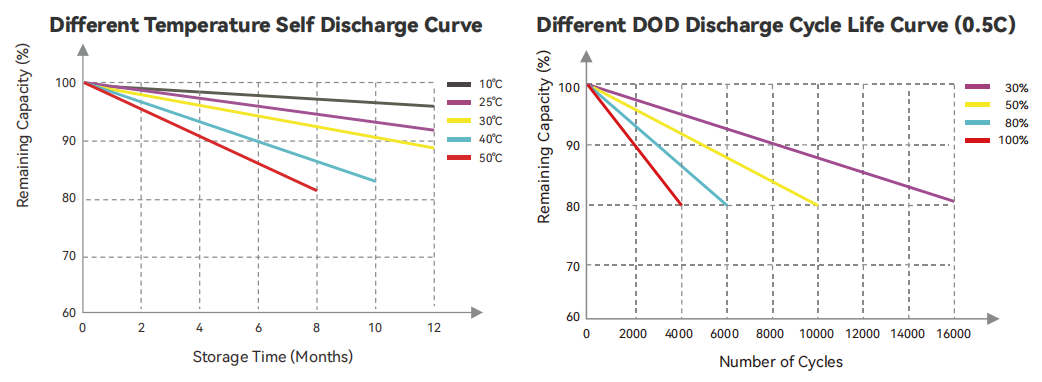

Operating Performance

Notes:

Battery should be kept in a dry and ventilated place , avoid direct contact with corrosive substances, also away from sources of fire and heat.

Keep the SOC of the battery above 50% if you need to store it for an extended long period. It should be refresh charged every 3 months regularly and SOC should be maintained at about 50% if battery will be stored for a long term.

Technical Parameters:

Model	CNS-L1208
Nominal Voltage (V)	12.8
Nominal Capacity (Ah)	8
Total Energy (Wh)	102.4
End Charge Voltage (V)	14.6
Discharge Cut-of Voltage (V)	10
Float Charge Voltage (V)	13.8
Standard Charge/Discharge Current (A)	4 CH / 8 DCH
Max. Charge/Discharge Current (A)	8 CH / 10 DCH
Peak Output Current (A)	15@60s
Lithium Chemistry	LiFePO₄
Cycle Life	6000 @ 0.5C 80% DOD
Design Life	20 years
Scalability	2P or 2S
Mechinical Speciﬁcations
Dimension (mm)	W151 * D65 * H94
Weight (kg)	Approx. 1
Ingress Rating	IP 65
Safety Standards	UN38.3, CE
Environmental Speciﬁcations
Storage Temperature (°C)	-20 ~ 55
Operating Temperature Charge (°C)	0 ~ 55
Operating Temperature Discharge (°C)	-20 ~ 60
Operating Relative Humidity	5 ~ 95%
