IP65 Outdoor lithium battery 48V 50AH

Model:CNS-LFP4850-OD

Nominal Capacity: 50Ah
Nominal Voltage: 48V
Cycle life: 3600 Times

Communication port: RS485/CAN

Item No :
CNS-LFP4850-OD
Order(MOQ) :
50 pcs
Payment :
T/T
Product Origin :
China
Color :
Silver
Shipping Port :
Shenzhen
Lead Time :
4 weeks
Weight :
32 Kg

Inquire Now

IP65 Outdoor lithium battery 48V 50AH

System Profile

This product is an advanced product developed to meet the requirements of the new backup power supply of the current communication operators under the new trend of communication, with the characteristics of integration, miniaturization, lightness, intelligentization, standardization and environmental protection, it can be widely used in outdoor tower lamp-post station, indoor distributed weak electric well, micro-station and other environmental bad scenes, backup power supply for communication equipment such as RRU and AAU at the end of communication network. The utility model can meet the application scenarios of wall hanging, holding pole, angle steel tower and so on, and support the installation modes of flag installation, paperback installation, landing, etc.

Products in the sun, rain, dripping, wind, freezing, dust, wet outdoor environment, can be normal operation.

System Characteristics

1) The electric battery cell adopts the controllable double-valve structure design safety valve, the safety is high.

2) Integrated Design: 16 Series Battery Modules + BMS + aluminum die-casting enclosure.

3) High energy density, stable discharge platform, long service life, greatly reduce base station rejection rate.

4) The Modular design can be connected in parallel to expand the capacity according to the actual need.

5) All-round warning and protection functions (overcharge, overdischarge, short circuit, overload, overcurrent, high temperature, low temperature, equilibrium, dormancy).

6) Intelligent design, with remote sensing, remote signal functions, through the dynamic monitoring system remote communication.

7) The panel at the bottom of the box body is convenient and suitable for quick operation and outdoor wiring maintenance.

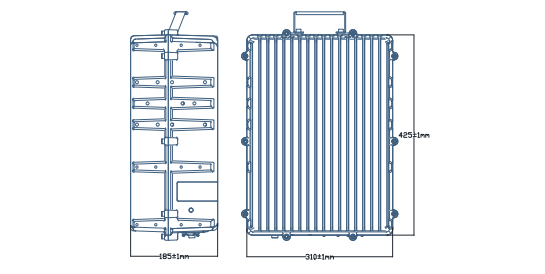

Product structure and size

Description of the product configuration

System configuration diagram

Note: The actual configuration shall be based on the actual goods

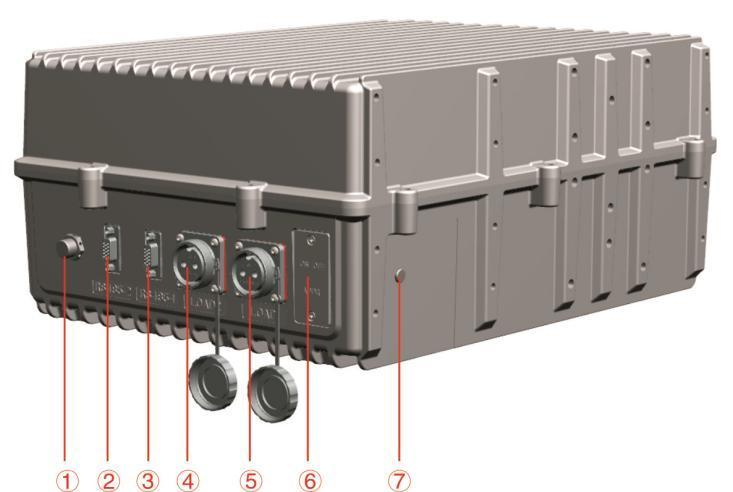

Panel interface description

Order number	Interface	Characteristic	Interface specification
①	Atmospheric valve
②	Communication interface 2 (DB 9 master hub)	RS 485-2	Connect the communication line
③	Communication interface 1 (DB 9 hub)	RS 4851	Connect the communication line
④	Battery charge and discharge interface and capacity expansion interface	LOAD 2	"Sign L to positive","sign N to negative"
⑤	Battery charge and discharge interface and capacity expansion interface	LOAD 1	"Sign L to positive", "sign N to negative"
⑥	Battery switch		Open the cover, press the switch for 6 seconds;
⑦	Pilot lamp		Normal green, alarm and protection are red

Other Service

Service hours: 9:00am-19:00pm (China time)

Product service:

1. Pre-sales consultation; After-sales worry-free.

2. Support OEM.

3. Online guidance and Technical support.

Product Warranty:

Two year warranty period against the B/L date 45 days later.（Possible to extend the warranty period to three years by add money）

Product Parameter Index

1.Basic parameters

Model specification	CNS-LFP4850-OD
Battery type	ithium iron phosphate
Nominal voltage	51.2V
Nominal capacity	50Ah
Cell specifications	3.2V/50Ah
Battery pack mode	16 single cells + BMS + aluminum outer case
Battery pack size	W310×D185×H425±1mm
Weight	31±1.0 kg
Working temperature	-20～60℃
Storage temperature	0～40℃
Working relative humidity	≤90%(40℃±2℃)
Work altitude	0 ～ 3600m
Working atmospheric pressure	70kpa-106kpa
Noise	0 db
Cycle life	3600 Times

2.Charging technology and operation parameters

Total voltage and overvoltage protection	58.0V
Total voltage and overvoltage protection delay time	2000mS
Charge excessive alarm	≥ 23A
Charge overcurrent alarm delay time	1000mS
Charging over-current protection	≥25A
Charge overcurrent protection delay time	15000mS
Charging high temperature alarm	40℃
Charging low temperature alarm	2℃
Charging high temperature protection	60℃
Charging low temperature protection	0℃

3.Discharge technology and operation parameters

Discharge current	0A～50A
Single-cell overdischarge alarm	2.90V
Single-cell overdischarge alarm delay time	2000mS
Single-cell overdischarge protection	2.70V
Delay time of single-cell overdischarge protection	2000mS
Total voltage overdischarge alarm	49.0V
Total voltage alarm delay time	1000mS
Total voltage release protection	40.0V
Total voltage release protection delay time	2000mS
Discharge overcurrent alarm	≥55A
Overdischarge alarm delay time	1000mS
Discharge and overcurrent protection	≥65A
Drain overcurrent protection delay time	15000mS
Discharge high-temperature alarm	40℃
Discharge low-temperature alarm	-10℃
Discharge high-temperature protection	60℃
Discharge low-temperature protection	-20℃

4.Other techniques and surgical parameters

Equalize the turn-on voltage	3.50V
Equalize the open voltage difference	20mV
Equalizing current	75mA
Short circuit protection current	> 3C
Short circuit protection delay	≤ 900us
Short circuit protection recovery mode	The load is disconnected, and it is restored automatically (or manually reset)
BMS working current	≤30mA
BMS dormancy current	≤100μA
Storage capacity	>500 Articles
Voltage display accuracy	±10mV
Current display accuracy	1.2%
SOC display precision	2.5%
Temperature display accuracy	1℃
