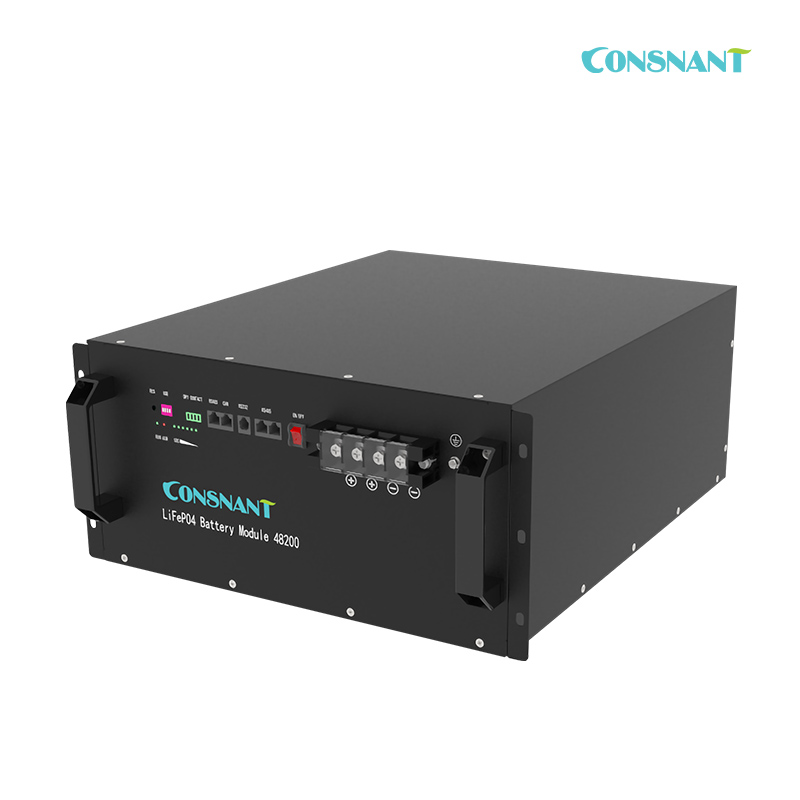

48V Telecom Battery ( LiFePO4 )

CNS-LFP48V Backup Power Series

Rate capacity: 100Ah-200Ah
Rate voltage: 48V
Cyclelife : >4000 cycles 80% DOD

Application field:

Telecom application;

Energy storage system;

Solar application;

Emergency lighting;

Medical equipment.

Item No :
CNS-LFP48V Backup Power Series
Order(MOQ) :
50 pcs
Payment :
T/T
Product Origin :
China
Color :
Black
Shipping Port :
Shenzhen
Lead Time :
1 week
Weight :
43-79 Kg

Inquire Now

48V Telecom Battery ( LiFePO4 )

Description

48V Telecom Battery ( LiFePO4 ) solution is mainly used for the backup purpose of telecommunication industry; its performance is in compliance with the requirements in the telecommunication standard, with the adoption of LiFePO4 battery structure packing by flexible plastic film or aluminum alloy rigid packaging, it can satisfy the higher and new requirements of the telecom sector for the communication backup batteries.

High-quality lithium iron phosphate batteries, safe and reliable; More rechargeable time, longer lifetime, and economic and environmental protection.

Features:

Communication functions, ensuring the reliability of battery pack performance and achieving remote real-time monitoring of battery data.
Standard maintenance free design, suitable for installation in 19 inch communication cabinets.
Wide temperature range and high reliability.
Long lifespan, with battery pack cycling llife exceeding 4000 times.
Low internal resistance of the battery, superior rate discharge performance.
Multiple battery packs can be used in parallel, suitable for high-capacity applications.

Technical Parameters:

Model	LFP48100	LFP48150	LFP48200	LFP51.2100	LFP51.2150	LFP51.2200
Electrical Parameter
Rate voltage	48V			51.2V
Rate capacity	100AH	150AH	200AH	100AH	150AH	200AH
Energy	4800Wh	7200Wh	9600Wh	5120Wh	7680Wh	10240Wh
Cycle life	>4000 cycles 80% DOD
Internal lmpedance	<50 mΩ
Designed life	10 Years
Operating Parameter
Charge voltage	53.2V			56.8V
Charge current	50A	75A	100A	50A	75A	100A
Max. charge current	100A	100A	100A	100A	100A	100A
Discharge cut-off voltage	37.5V			40V
Discharge current	50A	75A	100A	50A	75A	100A
Max. discharge current	100A	100A	100A	100A	100A	100A
Discharge temperature	-20~55℃
Charge temperature	0～55℃
Storage temperature	-10~45℃
Functional items
Parallel connection	Max 15P
Communication Port	RS485/SNMP
SOC display	LED
Mechanical Parameter
Terminal	Terminal block
Weight	43KG	69KG	78KG	44KG	70KG	79KG
Dimension(WxDxH)mm	445x430x132	445x560x177	445x560x222	445x430x132	445x560x177	445x560x222
Protection	IP30
Standard
Certification	CE

Lithum Battery Pack (LiFePO4).pdf
