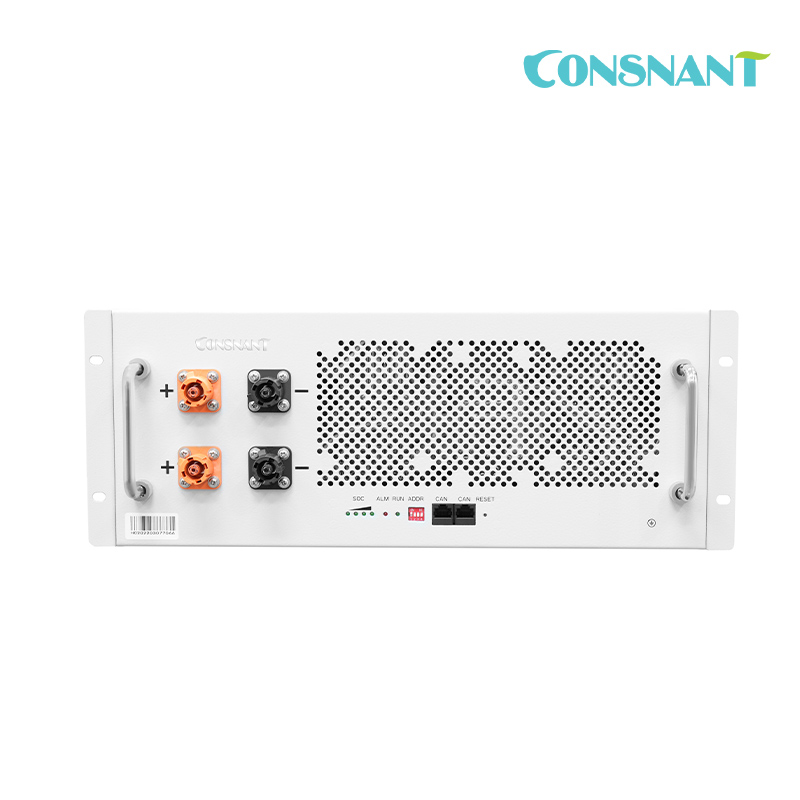

Model: CN-LFP48100Ah
Nominal Capacity: 100AH
Watt Hours: 5120Wh
Nominal Voltage: 51.2VDC
Solar ESS
Telecom
Item No :
CN-LFP48100AhOrder(MOQ) :
10 pcsPayment :
T/TProduct Origin :
ChinaColor :
WhiteShipping Port :
ShenzhenLead Time :
1 weeksWeight :
52.4 Kg
1. SAFETY
LiFePO4 cells, Longer cycle life and much more safety.
Low voltage system, safety for application.
IEC62619, UL1642, UN38.3 certification for cell.
UN38.3 certification for system.
2. DESIGN
Standard 19″ rack design.
Flexible and easily installation.
-20~+55°C widely temperature range.
Maintenance free.
3. SCALABILITY
Parallel support for more energy.
Optional accessories for LCD display, MCB, GPS Anti-theft.
4. BATTERY MANAGEMENT SYSTEM
Independent protection for charge and discharge.
SOC, SOH display and PC software for detailed operation.
OVP, LVP, OCP, OTP, LTP protection.
RS232, RS485,CAN communication port.
Technical Parameters:
| Model | CN-LFP48V100Ah |
| Cell Type | LiFePo4 |
| Internal Connection | 16S1P |
| Nominal Voltage [V] | 51.2 |
| Nominal Capacity [Ah] | 100 |
| Total Energy[Wh] | 5120 |
| Dimension(W*D*H,mm) | 482(441)*510*175 |
| Weight [Kg] | 52.4 |
| Max. Charging Current [A] | 100 |
| Max. Discharging Current [A] | 100 |
| Pulse Discharge Current | 105A(25℃±3℃；‹1S) |
| Charging Voltage[V] | 56~57.6 |
| End of Discharge Voltage [V] | 40.5V |
| Operation Humidity | 0~95%RH(No condensing) |
| Operating Temperature Range | Charge:0~+50℃;Discharge:-20~+55℃ |
| Cycle Life | >3500 |
| Designed Calendar Life | 10 Years |
| Communication interface | RS232,RS485,CAN |
| Protection | Over-voltage, Low voltage, Over current, Over Temperature, Low Temperature, Short circuit |
| Parallel Support | Yes,Max.15 Sets |
| Optional Parts | MCB; LCD display; Gyroscope Anti-theft; Gyroscope Anti-theft; |
